17251 SERIES

17251 EC Axial Fan, features a compact 172 × 150 × 51mm design, and Plastic (94V-0) impeller. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.

Size: 172 × 150 × 51mm
Impeller Material: Plastic (94V-0)
Operating Temperature: -10–70°C (Non-condensing)
Lead Wire: UL1007 AWG #24 or equivalent; (AC) Black, (AC) Black

Chat Now Message Email

Product details

Parameters

Dimensions and construction

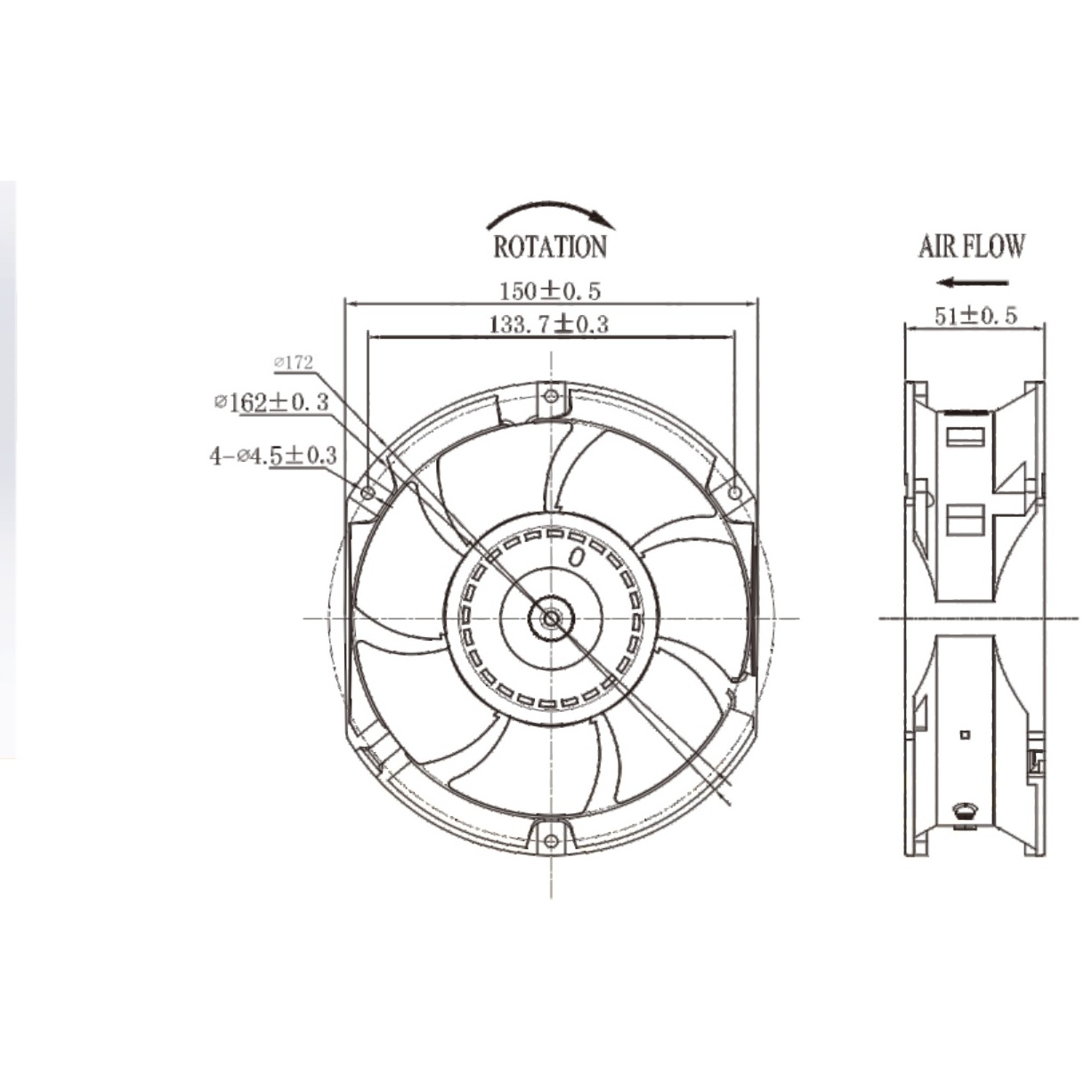

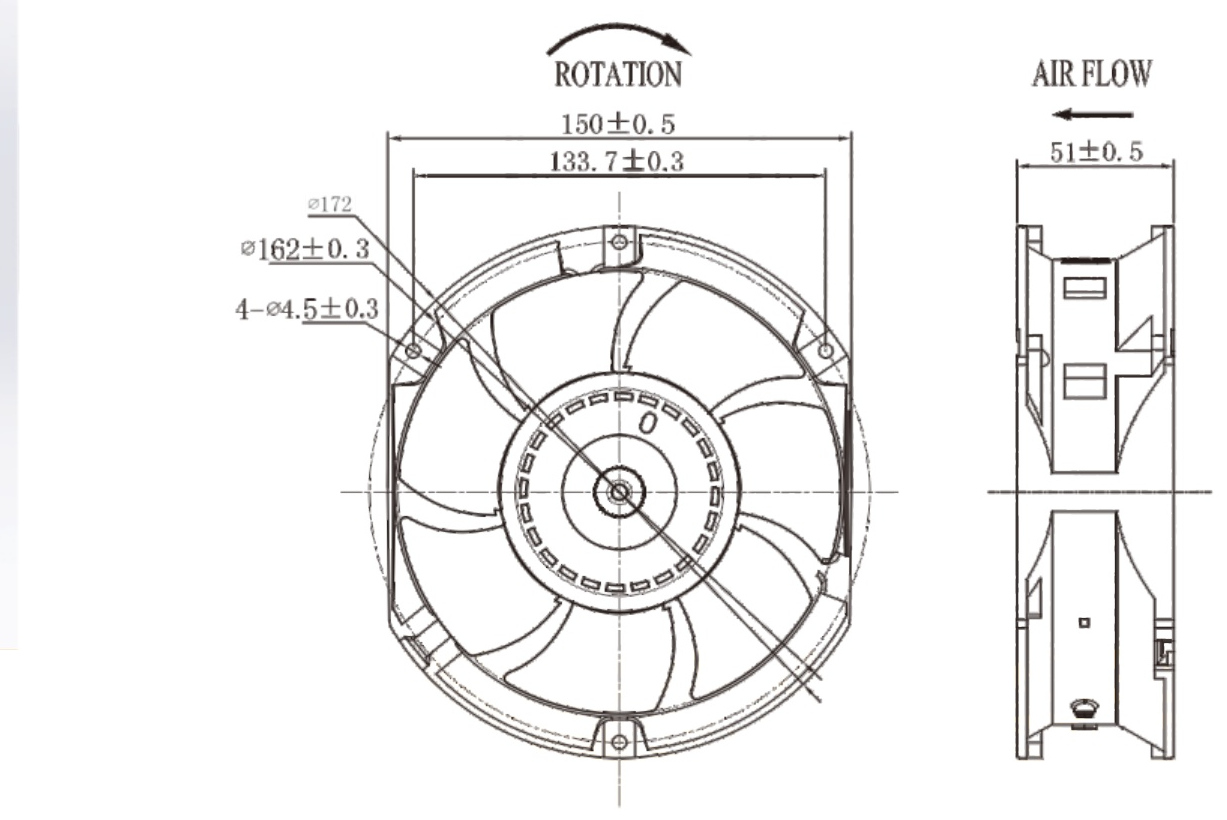

Source dimensional drawing for the 17251 series.

Performance curve

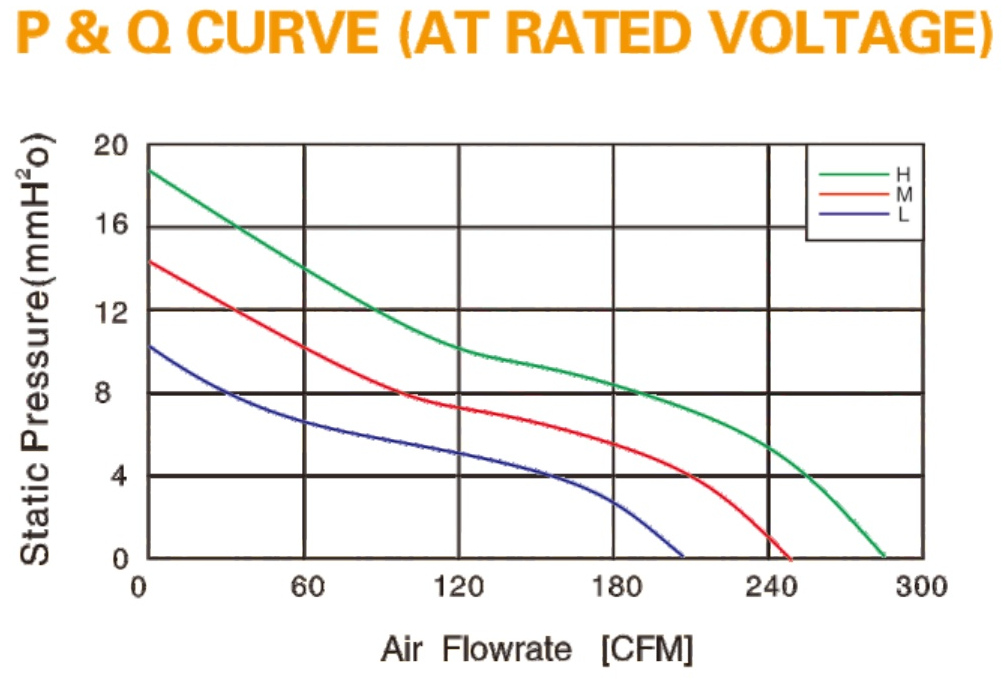

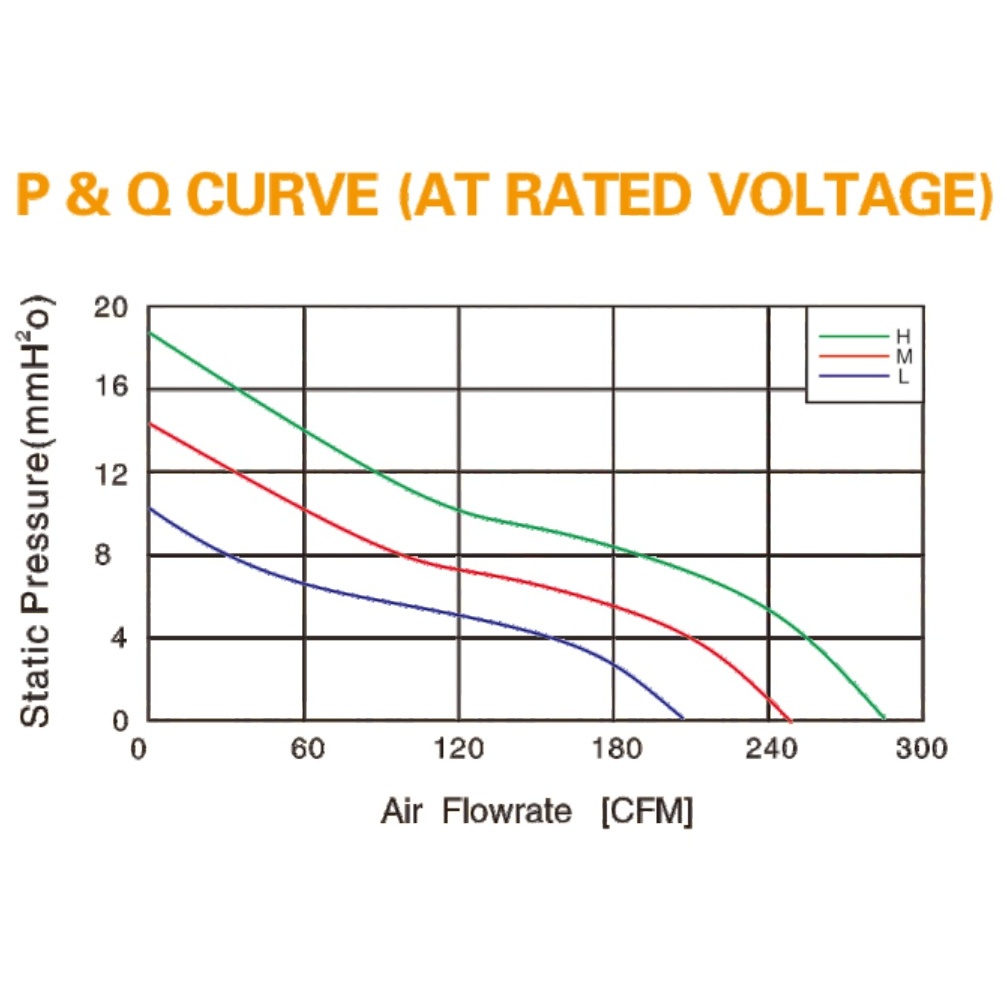

Source performance curve for the 17251 series.

17251 technical parameters

Product description

Product Category	EC Axial Fan
Series	17251
Size	172 × 150 × 51mm
Frame Material	Aluminum Alloy
Impeller Material	Plastic (94V-0)
Lead Wire	UL1007 AWG #24 or equivalent; (AC) Black, (AC) Black
Ball Bearing Life	70,000 hours at 40°C
Sleeve Bearing Life	30,000 hours at 40°C
Operating Temperature	-10–70°C (Non-condensing)
Storage Temperature	-40–70°C (Non-condensing)
Special Options	AS, FG, RD, PWM, TC, IP54

Model specifications

Model	Function	Rated Voltage (V)	Operating Voltage (V)	Rated Current (A)	Rated Power (W)	Rated Speed (RPM ±10%)	Max Air Flow (CMM)	Max Air Flow (CFM)	Max Static Pressure (inH₂O)	Max Static Pressure (mmH₂O)	Noise Level (dB(A))
E17251HA2B	R00/F00	220	85–265	0.12	25	3500	7.72	272.5	0.747	18.97	58
E17251MA2B	R00/F00	220	85–265	0.09	19	3100	6.83	241.4	0.586	14.88	55.4
E17251LA2B	R00/F00	220	85–265	0.06	13	2600	5.73	202.4	0.412	10.47	51.5
