18060 SERIES

18060 EC Axial Fan, features a compact 180 × 180 × 60mm design, and Plastic (94V-0) impeller. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.

Size: 180 × 180 × 60mm
Impeller Material: Plastic (94V-0)
Operating Temperature: -10–70°C (Non-condensing)
Lead Wire: UL1007 AWG #24 or equivalent; (AC) Black, (AC) Black

Chat Now Message Email

Product details

Parameters

Dimensions and construction

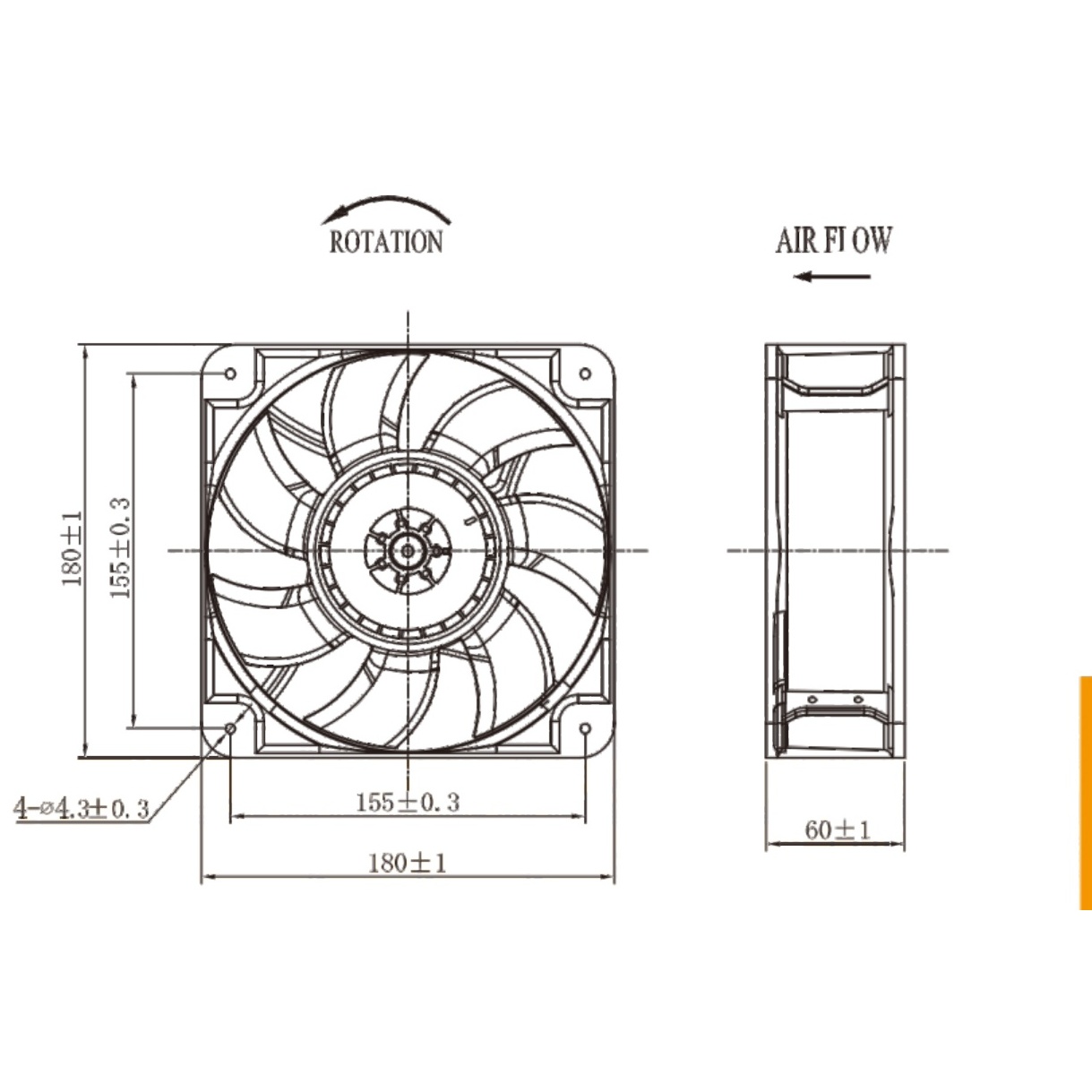

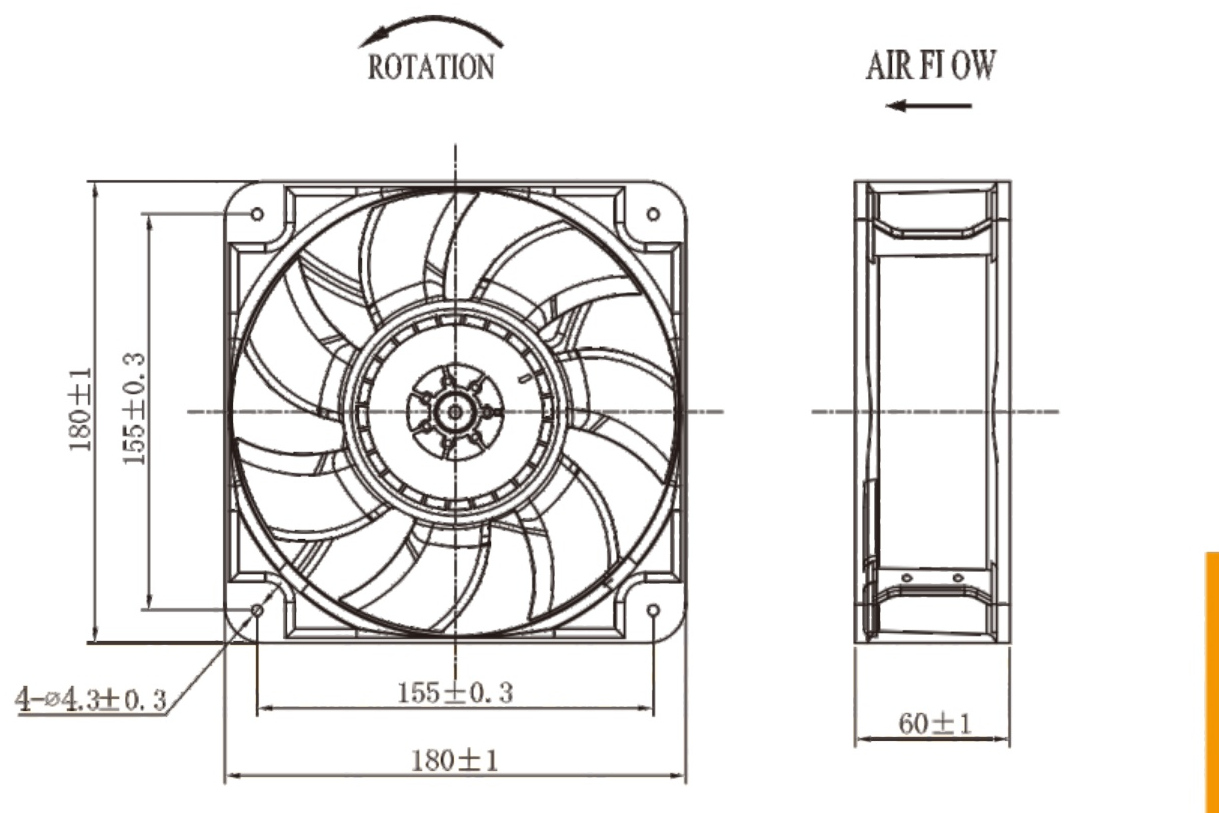

Source dimensional drawing for the 18060 series.

Performance curve

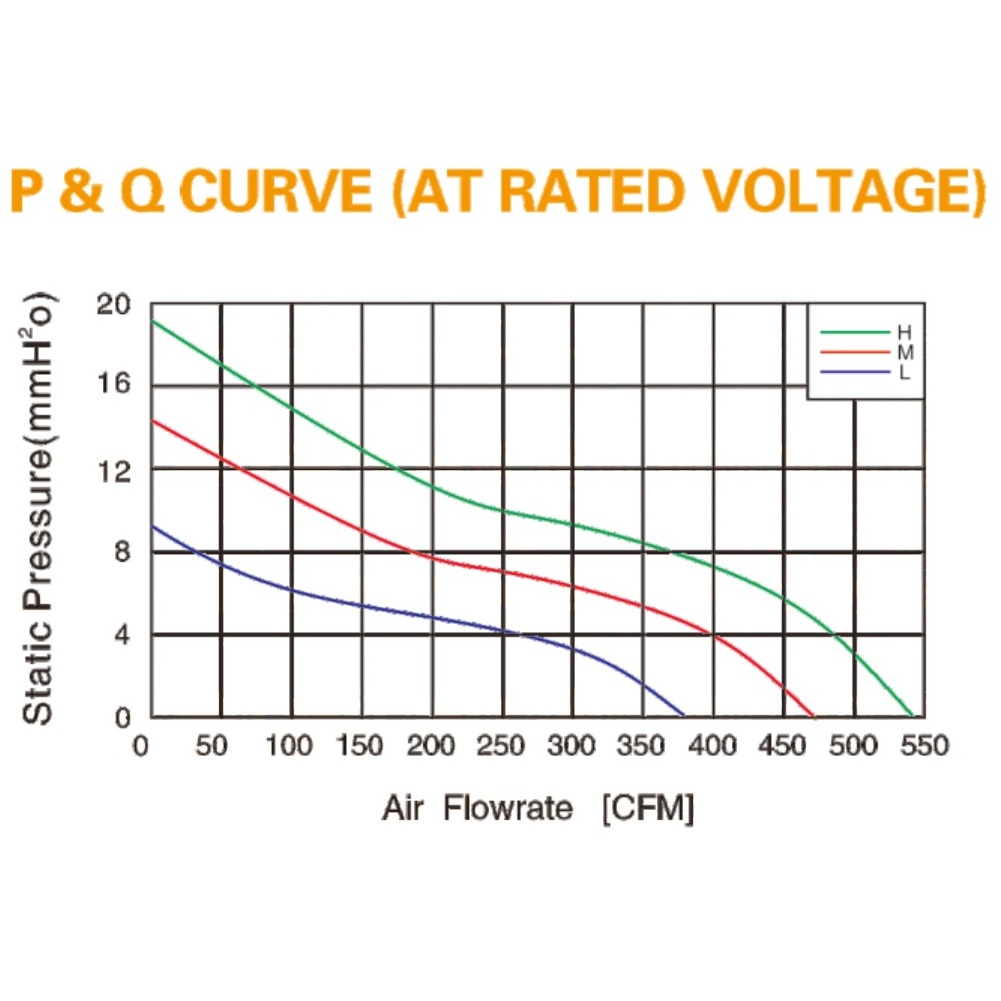

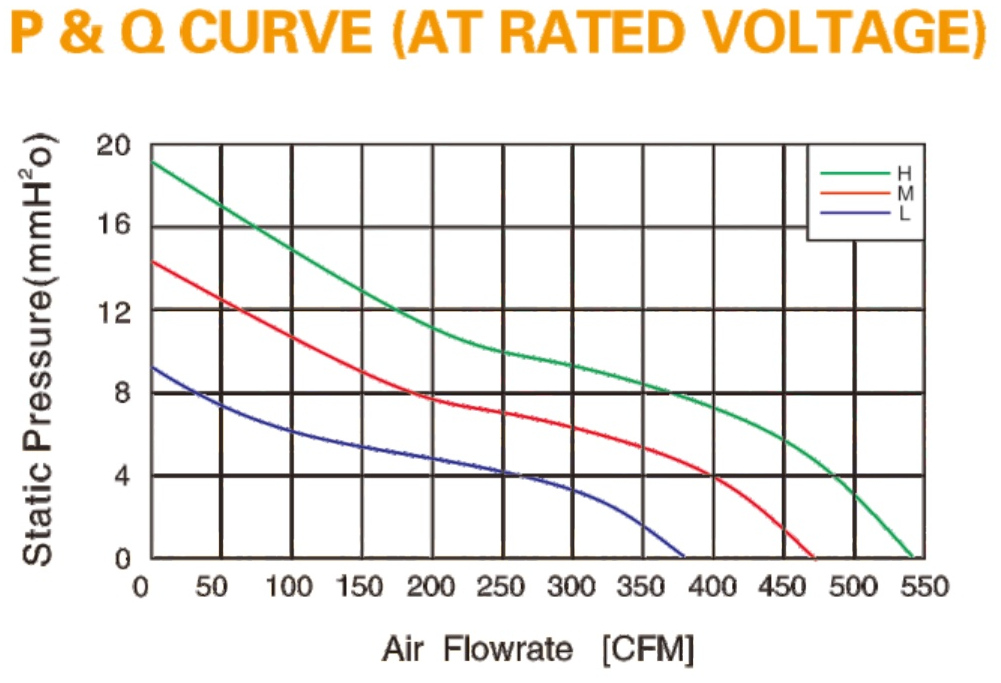

Source performance curve for the 18060 series.

18060 technical parameters

Product description

Product Category	EC Axial Fan
Series	18060
Size	180 × 180 × 60mm
Frame Material	Aluminum Alloy
Impeller Material	Plastic (94V-0)
Lead Wire	UL1007 AWG #24 or equivalent; (AC) Black, (AC) Black
Ball Bearing Life	70,000 hours at 40°C
Sleeve Bearing Life	30,000 hours at 40°C
Operating Temperature	-10–70°C (Non-condensing)
Storage Temperature	-40–70°C (Non-condensing)
Special Options	AS, FG, RD, PWM, TC, IP54

Model specifications

Model	Function	Rated Voltage (V)	Operating Voltage (V)	Rated Current (A)	Rated Power (W)	Rated Speed (RPM ±10%)	Max Air Flow (CMM)	Max Air Flow (CFM)	Max Static Pressure (inH₂O)	Max Static Pressure (mmH₂O)	Noise Level (dB(A))
E18060HA2B	R00/F00	220	85–265	0.33	38	2900	14.99	529.5	0.76	19.2	68
E18060MA2B	R00/F00	220	85–265	0.19	25	2500	12.92	456.2	0.56	14.3	64
E18060LA2B	R00/F00	220	85–265	0.11	13	2000	10.34	365.0	0.36	9.13	59
