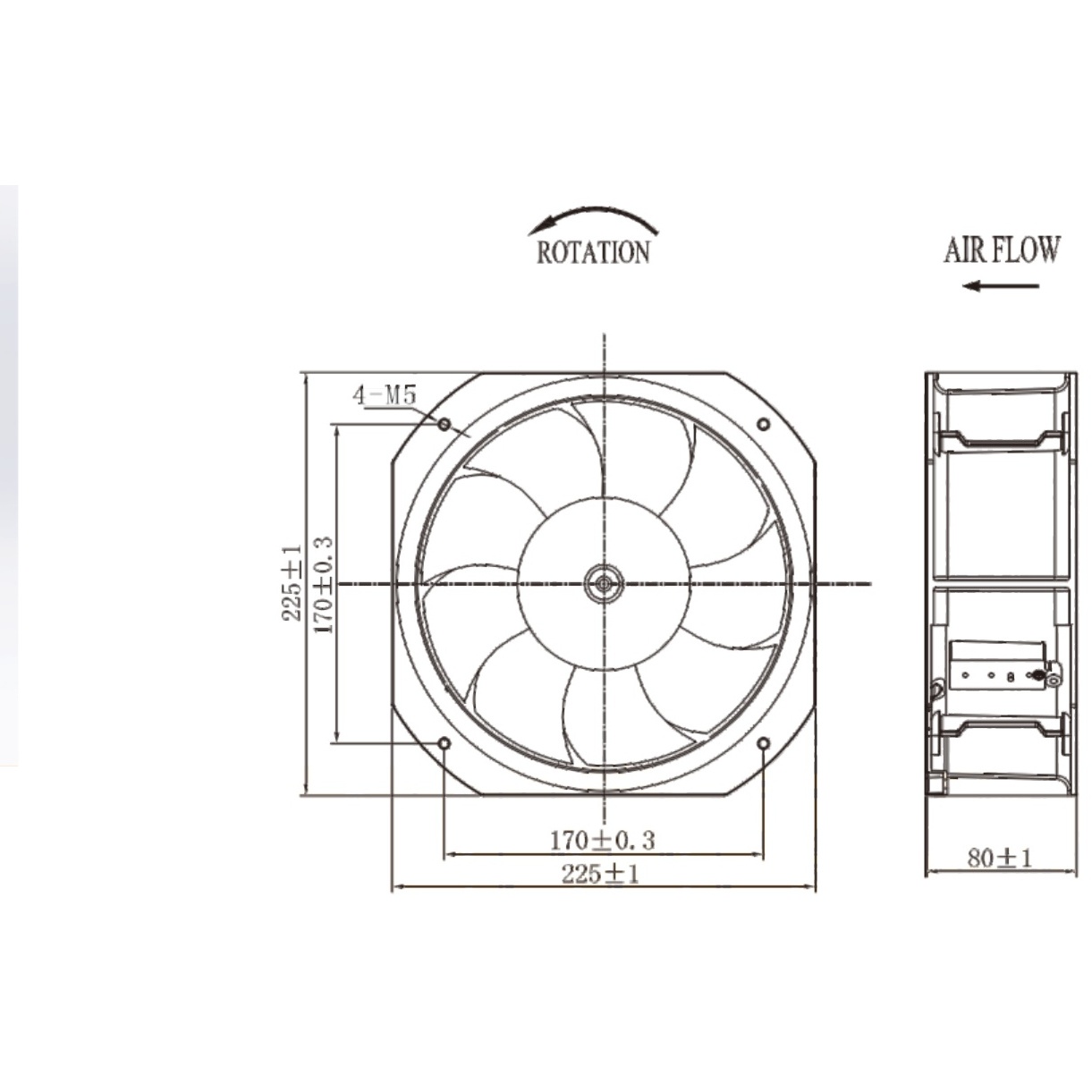

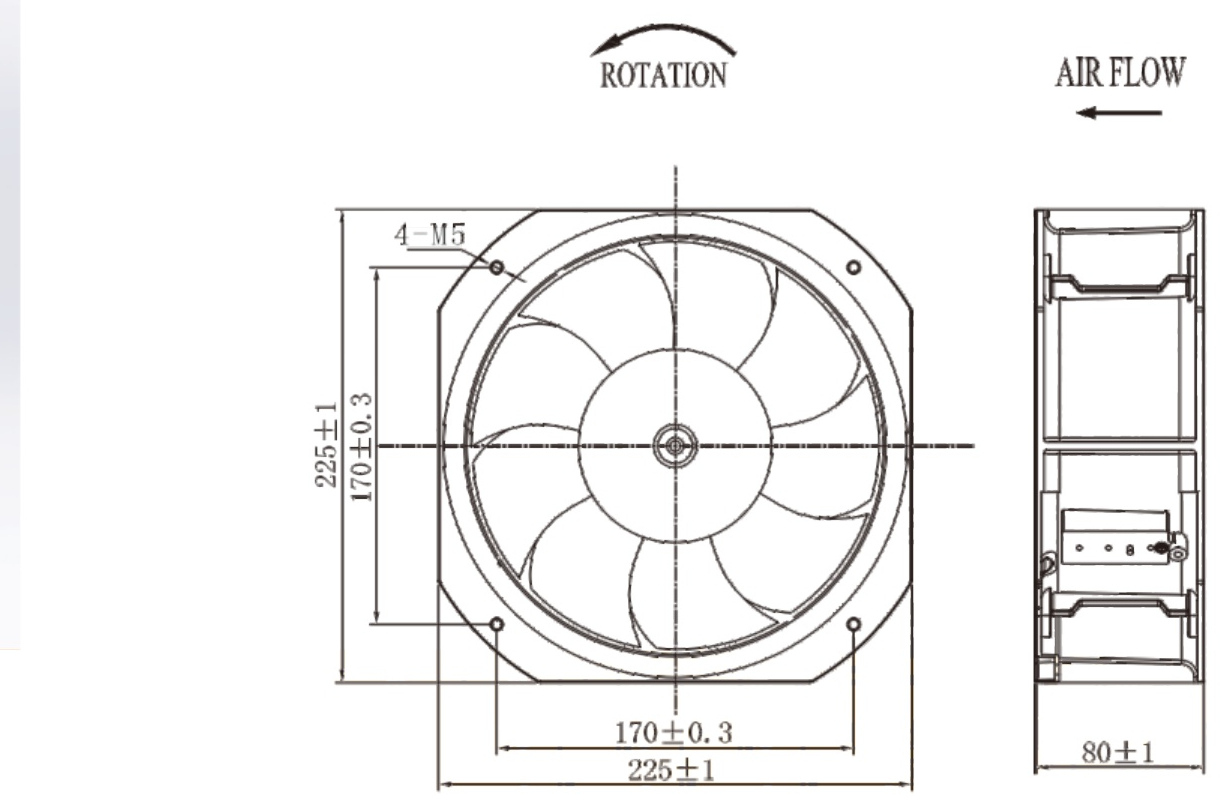

Source dimensional drawing for the 22580 series.

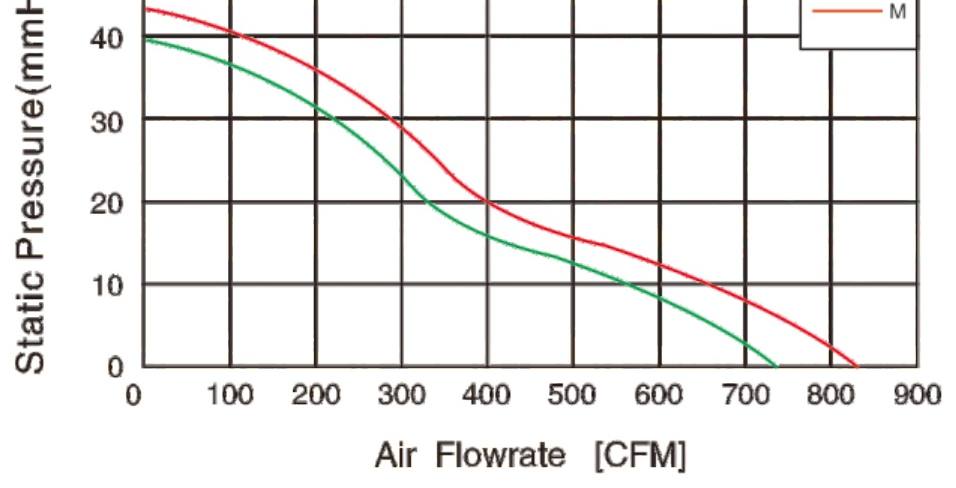

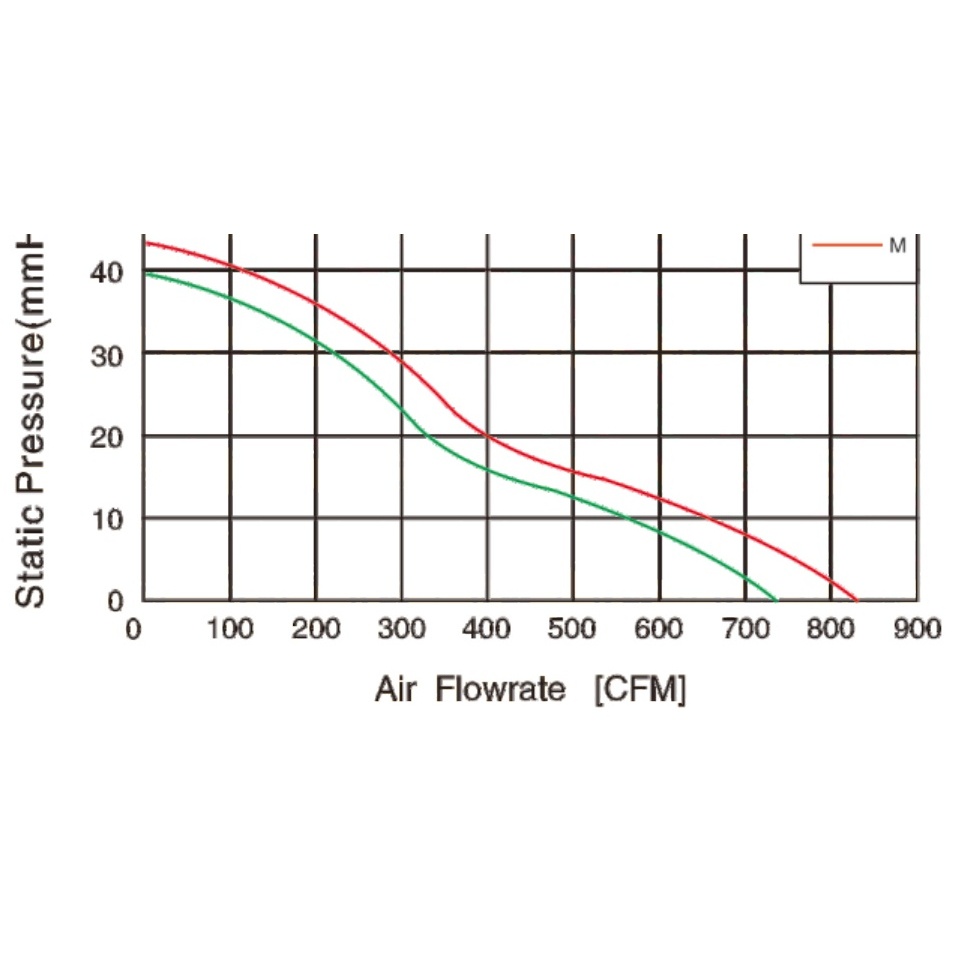

Source performance curve for the 22580 series.
| Product Category | DC Axial Fan |
|---|---|
| Series | 22580 |
| Size | 225 × 225 × 80mm |
| Frame Material | Aluminum Alloy |
| Impeller Material | Metal |
| Lead Wire | UL1007 AWG #24 or equivalent; (+) red, (-) Black |
| Ball Bearing Life | 70,000 hours at 40°C |
| Sleeve Bearing Life | 30,000 hours at 40°C |
| Operating Temperature | -10–70°C (Non-condensing) |
| Storage Temperature | -40–70°C (Non-condensing) |
| Special Options | AS, FG, RD, PWM, TC, IP54 |
| Model | Rated Voltage (V) | Operating Voltage (V) | Rated Current (A) | Actual Current (A) | Rated Power (W) | Rated Speed (RPM ±10%) | Max Air Flow (CMM) | Max Air Flow (CFM) | Max Static Pressure (inH₂O) | Max Static Pressure (mmH₂O) | Noise Level (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JL22580H24B | 24 | 18–28 | 5 | 4.5 | 120 | 3500 | 23.56 | 832.00 | 1.693 | 43 | 68 |
| JL22580M24B | 24 | 18–28 | 3.5 | 3.1 | 84 | 3100 | 20.53 | 725.00 | 1.614 | 41 | 65 |
| JL22580H48B | 48 | 36–60 | 2.5 | 2.3 | 120 | 3500 | 23.56 | 832.00 | 1.693 | 43 | 68 |
| JL22580M48B | 48 | 36–60 | 1.75 | 1.6 | 84 | 3100 | 20.53 | 725.00 | 1.614 | 41 | 65 |
