28080 SERIES

28080 DC Axial Fan, features a compact 280 × 280 × 80mm design, and Plastic (94V-0) impeller. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.

Size: 280 × 280 × 80mm
Impeller Material: Plastic (94V-0)
Operating Temperature: -10–70°C (Non-condensing)
Lead Wire: UL1007 AWG #24 or equivalent; (+) red, (-) Black

Chat Now Message Email

Product details

Parameters

Dimensions and construction

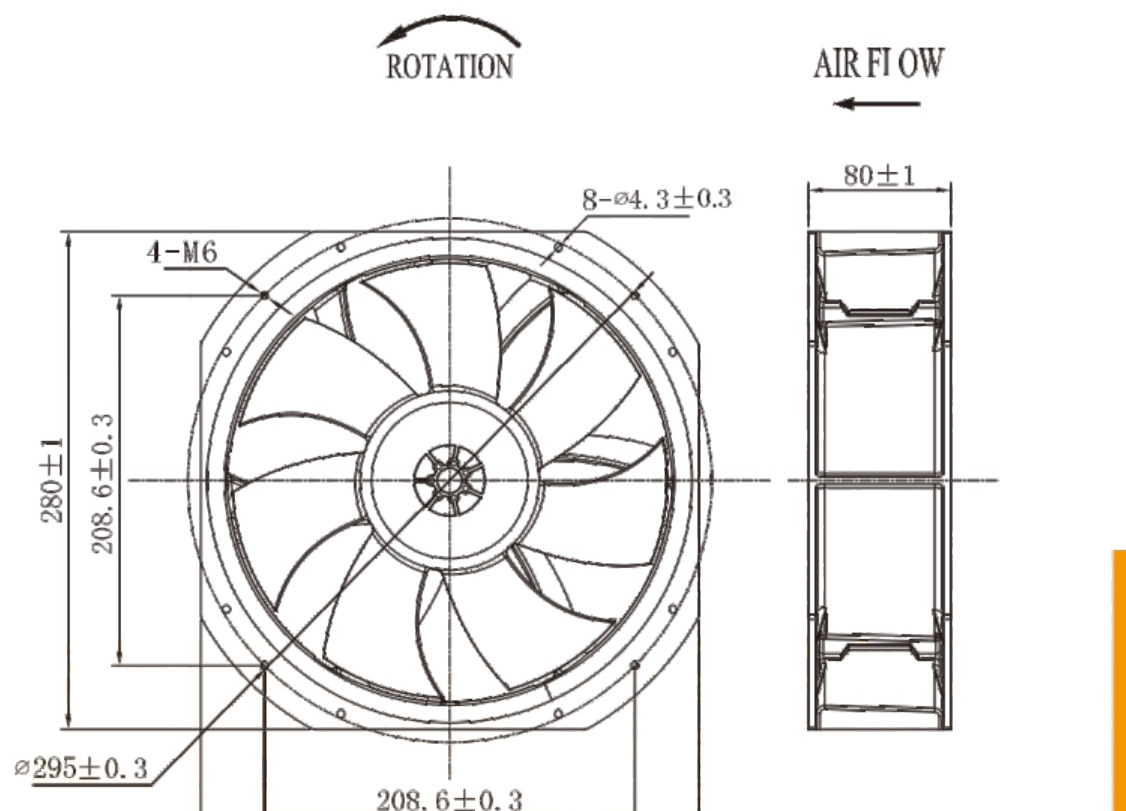

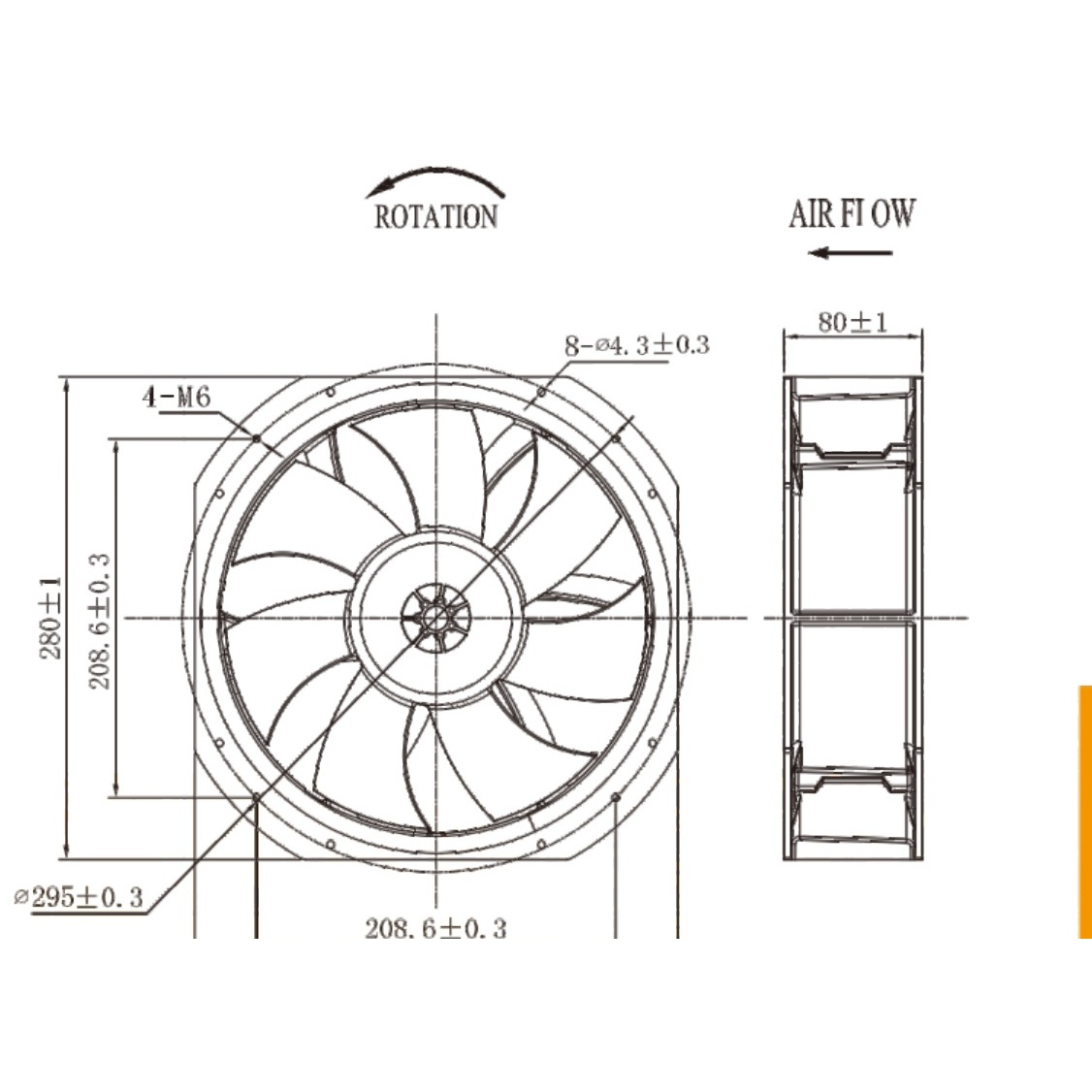

Source dimensional drawing for the 28080 series.

Performance curve

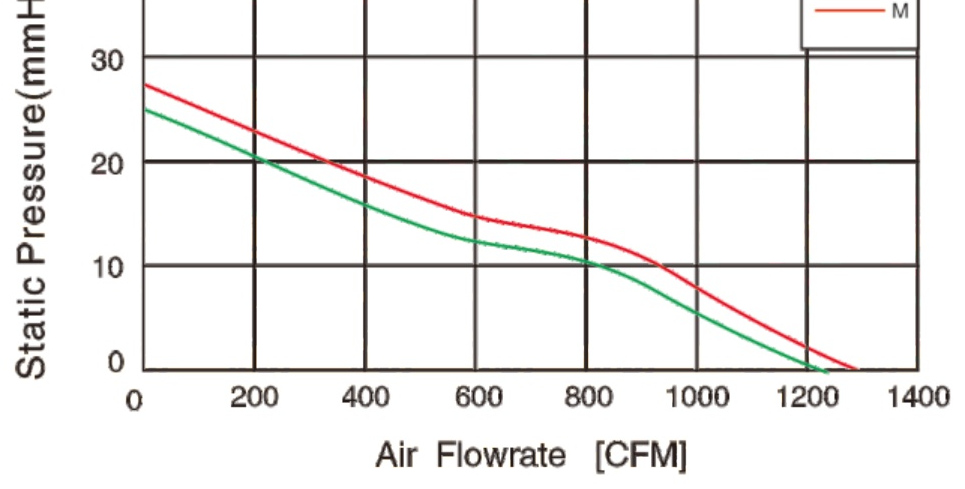

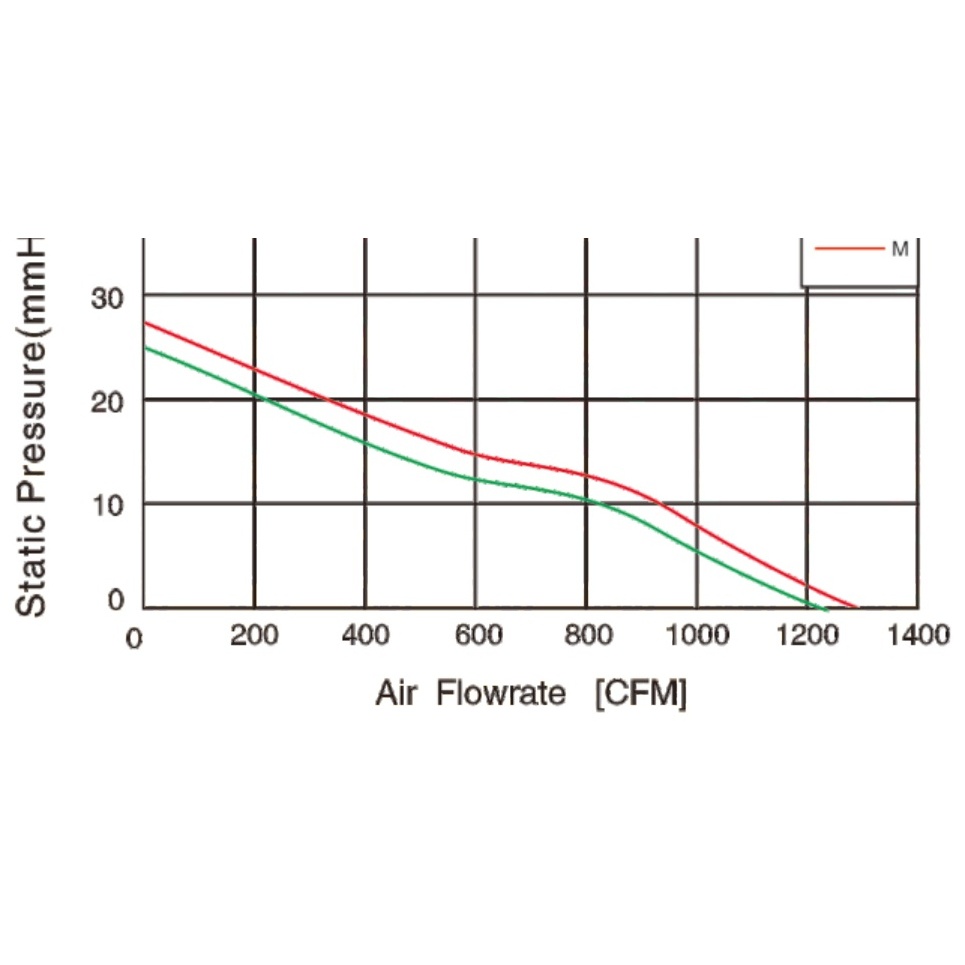

Source performance curve for the 28080 series.

28080 technical parameters

Product description

Product Category	DC Axial Fan
Series	28080
Size	280 × 280 × 80mm
Frame Material	Aluminum Alloy
Impeller Material	Plastic (94V-0)
Lead Wire	UL1007 AWG #24 or equivalent; (+) red, (-) Black
Ball Bearing Life	70,000 hours at 40°C
Sleeve Bearing Life	30,000 hours at 40°C
Operating Temperature	-10–70°C (Non-condensing)
Storage Temperature	-40–70°C (Non-condensing)
Special Options	AS, FG, RD, PWM, TC, IP54

Model specifications

Model	Rated Voltage (V)	Operating Voltage (V)	Rated Current (A)	Actual Current (A)	Rated Power (W)	Rated Speed (RPM ±10%)	Max Air Flow (CMM)	Max Air Flow (CFM)	Max Static Pressure (inH₂O)	Max Static Pressure (mmH₂O)	Noise Level (dB(A))
JL28080H24B	24	18–28	6	5.8	140	3200	35.96	1270	1.102	28	75
JL28080M24B	24	18–28	5	4.8	116	3000	34.38	1214	0.992	25.2	70
JL28080H48B	48	36–60	6	5.8	140	3200	35.96	1270	1.102	28	75
JL28080M48B	48	36–60	5	4.8	116	3000	34.38	1214	0.992	25.2	70
