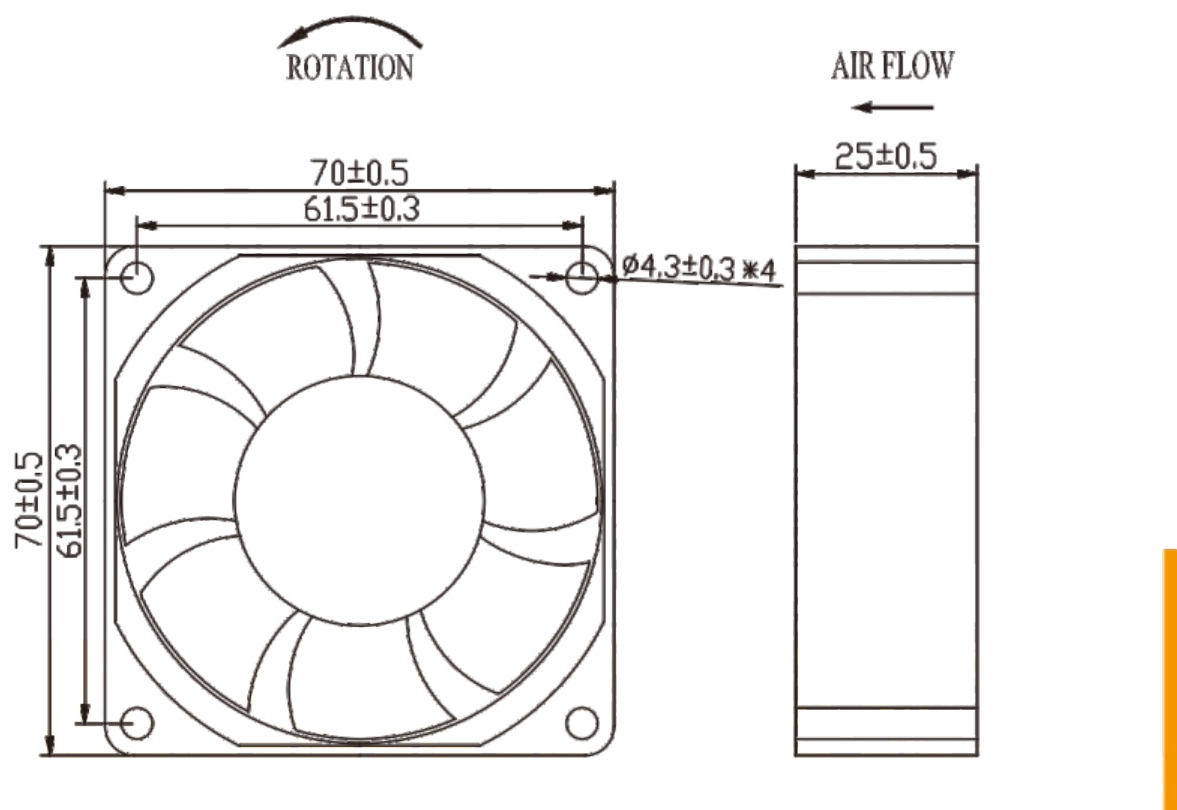

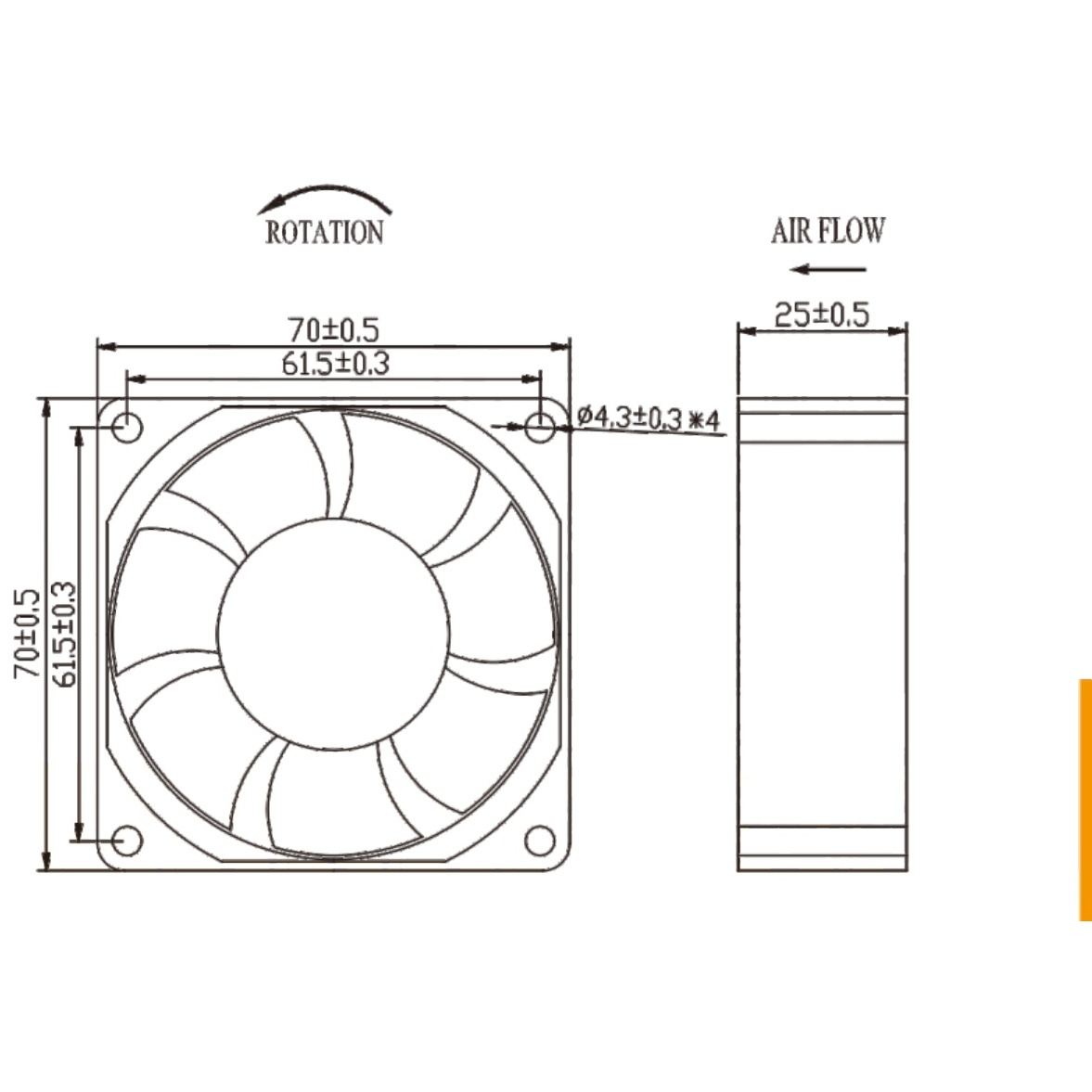

Source dimensional drawing for the 7025 series.

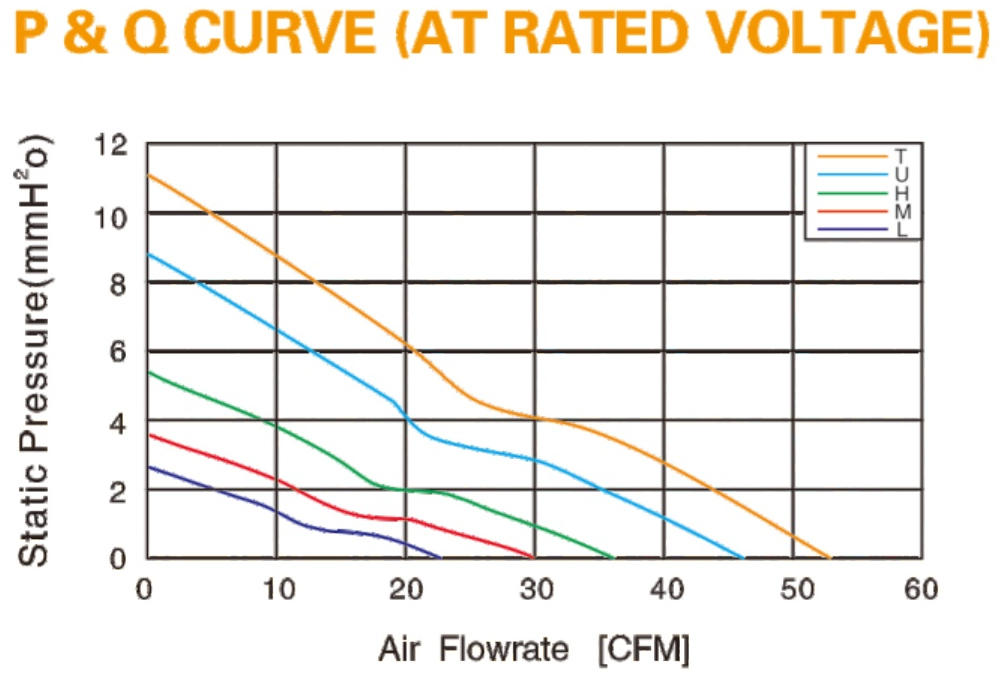

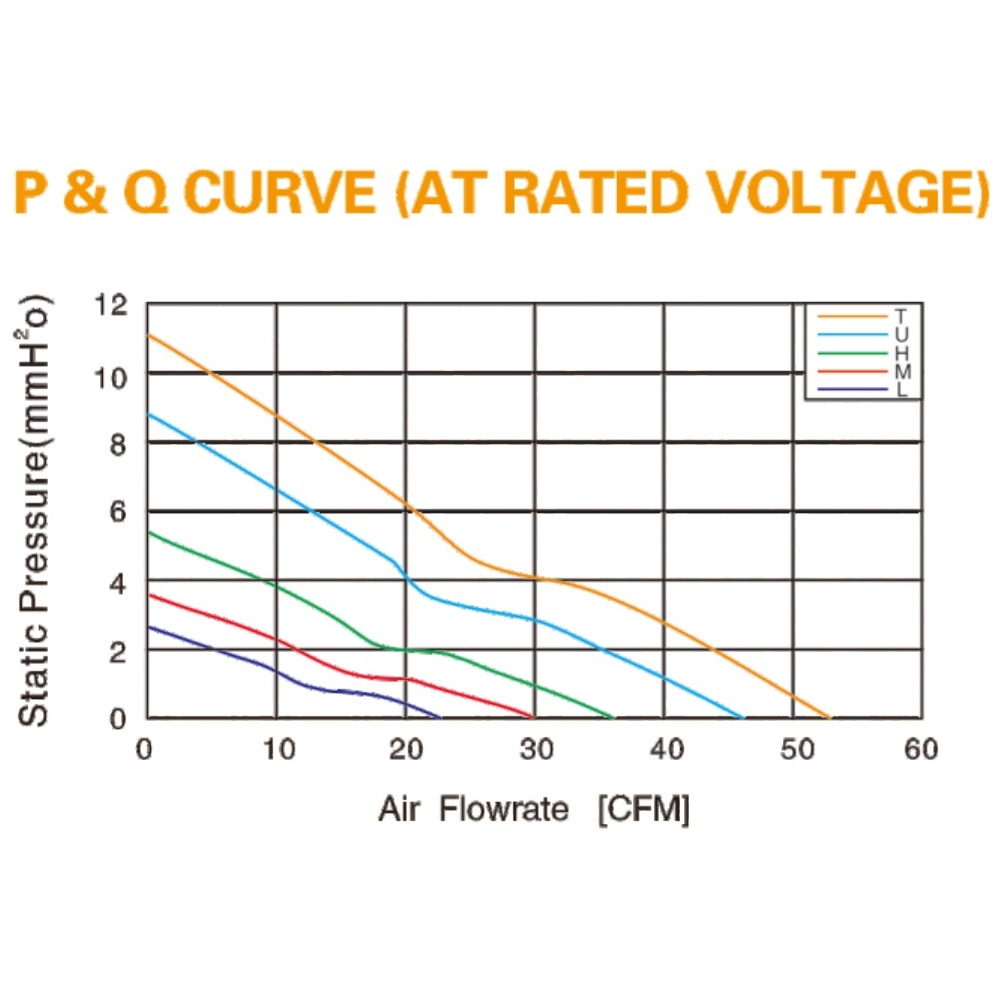

Source performance curve for the 7025 series.
| Product Category | DC Axial Fan |
|---|---|
| Series | 7025 |
| Size | 70 × 70 × 25mm |
| Frame Material | Plastic (94V-0) |
| Impeller Material | Plastic (94V-0) |
| Lead Wire | UL1007 AWG #24 or equivalent; (+) red, (-) Black |
| Ball Bearing Life | 70,000 hours at 40°C |
| Sleeve Bearing Life | 30,000 hours at 40°C |
| Operating Temperature | -10–70°C (Non-condensing) |
| Storage Temperature | -40–70°C (Non-condensing) |
| Special Options | AS, FG, RD, PWM, TC, IP55 |
| Model | Rated Voltage (V) | Operating Voltage (V) | Rated Current (A) | Actual Current (A) | Rated Power (W) | Rated Speed (RPM ±10%) | Max Air Flow (CMM) | Max Air Flow (CFM) | Max Static Pressure (inH₂O) | Max Static Pressure (mmH₂O) | Noise Level (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JL7025T12Y | 12 | 6–13.2 | 0.6 | 0.55 | 6.60 | 5600 | 1.498 | 52.9 | 0.448 | 11.39 | 47.9 |
| JL7025U12Y | 12 | 6–13.2 | 0.4 | 0.35 | 4.20 | 4800 | 1.283 | 45.3 | 0.330 | 8.37 | 44.5 |
| JL7025H12Y | 12 | 6–13.2 | 0.28 | 0.25 | 3.00 | 3800 | 1.017 | 35.9 | 0.207 | 5.25 | 39.5 |
| JL7025M12Y | 12 | 6–13.2 | 0.17 | 0.15 | 1.80 | 3200 | 0.856 | 30.24 | 0.146 | 3.72 | 35.7 |
| JL7025L12Y | 12 | 6–13.2 | 0.07 | 0.06 | 0.72 | 2600 | 0.697 | 24.6 | 0.097 | 2.46 | 31.2 |
| JL7025T24Y | 24 | 12–26.4 | 0.3 | 0.28 | 6.72 | 5600 | 1.498 | 52.9 | 0.448 | 11.39 | 47.9 |
| JL7025U24Y | 24 | 12–26.4 | 0.2 | 0.18 | 4.32 | 4800 | 1.283 | 45.3 | 0.330 | 8.37 | 44.5 |
| JL7025H24Y | 24 | 12–26.4 | 0.15 | 0.13 | 3.12 | 3800 | 1.017 | 35.9 | 0.207 | 5.25 | 39.5 |
| JL7025M24Y | 24 | 12–26.4 | 0.09 | 0.08 | 1.92 | 3200 | 0.856 | 30.24 | 0.146 | 3.72 | 35.7 |
| JL7025L24Y | 24 | 12–26.4 | 0.04 | 0.03 | 0.72 | 2600 | 0.697 | 24.6 | 0.097 | 2.46 | 31.2 |
| JL7025T48Y | 48 | 36–52.8 | 0.15 | 0.14 | 6.72 | 5600 | 1.498 | 52.9 | 0.448 | 11.39 | 47.9 |
| JL7025U48Y | 48 | 36–52.8 | 0.1 | 0.09 | 4.32 | 4800 | 1.283 | 45.3 | 0.330 | 8.37 | 44.5 |
| JL7025H48Y | 48 | 36–52.8 | 0.08 | 0.07 | 3.36 | 3800 | 1.017 | 35.9 | 0.207 | 5.25 | 39.5 |
