8015 SERIES

8015 DC Axial Fan, features a compact 80 × 80 × 15mm design, and Plastic (94V-0) impeller. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.

Size: 80 × 80 × 15mm
Impeller Material: Plastic (94V-0)
Operating Temperature: -10–70°C (Non-condensing)
Lead Wire: UL1007 AWG #24 or equivalent; (+) red, (-) Black

Chat Now Message Email

Product details

Parameters

Dimensions and construction

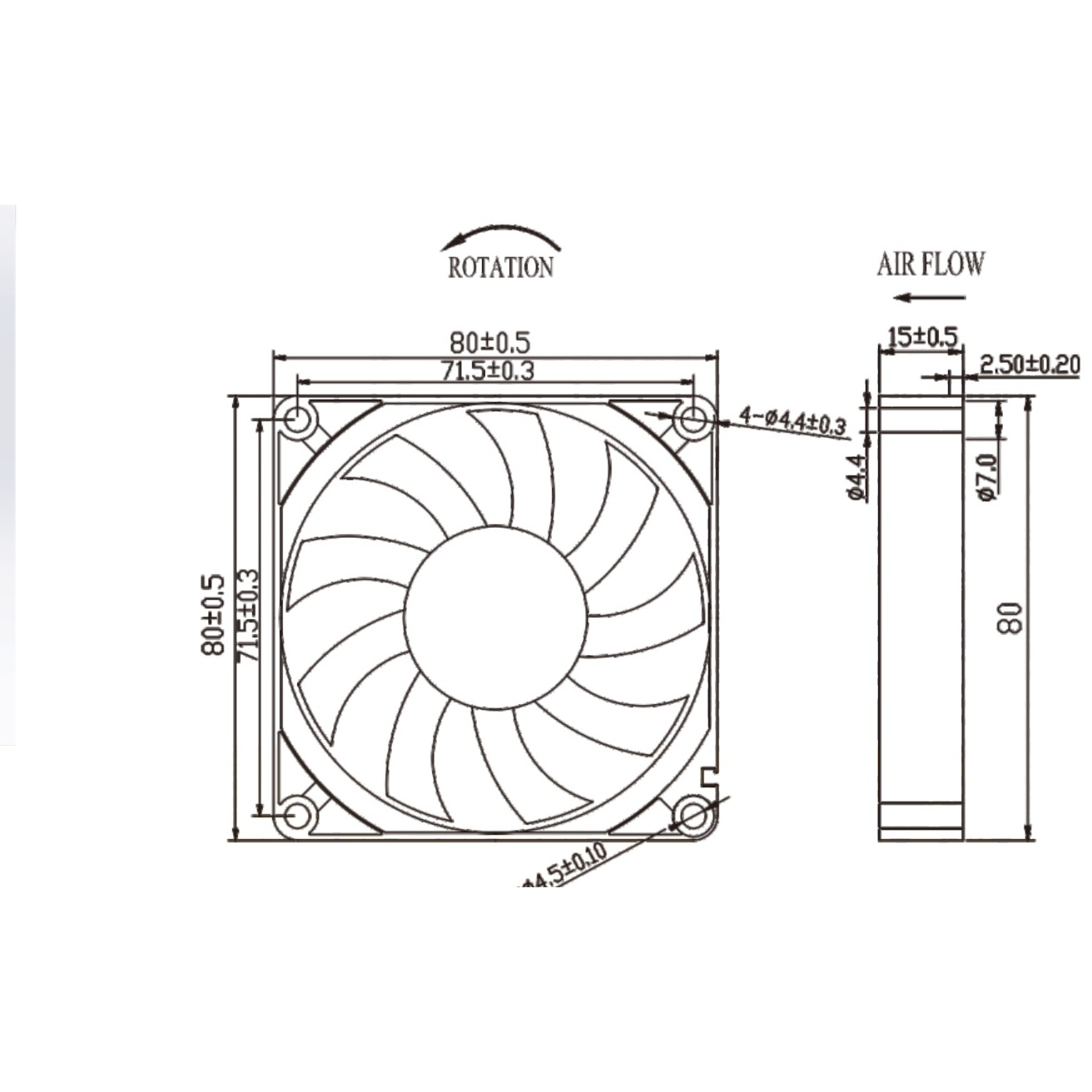

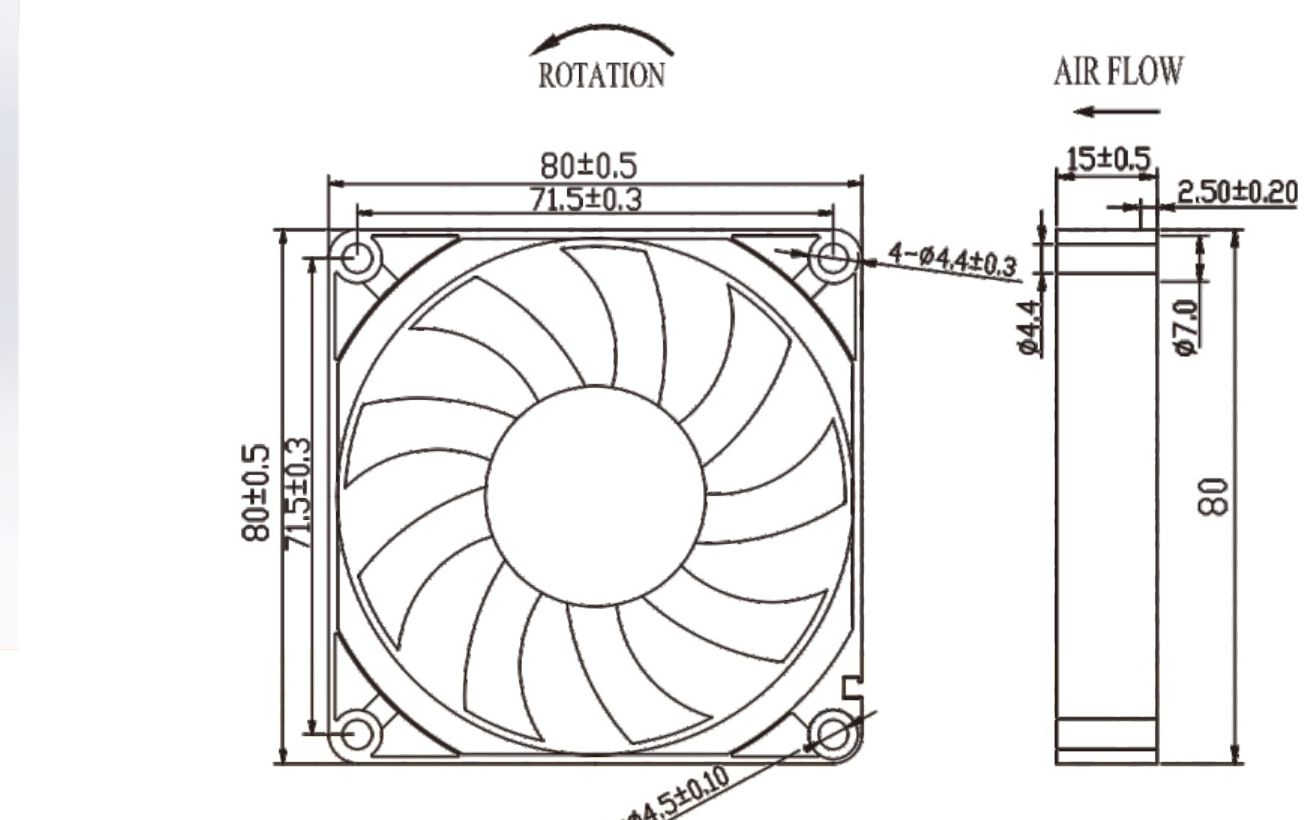

Source dimensional drawing for the 8015 series.

Performance curve

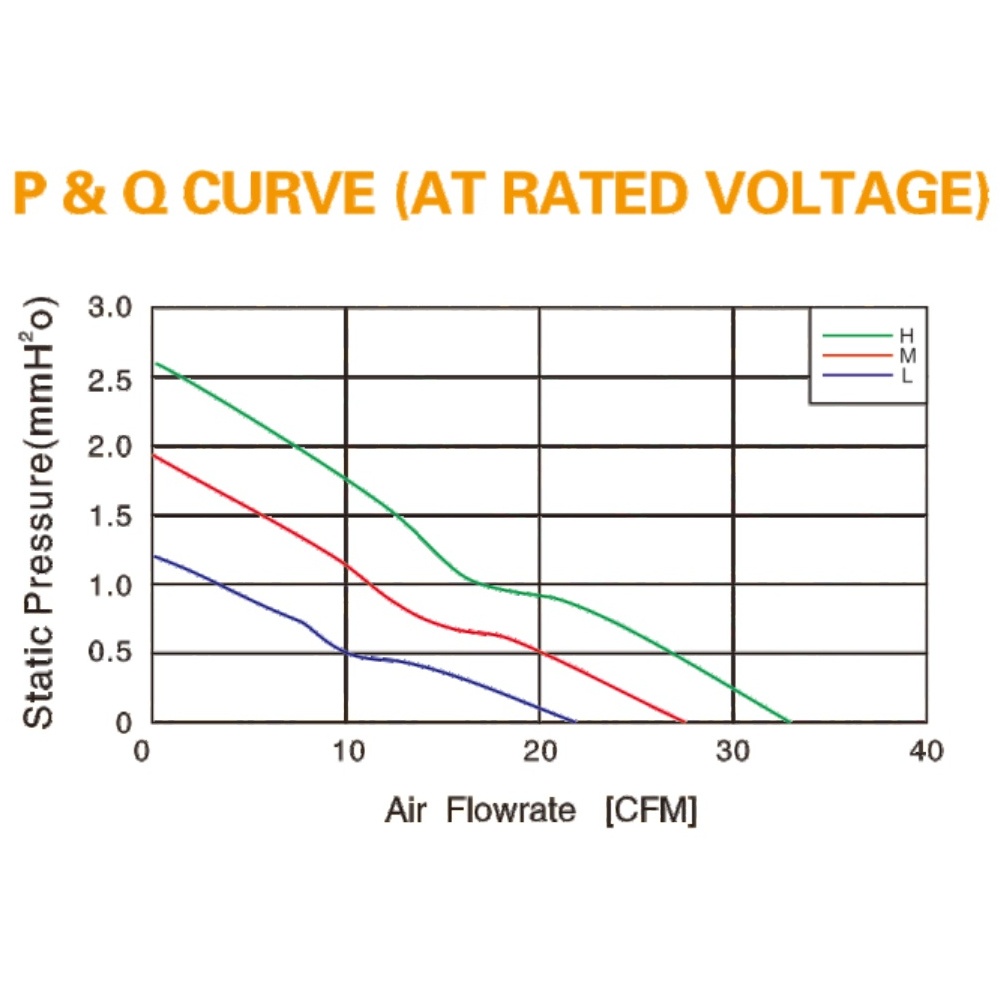

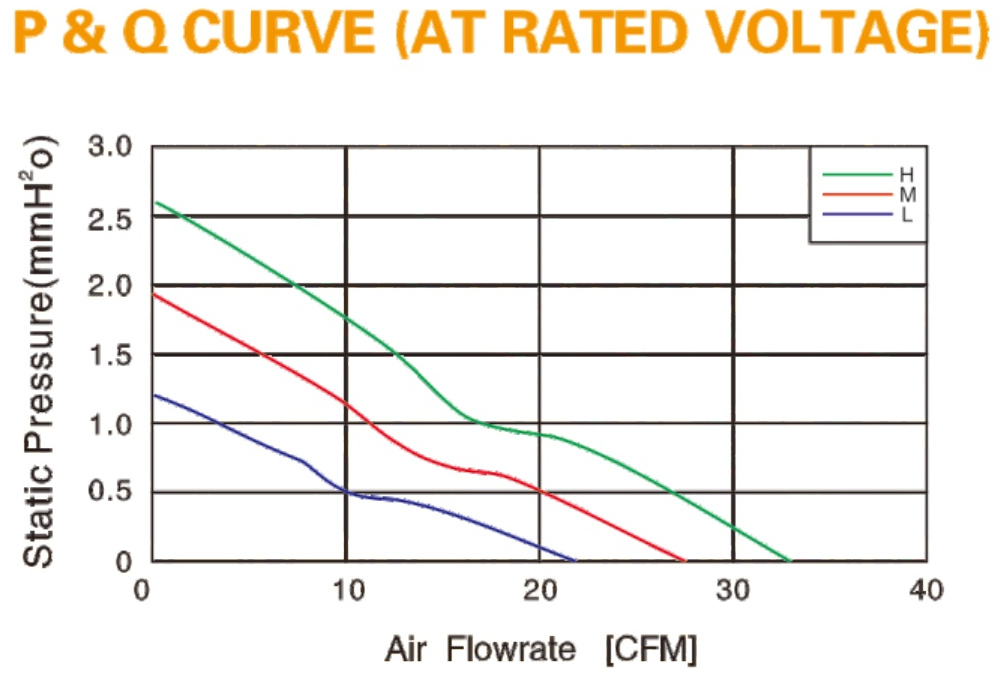

Source performance curve for the 8015 series.

8015 technical parameters

Product description

Product Category	DC Axial Fan
Series	8015
Size	80 × 80 × 15mm
Frame Material	Plastic (94V-0)
Impeller Material	Plastic (94V-0)
Lead Wire	UL1007 AWG #24 or equivalent; (+) red, (-) Black
Ball Bearing Life	70,000 hours at 40°C
Sleeve Bearing Life	30,000 hours at 40°C
Operating Temperature	-10–70°C (Non-condensing)
Storage Temperature	-40–70°C (Non-condensing)
Special Options	AS, FG, RD, PWM, TC, IP55

Model specifications

Model	Rated Voltage (V)	Operating Voltage (V)	Rated Current (A)	Actual Current (A)	Rated Power (W)	Rated Speed (RPM ±10%)	Max Air Flow (CMM)	Max Air Flow (CFM)	Max Static Pressure (inH₂O)	Max Static Pressure (mmH₂O)	Noise Level (dB(A))
JL8015H12Y	12	7–13.2	0.24	0.21	2.52	3000	0.929	32.8	0.1	2.54	29.7
JL8015M12Y	12	7–13.2	0.18	0.16	1.92	2500	0.777	27.43	0.074	1.89	24.3
JL8015L12Y	12	7–13.2	0.1	0.09	1.08	2000	0.605	21.36	0.048	1.21	20.4
JL8015H24Y	24	14–26.4	0.09	0.08	1.92	3000	0.929	32.8	0.1	2.54	29.7
JL8015M24Y	24	14–26.4	0.08	0.06	1.44	2500	0.777	27.43	0.074	1.89	24.3
JL8015L24Y	24	14–26.4	0.05	0.04	0.96	2000	0.605	21.36	0.048	1.21	20.4
