28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.

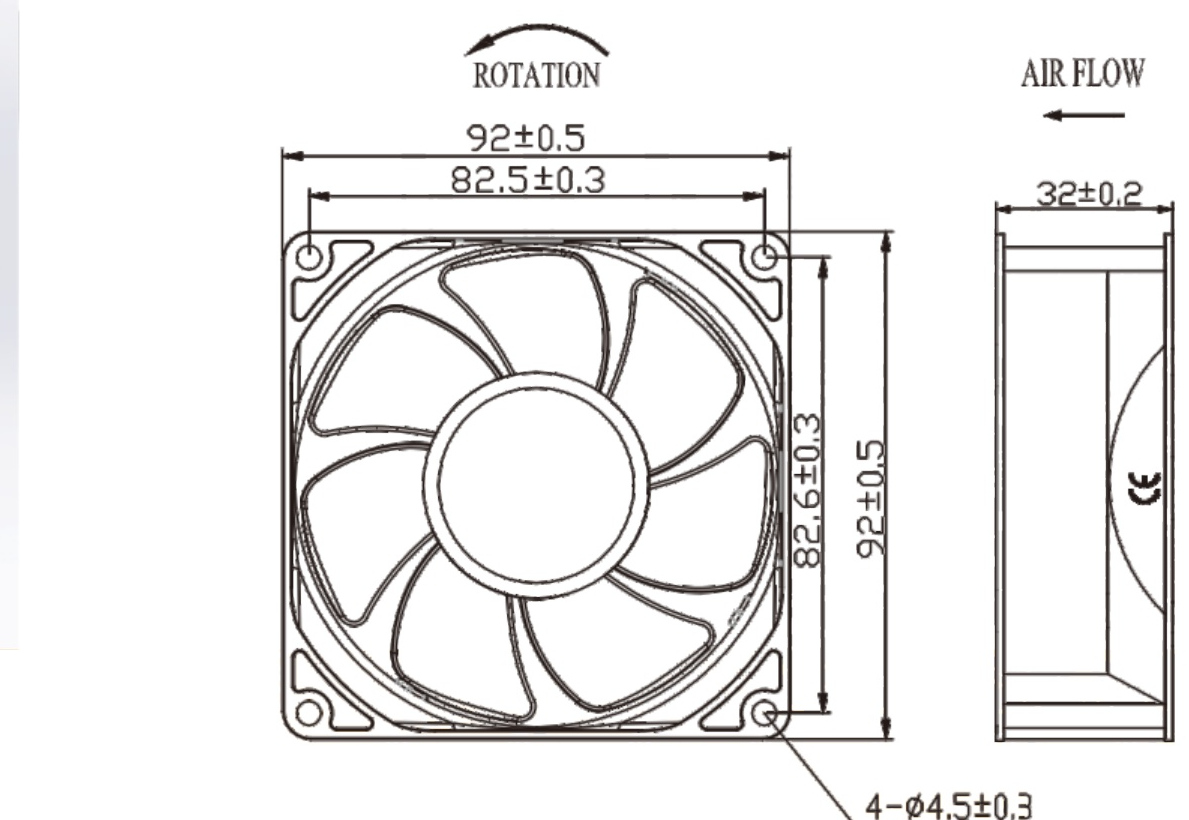

Source dimensional drawing for the 9232 series.

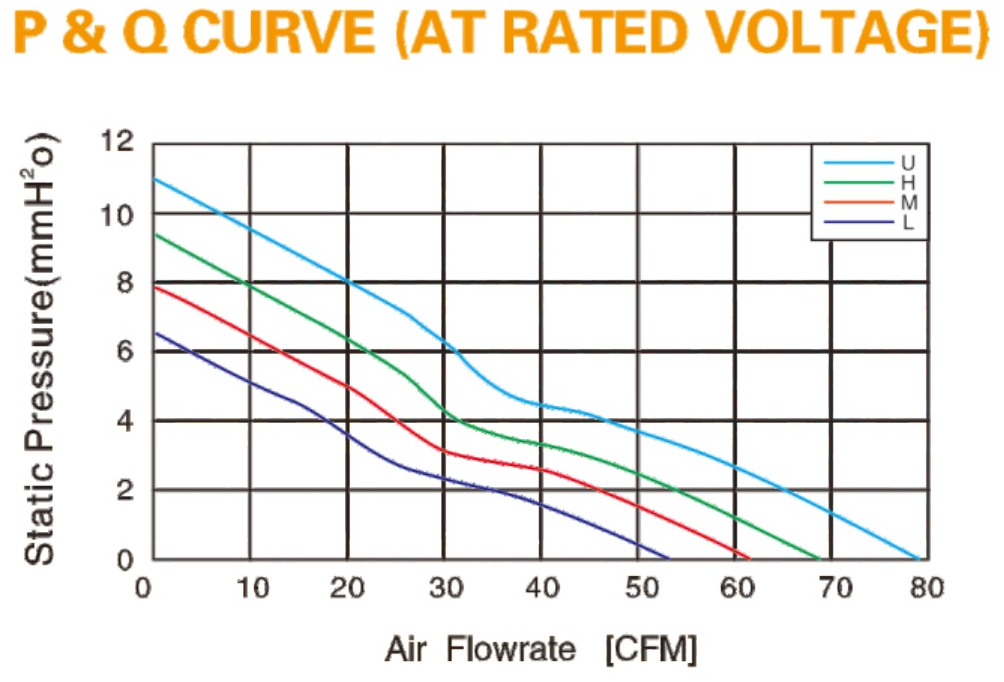

Source performance curve for the 9232 series.
| Product Category | DC Axial Fan |
| Series | 9232 |
| Size | 92 × 92 × 32mm |
| Frame Material | Plastic (94V-0) |
| Impeller Material | Plastic (94V-0) |
| Lead Wire | UL1007 AWG #24 or equivalent; (+) red, (-}Black |
| Ball Bearing Life | 70,000 hours at 40°C |
| Sleeve Bearing Life | 30,000 hours at 40°C |
| Operating Temperature | -10–70°C (Non-condensing) |
| Storage Temperature | -40–70°C (Non-condensing) |
| Special Options | AS, FG, RD, PWM, TC, IP55 |
| Model | Rated Voltage (V) | Operating Voltage (V) | Rated Current (A) | Actual Current (A) | Rated Power (W) | Rated Speed (RPM ±10%) | Max Air Flow (CMM) | Max Air Flow (CFM) | Max Static Pressure (inH₂O) | Max Static Pressure (mmH₂O) | Noise Level (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JL9232H12B | 12 | 6–13.2 | 0.68 | 0.62 | 7.44 | 4000 | 1.93 | 68.2 | 0.378 | 9.60 | 43.6 |
| JL9232M12Y | 12 | 6–13.2 | 0.49 | 0.43 | 5.16 | 3500 | 1.72 | 60.8 | 0.311 | 7.90 | 40.5 |
| JL9232L12Y | 12 | 6–13.2 | 0.35 | 0.32 | 3.84 | 3000 | 1.51 | 53.4 | 0.240 | 6.10 | 37.5 |
| JL9232U24B | 24 | 12–26.4 | 0.48 | 0.45 | 10.80 | 4500 | 2.21 | 78.1 | 0.425 | 10.80 | 46.3 |
| JL9232H24B | 24 | 12–26.4 | 0.37 | 0.35 | 8.40 | 4000 | 1.93 | 68.2 | 0.378 | 9.60 | 43.6 |
| JL9232M24Y | 24 | 12–26.4 | 0.25 | 0.22 | 5.28 | 3500 | 1.72 | 60.8 | 0.311 | 7.90 | 40.5 |
| JL9232L24Y | 24 | 12–26.4 | 0.18 | 0.16 | 3.84 | 3000 | 1.51 | 53.4 | 0.240 | 6.10 | 37.5 |
| JL9232U48B | 48 | 24–52.8 | 0.23 | 0.21 | 10.08 | 4500 | 2.21 | 78.1 | 0.425 | 10.80 | 46.3 |
| JL9232H48B | 48 | 24–52.8 | 0.18 | 0.16 | 7.68 | 4000 | 1.93 | 68.2 | 0.378 | 9.60 | 43.6 |
| JL9232M48Y | 48 | 24–52.8 | 0.13 | 0.12 | 5.76 | 3500 | 1.72 | 60.8 | 0.311 | 7.90 | 40.5 |
