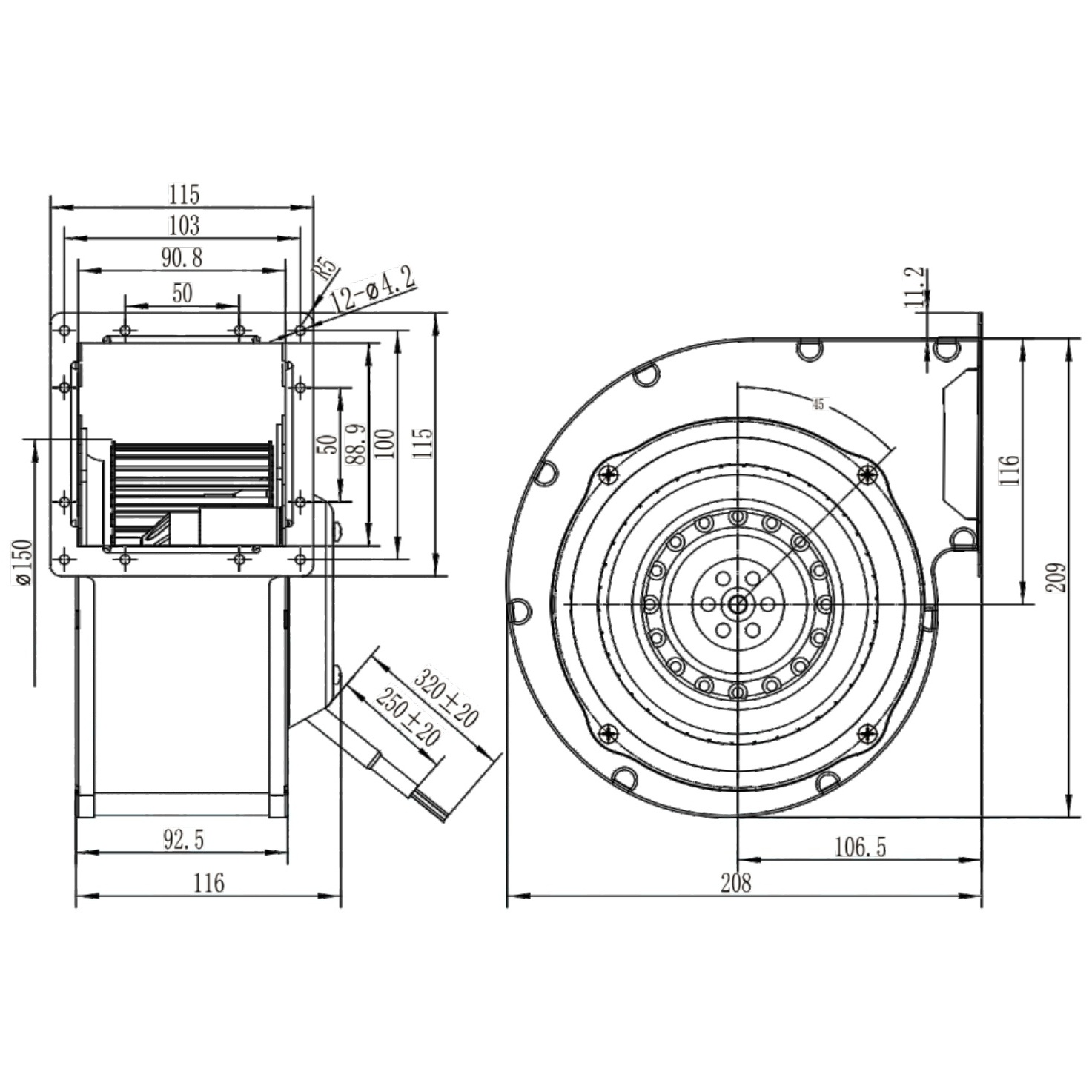

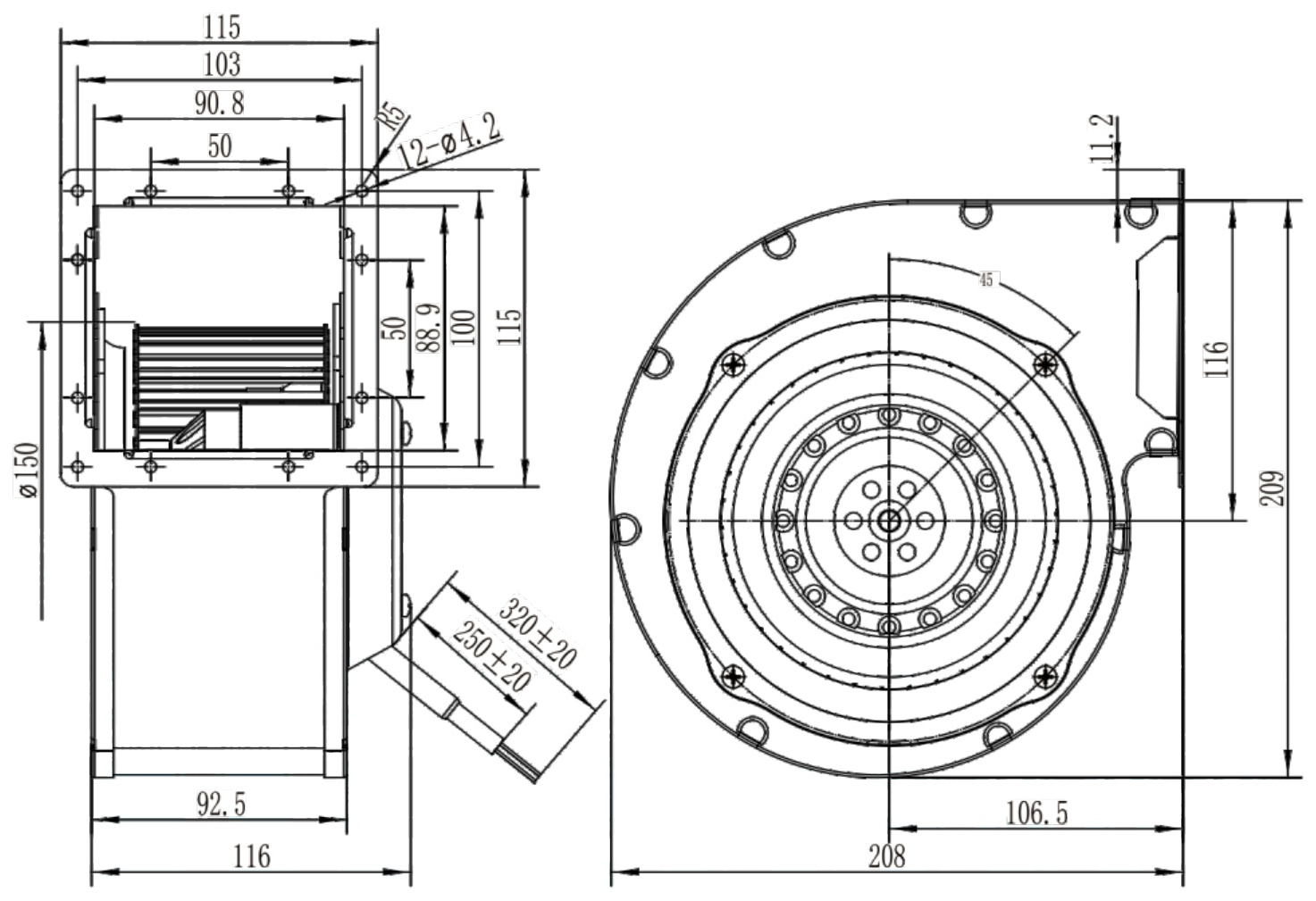

Source dimensional drawing for the 150 series.

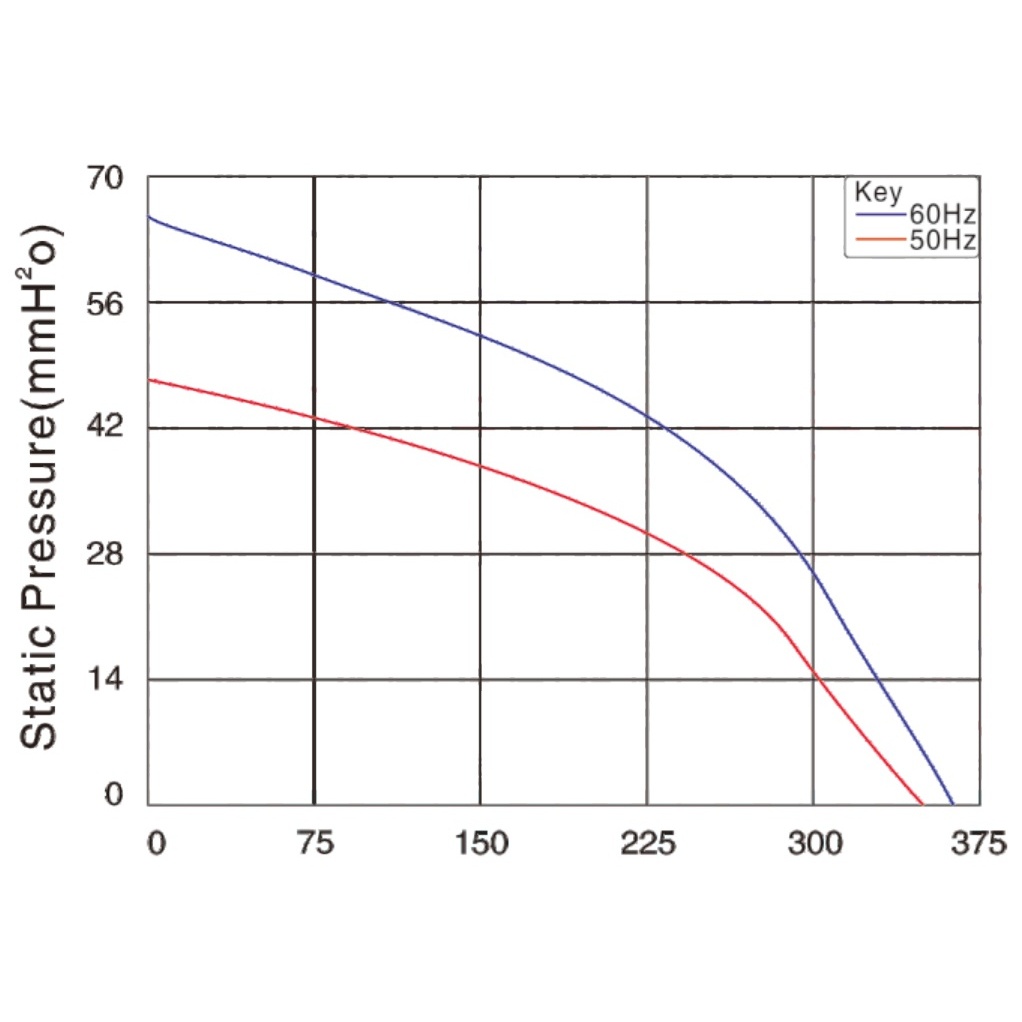

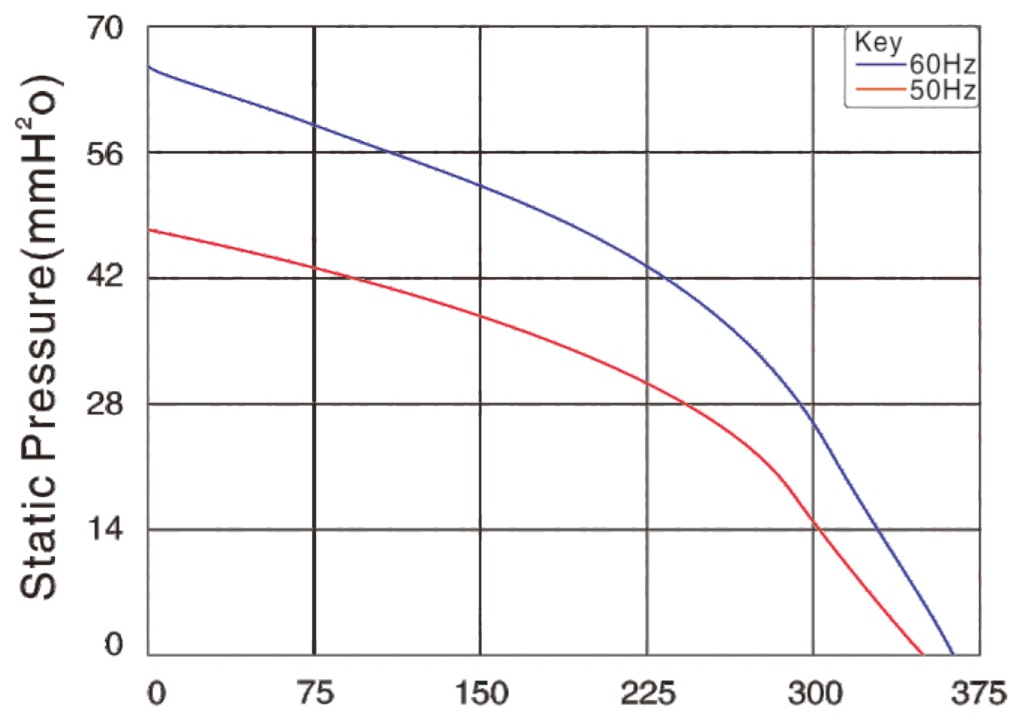

Source performance curve for the 150 series.
| Product Category | AC Centrifugal Fan – Single Inlet |
|---|---|
| Series | 150 |
| Size | 0150mm × 72mm |
| Impeller Material | Metal |
| Motor | Capacitor-RunAnd Extemal RotorInductionMotor |
| Lead Wire | Teflon22#UL1332(Optional) |
| Operating Temperature | -10°C–+65°C |
| Type of Protection | IP44 |
| Insulation Class | F |
| Model | Voltage (VAC) | Frequency (Hz) | Current (A) | Power (W) | Speed (RPM) | Noise (dB(A)) | Capacitor (μF/VAC) | Air Flow (CFM) |
|---|---|---|---|---|---|---|---|---|
| JD150A2E01-W | 115 | 50/60 | 1.68/2.0 | 180/220 | 2400/2500 | 68/70 | 20/250 | 335/350 |
| JD150A2E02-W | 230 | 50/60 | 0.68/0.9 | 150/200 | 2400/2500 | 68/70 | 4/500 | 335/350 |
| JD150A2E03-W | 380 | 50/60 | 1.1/1.2 | 132/246 | 2400/2500 | 68/70 | — | 335/350 |
