18060 SERIES

18060 Explosion-Proof Axial Fan, features a compact 180 × 180 × 60mm design, and Plastic (94V-0) impeller. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.

Size: 180 × 180 × 60mm
Impeller Material: Plastic (94V-0)
Operating Temperature: -10–70°C (Non-condensing)
Lead Wire: UL1007 AWG #24 or equivalent; (AC) Black, (AC) Black

Chat Now Message Email

Product details

Parameters

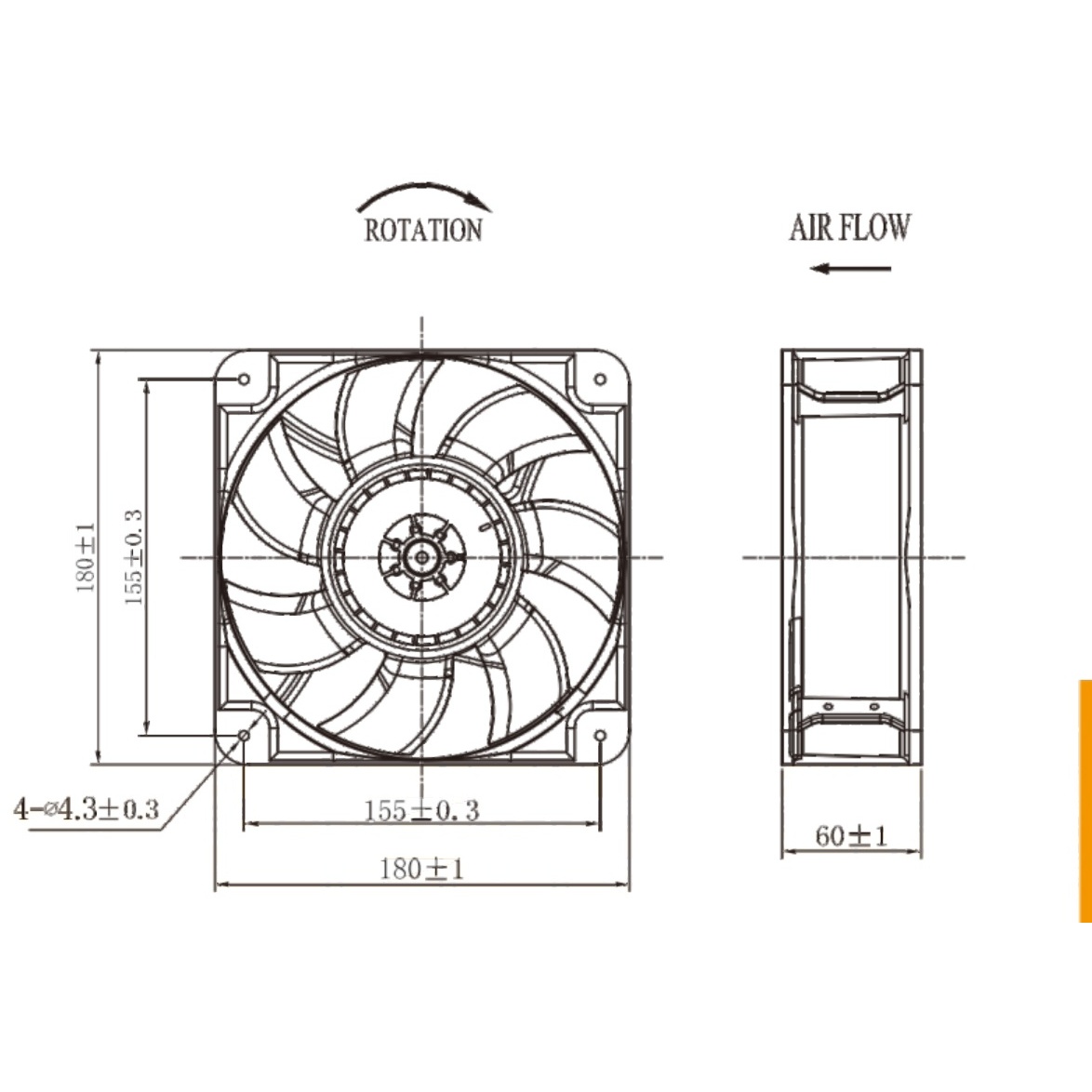

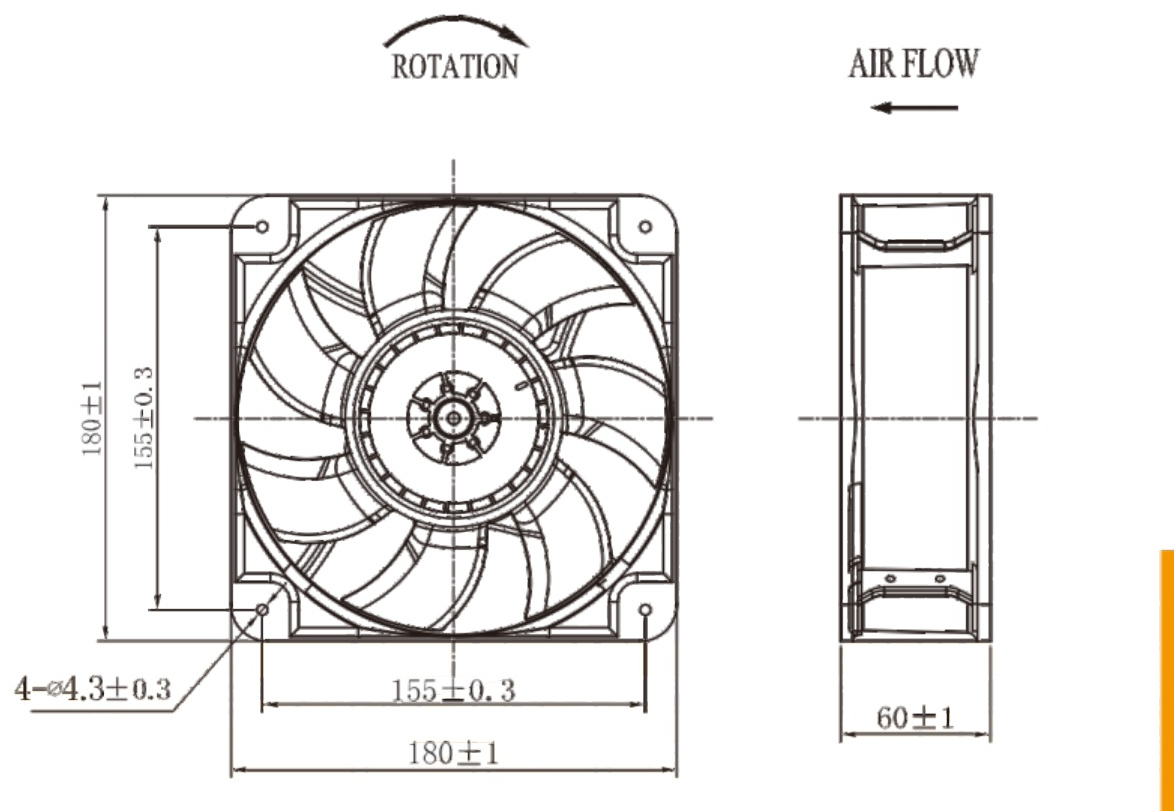

Dimensions and construction

Source dimensional drawing for the 18060 series.

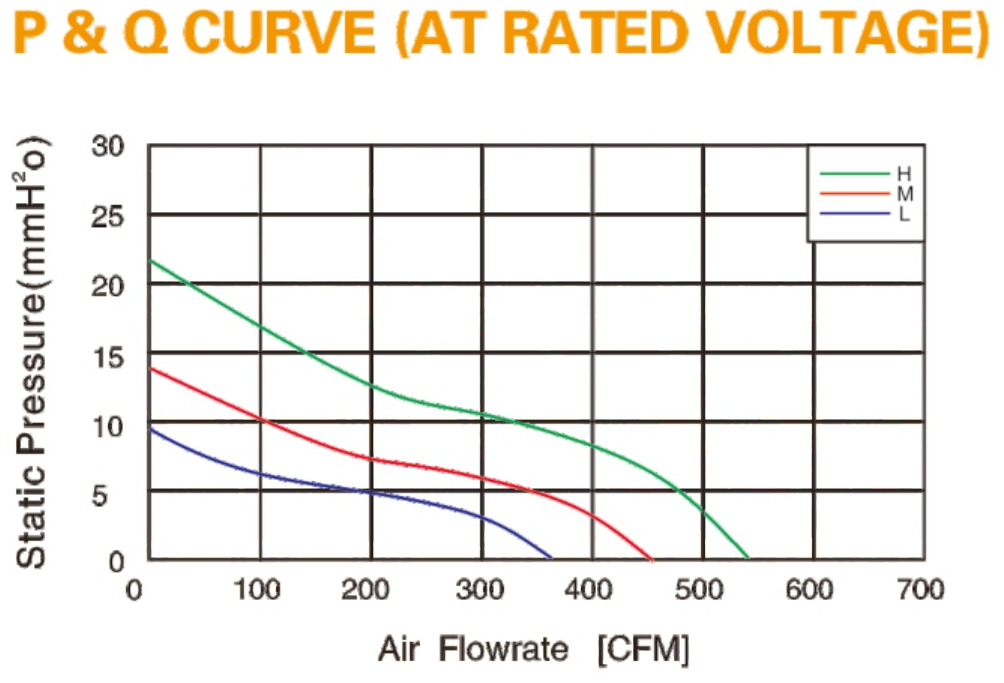

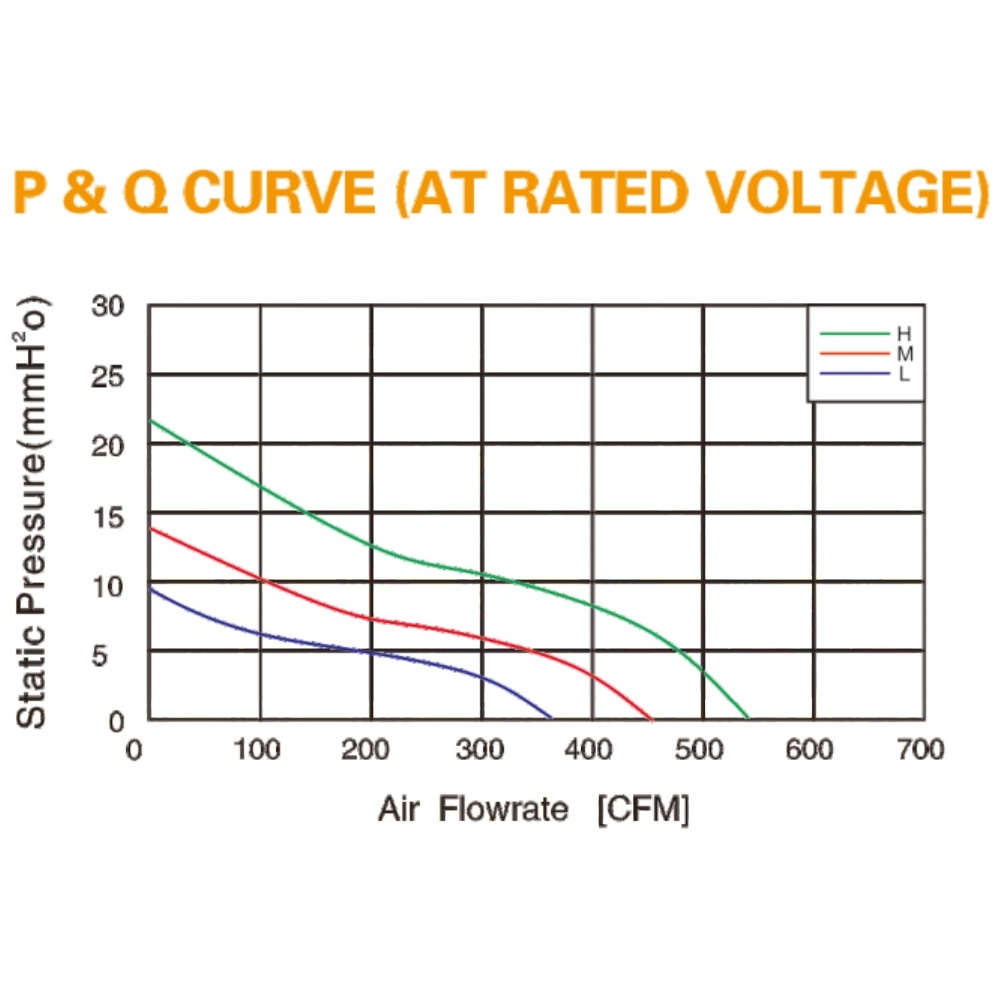

Performance curve

Source performance curve for the 18060 series.

18060 technical parameters

Product description

Product Category	FBD Axial Fan
Series	18060
Size	180 × 180 × 60mm
Frame Material	Aluminum Alloy
Impeller Material	Plastic (94V-0)
Lead Wire	UL1007 AWG #24 or equivalent; (AC) Black, (AC) Black
Ball Bearing Life	70,000 hours at 40°C
Sleeve Bearing Life	30,000 hours at 40°C
Operating Temperature	-10–70°C (Non-condensing)
Storage Temperature	-40–70°C (Non-condensing)
Special Options	AS, FG, RD, PWM, TC, IP55

Model specifications

Model	Rated Voltage (V)	Operating Voltage (V)	Rated Current (A)	Actual Current (A)	Rated Power (W)	Rated Speed (RPM ±10%)	Max Air Flow (CMM)	Max Air Flow (CFM)	Max Static Pressure (inH₂O)	Max Static Pressure (mmH₂O)	Noise Level (dB(A))
FBD18060H24B	24	18–26.4	3.00	2.3	55.2	3000	15.50	547.5	0.81	20.60	69
FBD18060M24B	24	18–26.4	1.80	1.6	38.4	2500	12.92	456.2	0.56	14.30	64
FBD18060L24B	24	18–26.4	1.00	0.85	20.4	2000	10.34	365.0	0.36	9.13	59
FBD18060H48B	48	36–52.8	1.50	1.2	57.6	3000	15.50	547.5	0.81	20.60	69
FBD18060M48B	48	36–52.8	0.90	0.8	38.4	2500	12.92	456.2	0.56	14.30	64
FBD18060L48B	48	36–52.8	0.50	0.43	20.6	2000	10.34	365.0	0.36	9.13	59
