28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.

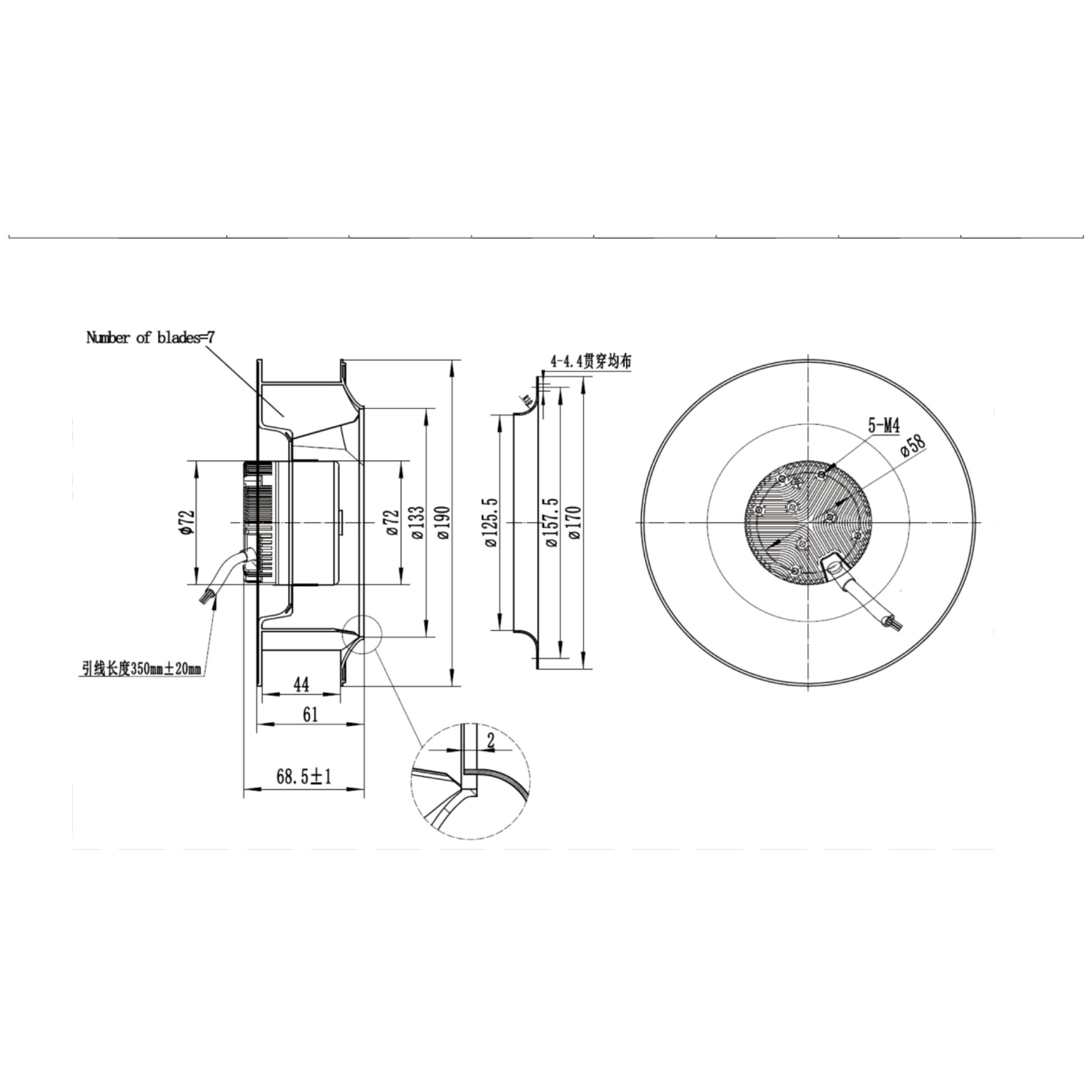

Source dimensional drawing for the 190 series.

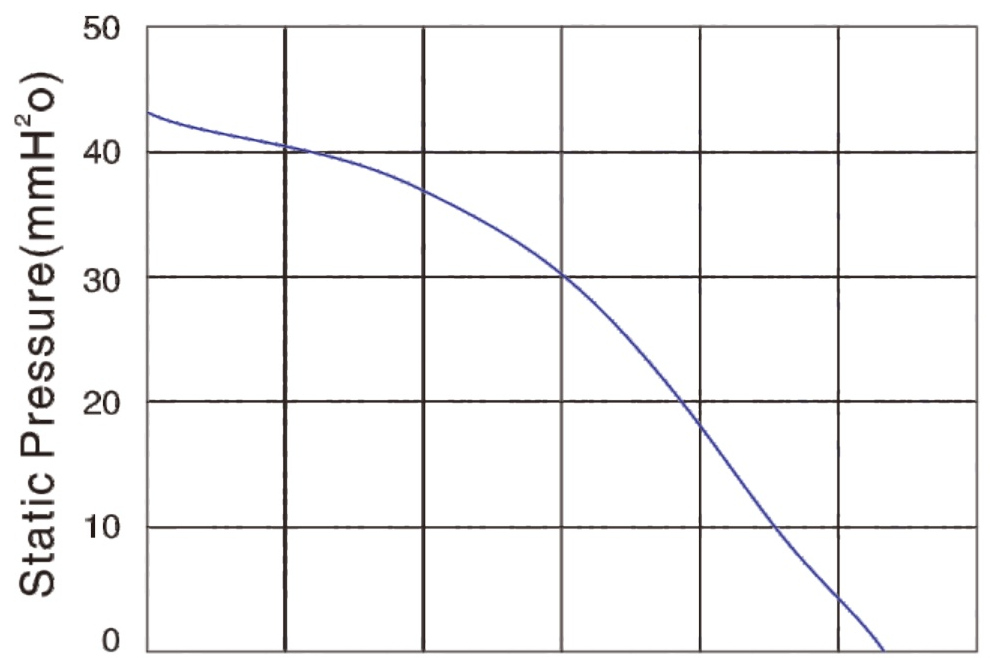

Source performance curve for the 190 series.

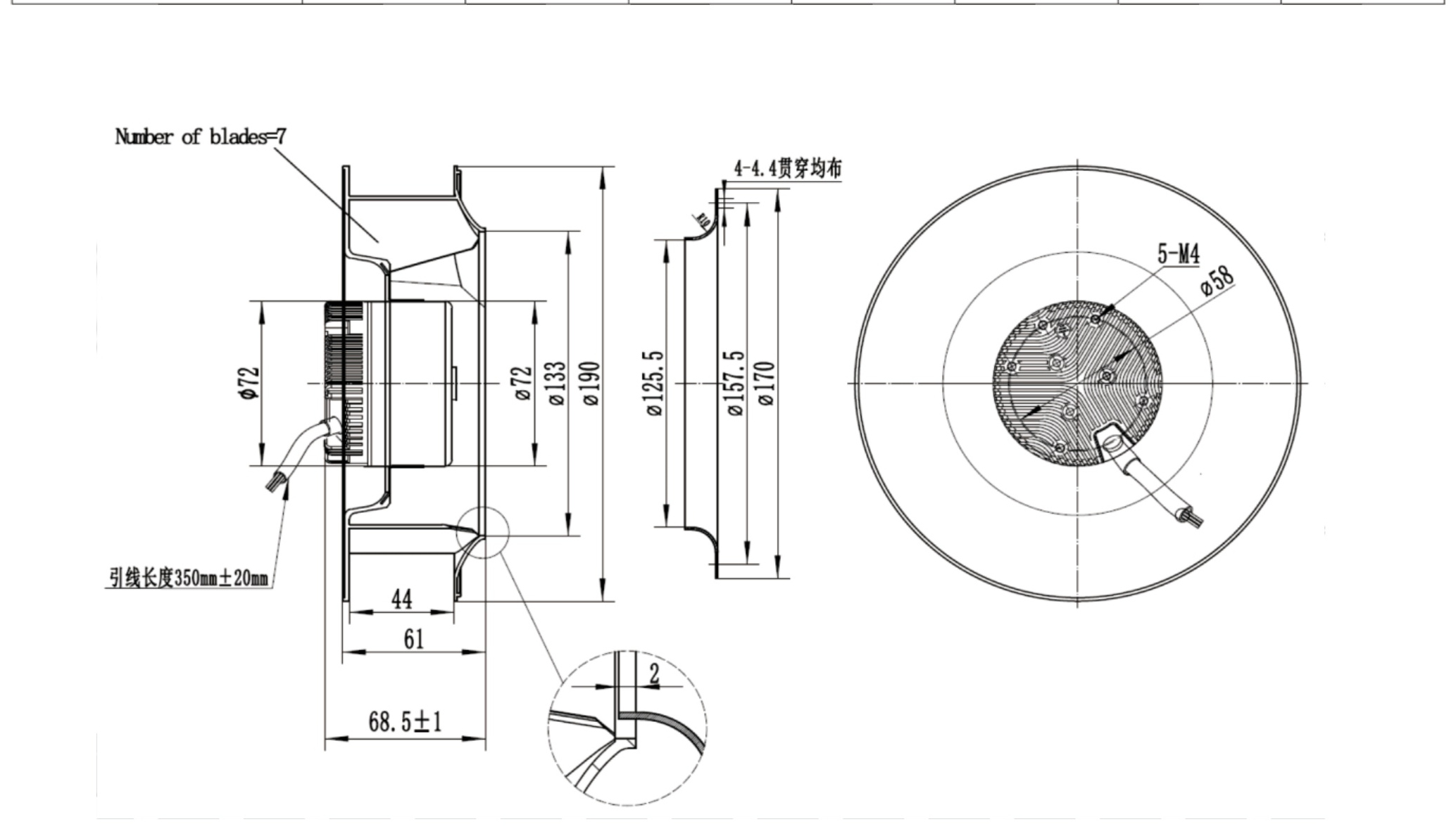

Engineering dimensional drawing for the 190 series, showing mounting dimensions and airflow direction.

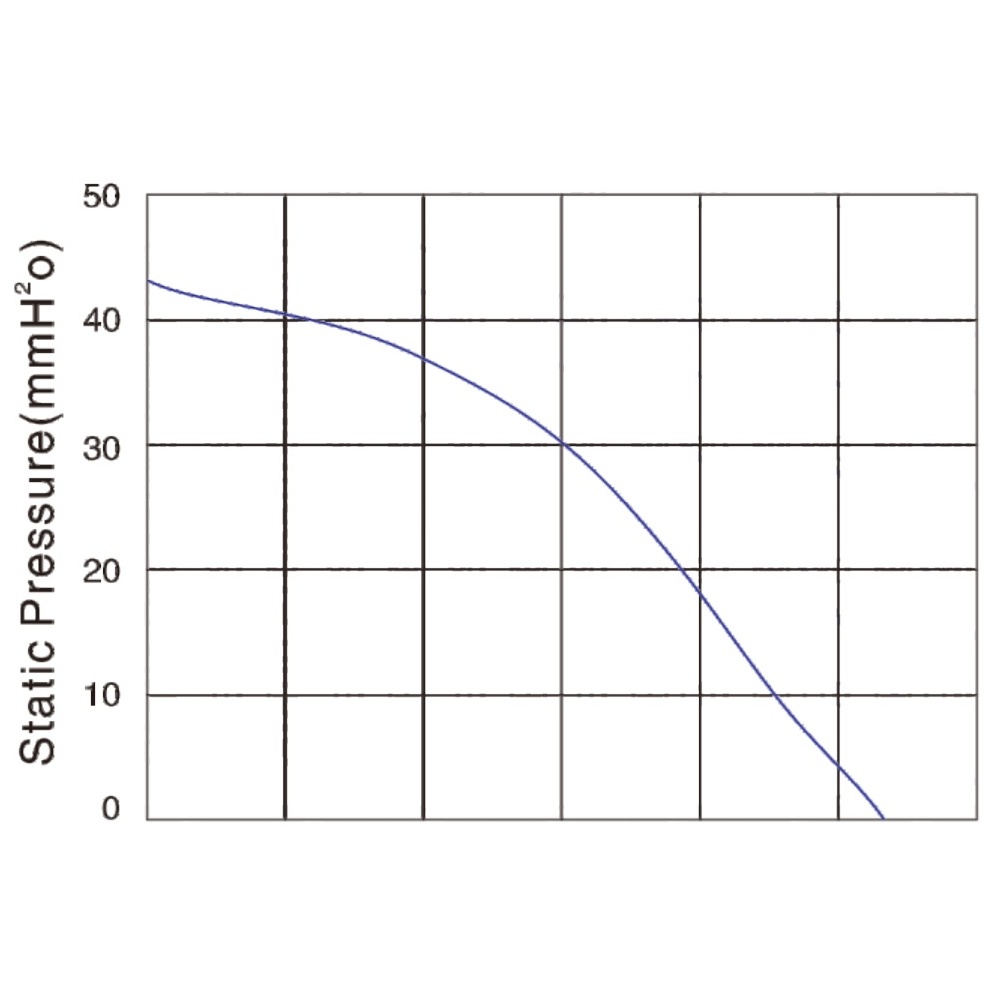

Static pressure vs. airflow performance curve for the 190 series under standard operating conditions.
Engineering dimensional drawing for the 190 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the 190 series under standard operating conditions.
| Product Category | DC Centrifugal Fan – Backward Curved |
|---|---|
| Series | 190 |
| Size | Φ190mm × 61mm |
| Air Flow | 366CFM |
| Noise | 64dB(A) |
| Impeller Material | PA66 |
| Operation Mode | S1 |
| Operating Temperature | -10°C–+65°C |
| Type of Protection | IP44 |
| Insulation Class | B |
| Model | Voltage (VDC) | Current (A) | Power (W) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmH₂O) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|
| YDH190BG24-A01 | 24 | 2.6 | 62 | 3000 | 366 | 44 | 64 |
| YDH190BG48-A01 | 48 | 1.3 | 62 | 3000 | 366 | 44 | 64 |
