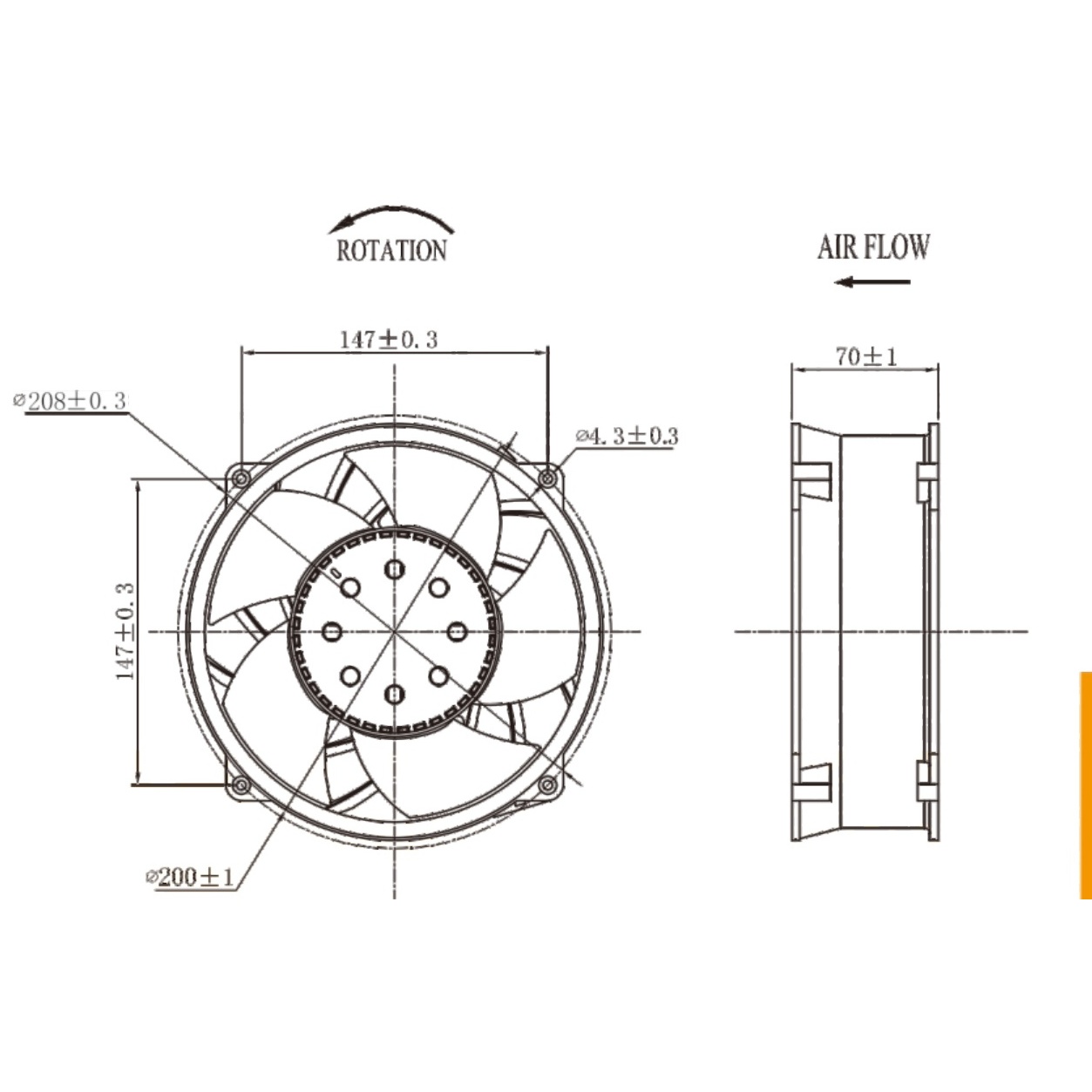

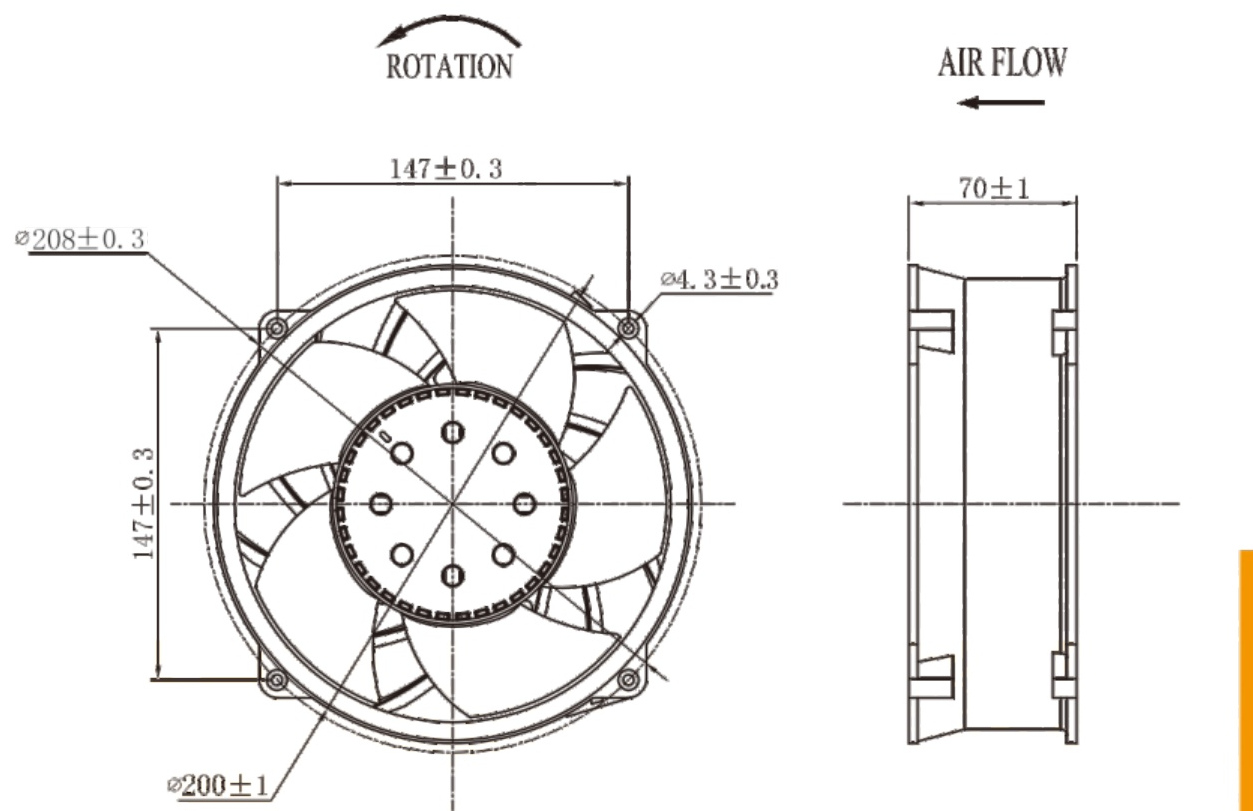

Source dimensional drawing for the 20070 series.

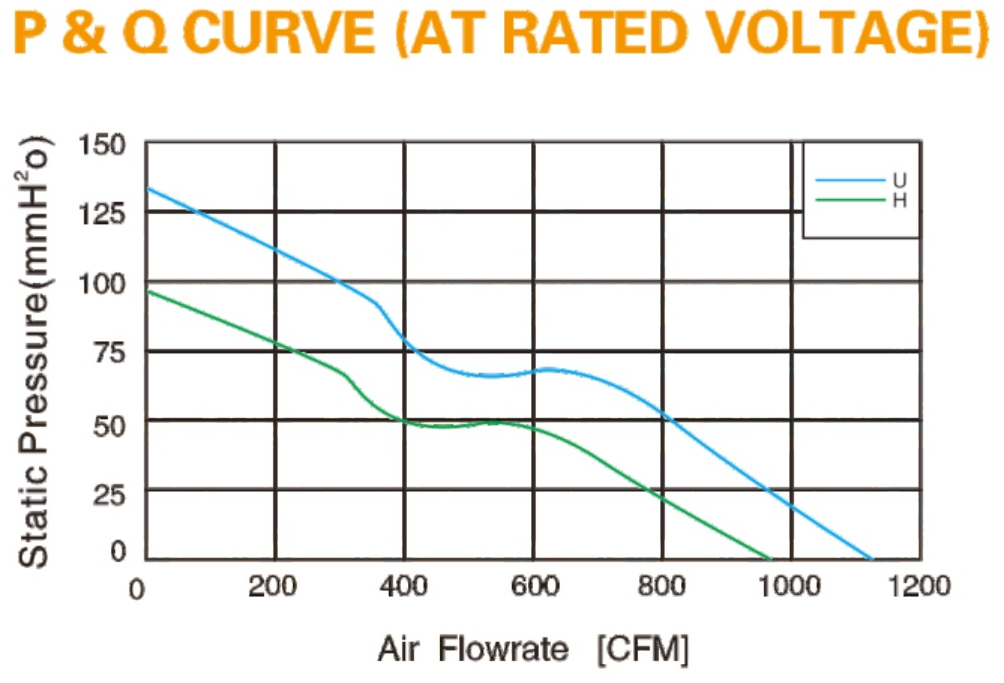

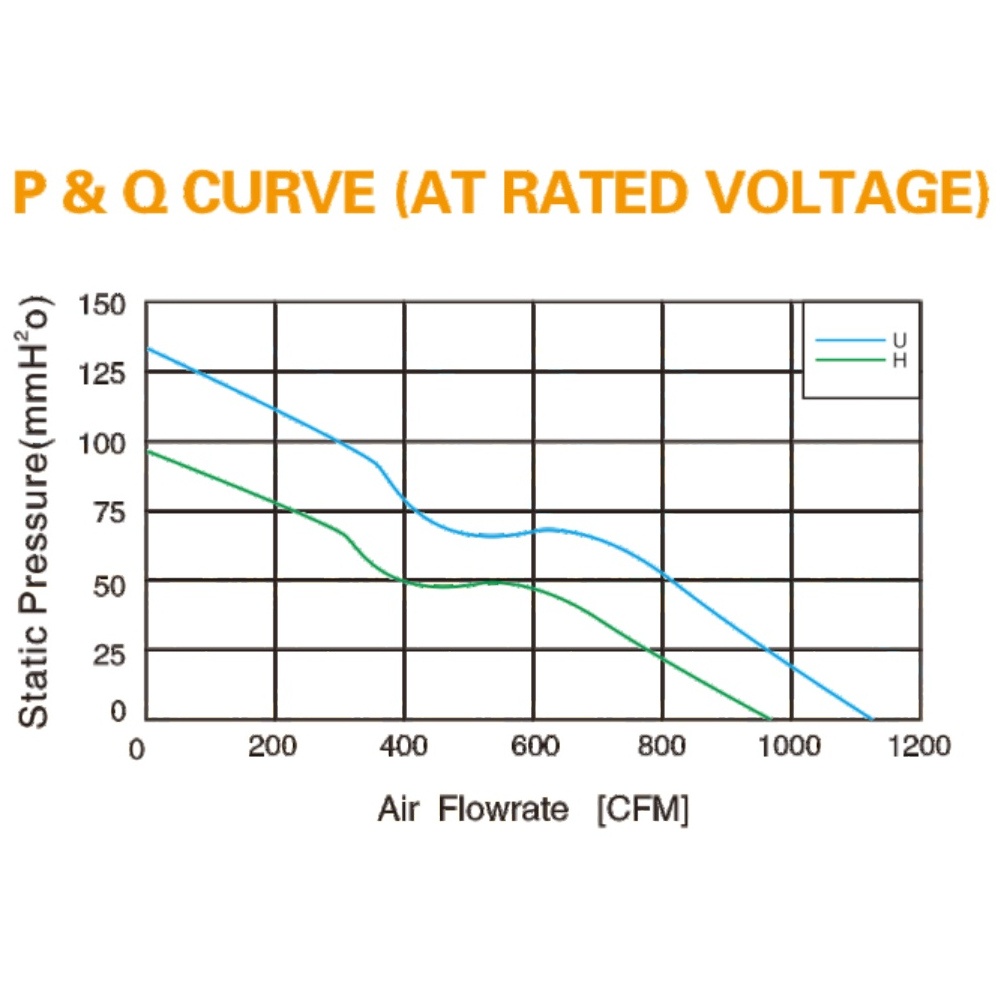

Source performance curve for the 20070 series.
| Product Category | FBD Axial Fan |
|---|---|
| Series | 20070 |
| Size | Φ200 × 70mm |
| Frame Material | Aluminum Alloy |
| Impeller Material | Plastic (94V-0) |
| Lead Wire | UL1007 AWG #24 or equivalent12; (+) red, (-) Black(PwM)Yellow, (FG) White10 |
| Ball Bearing Life | 70,000 hours at 40°C |
| Sleeve Bearing Life | 30,000 hours at 40°C |
| Operating Temperature | -10–70°C (Non-condensing) |
| Storage Temperature | -40–70°C (Non-condensing) |
| Special Options | AS, FG, RD, PWM, TC, IP68 |
| Model | Rated Voltage (V) | Operating Voltage (V) | Rated Current (A) | Actual Current (A) | Rated Power (W) | Rated Speed (RPM ±10%) | Max Air Flow (CMM) | Max Air Flow (CFM) | Max Static Pressure (inH₂O) | Max Static Pressure (mmH₂O) | Noise Level (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FBD20070H24B | 24 | 18–28 | 13 | 11 | 312 | 6400 | 27.41 | 968.00 | 3.268 | 83 | 72 |
| FBD20070U48B | 48 | 36–60 | 12.5 | 8.5 | 600 | 7500 | 31.60 | 1116.00 | 5.197 | 132 | 76 |
| FBD20070H48B | 48 | 36–60 | 6.5 | 5.5 | 312 | 6400 | 27.41 | 968.00 | 3.268 | 83 | 72 |
