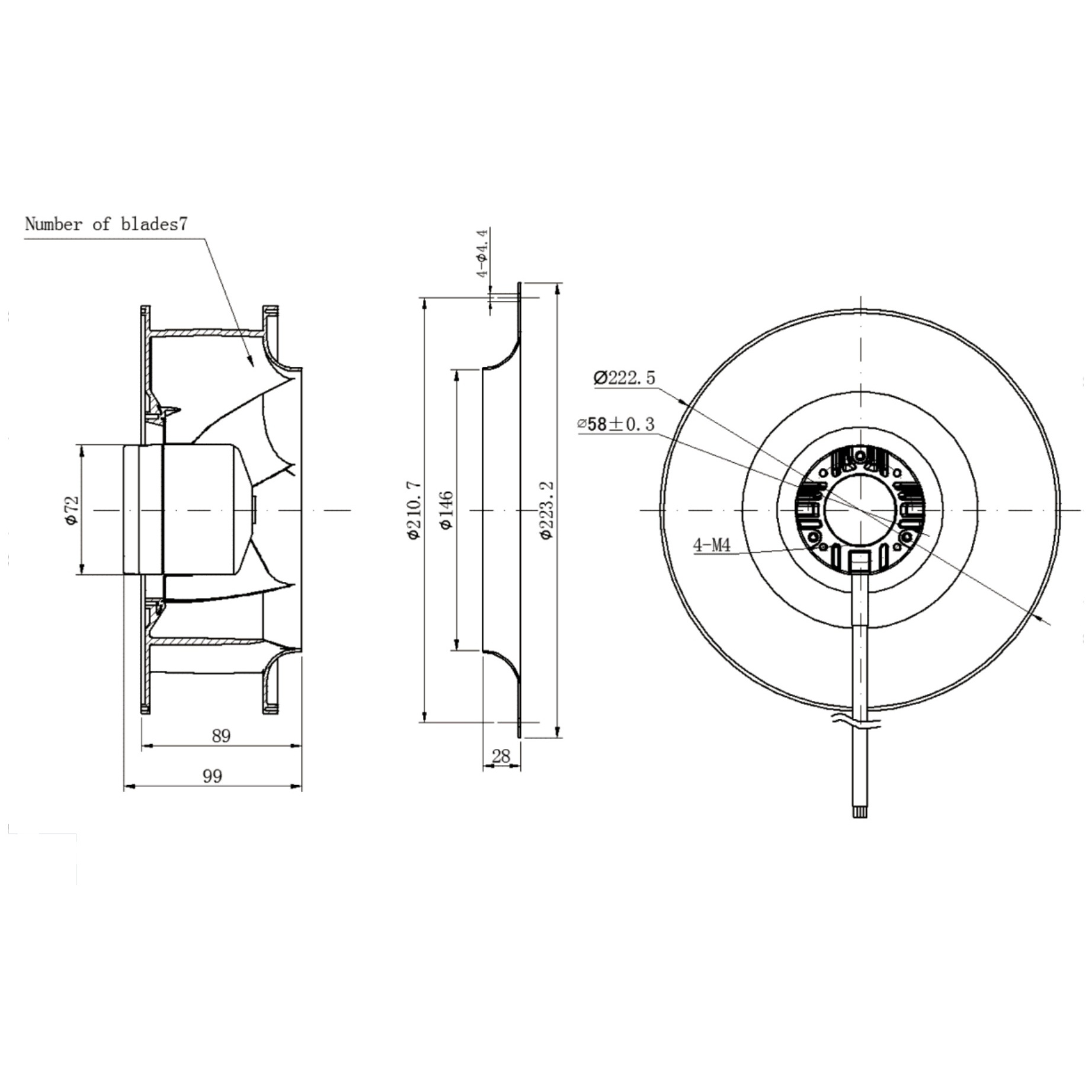

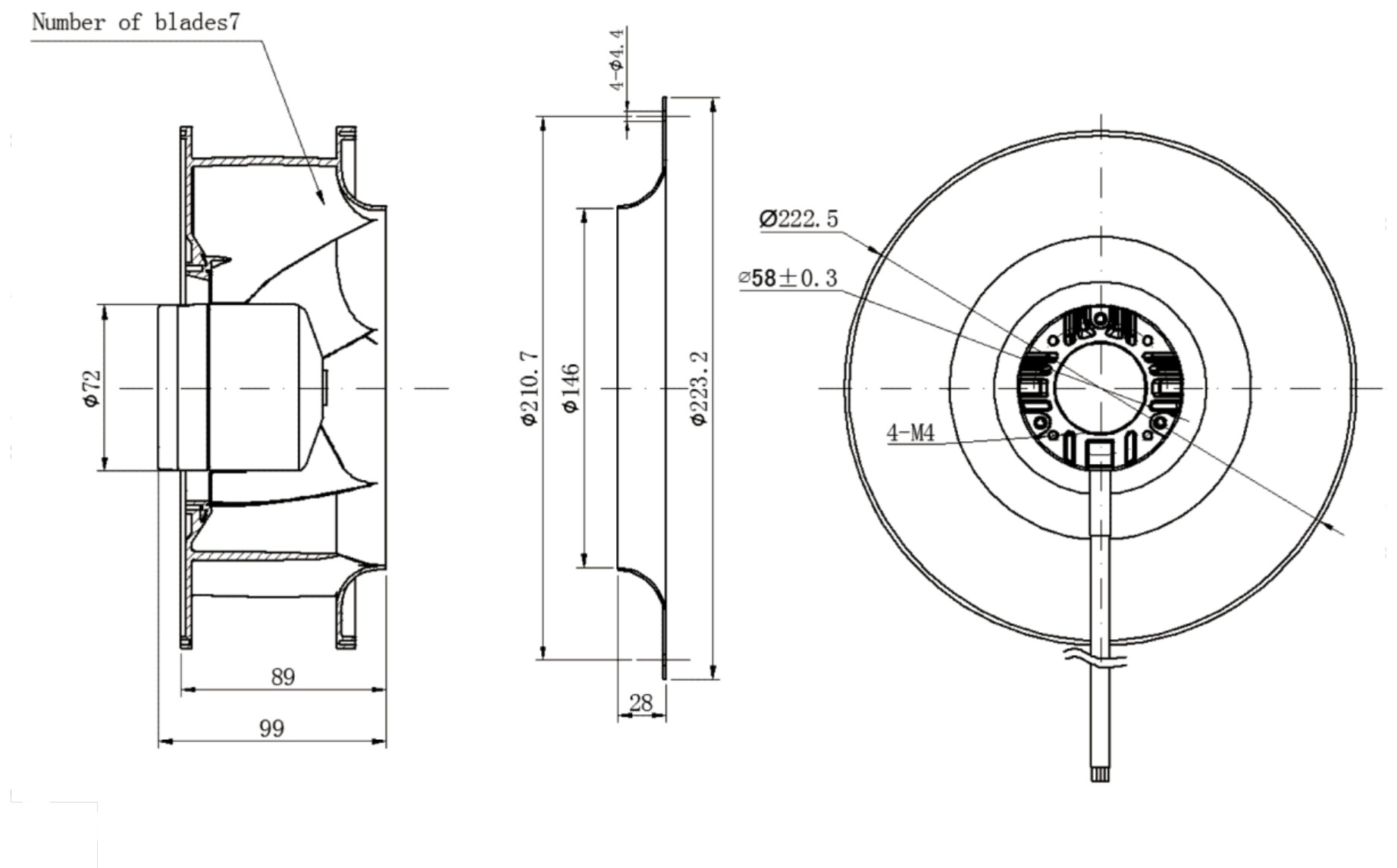

Source dimensional drawing for the 225 series.

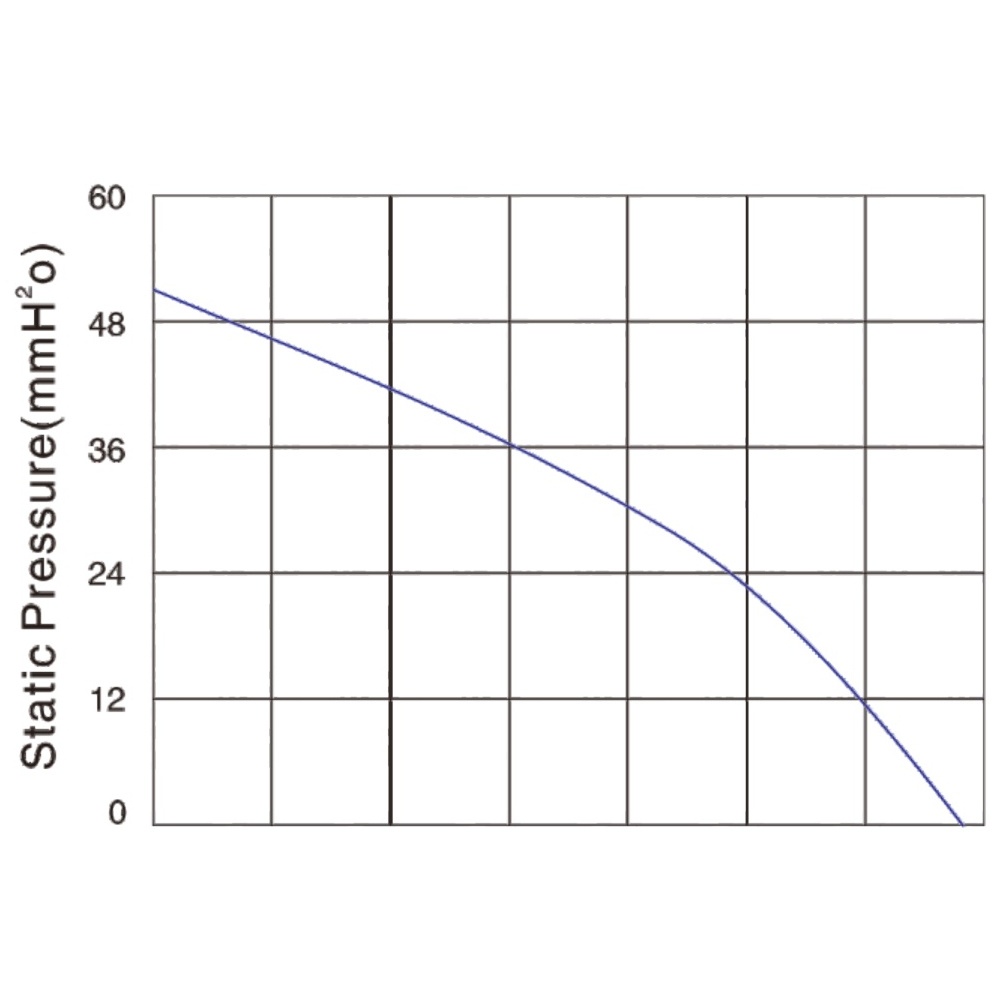

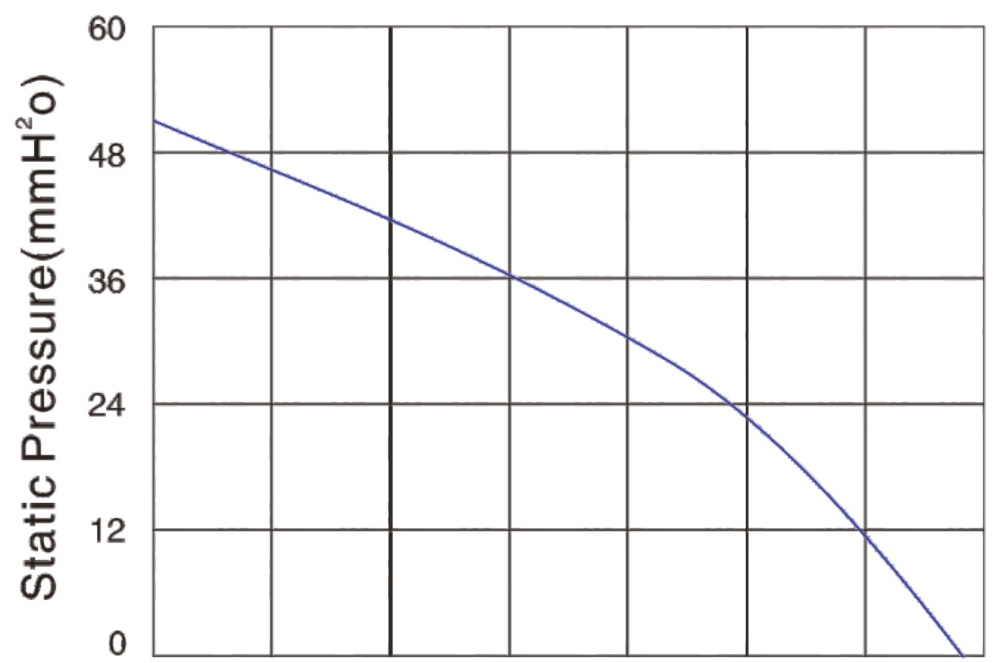

Source performance curve for the 225 series.
| Product Category | DC Centrifugal Fan – Backward Curved |
|---|---|
| Series | 225 |
| Size | Φ225mm × 89mm |
| Air Flow | 678.8CFM |
| Noise | 68.1dB(A) |
| Impeller Material | PA66 |
| Operation Mode | S1 |
| Operating Temperature | -10°C–+65°C |
| Type of Protection | IP44 |
| Insulation Class | B |
| Model | Voltage (VDC) | Current (A) | Power (W) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmH₂O) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|
| YDH225CGD3-A01 | 310 | 0.55 | 120 | 2500 | 678.8 | 51.9 | 68.1 |
