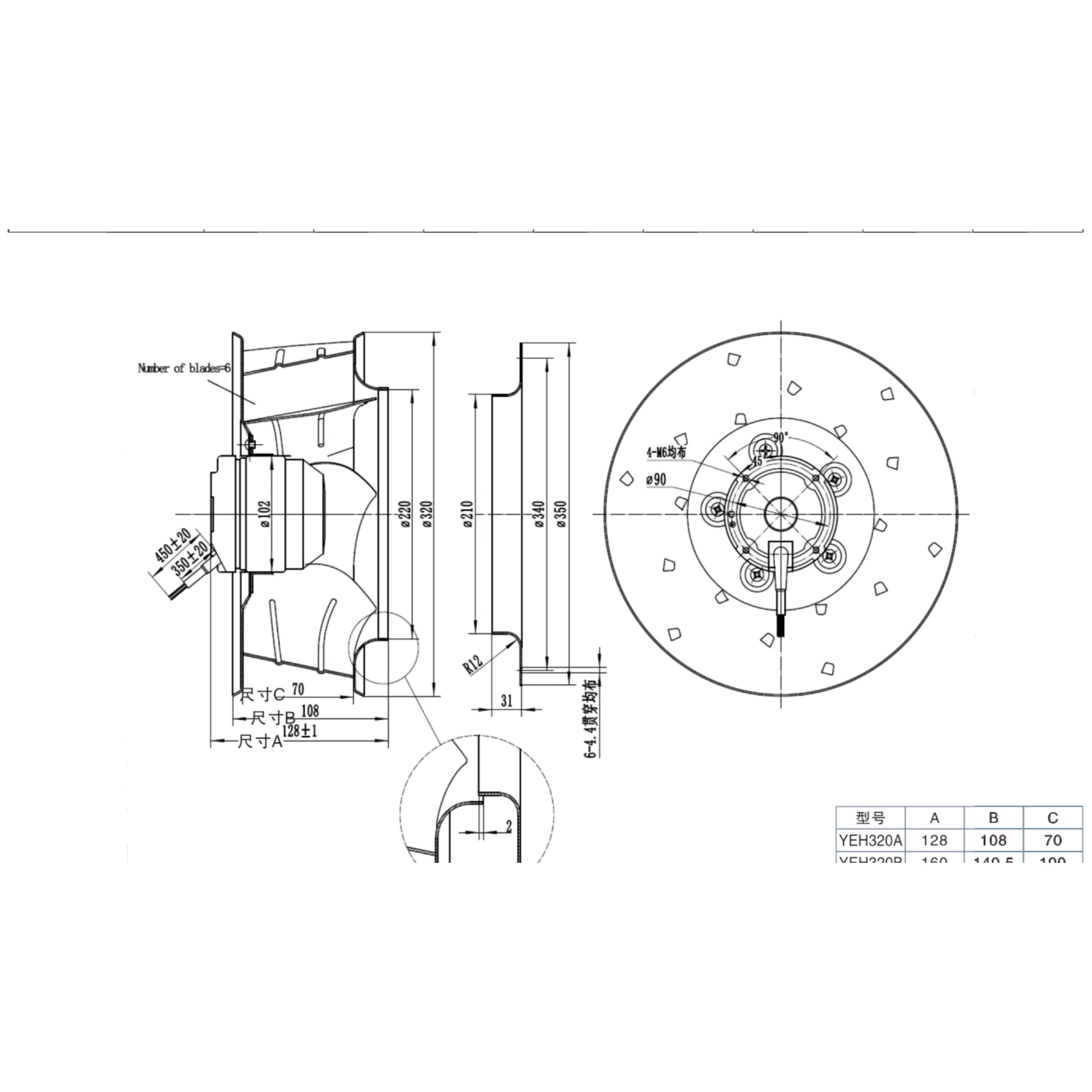

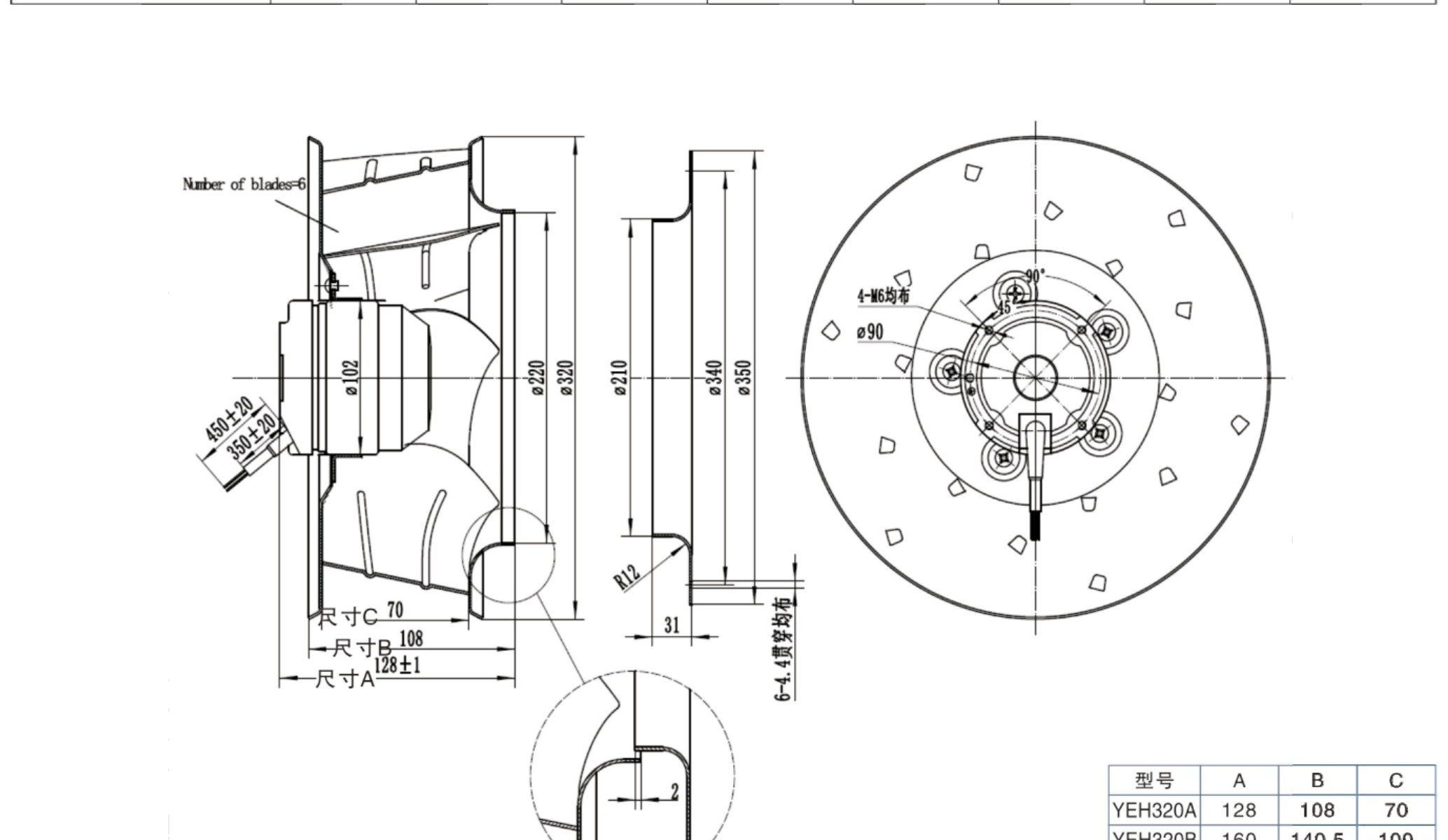

Source dimensional drawing for the 320 series.
Source performance curve for the 320 series.
| Product Category | EC Centrifugal Fan – Backward Curved |
|---|---|
| Series | 320 |
| Size | Φ320mm × 108mm/140mm |
| Air Flow | 1579CFM/1928CFM |
| Noise | 72.9dB(A)/75.9dB(A) |
| Impeller Material | Metal |
| Operation Mode | S1 |
| Operating Temperature | -10°C–+65°C |
| Type of Protection | IP44 |
| Insulation Class | B |
| Model | Voltage (VAC) | Frequency (Hz) | Current (A) | Power (W) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmH₂O) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|
| YEH320AIA2-A01 | 230 | 50/60 | 1.4 | 300 | 2200 | 1579 | 77 | 72.9 |
| YEH320BIA2-A01 | 230 | 50/60 | 1.45 | 320 | 2200 | 1928 | 89.4 | 75.9 |
