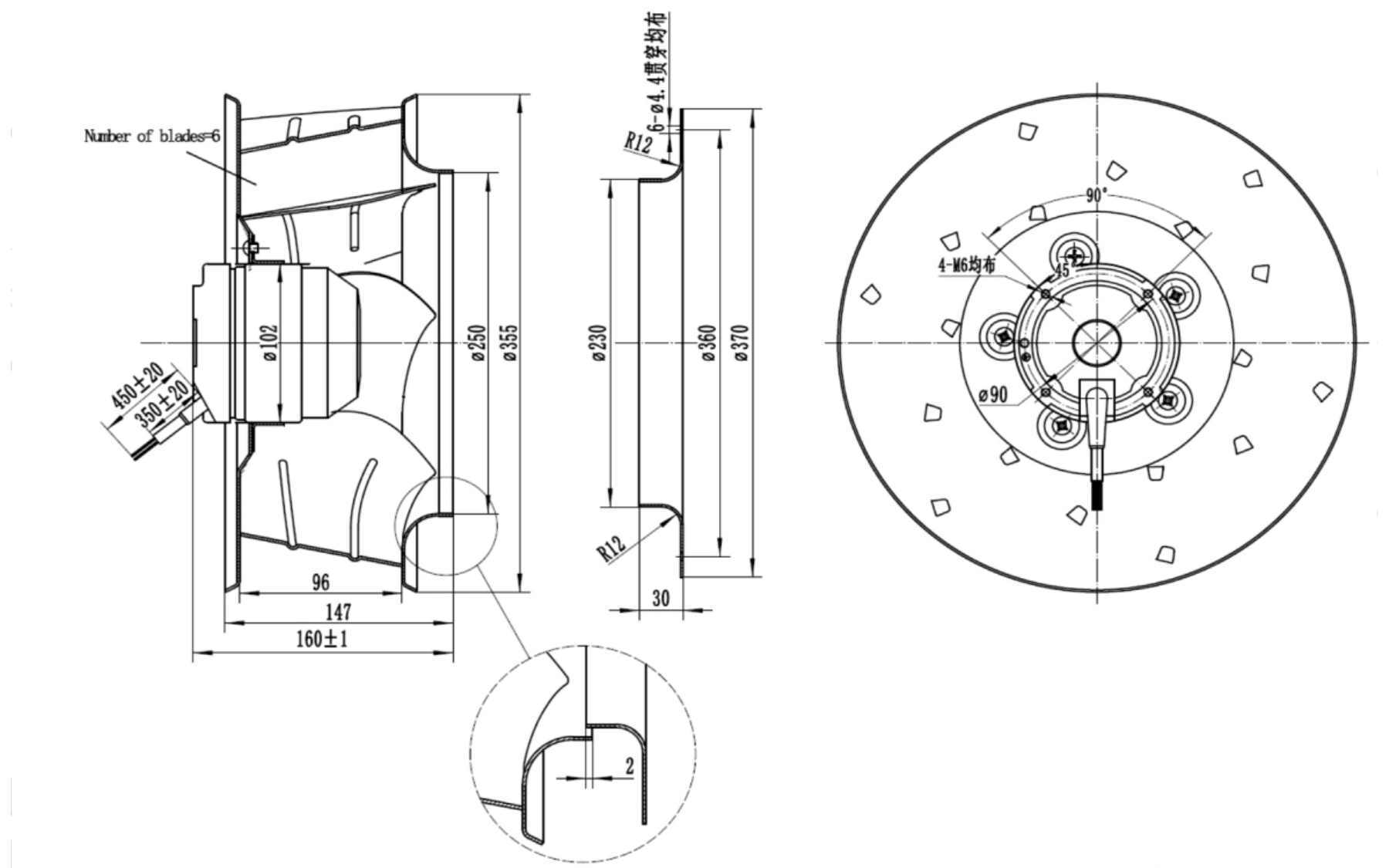

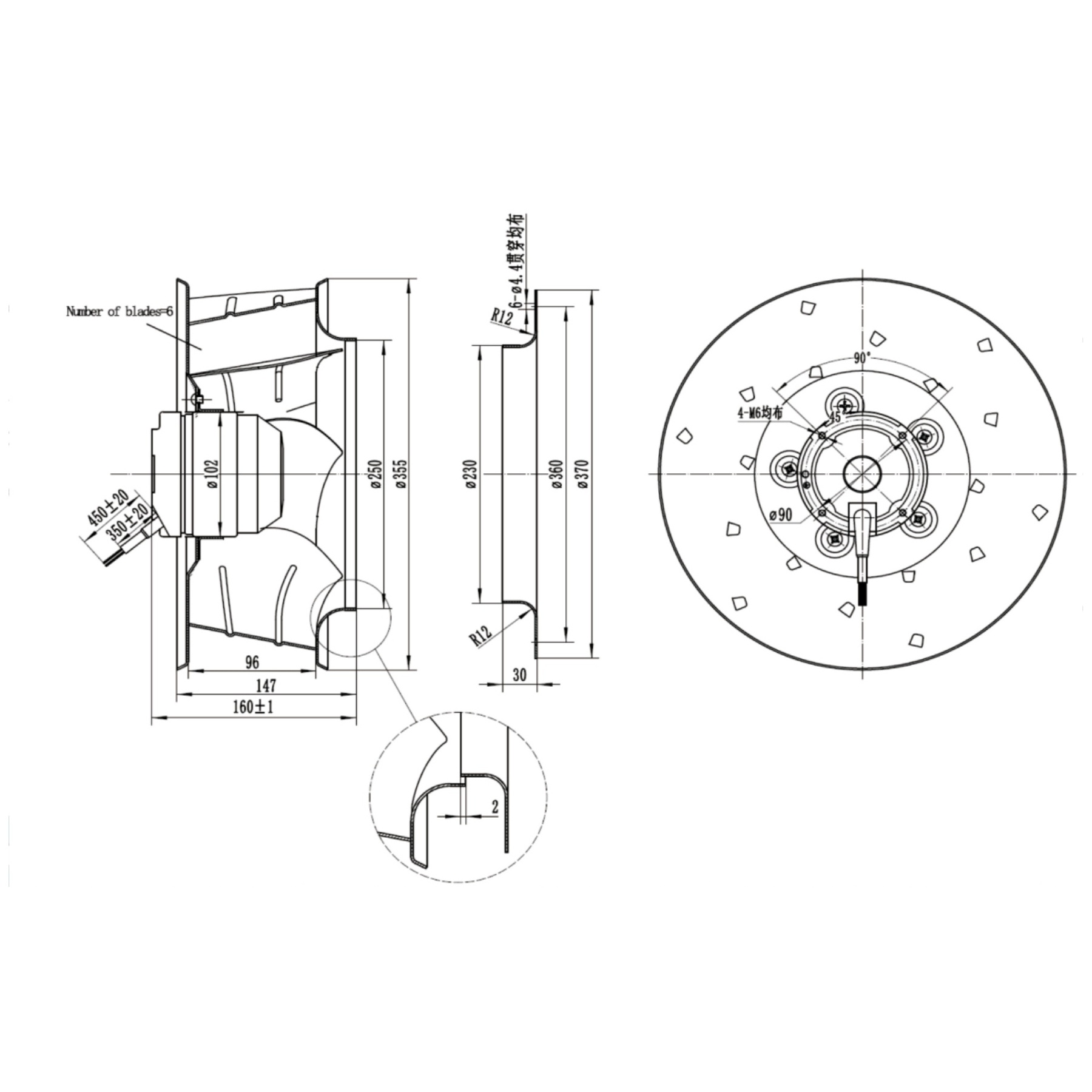

Source dimensional drawing for the 355 series.
Source performance curve for the 355 series.
| Product Category | DC Centrifugal Fan – Backward Curved |
|---|---|
| Series | 355 |
| Size | Φ335mm × 147mm |
| Air Flow | 2122CFM |
| Noise | 73.4dB(A) |
| Impeller Material | Metal |
| Operation Mode | S1 |
| Operating Temperature | -10°C–+65°C |
| Type of Protection | IP44 |
| Insulation Class | B |
| Model | Voltage (VDC) | Current (A) | Power (W) | Speed (RPM) | Air Flow (CFM) | Static Pressure (mmH₂O) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|
| YDH355BID3-A01 | 310 | 1.1 | 330 | 1900 | 2122 | 84.3 | 73.4 |
