6025 SERIES

6025 Small DC Centrifugal Fan, features a compact 160 × 60 × 25mm design, and Plastic (94V-0) impeller. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.

Size: 160 × 60 × 25mm
Impeller Material: Plastic (94V-0)
Operating Temperature: -10–70°C (Non-condensing)
Lead Wire: UL1007 AWG #24 or equivalent; (+) red, (-) Black

Chat Now Message Email

Product details

Parameters

Dimensions and construction

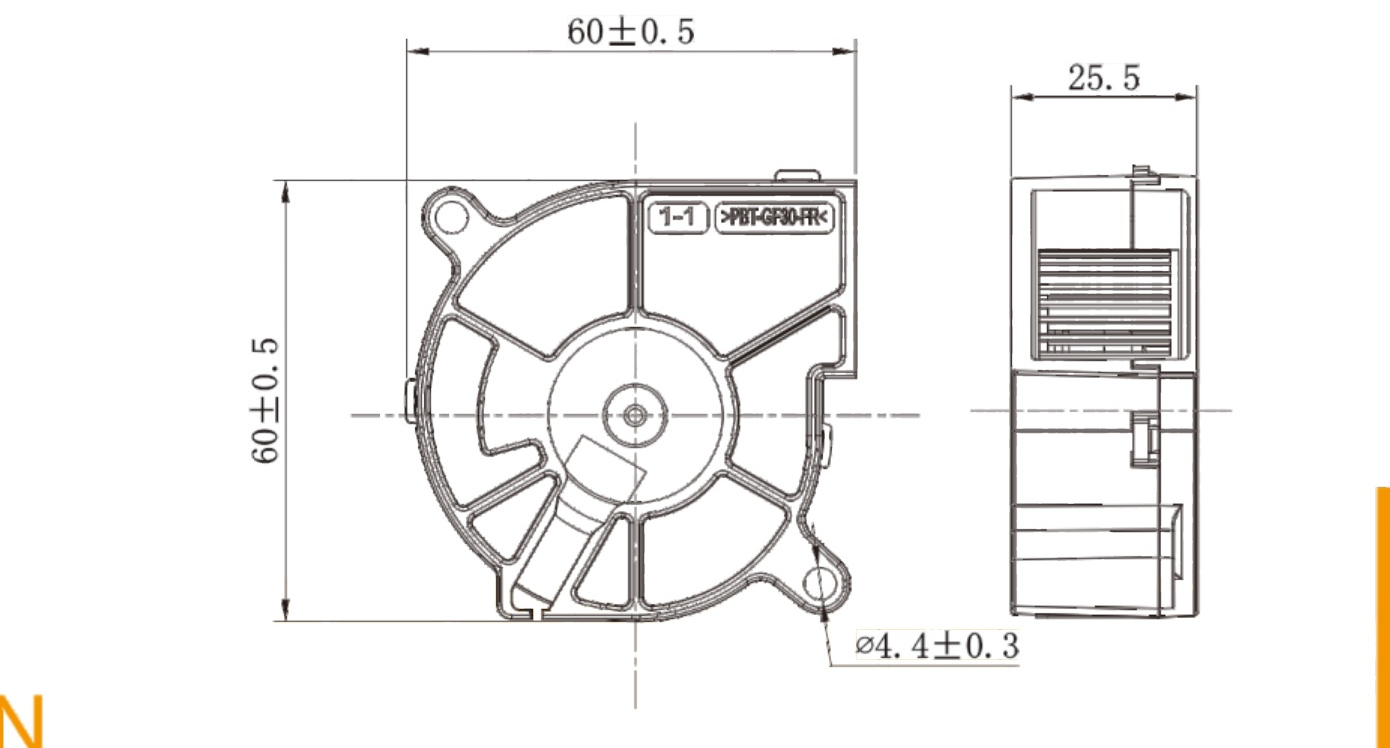

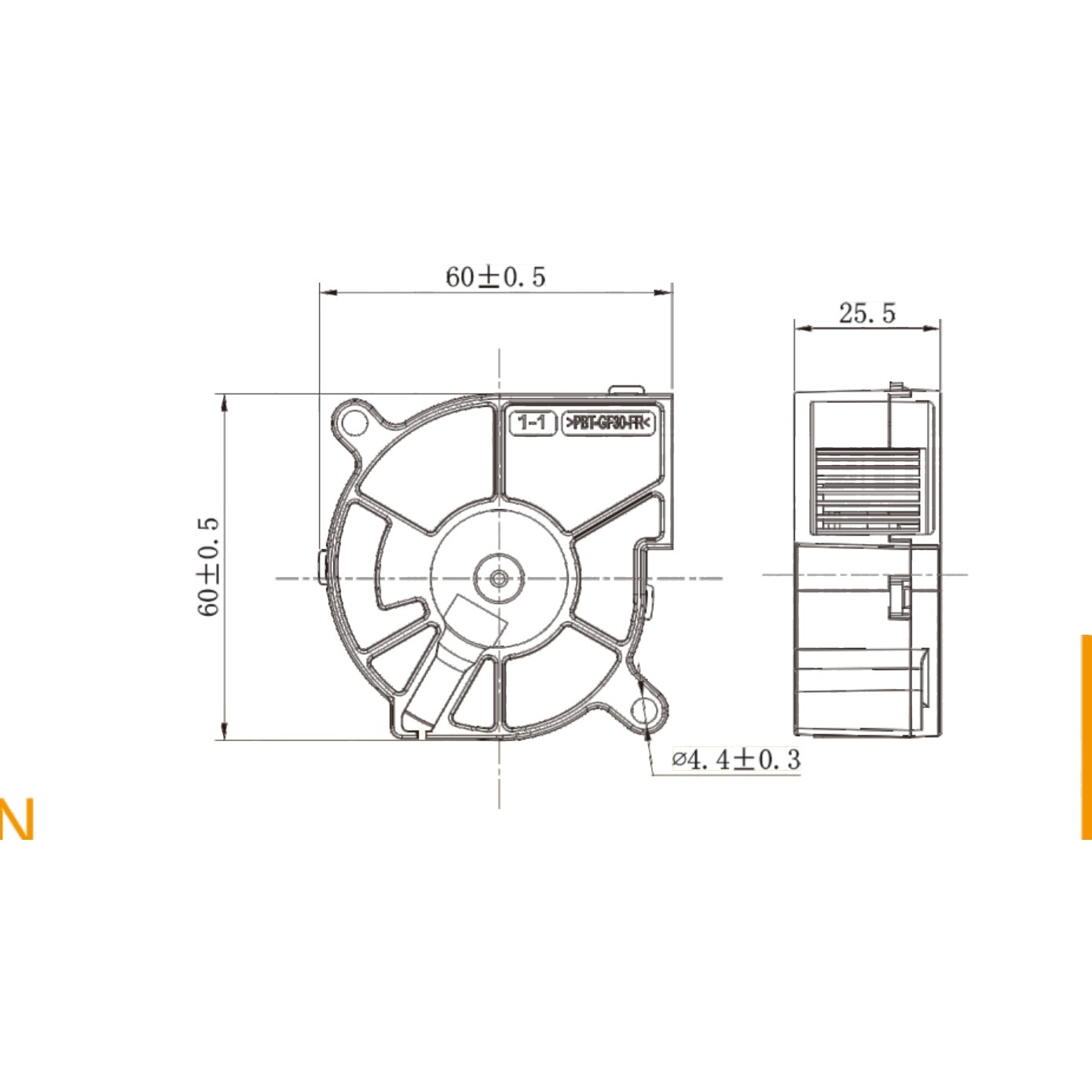

Source dimensional drawing for the 6025 series.

Performance curve

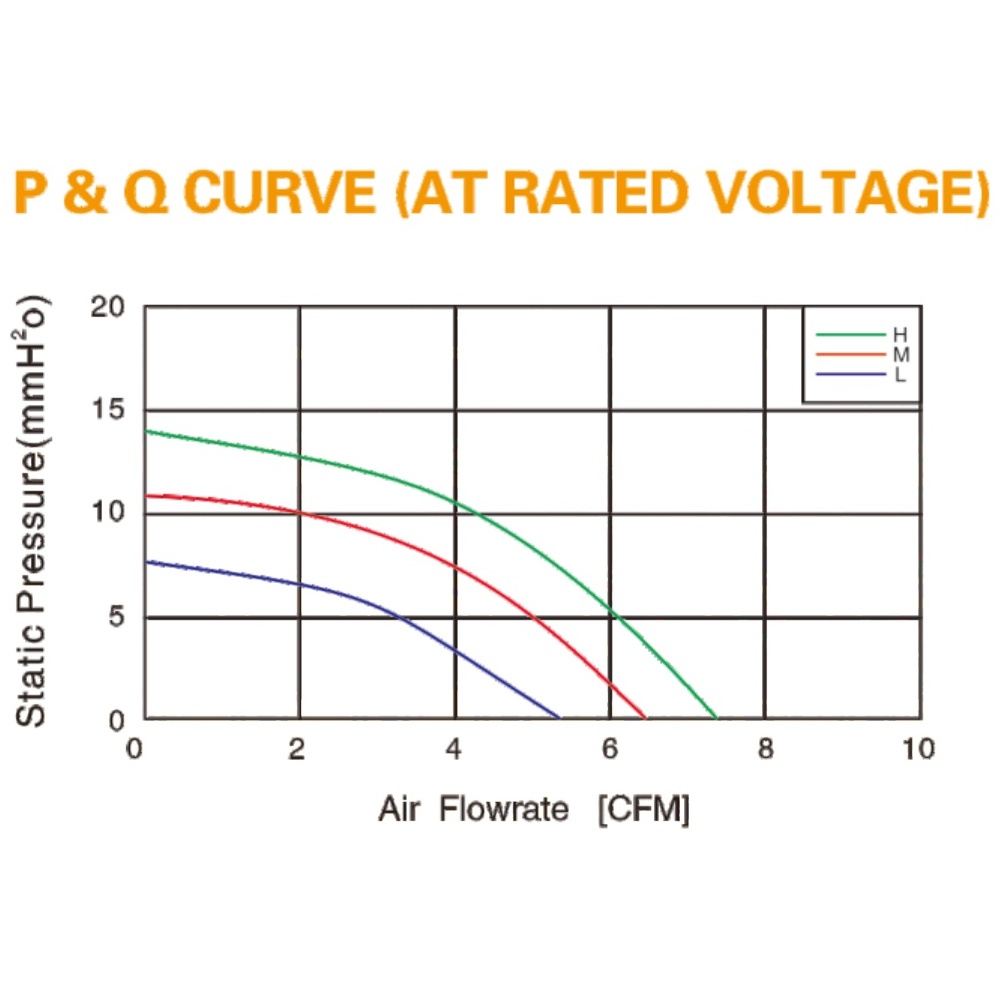

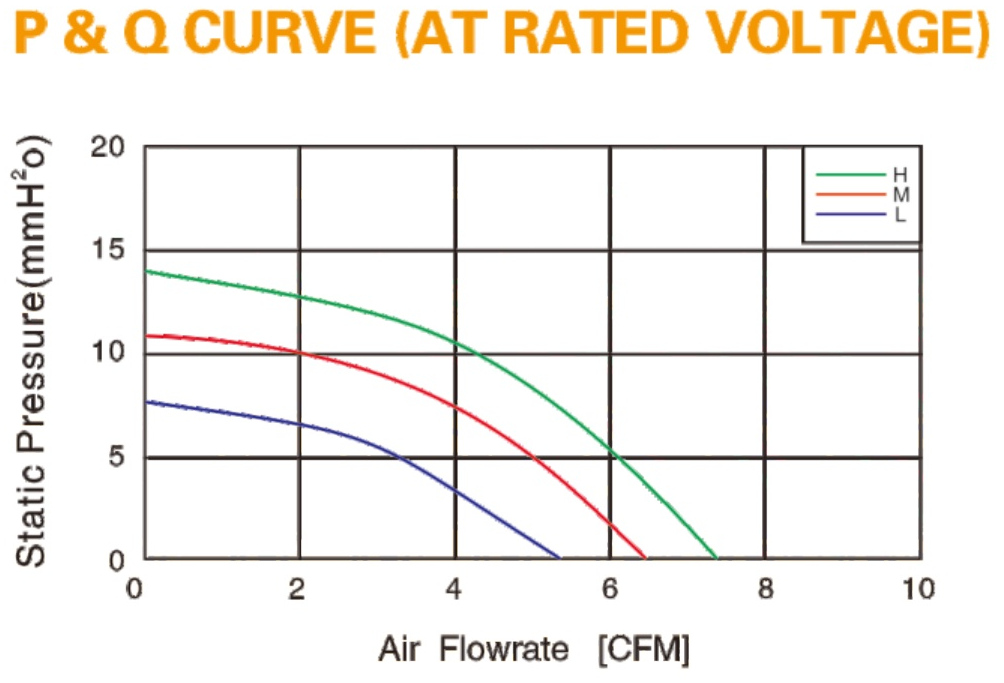

Source performance curve for the 6025 series.

6025 technical parameters

Product description

Product Category	DC Centrifugal Fan
Series	6025
Size	160 × 60 × 25mm
Frame Material	Plastic (94V-0)
Impeller Material	Plastic (94V-0)
Lead Wire	UL1007 AWG #24 or equivalent; (+) red, (-) Black
Ball Bearing Life	70,000 hours at 40°C
Sleeve Bearing Life	30,000 hours at 40°C
Operating Temperature	-10–70°C (Non-condensing)
Storage Temperature	-40–70°C (Non-condensing)
Special Options	AS, FG, RD, PWM, TC, IP55

Model specifications

Model	Rated Voltage (V)	Operating Voltage (V)	Rated Current (A)	Actual Current (A)	Rated Power (W)	Rated Speed (RPM ±10%)	Max Air Flow (CMM)	Max Air Flow (CFM)	Max Static Pressure (inH₂O)	Max Static Pressure (mmH₂O)	Noise Level (dB(A))
JL6025H12B	12	6–13.2	0.28	0.25	3.00	4000	0.206	7.28	0.585	14.87	35.5
JL6025M12B	12	6–13.2	0.18	0.16	1.92	3500	0.180	6.37	0.449	11.4	32.6
JL6025L12B	12	6–13.2	0.14	0.12	1.44	3000	0.155	5.46	0.330	8.37	29.3
JL6025H24B	24	12–26.4	0.16	0.14	3.36	4000	0.206	7.28	0.585	14.87	35.5
JL6025M24B	24	12–26.4	0.14	0.10	2.40	3500	0.180	6.37	0.449	11.4	32.6
JL6025L24B	24	12–26.4	0.1	0.07	1.68	3000	0.155	5.46	0.330	8.37	29.3
