Series 47 AC All-Metal Axial Fan

Series 47 AC All-Metal Axial Fan, features a compact 80mm×80mm×38mm design, with a durable Aluminum Alloy frame, and Metal impeller, powered by a Shaded Pole and External Rotor Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.
  • Size: 80mm×80mm×38mm
  • Airflow: 28-34CFM
  • Noise: 30-34dB(A)
  • Frame: Aluminum Alloy
  • Impeller Material: Metal
  • Motor: Shaded Pole and External Rotor Induction Motor
  • Operating Temperature: -10℃ ~ +65℃
  • Terminals: 0.5mm
Chat Now Message Email
Product details
Parameters
6
Dimensions and construction

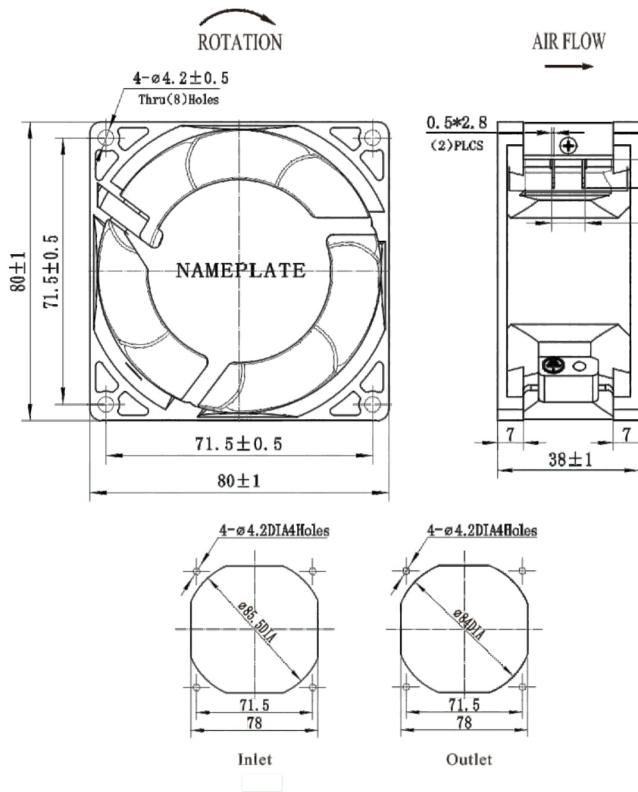

Source dimensional drawing for the Series 47 series.

6
Performance curve

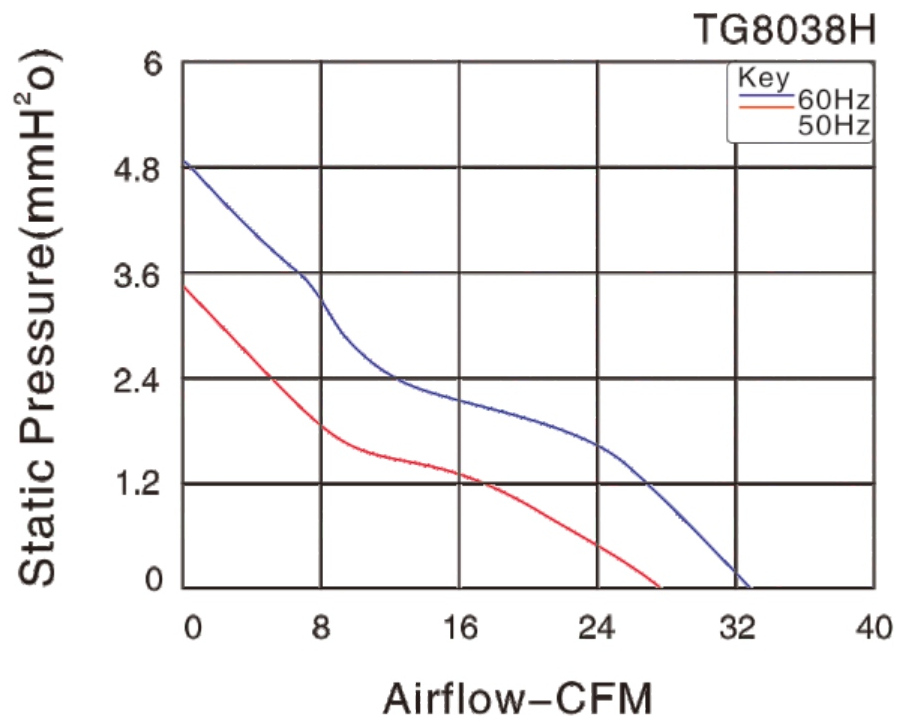

Source performance curve for the Series 47 series.

6
Dimensional drawing

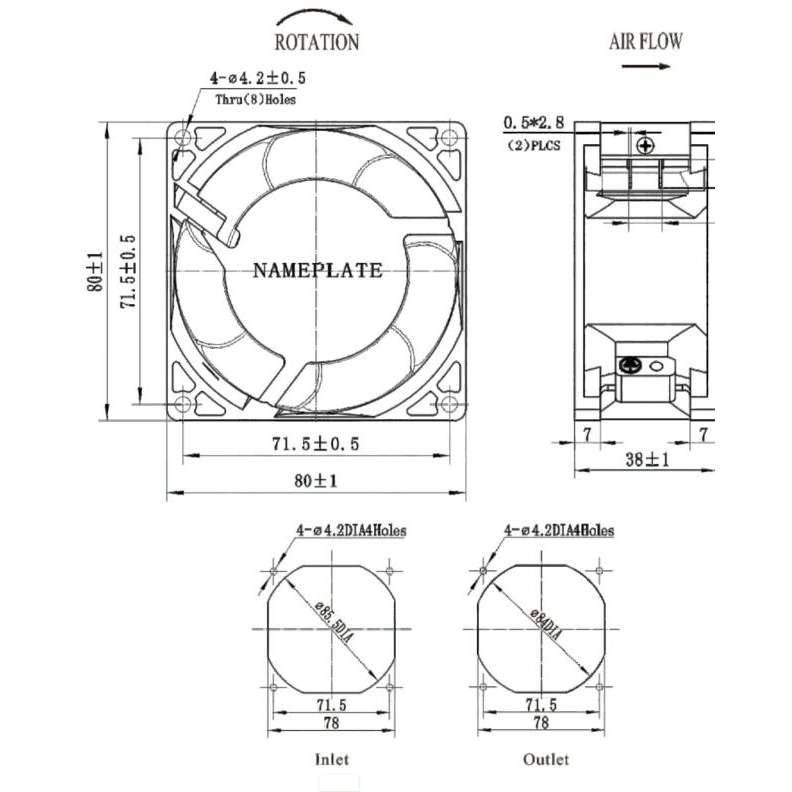

Engineering dimensional drawing for the Series 47 series, showing mounting dimensions and airflow direction.

6
Performance curve

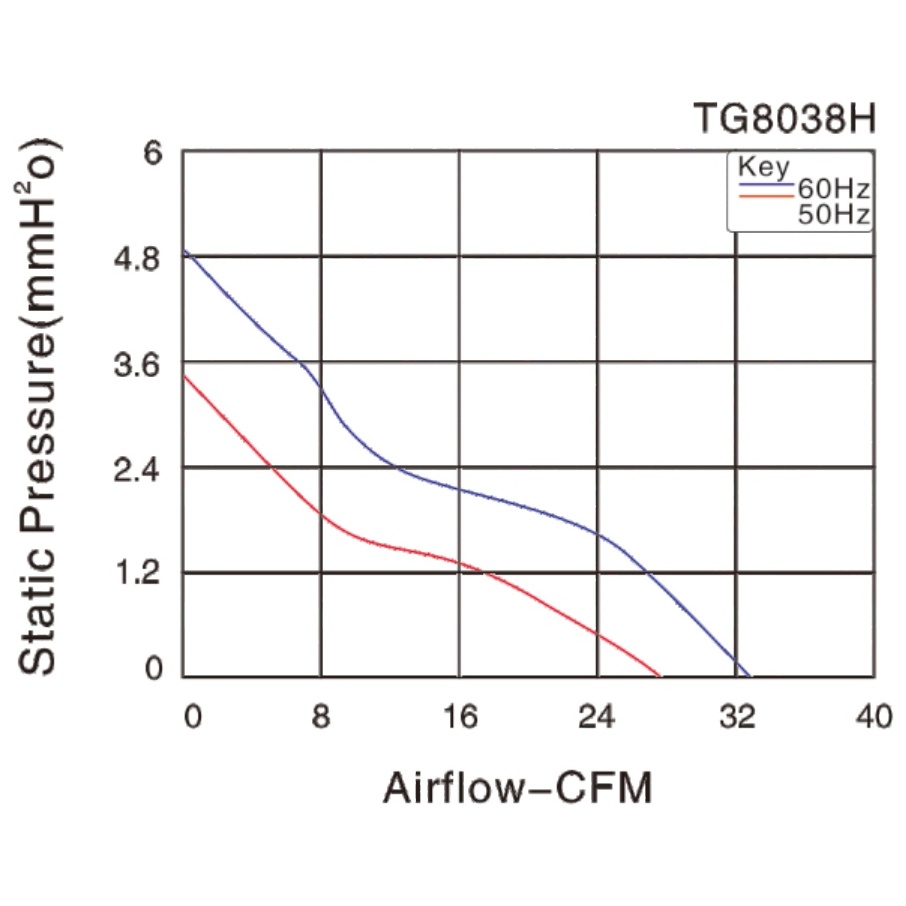

Static pressure vs. airflow performance curve for the Series 47 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 47 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 47 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 47 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 47 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 47 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 47 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 47 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 47 series under standard operating conditions.

6
Dimensional drawing

6
Performance curve

Series 47 technical parameters

Product description

Size 80mm×80mm×38mm
Airflow 28-34CFM
Noise 30-34dB(A)
Impeller Material Metal
Frame Aluminum Alloy
Terminals 0.5mm
Lead Wire AWG #22 UL1322 (Optional)
Motor Shaded Pole and External Rotor Induction Motor
Operating Temperature -10℃ ~ +65℃

Model specifications

Model Bearing System Voltage VAC Freq. Hz Current A Power W Speed RPM Noise dB(A) Air Flow CFM Phase Capacitor µF/VAC
TG8038HA1B-7P Ball 100/125 50/60 0.18/0.15 16/14 2700/3250 30/34 28/34 1 —
TG8038HA2B-7P Ball 200/240 50/60 0.09/0.1 16/14 2700/3250 30/34 28/34 1 —
