Series 48 AC All-Metal Axial Fan

Series 48 AC All-Metal Axial Fan, features a compact 92mm×92mm×38mm design, with a durable Aluminum Alloy frame, and Metal impeller, powered by a Shaded Pole and External Rotor Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.
  • Size: 92mm×92mm×38mm
  • Airflow: 46-56CFM
  • Noise: 37-42dB(A)
  • Frame: Aluminum Alloy
  • Impeller Material: Metal
  • Motor: Shaded Pole and External Rotor Induction Motor
  • Operating Temperature: -10℃ ~ +65℃
  • Terminals: 0.5mm
Chat Now Message Email
Product details
Parameters
6

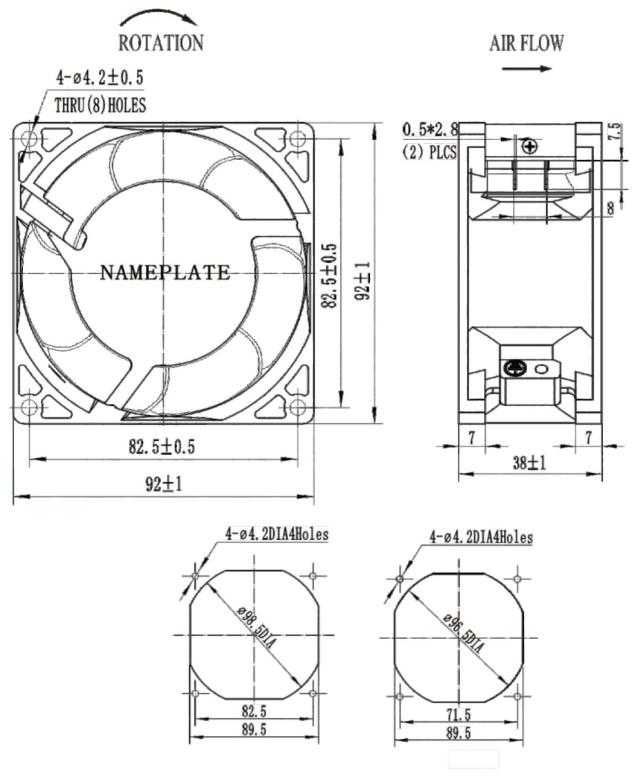

Dimensions and construction

Source dimensional drawing for the Series 48 series.

6

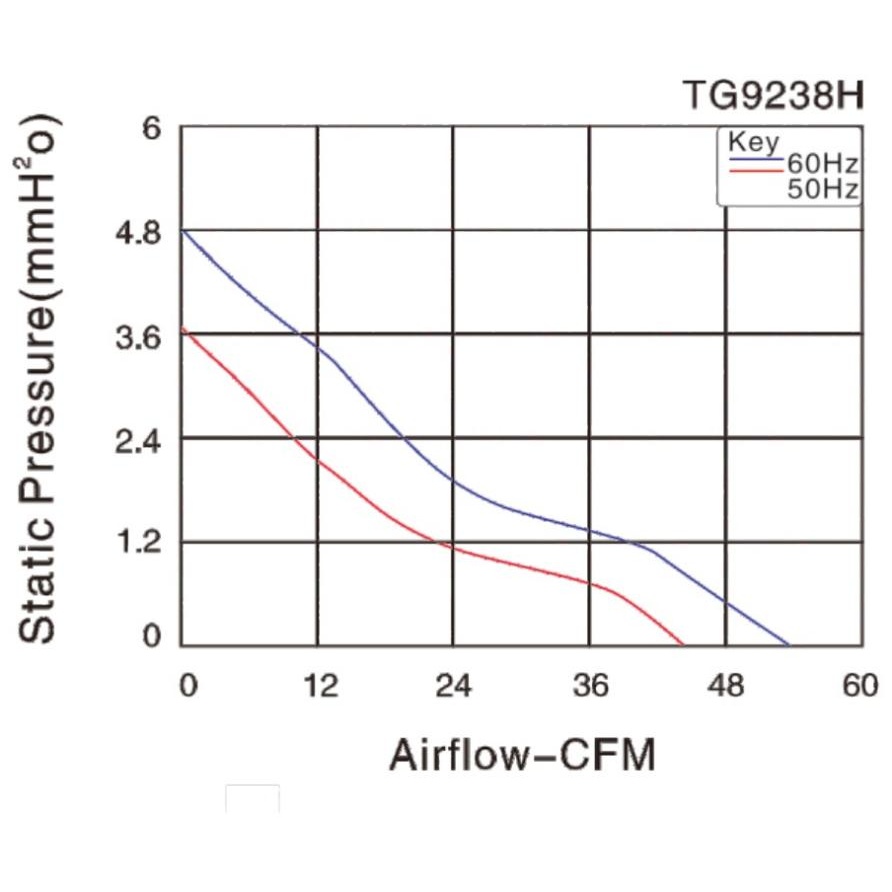

Performance curve

Source performance curve for the Series 48 series.

6

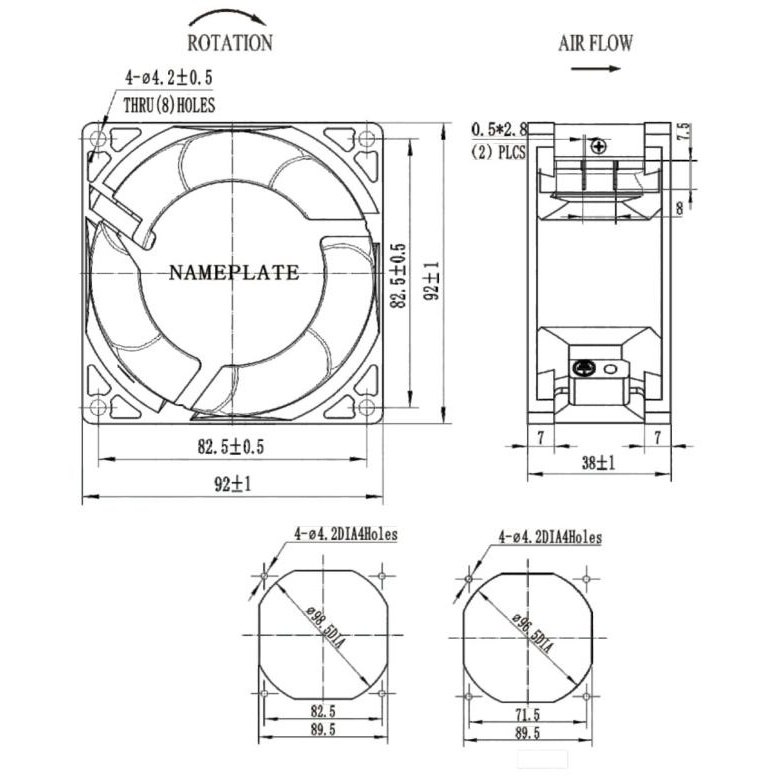

Dimensional drawing

Engineering dimensional drawing for the Series 48 series, showing mounting dimensions and airflow direction.

6

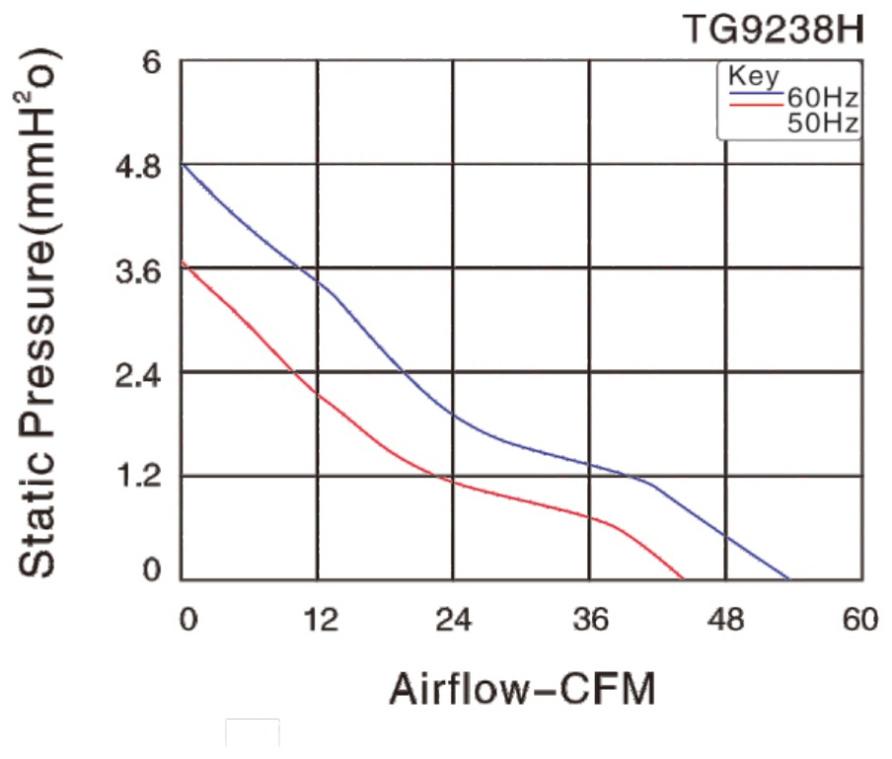

Performance curve

Static pressure vs. airflow performance curve for the Series 48 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 48 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 48 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 48 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 48 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 48 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 48 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 48 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 48 series under standard operating conditions.

6
Dimensional drawing

6
Performance curve

Series 48 technical parameters

Product description

Size 92mm×92mm×38mm
Airflow 46-56CFM
Noise 37-42dB(A)
Impeller Material Metal
Frame Aluminum Alloy
Terminals 0.5mm
Lead Wire AWG #22 UL1332 (Optional)
Motor Shaded Pole and External Rotor Induction Motor
Operating Temperature -10℃ ~ +65℃

Model specifications

Model Bearing System Voltage VAC Freq. Hz Current A Power W Speed RPM Noise dB(A) Air Flow CFM Phase Capacitor µF/VAC
TG9238HA1B-7P Ball 100/125 50/60 0.18/0.18 16/14 2600/3000 37/42 46/56 1 —
TG9238HA2B-7P Ball 200/240 50/60 0.1/0.09 16/14 2600/3000 37/42 46/56 1 —
