12025 SERIES

12025 Small DC Centrifugal Fan, features a compact Φ120 × 25mm design, and Plastic (94V-0) impeller. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.

Size: Φ120 × 25mm
Impeller Material: Plastic (94V-0)
Operating Temperature: -10–70°C (Non-condensing)
Lead Wire: UL1007 AWG #24 or equivalent; (+) red, (-) Black

Chat Now Message Email

Product details

Parameters

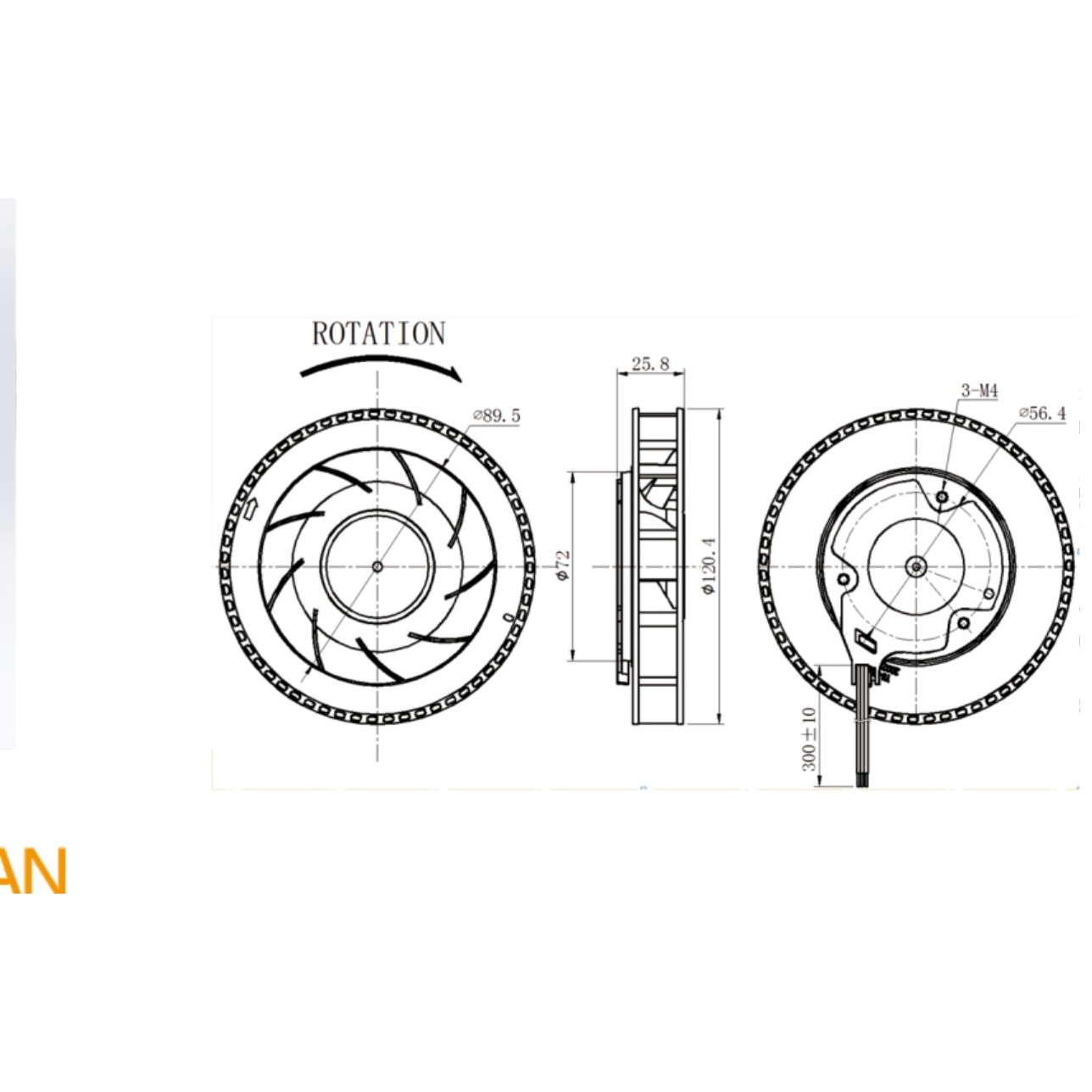

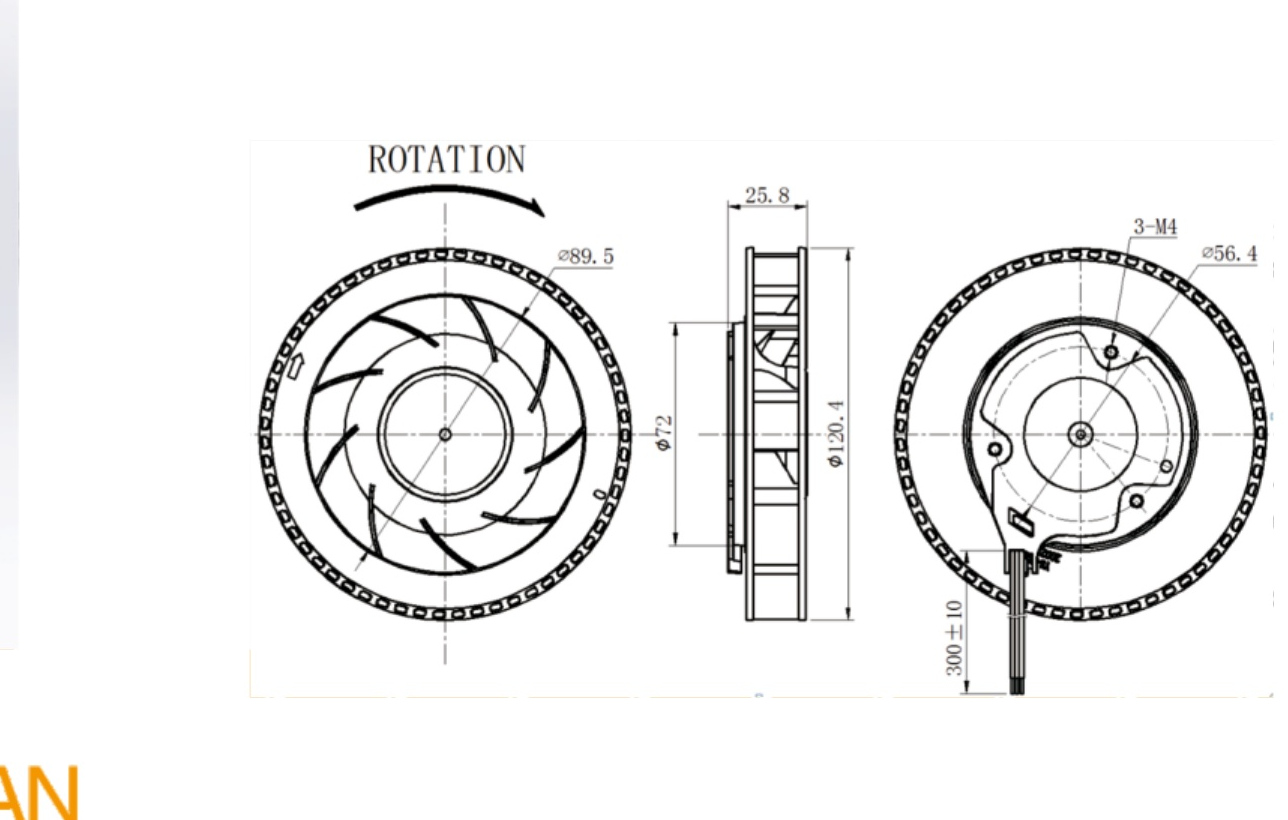

Dimensions and construction

Source dimensional drawing for the 12025 series.

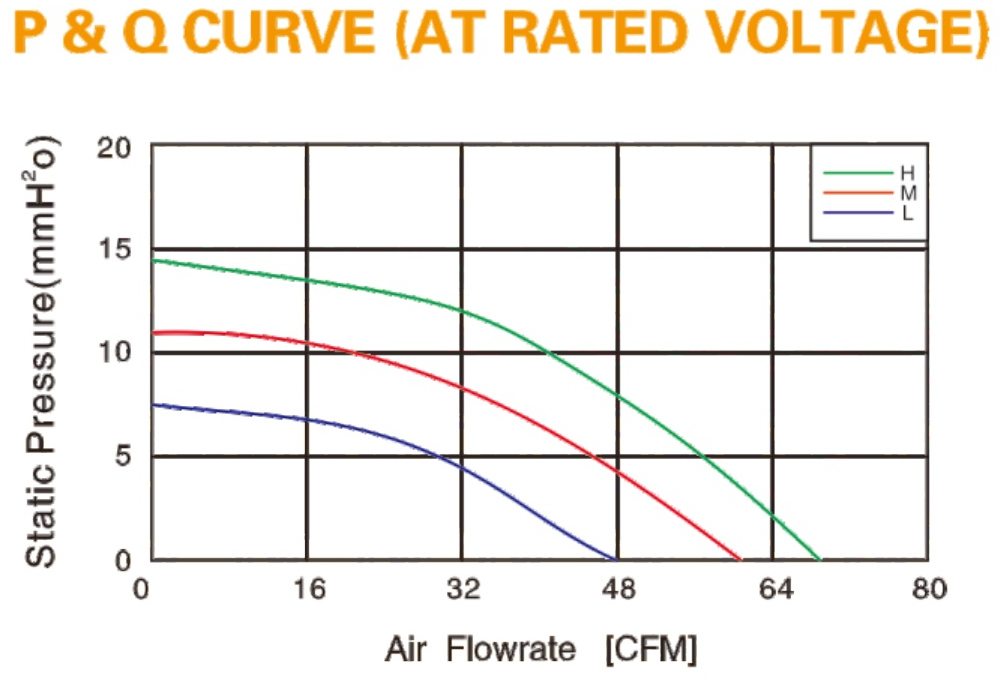

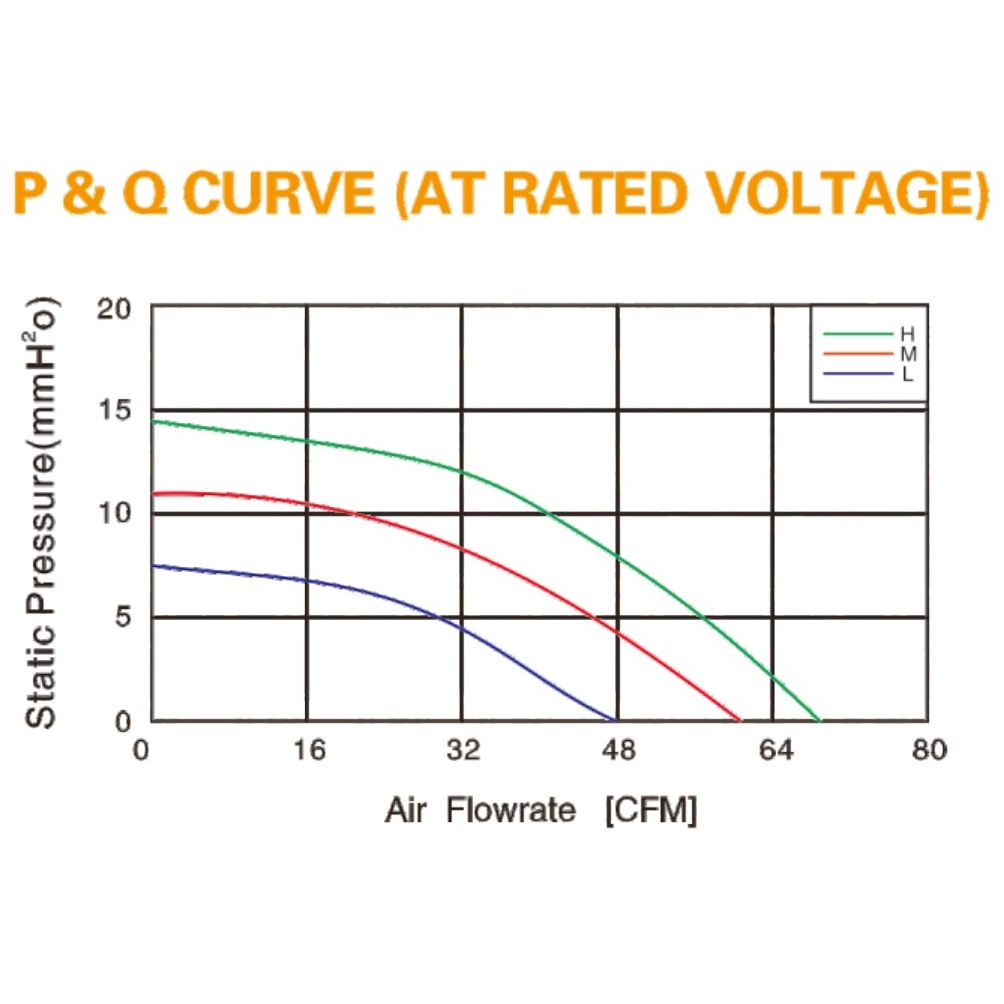

Performance curve

Source performance curve for the 12025 series.

12025 technical parameters

Product description

Product Category	DC Centrifugal Fan
Series	12025
Size	Φ120 × 25mm
Frame Material	Plastic (94V-0)
Impeller Material	Plastic (94V-0)
Lead Wire	UL1007 AWG #24 or equivalent; (+) red, (-) Black
Ball Bearing Life	70,000 hours at 40°C
Sleeve Bearing Life	30,000 hours at 40°C
Operating Temperature	-10–70°C (Non-condensing)
Storage Temperature	-40–70°C (Non-condensing)
Special Options	AS, FG, RD, PWM, TC, IP55

Model specifications

Model	Rated Voltage (V)	Operating Voltage (V)	Rated Current (A)	Actual Current (A)	Rated Power (W)	Rated Speed (RPM ±10%)	Max Air Flow (CMM)	Max Air Flow (CFM)	Max Static Pressure (inH₂O)	Max Static Pressure (mmH₂O)	Noise Level (dB(A))
YDH12025H12B	12	6–13.2	0.8	0.72	8.64	3500	1.860	65.70	0.583	14.80	55.1
YDH12025M12B	12	6–13.2	0.6	0.56	6.72	3000	1.594	56.30	0.429	10.90	51.8
YDH12025L12B	12	6–13.2	0.4	0.37	4.44	2500	1.328	46.90	0.299	7.60	47.8
YDH12025H24B	24	12–26.4	0.45	0.42	10.08	3500	1.860	65.70	0.583	14.80	55.1
YDH12025M24B	24	12–26.4	0.3	0.28	6.72	3000	1.594	56.30	0.429	10.90	51.8
YDH12025L24B	24	12–26.4	0.25	0.22	5.28	2500	1.328	46.90	0.299	7.60	47.8
