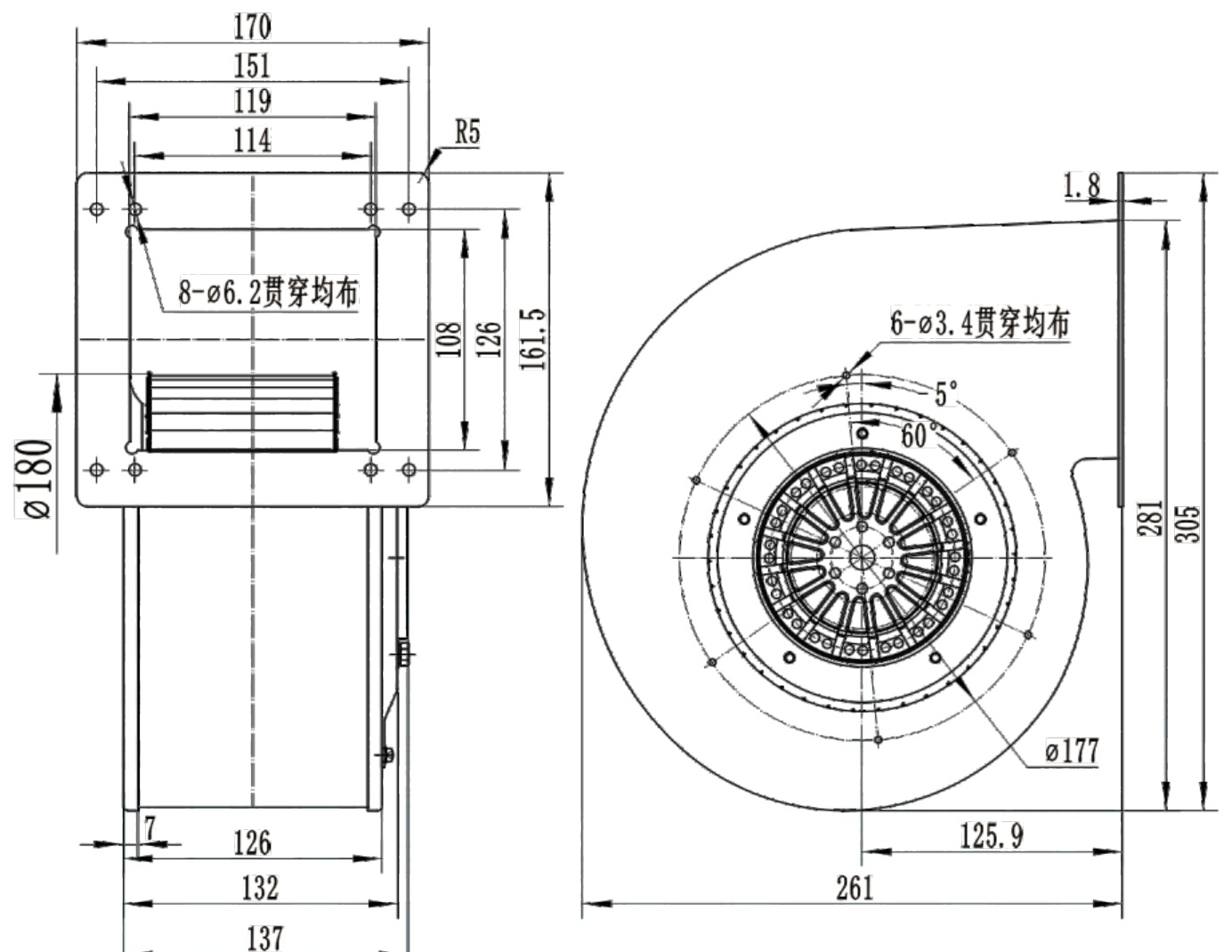

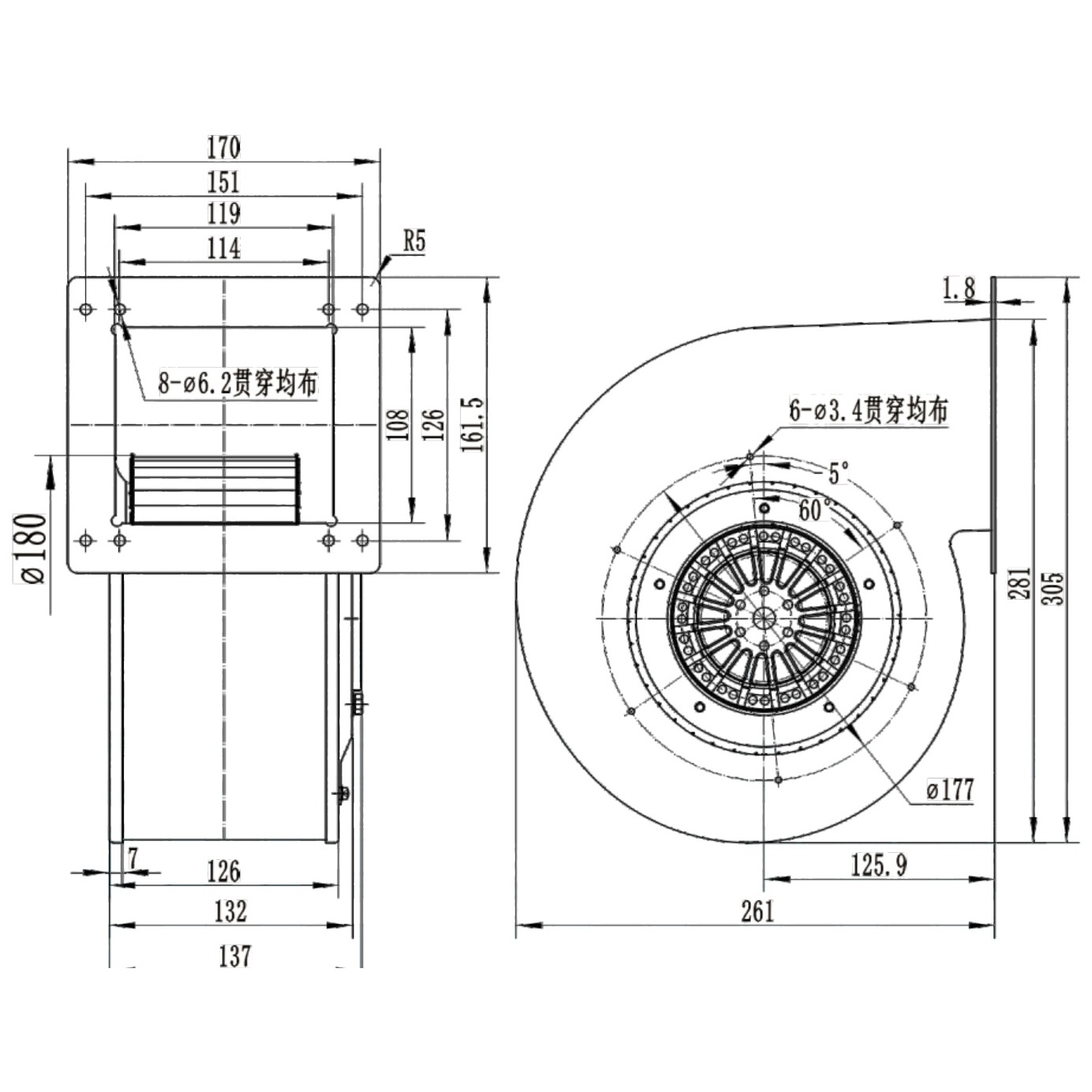

Source dimensional drawing for the 180 series.

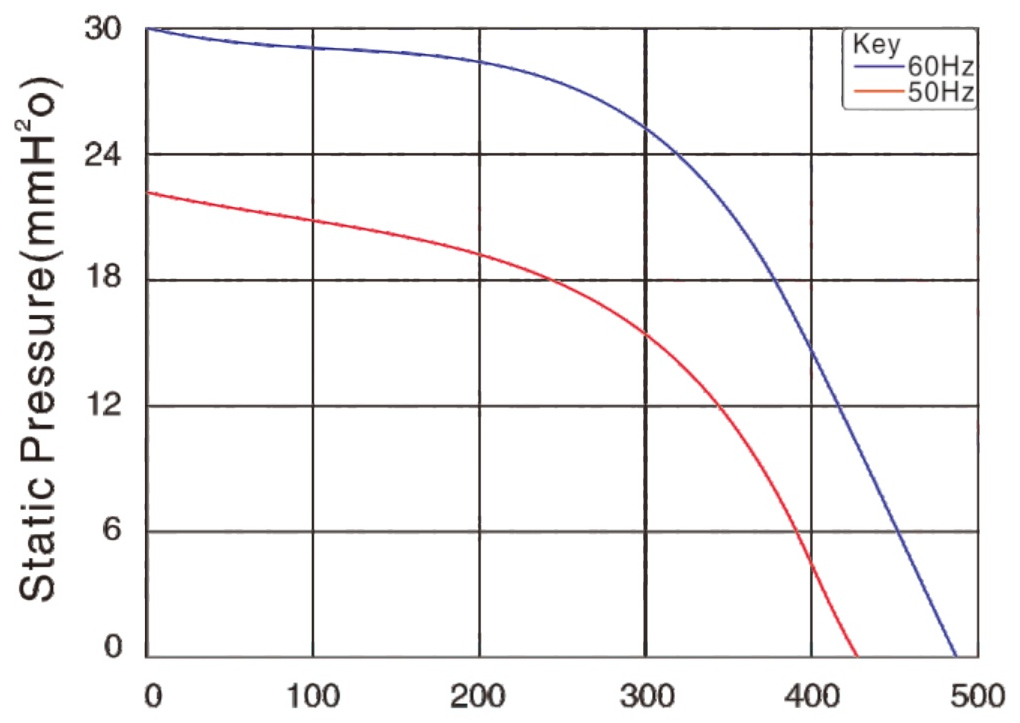

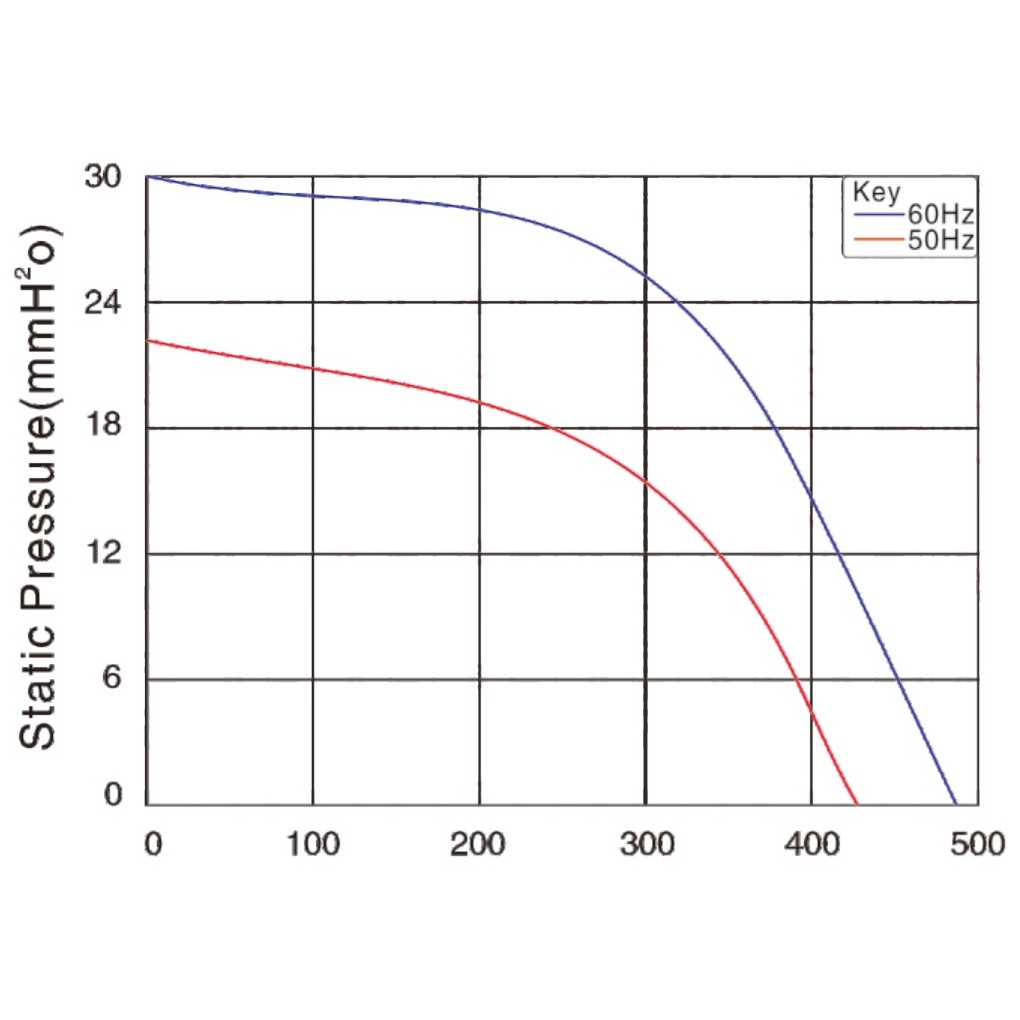

Source performance curve for the 180 series.
| Product Category | AC Centrifugal Fan – Single Inlet |
|---|---|
| Series | 180 |
| Size | 0180mm × 92mm |
| Impeller Material | Metal |
| Motor | Capacitor-RunAnd External RotorInductionMotor |
| Lead Wire | Teflon22#UL1332(Optional) |
| Operating Temperature | -10°C–+65°C |
| Type of Protection | IP44 |
| Insulation Class | F |
| Model | Voltage (VAC) | Frequency (Hz) | Current (A) | Power (W) | Speed (RPM) | Noise (dB(A)) | Capacitor (μF/VAC) | Air Flow (CFM) |
|---|---|---|---|---|---|---|---|---|
| JD180A4E01-W | 115 | 50/60 | 1.6/1.8 | 180/200 | 1350/1550 | 65/67 | 20/250 | 426/471 |
| JD180A4E02-W | 230 | 50/60 | 0.6/0.9 | 135/180 | 1350/1550 | 65/67 | 5/500 | 426/471 |
| JD180A4E03-W | 380 | 50 | 0.3/0.25 | 135/155 | 1350/1550 | 65/67 | — | 426/471 |
