450FZL SERIES

Series 106 AC All-Metal Axial Fan, features a compact 575mm×575mm×110mm design, and Metal impeller, powered by a Capacitor-Run and External Rotor Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.

Size: 575mm×575mm×110mm
Airflow: 2624-3413CFM
Noise: 59-73dB(A)
Impeller Material: Metal
Motor: Capacitor-Run and External Rotor Induction Motor
Operating Temperature: -10℃ ~ +65℃
Lead Wire: Teflon 18# UL1332 (Optional)

Chat Now Message Email

Product details

Parameters

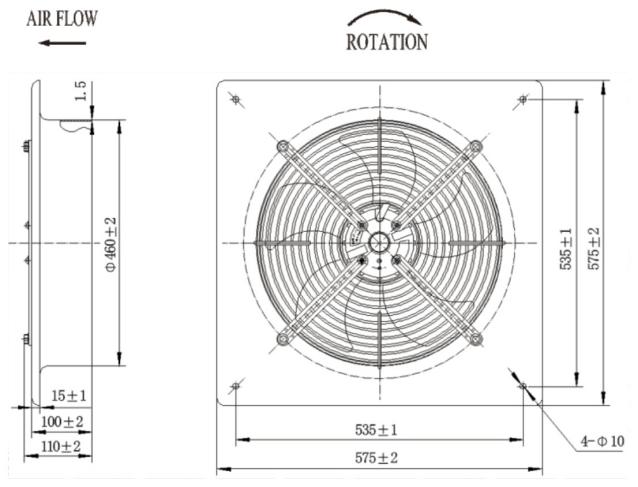

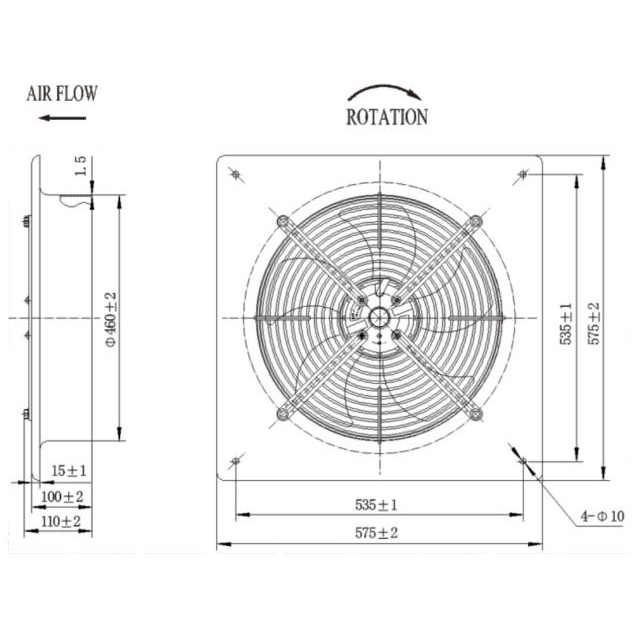

Dimensions and construction

Source dimensional drawing for the Series 106 series.

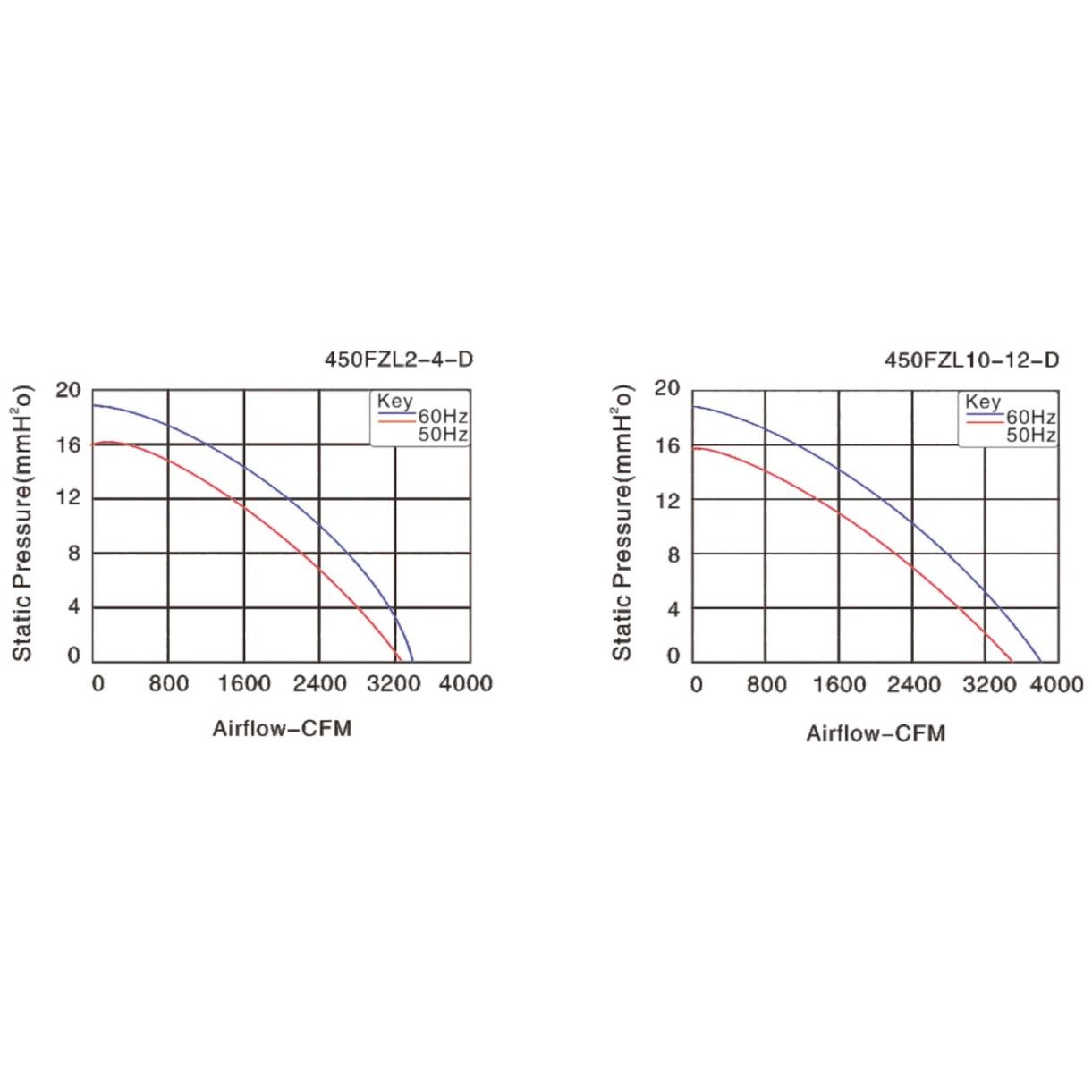

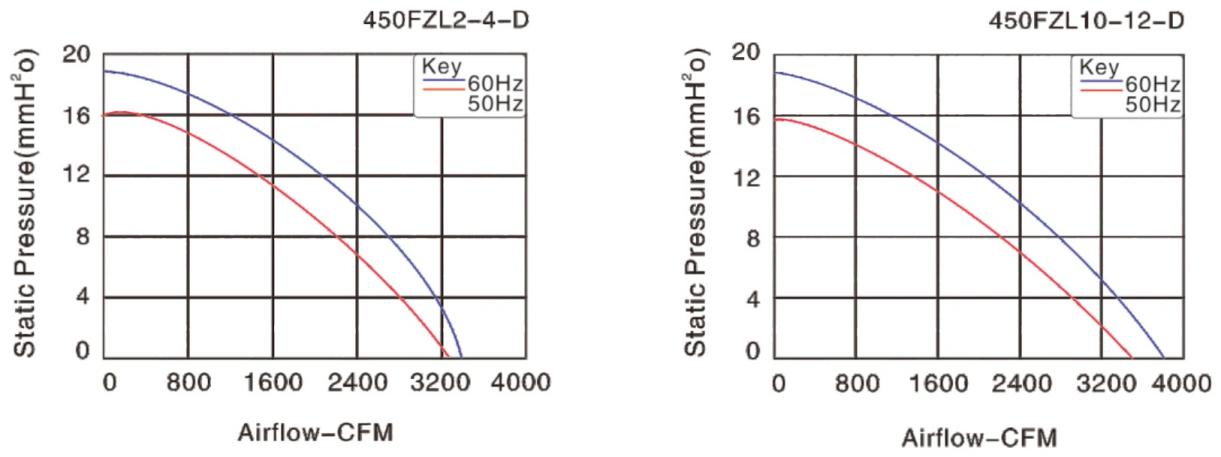

Performance curve

Source performance curve for the Series 106 series.

Series 106 technical parameters

Product description

Size	575mm×575mm×110mm
Airflow	2624-3413CFM
Noise	59-73dB(A)
Impeller Material	Metal
Lead Wire	Teflon 18# UL1332 (Optional)
Motor	Capacitor-Run and External Rotor Induction Motor
Operating Temperature	-10℃ ~ +65℃
Type of Protection	IP44
Insulation Class	“F”

Model specifications

Model	Bearing System	Voltage VAC	Freq. Hz	Current A	Power W	Speed RPM	Noise dB(A)	Air Flow CFM	Phase	Capacitor µF/VAC
450FZL2-D	Ball	200/240	50/60	1.15	250	1350/1450	70/73	3154/3413	1	8/500
450FZL3-D	Ball	380/420	50/60	0.52	250	1350/1450	70/73	3154/3413	3	—
450FZL4-D	Ball	380/420	50/60	0.6	250	1350/1450	70/73	3154/3413	1	4/500
450FZL10-D	Ball	200/240	50/60	0.71	160	920/1040	59/62	2624/2813	1	6/500
450FZL11-D	Ball	380/420	50/60	0.40	160	920/1040	59/62	2624/2813	3	—
450FZL12-D	Ball	380/420	50/60	0.45	160	920/1040	59/62	2624/2813	1	3/500
