500FZL SERIES

Series 107 AC All-Metal Axial Fan, features a compact 655mm×655mm×120mm design, and Metal impeller, powered by a Capacitor-Run and External Rotor Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.

Size: 655mm×655mm×120mm
Airflow: 3266-3859CFM
Noise: 65-73dB(A)
Impeller Material: Metal
Motor: Capacitor-Run and External Rotor Induction Motor
Operating Temperature: -10℃ ~ +65℃
Lead Wire: Teflon 18# UL1332 (Optional)

Chat Now Message Email

Product details

Parameters

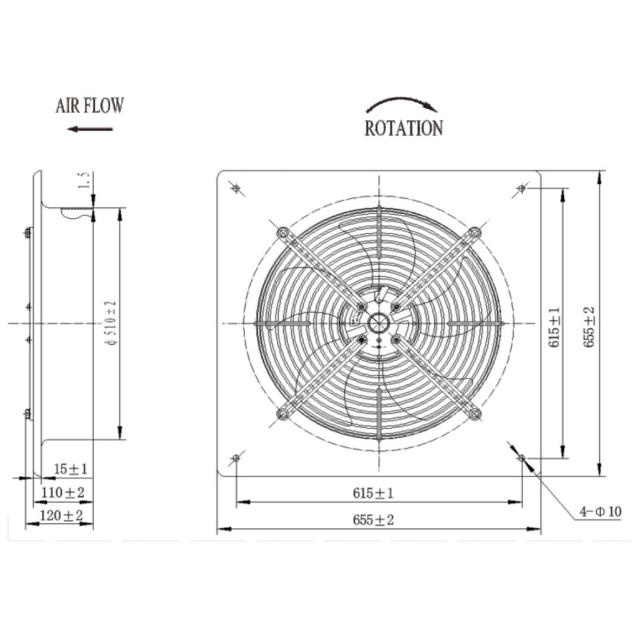

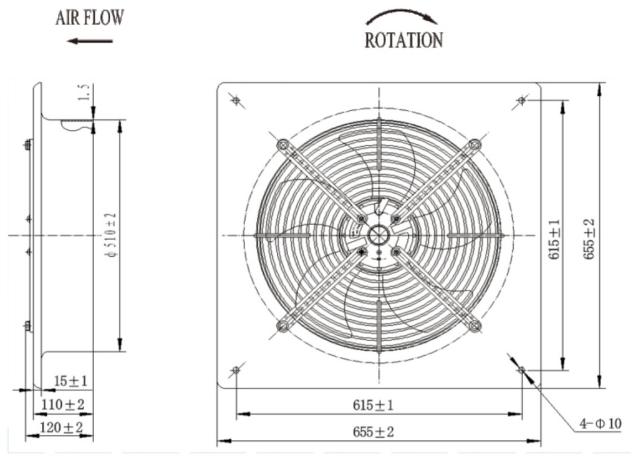

Dimensions and construction

Source dimensional drawing for the Series 107 series.

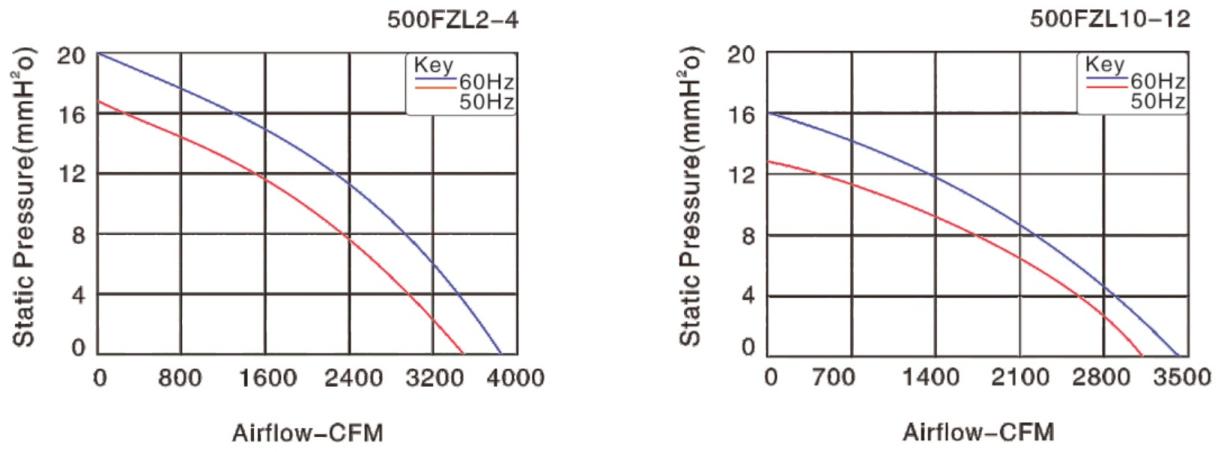

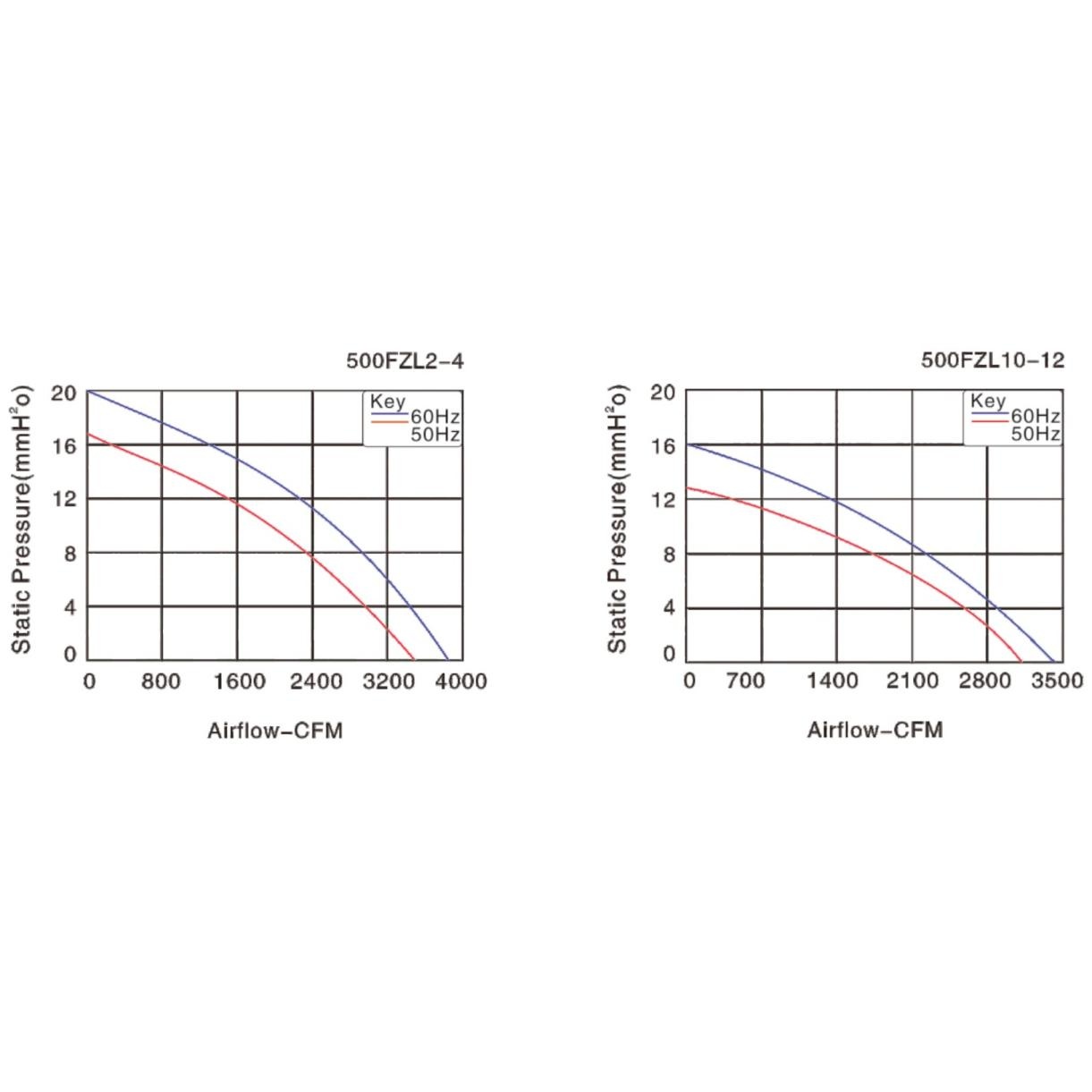

Performance curve

Source performance curve for the Series 107 series.

Series 107 technical parameters

Product description

Size	655mm×655mm×120mm
Airflow	3266-3859CFM
Noise	65-73dB(A)
Impeller Material	Metal
Lead Wire	Teflon 18# UL1332 (Optional)
Motor	Capacitor-Run and External Rotor Induction Motor
Operating Temperature	-10℃ ~ +65℃
Type of Protection	IP44
Insulation Class	“F”

Model specifications

Model	Bearing System	Voltage VAC	Freq. Hz	Current A	Power W	Speed RPM	Noise dB(A)	Air Flow CFM	Phase	Capacitor µF/VAC
500FZL2-D	Ball	200/240	50/60	1.8	480	1350/1470	70/73	3589/3895	1	4/500
500FZL3-D	Ball	380/420	50/60	0.9	480	1350/1470	70/73	3589/3895	3	—
500FZL4-D	Ball	380/420	50/60	1.2	480	1350/1470	70/73	3589/3895	1	5/500
500FZL10-D	Ball	200/240	50/60	1.2	240	925/1020	65/68	3266/3431	1	8/500
500FZL11-D	Ball	380/420	50/60	0.5	240	925/1020	65/68	3266/3431	3	—
500FZL12-D	Ball	380/420	50/60	0.65	240	925/1020	65/68	3266/3431	1	4/500
