630FLZ2-D SERIES

Series 110 AC All-Metal Axial Fan, features a compact 805mm×805mm×135mm design, and Metal impeller, powered by a Capacitor-Run and External Rotor Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.

Size: 805mm×805mm×135mm
Airflow: 9000-13500CFM
Noise: 60-79dB(A)
Impeller Material: Metal
Motor: Capacitor-Run and External Rotor Induction Motor
Operating Temperature: -10℃ ~ +65℃
Lead Wire: Teflon 18# UL1332 (Optional)

Chat Now Message Email

Product details

Parameters

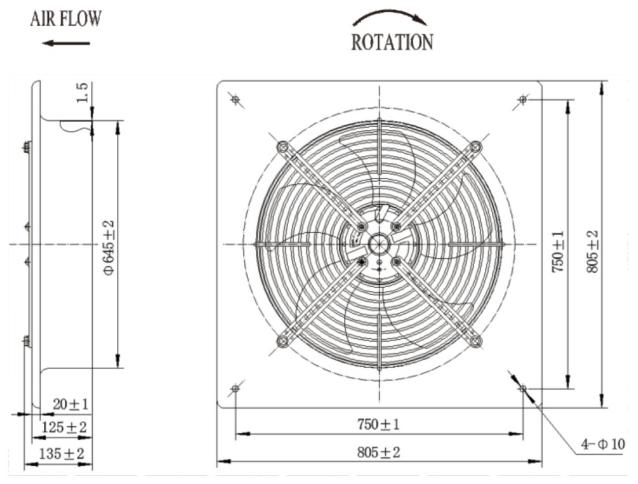

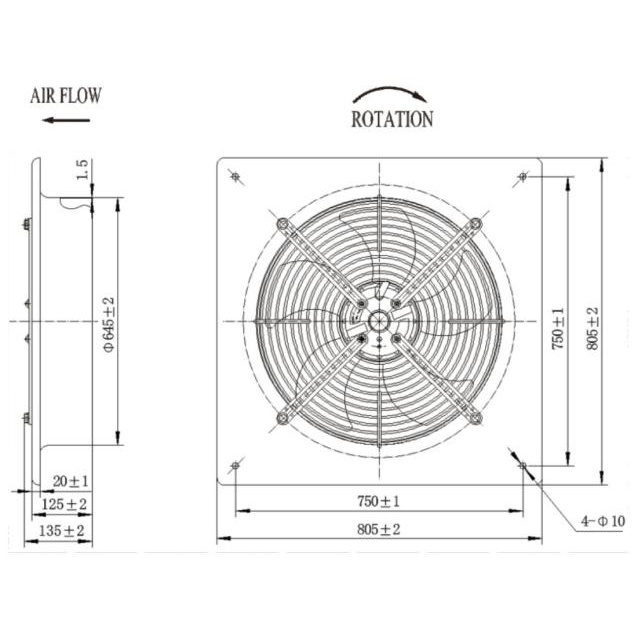

Dimensions and construction

Source dimensional drawing for the Series 110 series.

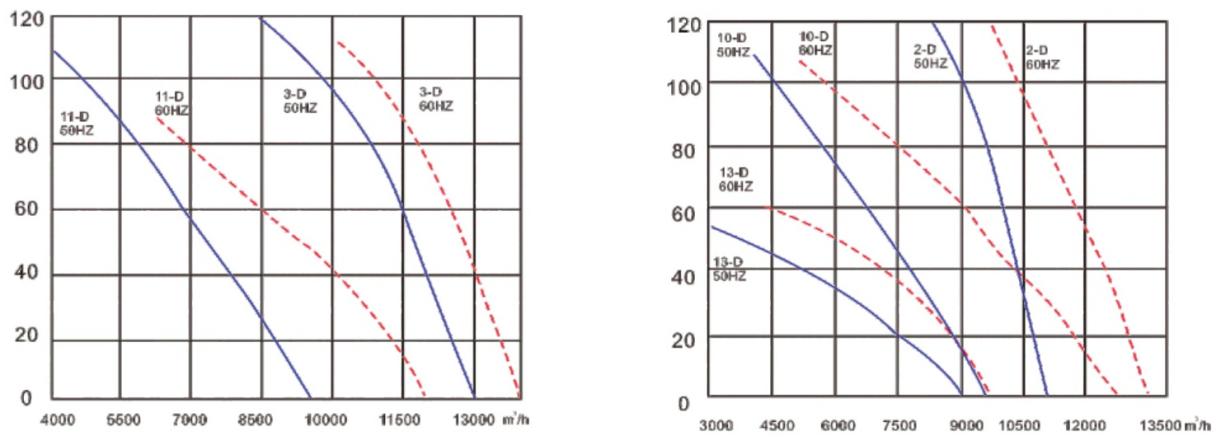

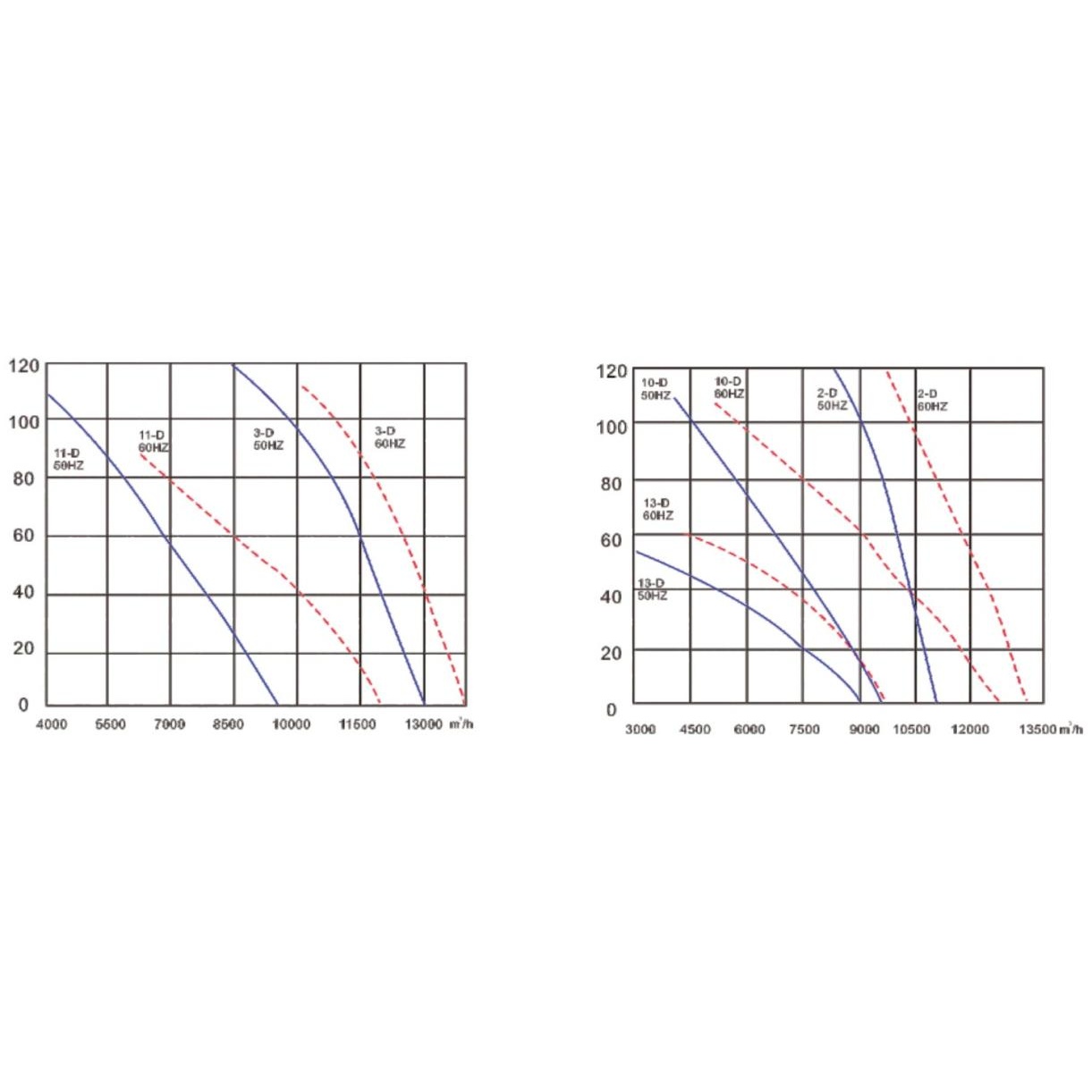

Performance curve

Source performance curve for the Series 110 series.

Series 110 technical parameters

Product description

Size	805mm×805mm×135mm
Airflow	9000-13500CFM
Noise	60-79dB(A)
Impeller Material	Metal
Lead Wire	Teflon 18# UL1332 (Optional)
Motor	Capacitor-Run and External Rotor Induction Motor
Operating Temperature	-10℃ ~ +65℃
Type of Protection	IP44
Insulation Class	“F”

Model specifications

Model	Bearing System	Voltage VAC	Freq. Hz	Current A	Power W	Speed RPM	Noise dB(A)	Air Flow CFM	Phase	Capacitor µF/VAC
630FLZ2-D	Ball	200-240	50/60	4.5/3.0	920/680	1300/1500	75/79	11000/13500	1	12/500
630FLZ3-D	Ball	380-420	50/60	1.8/1.8	800/850	1300/1480	75/79	13000/14000	3	—
630FLZ10-D	Ball	200-240	50/60	1.45/1.8	360/420	900/1100	70/73	9500/12800	1	8/500
630FLZ11-D	Ball	380-420	50/60	1.3/1.2	400/460	900/1100	70/73	9500/12000	3	—
630FLZ13-D	Ball	200-240	50/60	1.5/1.6	250/300	700/720	60/65	9000/9600	1	5/500
