800FZL SERIES

Series 112 AC All-Metal Axial Fan, features a compact 970mm×970mm×335mm design, and Metal impeller, powered by a Capacitor-Run and External Rotor Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.
  • Size: 970mm×970mm×335mm
  • Airflow: 9476-11802CFM
  • Noise: 82dB(A)
  • Impeller Material: Metal
  • Motor: Capacitor-Run and External Rotor Induction Motor
  • Operating Temperature: -10℃ ~ +65℃
  • Lead Wire: Teflon 18# UL1332 (Optional)
Chat Now Message Email
Product details
Parameters

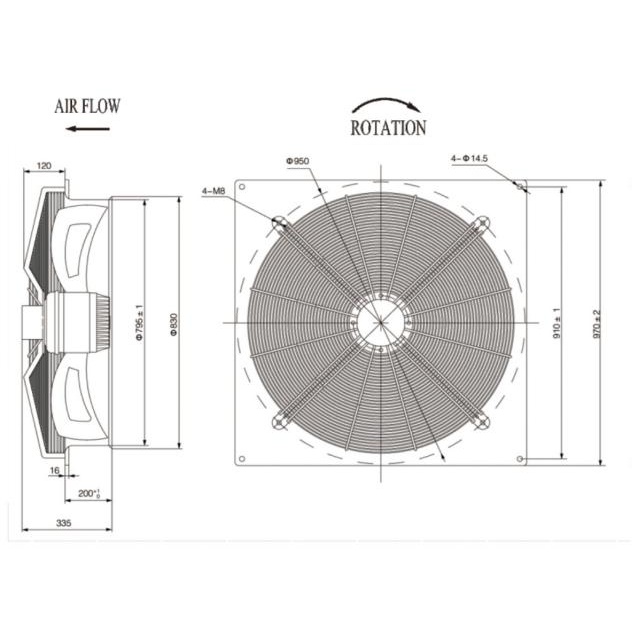

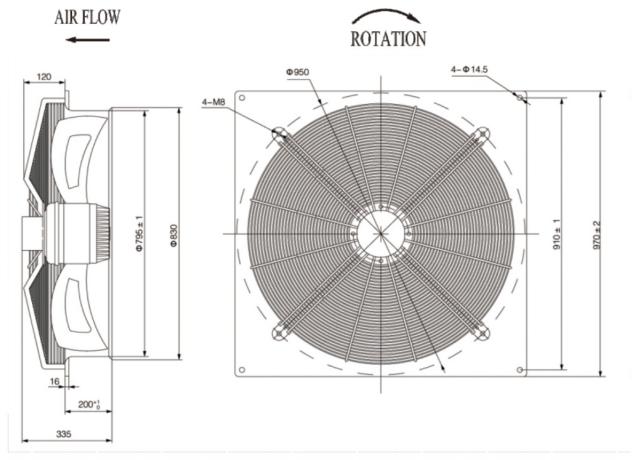

Dimensions and construction

Source dimensional drawing for the Series 112 series.

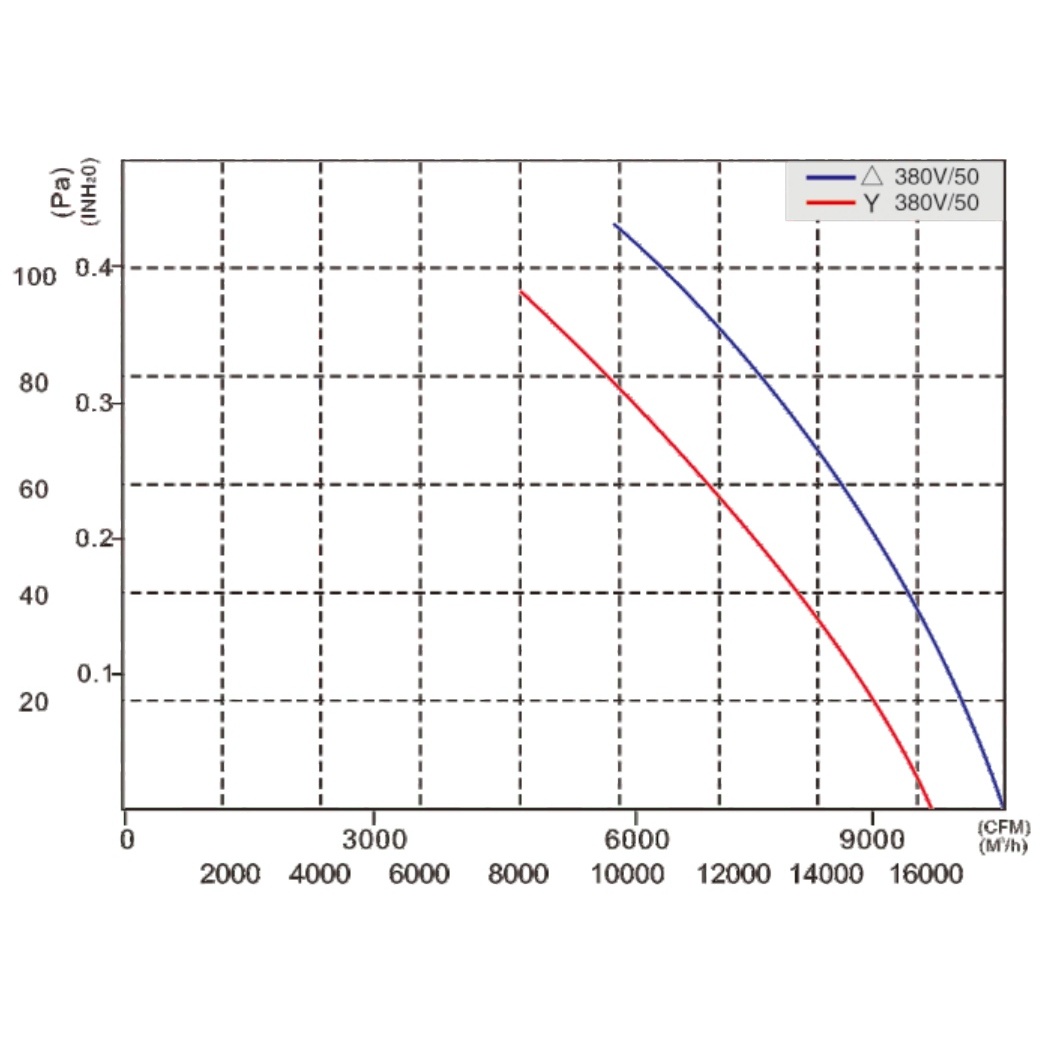

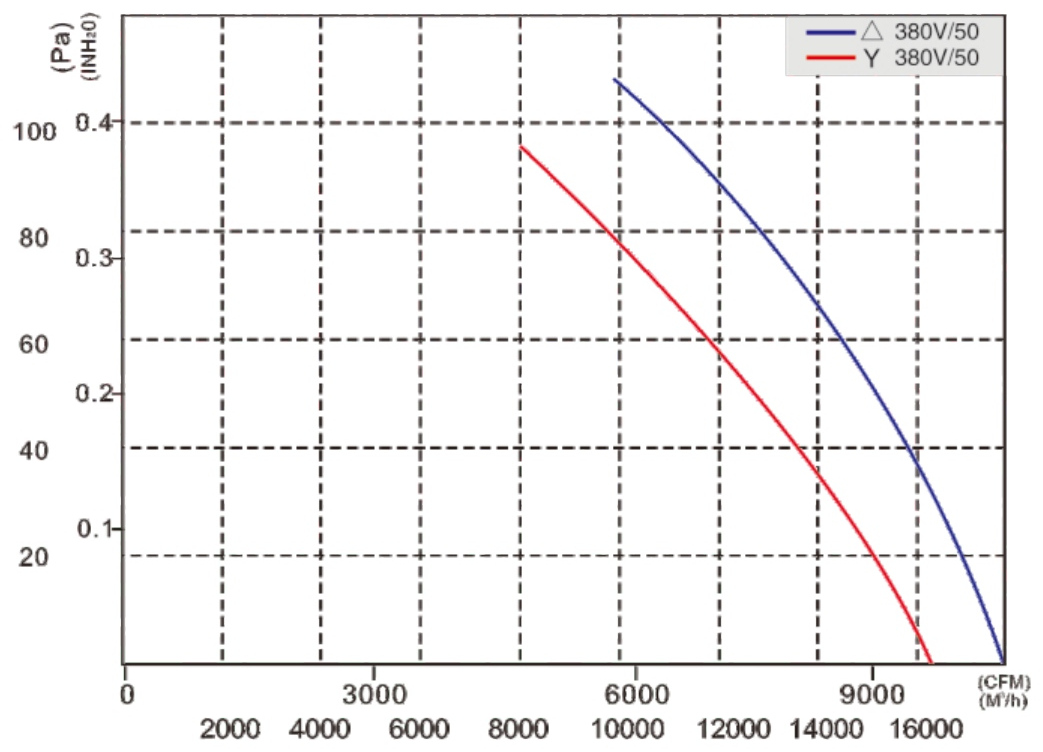

Performance curve

Source performance curve for the Series 112 series.

Series 112 technical parameters

Product description

Size 970mm×970mm×335mm
Airflow 9476-11802CFM
Noise 82dB(A)
Impeller Material Metal
Lead Wire Teflon 18# UL1332 (Optional)
Motor Capacitor-Run and External Rotor Induction Motor
Operating Temperature -10℃ ~ +65℃
Type of Protection IP44
Insulation Class “F”

Model specifications

Model Bearing System Voltage VAC Freq. Hz Current A Power W Speed RPM Air Flow CFM Connection Way Noise dB(A)
800FZL12-D Ball 380 50 2.85/1.6 1200/930 920/770 11802/9476 △/Y 82
