28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 425 series.

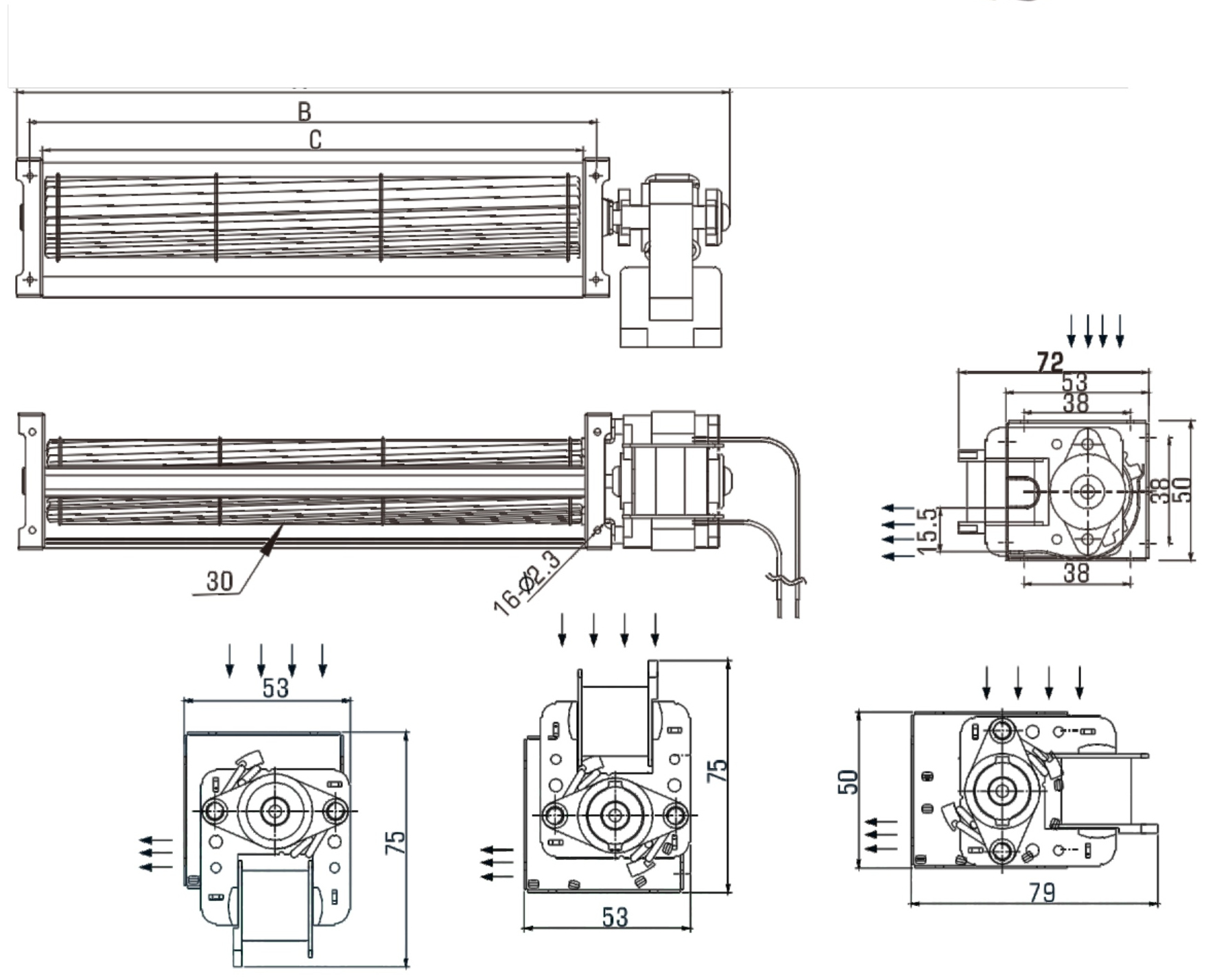

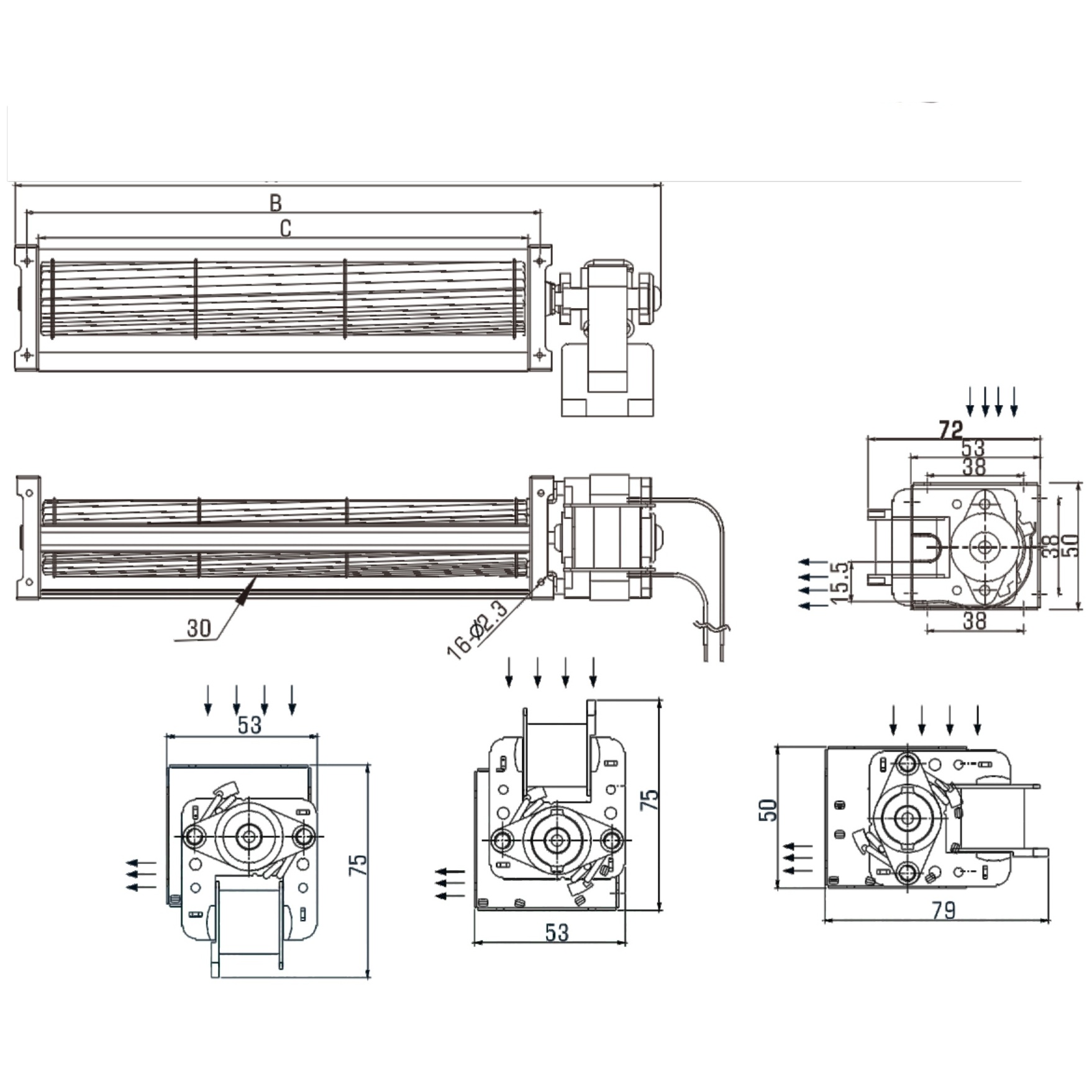

Engineering dimensional drawing for the Series 425 series, showing mounting dimensions and airflow direction.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|
| JLPA-30200AC | 263 | 208 | 198 | 230/50 | 0.10 | 12.0 | 2600 | 7.5 | 34 | 30 |
| JLPA-30250AC | 313 | 258 | 248 | 230/50 | 0.12 | 13.0 | 2600 | 7.5 | 43 | 32 |
| JLPA-30300AC | 365 | 310 | 300 | 230/50 | 0.12 | 12.0 | 2500 | 7.5 | 52 | 34 |
| JLPA-30350AC | 417 | 362 | 352 | 230/50 | 0.11 | 11.2 | 2600 | 7.5 | 58 | 36 |
| JLPA-30420AC | 485 | 430 | 420 | 230/50 | 0.08 | 11.5 | 2500 | 7.2 | 70 | 36 |
