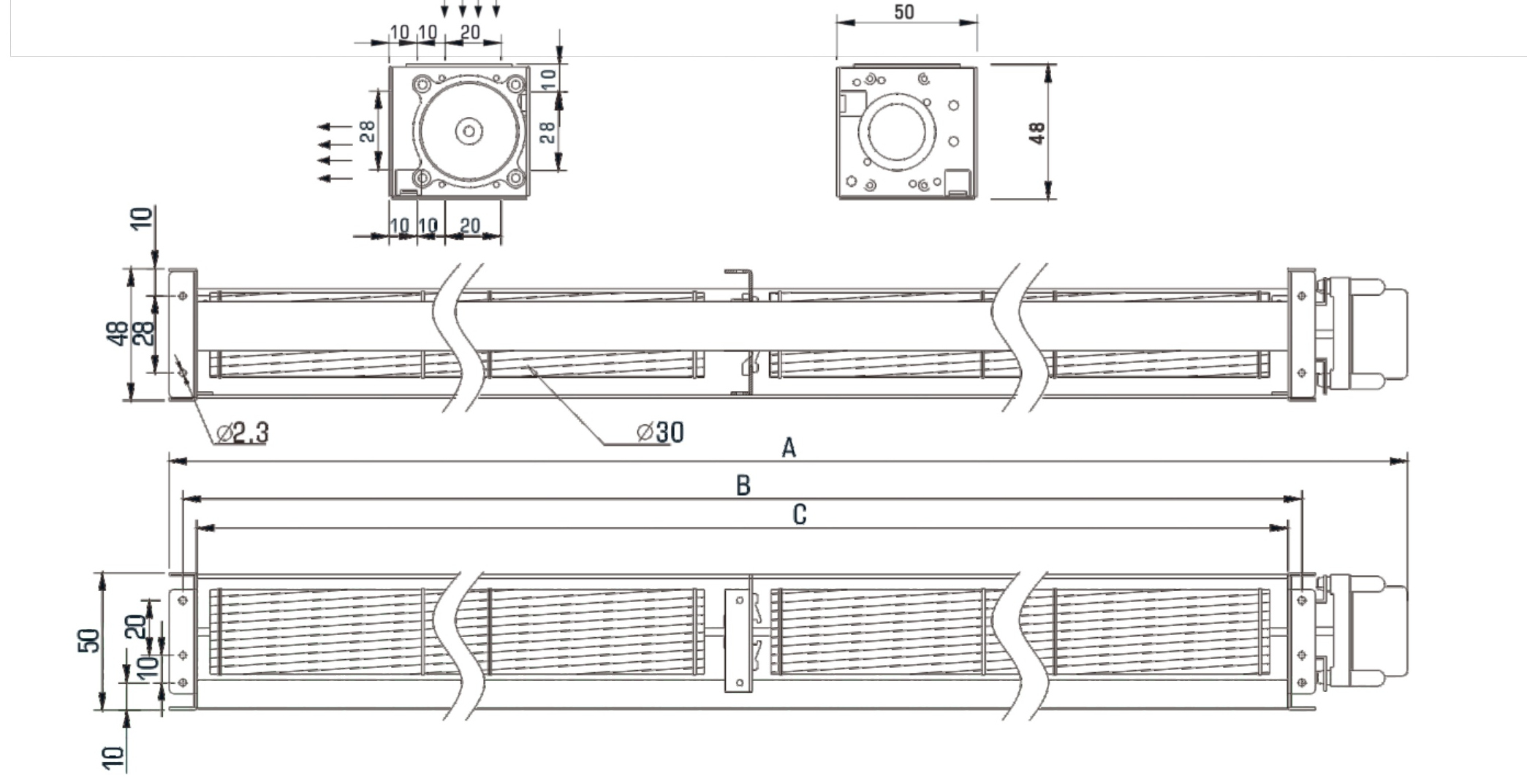

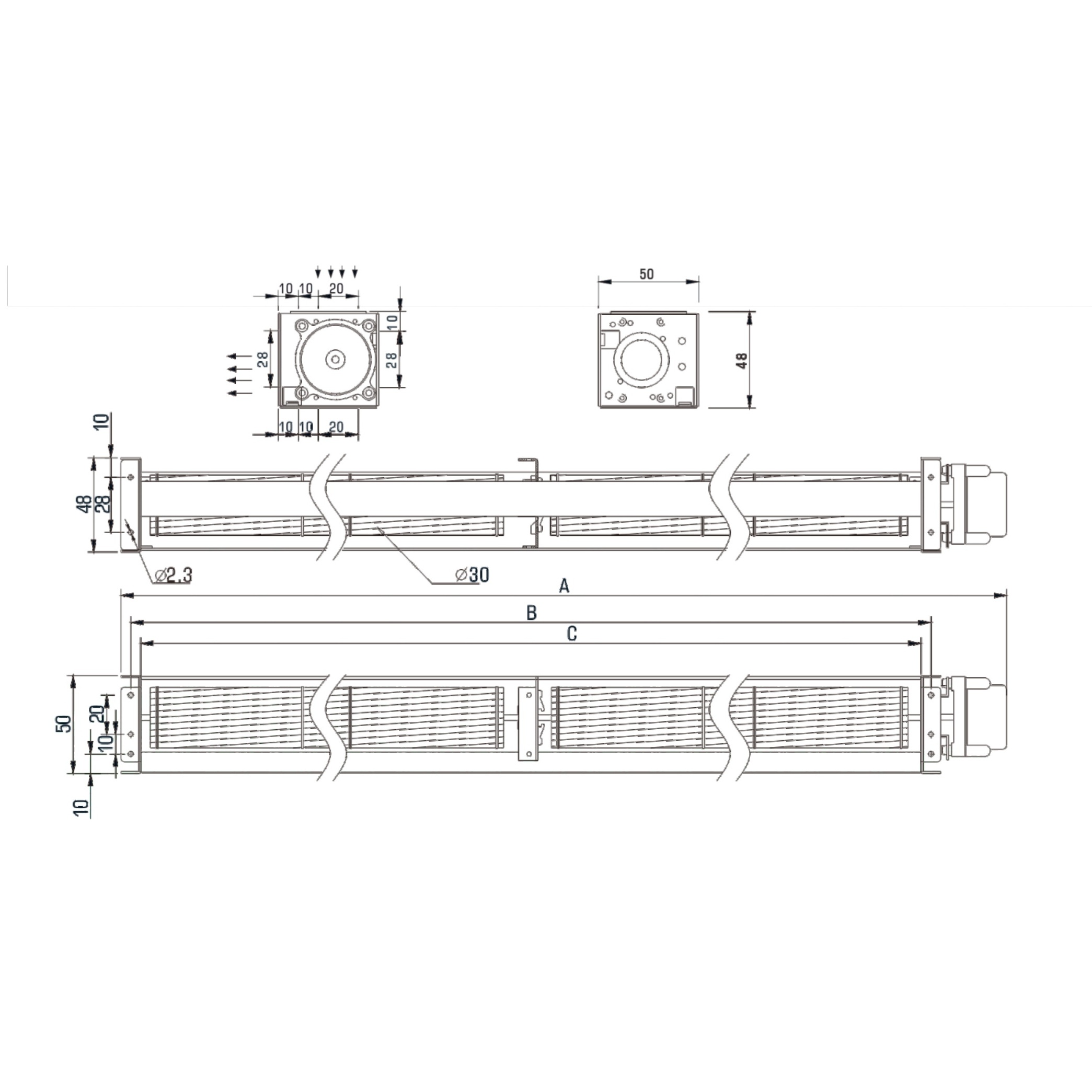

Source dimensional drawing for the Series 429 series.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) | Blower |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JLLB-30530AC | 5005 | 510 | 500 | 24 | 0.12 | 24 | — | 18 | 85 | 32 | Dual blower |
| JLLB-30530DC | 5835 | 540 | 530 | 12 | 0.28 | 24 | — | 18 | 85 | 32 | Dual blower |
| JLLB-30610AC | 0005 | 000 | 010 | 24 | 0.16 | 24 | — | 18 | 100 | 33 | — |
| JLLB-306T0DC | 6055 | 020 | 610 | 12 | 0.32 | 24 | — | 18 | 100 | 33 | — |
| JLLB-30650AC | 7005 | 000 | 050 | 24 | 0.17 | 24 | — | 17 | 105 | 34 | — |
| JLLB-30650DC | 7035 | 660 | 650 | 12 | 0.32 | 24 | — | 17 | 105 | 34 | — |
| JLLB-30718AC | 7715 | 700 | 710 | 24 | 0.18 | 24 | — | 17 | 115 | 35 | Dual blower |
| ULLD307T0DC | 771.3 | 720 | 7 | 12 | 0.35 | 24 | — | 17 | 115 | 35 | — |
| JLLB-30800DC | 55 | 010 | 600 | 24 | 0.19 | 24 | — | 17 | 130 | 36 | Triple blower |
| JLLB-06666AC | 0005 | 010 | 600 | 12 | 0.39 | 24 | — | 17 | 130 | 36 | Triple blower |
| JLLB-30854DC | 007.5 | 864 | 854 | 24 | 0.22 | 24 | 0 | 17 | 140 | 36 | Triple blower |
| JLLB-66654AC | 5070 | 60 | 60 | 12 | 0.42 | 24 | — | 17 | 140 | 36 | Triple blower |
| JLLB-30920AC | 0705 | 000 | 000 | 24 | 0.24 | 24 | — | 17 | 150 | 37 | Triple blower |
| JLLB-09200AC | 570.5 | 500 | 020 | 12 | 0.45 | 24 | — | 17 | 150 | 37 | Triple blower |
| JLLB-30986DC | 1020.5 | 006 | 086 | 24 | 0.27 | 24 | — | 17 | 160 | 37 | Triple blower |
| JLLB-62066AC | 10000 | 000 | 600 | 12 | 0.50 | 24 | 0 | 17 | 160 | 37 | Triple blower |
| JLLB-30101DC | 11355 | 1002 | 1082 | 24 | 0.31 | 24 | — | 17 | 175 | 38 | Triple blower |
| JLLD0010020 | 11000 | 1002 | — | 12 | 0.60 | 24 | — | 17 | 175 | 38 | Triple blower |
