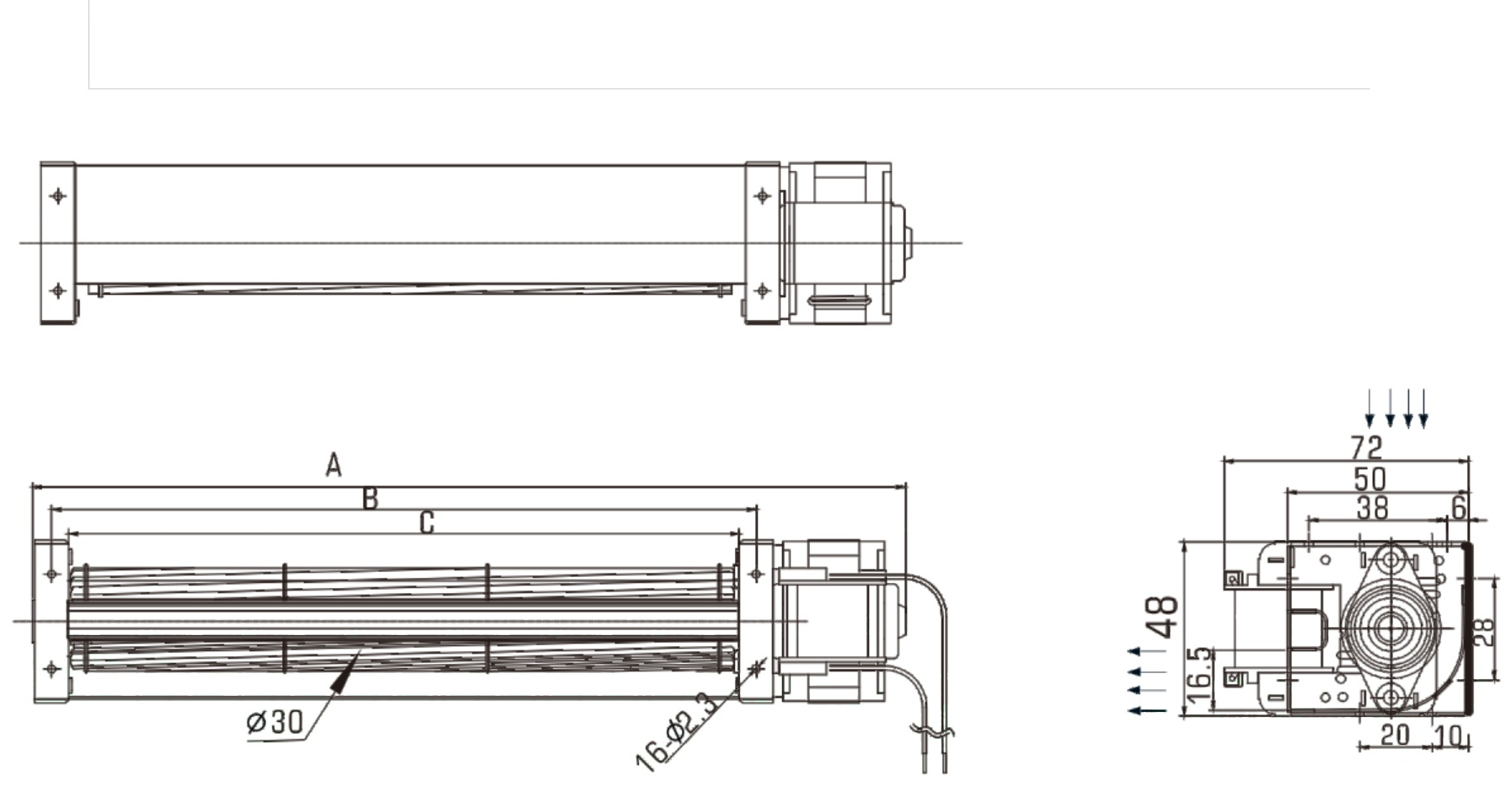

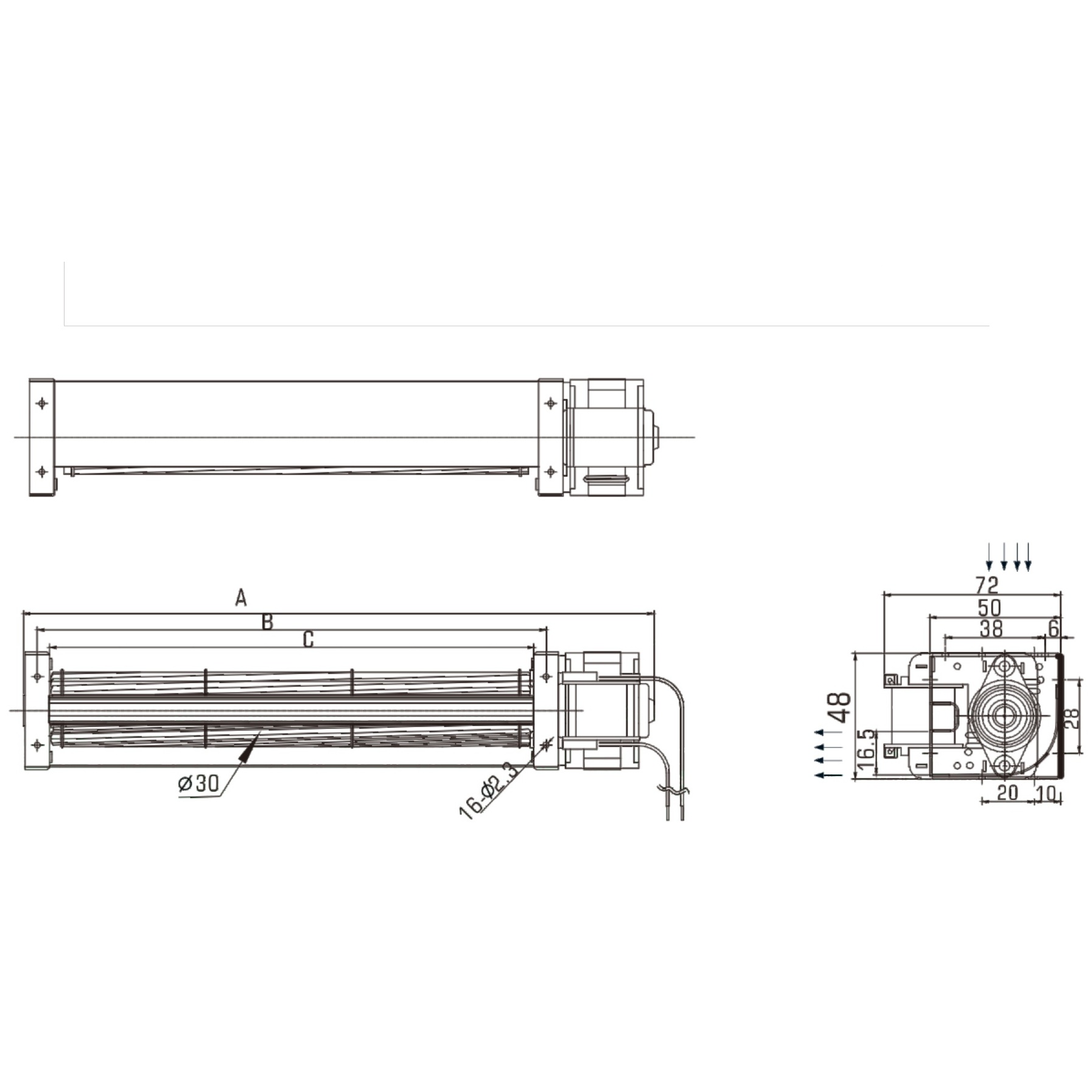

Source dimensional drawing for the Series 426 series.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|
| JLPB-30090AC | 15 | 100 | — | 120/60 | 0.25 | 15.3 | 3300 | 11 | 25 | 31 |
| ULI30U90AC | 156 | 160 | 96 | 230/50 | 0.11 | 13.5 | 2700 | 10 | 20 | 31 |
| JLPB-30150AC | — | 170 | 160 | 120/60 | 0.25 | 16.5 | 3200 | 11 | 48 | 32 |
| JLS0TS0AC | — | — | 160 | 230/50 | 0.11 | 13.4 | 2700 | 10 | 41 | 32 |
| JLPB-30190AC | 95 | 00 | 100 | 120/60 | 0.25 | 15.8 | 3100 | 13 | 60 | 32 |
| JLTDS0190AC | 200 | 266 | 150 | 230/50 | 0.12 | 13.7 | 2600 | 10 | 50 | 32 |
| JLPB-30250AC | — | 05 | 010 | 120/60 | 0.25 | 16.3 | 3000 | 14 | 76 | 32 |
| JLPB-S0ZJ0AU | 500 | 230 | 240 | 230/50 | 0.12 | 14.4 | 2500 | 10 | 62 | 32 |
| JLPB-30290AC | 06 | 010 | 00 | 120/60 | 0.25 | 16.7 | 2900 | 15 | 90 | 34 |
| JLDS0290H0 | 660 | 010 | 600 | 230/50 | 0.12 | 14.4 | 2500 | 13 | 81 | 33 |
| JLPB-30350AC | 110 | 06 | 05 | 120/60 | 0.26 | 16.9 | 2780 | 15 | 106 | 35 |
| JLPDS035UAU | 42 | 602 | 032 | 230/50 | 0.14 | 14.4 | 2500 | 14 | 96 | 35 |
| JLPB-30420AC | 480 | 100 | 400 | 120/60 | 0.27 | 19.5 | 2500 | 15 | 110 | 36 |
| JLTS0420A0 | 460 | 460 | 420 | 230/50 | 0.15 | 17.5 | 2500 | 15 | 110 | 36 |
