LG17050H SERIES

Series 55 AC All-Metal Axial Fan, features a compact 172mm×150mm×51mm design, with a durable Aluminum Alloy frame, and Aluminum Alloy impeller, powered by a Shaded Pole Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.

Size: 172mm×150mm×51mm
Airflow: 105-235CFM
Noise: 30-50dB(A)
Frame: Aluminum Alloy
Impeller Material: Aluminum Alloy
Motor: Shaded Pole Induction Motor
Operating Temperature: -10℃ ~ +65℃
Terminals: 0.5mm

Chat Now Message Email

Product details

Parameters

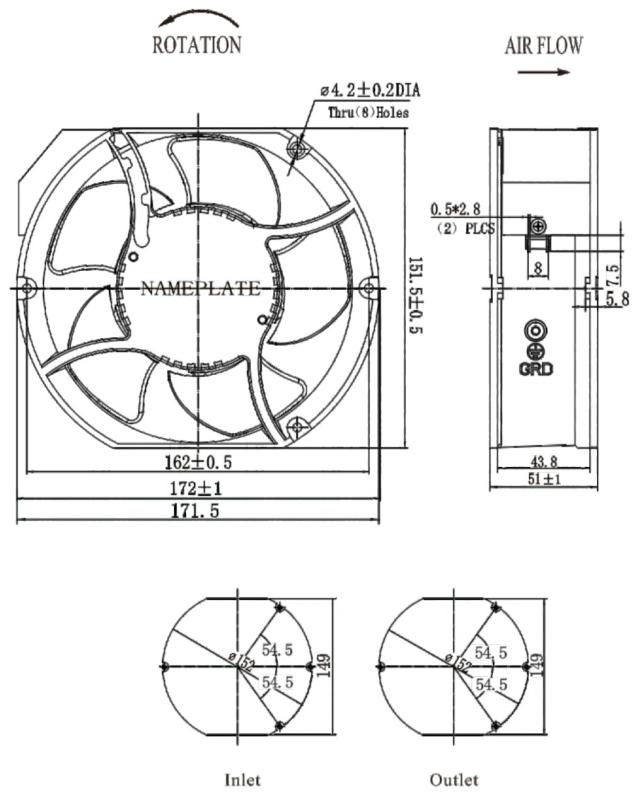

Dimensions and construction

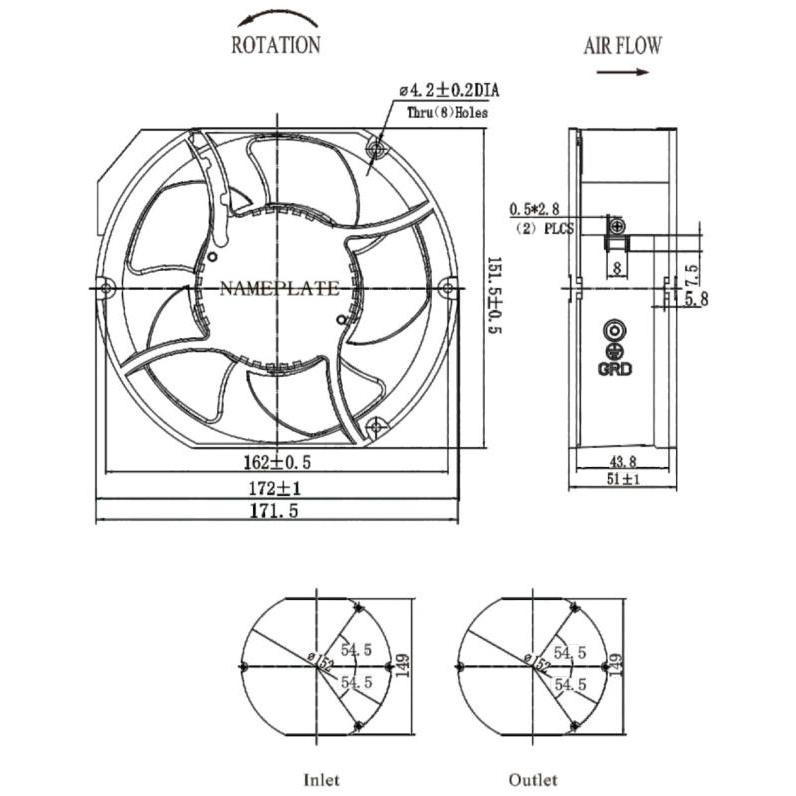

Source dimensional drawing for the Series 55 series.

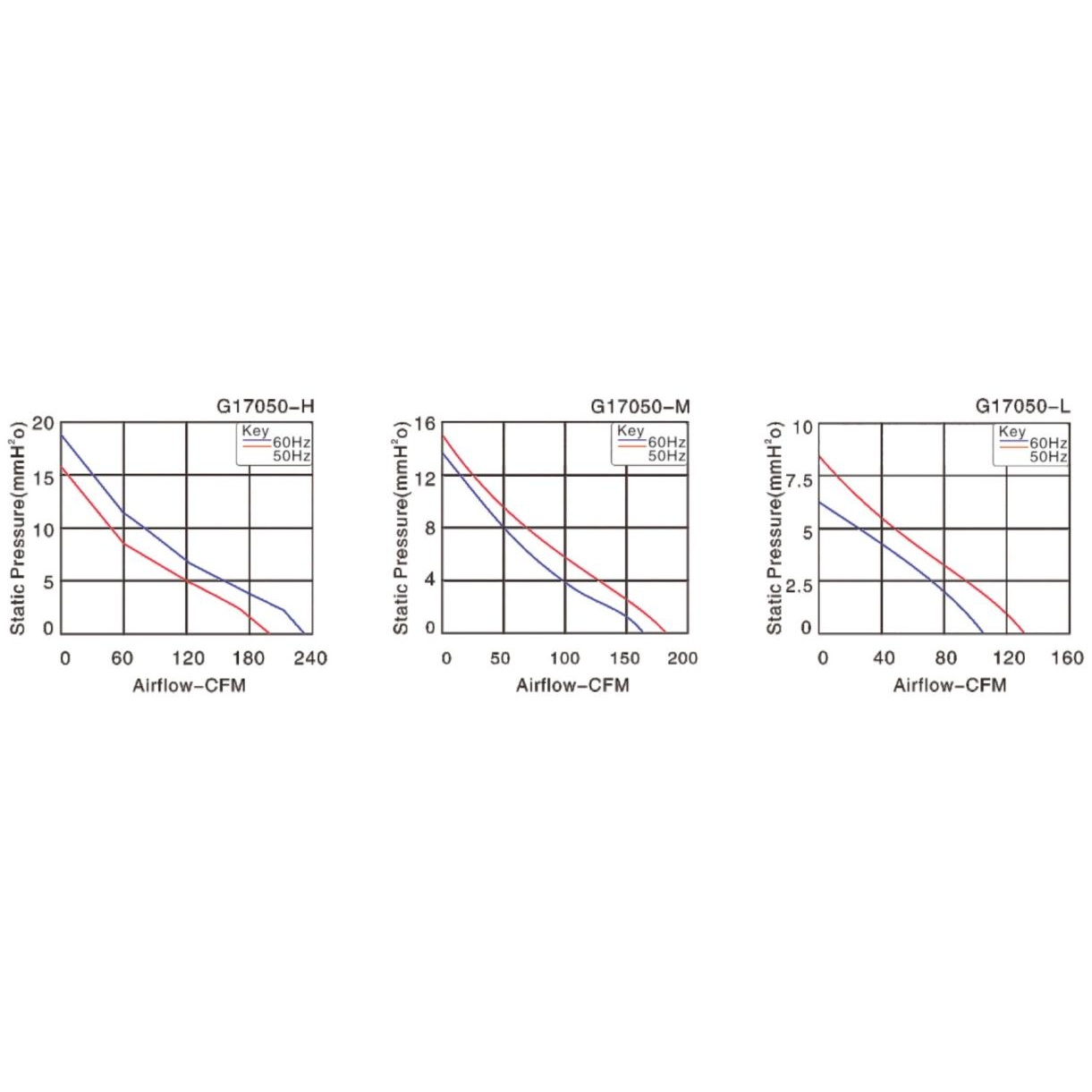

Performance curve

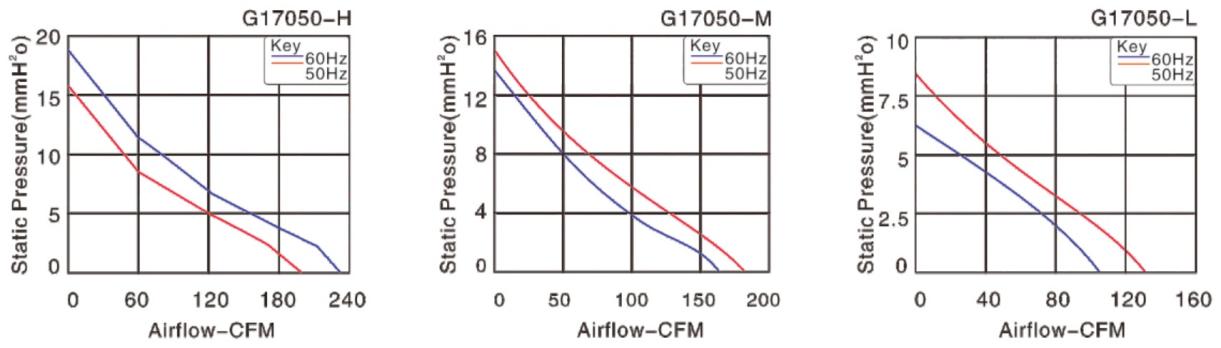

Source performance curve for the Series 55 series.

Series 55 technical parameters

Product description

Size	172mm×150mm×51mm
Airflow	105-235CFM
Noise	30-50dB(A)
Impeller Material	Aluminum Alloy
Frame	Aluminum Alloy
Terminals	0.5mm
Lead Wire	AWG #22 UL1569 (Optional)
Motor	Shaded Pole Induction Motor
Operating Temperature	-10℃ ~ +65℃

Model specifications

Model	Bearing System	Voltage VAC	Freq. Hz	Current A	Power W	Speed RPM	Noise dB(A)	Air Flow CFM	Phase	Capacitor µF/VAC
LG17050HA1B	Ball	100/125	50/60	0.68/0.55	43/35	2700/3100	45/50	190/235	1	—
LG17050HA2B	Ball	200/240	50/60	0.25/0.23	34/31	2700/2900	45/50	190/235	1	—
LG17050HA3B	Ball	380/420	50	0.15	37	2700	45	190	1	—
LG17050MA1B	Ball	100/125	50/60	0.41/0.39	32/30	2400/2300	41/40	170/160	1	—
LG17050MA2B	Ball	200/240	50/60	0.19/0.18	30/28	2400/2300	41/40	170/160	1	—
LG17050MA3B	Ball	380/420	50	0.09	30	2400	41	170	1	—
LG17050LA1B	Ball	100/125	50/60	0.35/0.35	26/25	1900/1500	32/30	125/105	1	—
LG17050LA2B	Ball	200/240	50/60	0.16/0.16	26/25	1900/1500	32/30	125/105	1	—
LG17050LA3B	Ball	380/420	50	0.07	26	1900	32	125	1	—
