Series 57 AC All-Metal Axial Fan

Series 57 AC All-Metal Axial Fan, features a compact 172mm×150mm×55mm design, with a durable Aluminum Alloy frame, and Metal impeller, powered by a Shaded Pole and External Rotor Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.
  • Size: 172mm×150mm×55mm
  • Airflow: 191-224CFM
  • Noise: 48-52dB(A)
  • Frame: Aluminum Alloy
  • Impeller Material: Metal
  • Motor: Shaded Pole and External Rotor Induction Motor
  • Operating Temperature: -10℃ ~ +65℃
  • Terminals: 0.5mm
Chat Now Message Email
Product details
Parameters
6

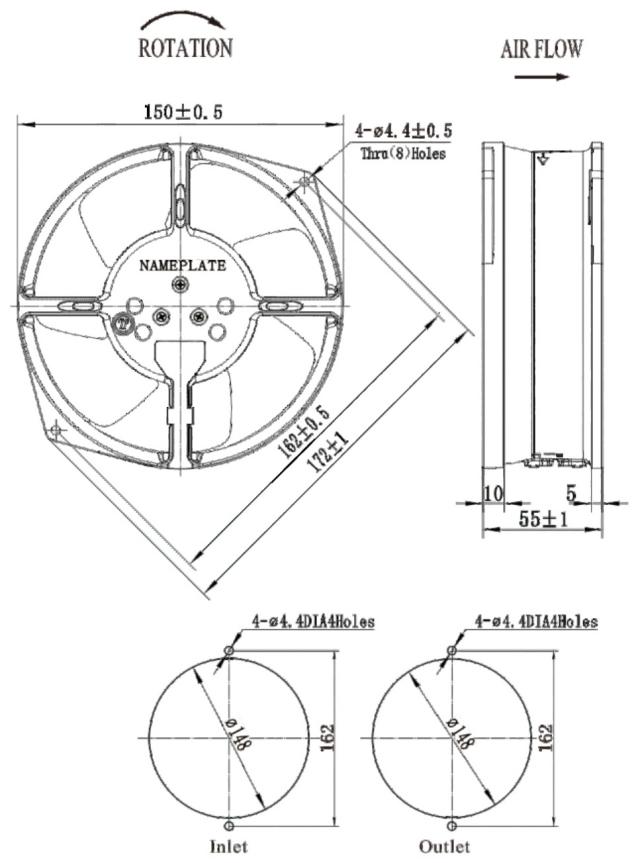

Dimensions and construction

Source dimensional drawing for the Series 57 series.

6

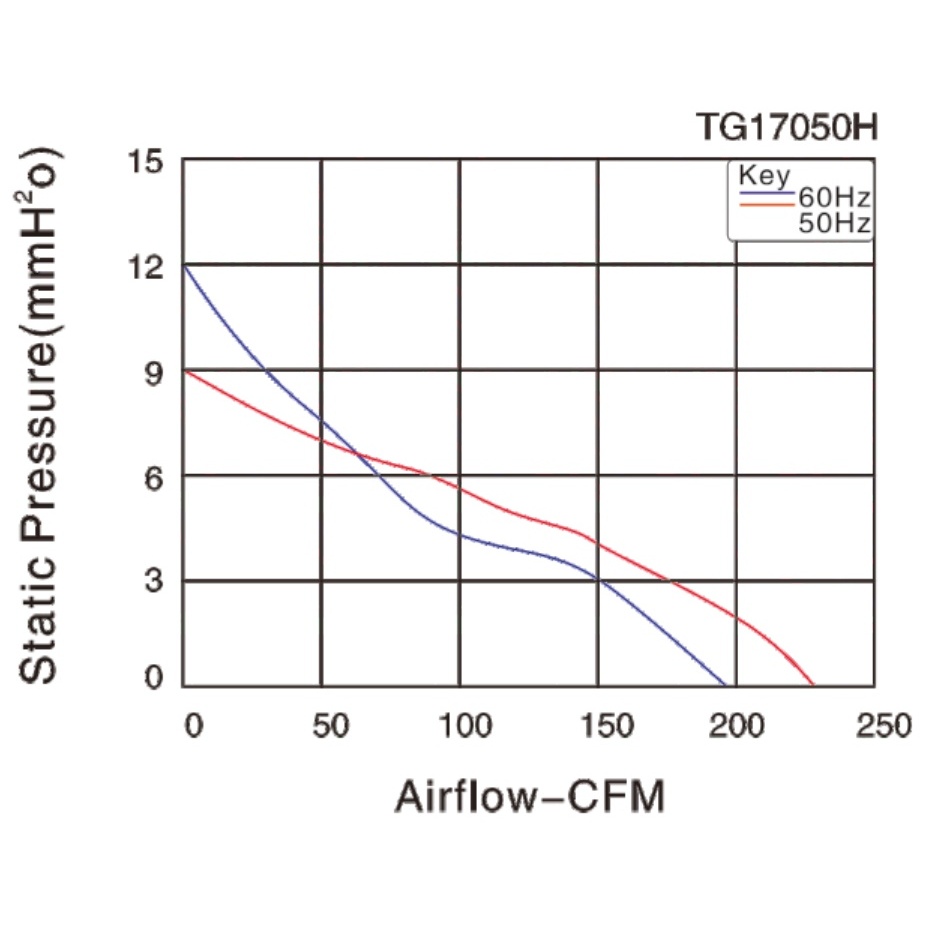

Performance curve

Source performance curve for the Series 57 series.

6

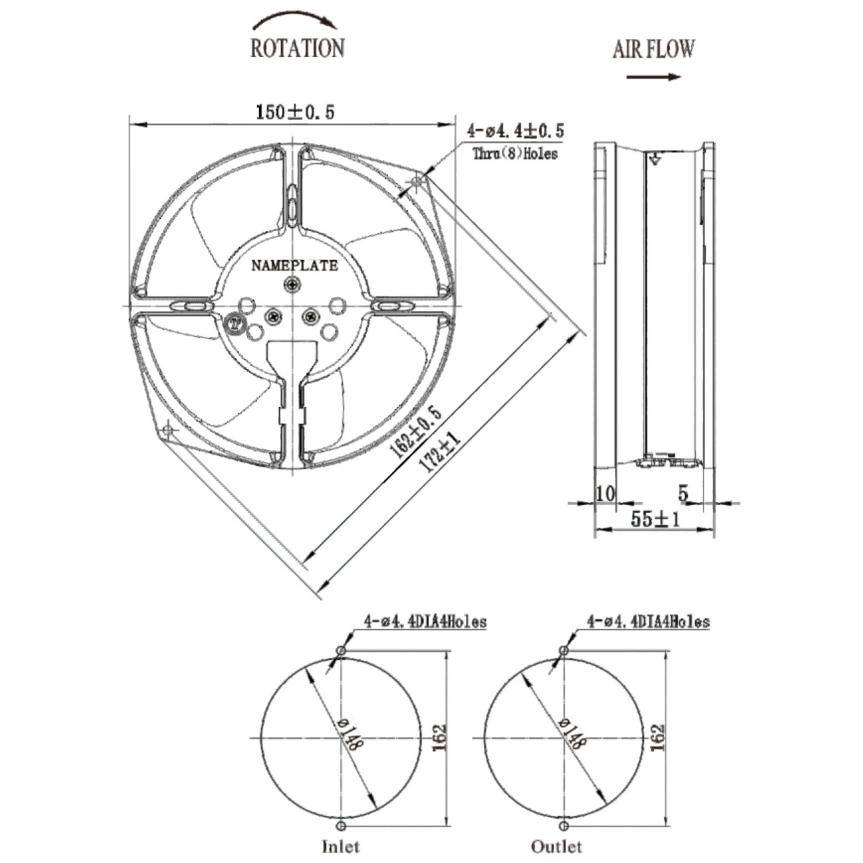

Dimensional drawing

Engineering dimensional drawing for the Series 57 series, showing mounting dimensions and airflow direction.

6

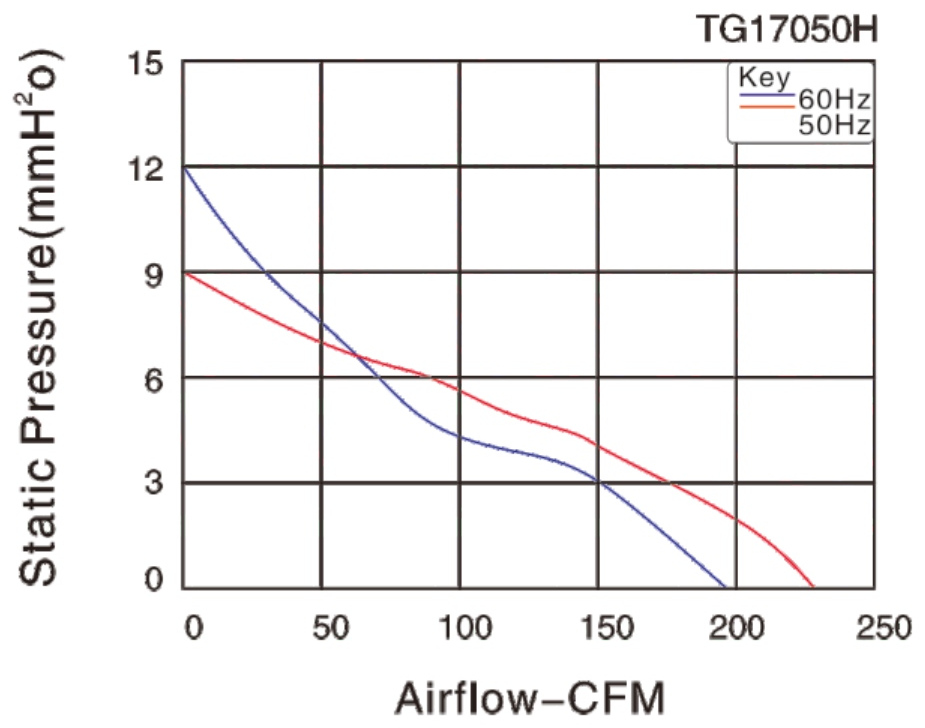

Performance curve

Static pressure vs. airflow performance curve for the Series 57 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 57 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 57 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 57 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 57 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 57 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 57 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 57 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 57 series under standard operating conditions.

6
Dimensional drawing

6
Performance curve

Series 57 technical parameters

Product description

Size 172mm×150mm×55mm
Airflow 191-224CFM
Noise 48-52dB(A)
Impeller Material Metal
Frame Aluminum Alloy
Terminals 0.5mm
Lead Wire Teflon 22# UL1322 (Optional)
Motor Shaded Pole and External Rotor Induction Motor
Operating Temperature -10℃ ~ +65℃

Model specifications

Model Bearing System Voltage VAC Freq. Hz Current A Power W Speed RPM Noise dB(A) Air Flow CFM Phase Capacitor µF/VAC
TG17055HA1B-7P Ball 100/125 50/60 0.58/0.5 42/39 2800/3100 48/52 191/224 1 —
TG17055HA2B-7P Ball 200/240 50/60 0.3/0.26 40/40 2800/3100 48/52 191/224 1 —
