Series 60 AC All-Metal Axial Fan

Series 60 AC All-Metal Axial Fan, features a compact 180mm×180mm×60mm design, with a durable Aluminum Alloy frame, and Metal impeller, powered by a Shaded Pole and External Rotor Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.
  • Size: 180mm×180mm×60mm
  • Airflow: 364-406CFM
  • Noise: 62-65dB(A)
  • Frame: Aluminum Alloy
  • Impeller Material: Metal
  • Motor: Shaded Pole and External Rotor Induction Motor
  • Operating Temperature: -10℃ ~ +65℃
  • Terminals: 0.5mm
Chat Now Message Email
Product details
Parameters
6

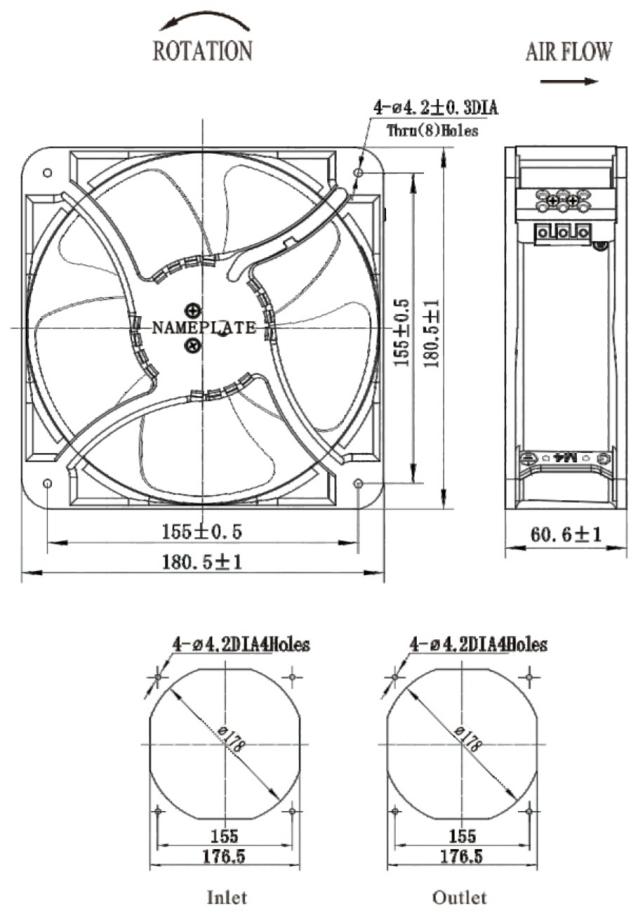

Dimensions and construction

Source dimensional drawing for the Series 60 series.

6

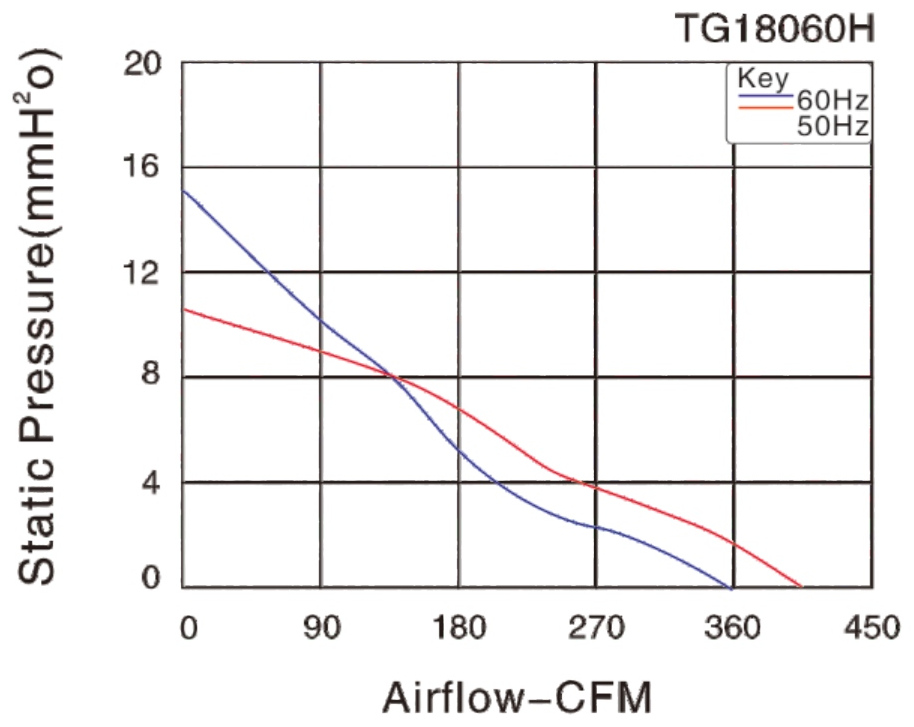

Performance curve

Source performance curve for the Series 60 series.

6

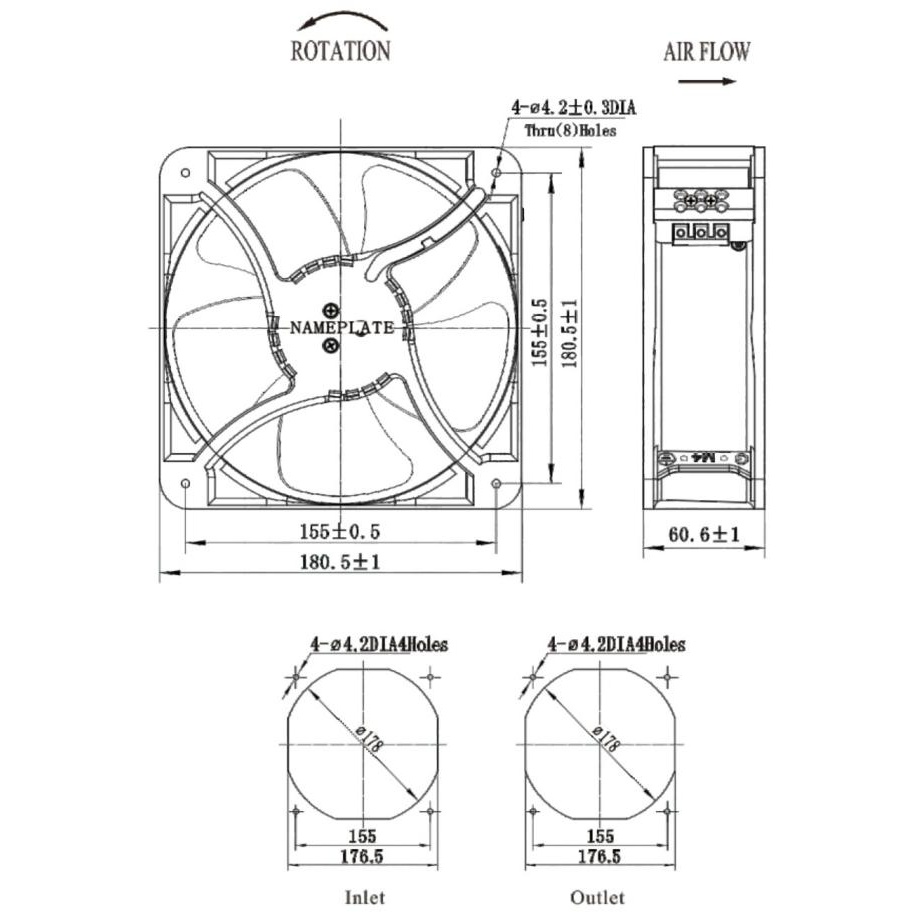

Dimensional drawing

Engineering dimensional drawing for the Series 60 series, showing mounting dimensions and airflow direction.

6

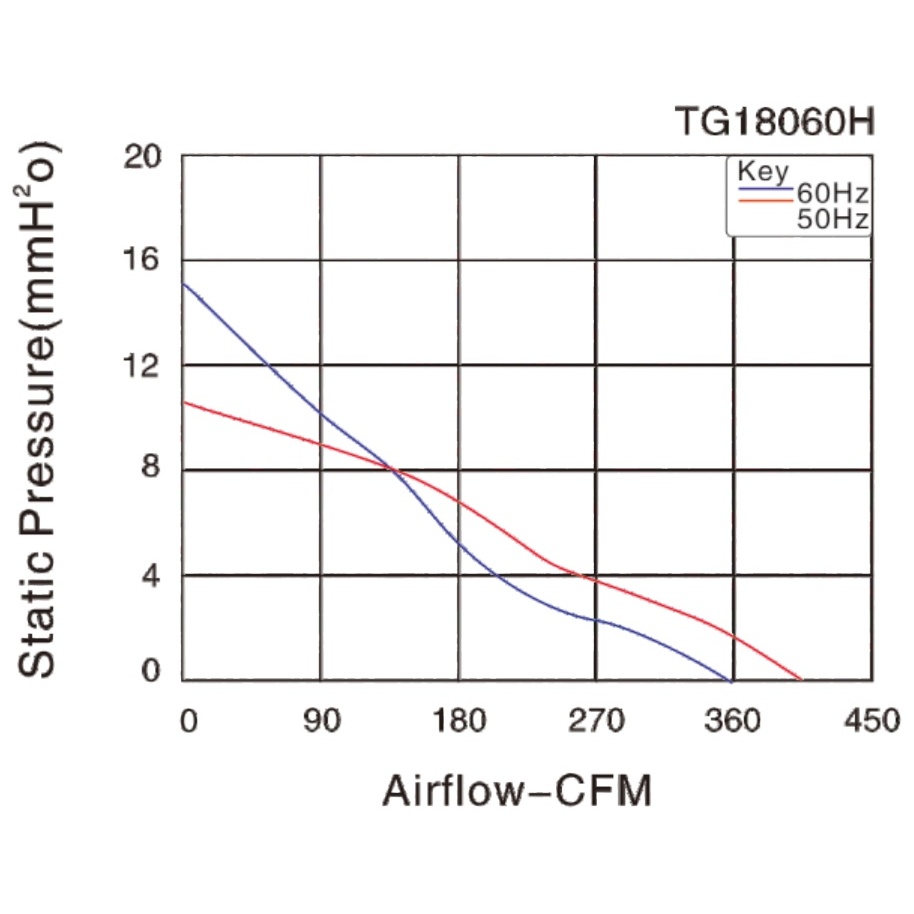

Performance curve

Static pressure vs. airflow performance curve for the Series 60 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 60 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 60 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 60 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 60 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 60 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 60 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 60 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 60 series under standard operating conditions.

6
Dimensional drawing

6
Performance curve

Series 60 technical parameters

Product description

Size 180mm×180mm×60mm
Airflow 364-406CFM
Noise 62-65dB(A)
Impeller Material Metal
Frame Aluminum Alloy
Terminals 0.5mm
Lead Wire Teflon 22# UL1322 (Optional)
Motor Shaded Pole and External Rotor Induction Motor
Operating Temperature -10℃ ~ +65℃

Model specifications

Model Bearing System Voltage VAC Freq. Hz Current A Power W Speed RPM Noise dB(A) Air Flow CFM Phase Capacitor µF/VAC
TG18060HA1B-C Ball 380/420 50/60 0.12/0.15 40/50 2750/3100 62/65 364/406 1 1/630
TG18060HA2B-C Ball 200/240 50/60 0.19/0.24 33/40 2750/3100 62/65 364/406 1 2/500
