Series 61 AC All-Metal Axial Fan

Series 61 AC All-Metal Axial Fan, features a compact 200mm×200mm×60mm design, with a durable Aluminum Alloy frame, and Aluminum Alloy impeller, powered by a Capacitor-Run Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.
  • Size: 200mm×200mm×60mm
  • Airflow: 427-490CFM
  • Noise: 63-68dB(A)
  • Frame: Aluminum Alloy
  • Impeller Material: Aluminum Alloy
  • Motor: Capacitor-Run Induction Motor
  • Operating Temperature: -10℃ ~ +65℃
  • Terminals: Terminal block
Chat Now Message Email
Product details
Parameters
6

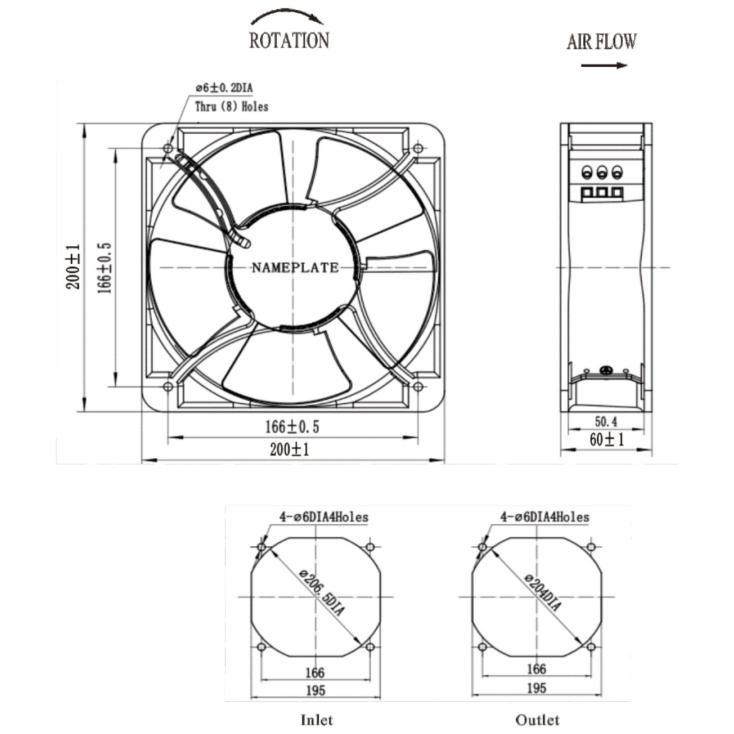

Dimensions and construction

Source dimensional drawing for the Series 61 series.

6

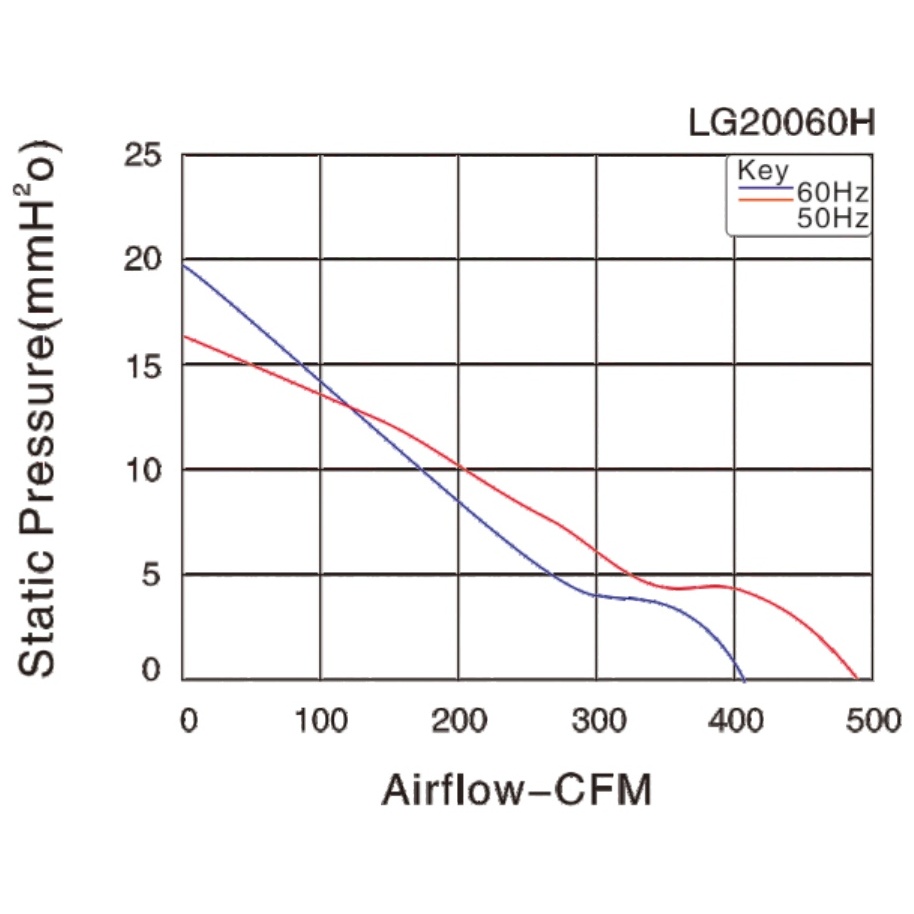

Performance curve

Source performance curve for the Series 61 series.

6

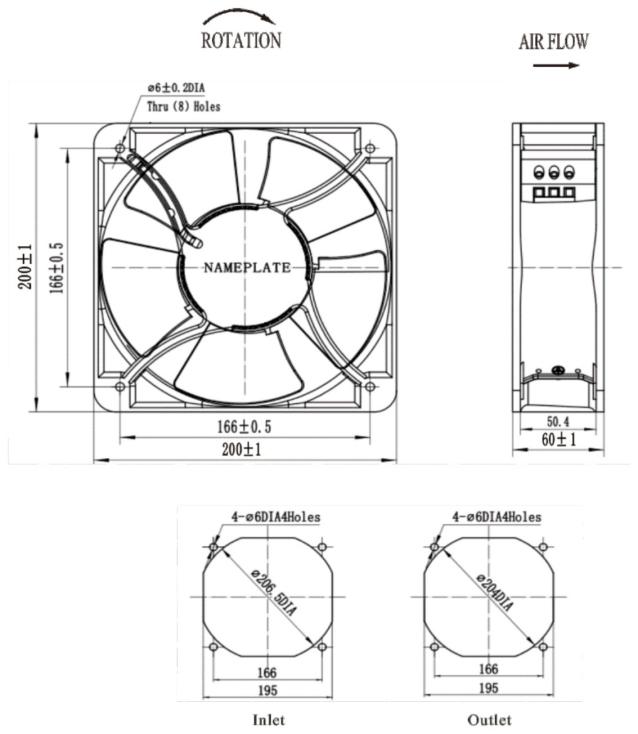

Dimensional drawing

Engineering dimensional drawing for the Series 61 series, showing mounting dimensions and airflow direction.

6

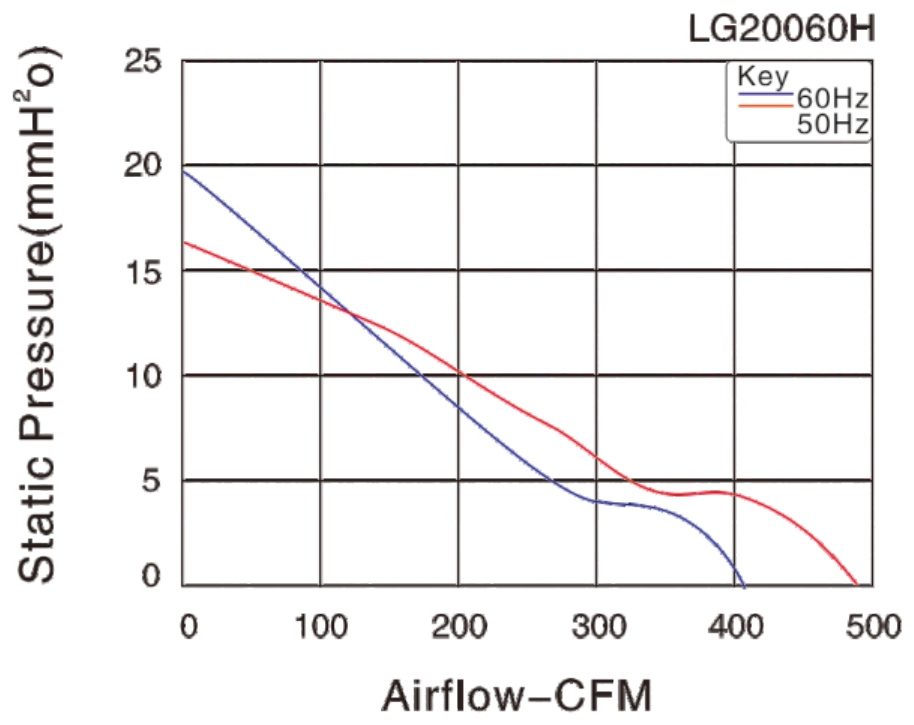

Performance curve

Static pressure vs. airflow performance curve for the Series 61 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 61 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 61 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 61 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 61 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 61 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 61 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 61 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 61 series under standard operating conditions.

6
Dimensional drawing

6
Performance curve

Series 61 technical parameters

Product description

Size 200mm×200mm×60mm
Airflow 427-490CFM
Noise 63-68dB(A)
Impeller Material Aluminum Alloy
Frame Aluminum Alloy
Terminals Terminal block
Lead Wire AWG #22 UL1332 (Optional)
Motor Capacitor-Run Induction Motor
Operating Temperature -10℃ ~ +65℃

Model specifications

Model Bearing System Voltage VAC Freq. Hz Current A Power W Speed RPM Noise dB(A) Air Flow CFM Phase Capacitor µF/VAC
LG20060HA1B-C Ball 100/120 50/60 0.35/0.43 42/53 2550/2900 63/68 427/490 1 3.3/250
LG20060HA2B-C Ball 200/240 50/60 0.27/0.31 58/68 2550/2900 63/68 427/490 1 1/500
LG20060HA3B Ball 380/400 50/60 0.08/0.09 42/55 2550/2900 63/68 427/490 3 —
LG20060HA6B-C Ball 380/400 50/60 0.24/0.21 72/73 2550/2900 63/68 427/490 1 1/500
