Series 63 AC All-Metal Axial Fan

Series 63 AC All-Metal Axial Fan, features a compact 208mm×208mm×72mm design, with a durable Aluminum Alloy frame, and Metal impeller, powered by a Capacitor-Run and External Rotor Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.
  • Size: 208mm×208mm×72mm
  • Airflow: 506-577CFM
  • Noise: 58-60dB(A)
  • Frame: Aluminum Alloy
  • Impeller Material: Metal
  • Motor: Capacitor-Run and External Rotor Induction Motor
  • Operating Temperature: -10℃ ~ +65℃
  • Terminals: 0.5mm
Chat Now Message Email
Product details
Parameters
6

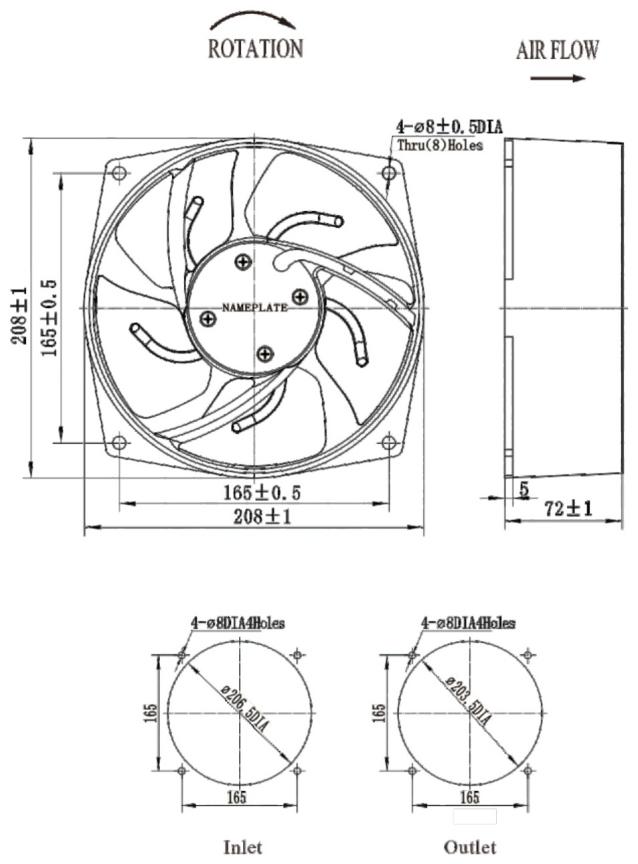

Dimensions and construction

Source dimensional drawing for the Series 63 series.

6

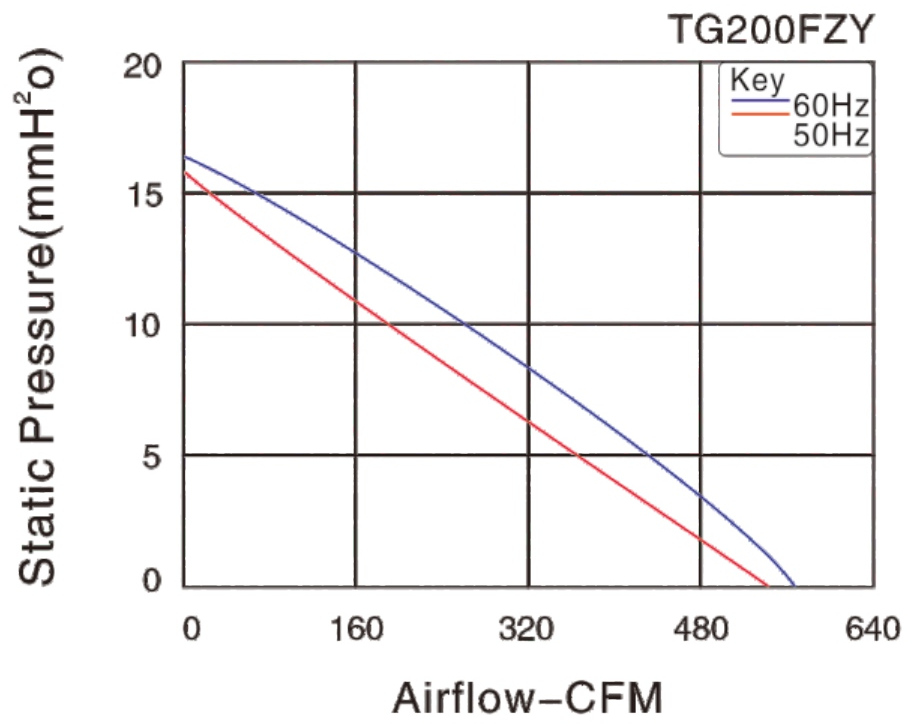

Performance curve

Source performance curve for the Series 63 series.

6

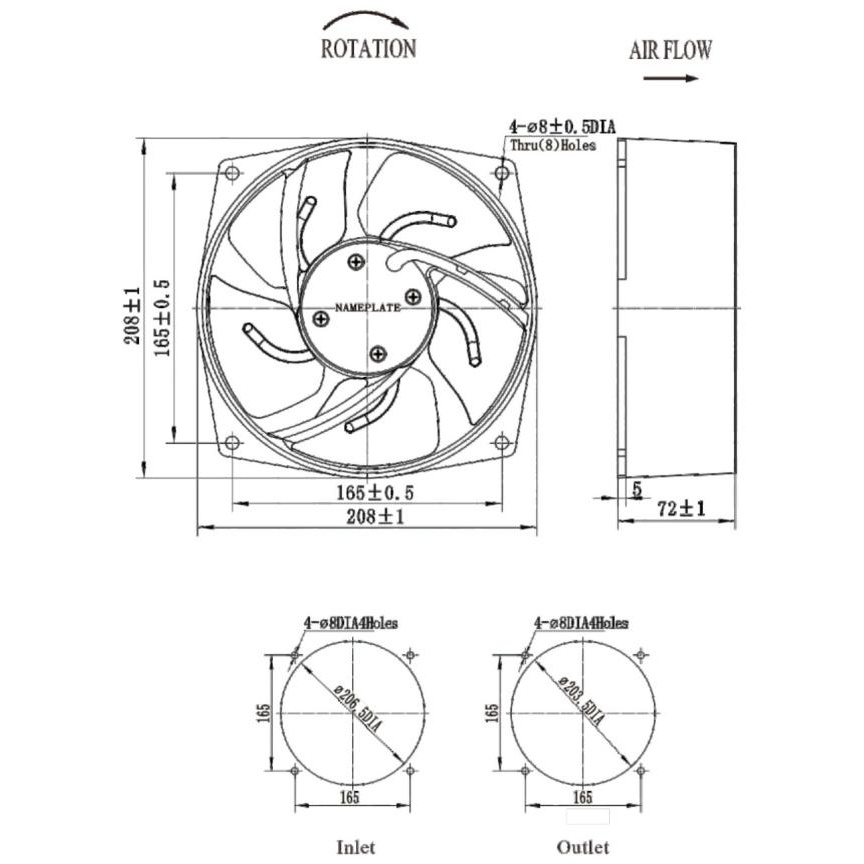

Dimensional drawing

Engineering dimensional drawing for the Series 63 series, showing mounting dimensions and airflow direction.

6

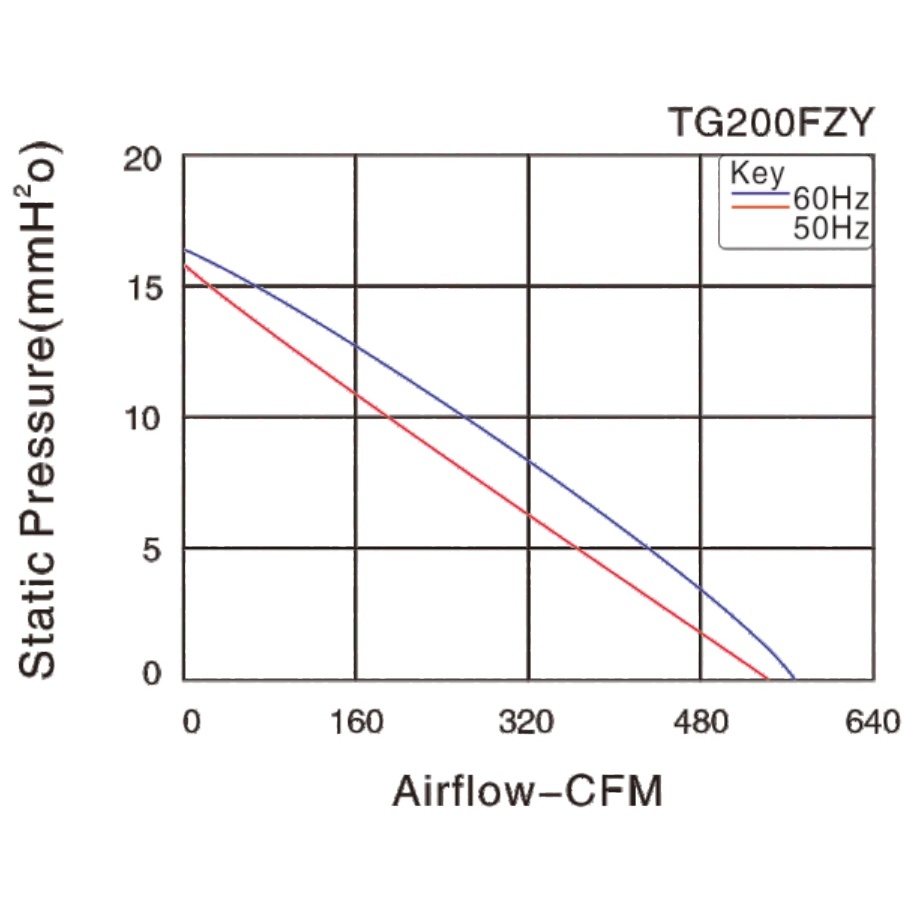

Performance curve

Static pressure vs. airflow performance curve for the Series 63 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 63 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 63 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 63 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 63 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 63 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 63 series under standard operating conditions.

6
Dimensional drawing

Engineering dimensional drawing for the Series 63 series, showing mounting dimensions and airflow direction.

6
Performance curve

Static pressure vs. airflow performance curve for the Series 63 series under standard operating conditions.

6
Dimensional drawing

6
Performance curve

Series 63 technical parameters

Product description

Size 208mm×208mm×72mm
Airflow 506-577CFM
Noise 58-60dB(A)
Impeller Material Metal
Frame Aluminum Alloy
Terminals 0.5mm
Lead Wire Teflon 22# UL1322 (Optional)
Motor Capacitor-Run and External Rotor Induction Motor
Operating Temperature -10℃ ~ +65℃

Model specifications

Model Bearing System Voltage VAC Freq. Hz Current A Power W Speed RPM Noise dB(A) Air Flow CFM Phase Capacitor µF/VAC
TG200FZY2-D Ball 200/240 50/60 0.3/0.33 62/72 2600/3000 58/60 506/577 1 2.2/500
TG200FZY7-D Ball 380/420 50/60 0.2/0.18 73/68 2600/3000 58/60 506/577 1 1/500
