200FZL SERIES

Series 73 AC All-Metal Axial Fan, with a durable Metal guard frame, and Metal impeller, powered by a Capacitor-Run and External Rotor Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.

Airflow: 605-642CFM
Noise: 65-68dB(A)
Frame: Metal guard
Impeller Material: Metal
Motor: Capacitor-Run and External Rotor Induction Motor
Operating Temperature: -10℃ ~ +65℃
Terminals: 0.5mm
Lead Wire: Teflon 22# UL1332 (Optional)

Chat Now Message Email

Product details

Parameters

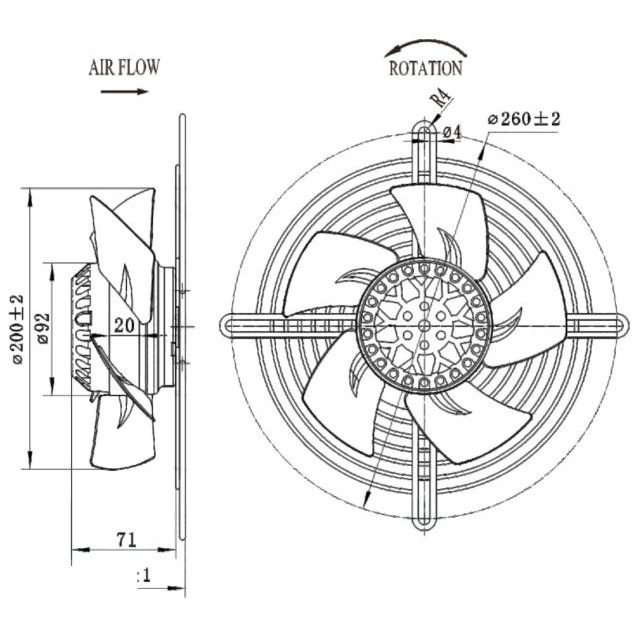

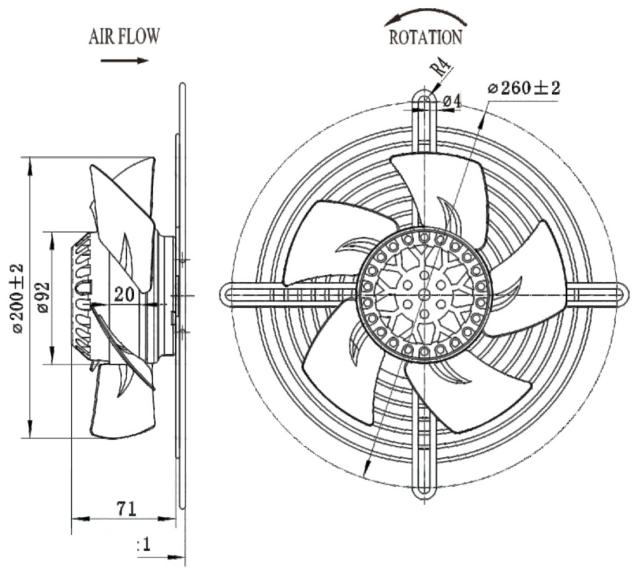

Dimensions and construction

Source dimensional drawing for the Series 73 series.

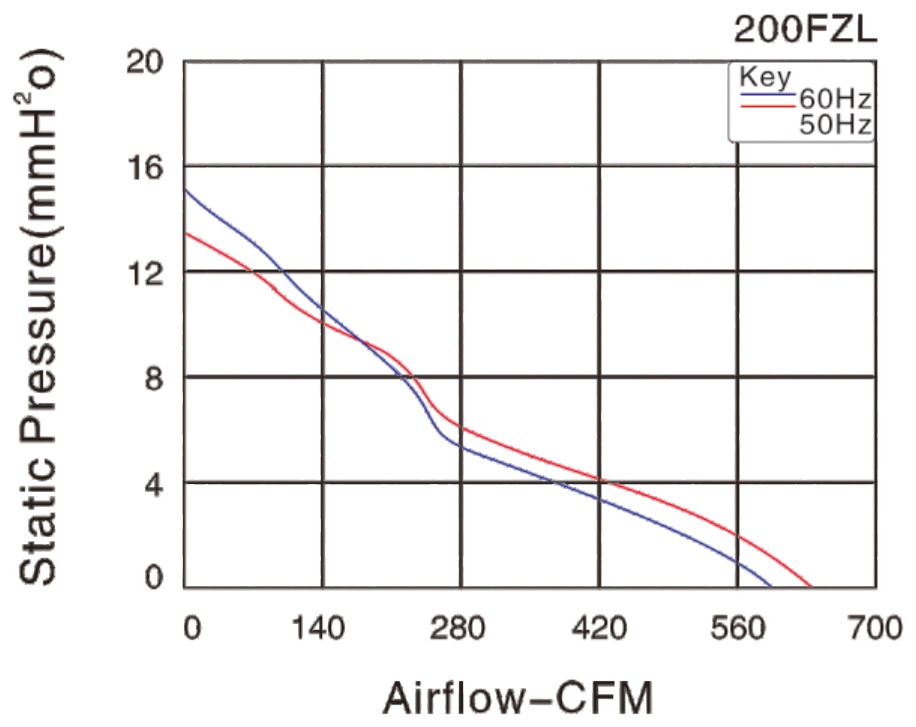

Performance curve

Source performance curve for the Series 73 series.

Series 73 technical parameters

Product description

Airflow	605-642CFM
Noise	65-68dB(A)
Impeller Material	Metal
Frame	Metal guard
Terminals	0.5mm
Lead Wire	Teflon 22# UL1332 (Optional)
Motor	Capacitor-Run and External Rotor Induction Motor
Operating Temperature	-10℃ ~ +65℃

Model specifications

Model	Bearing System	Voltage VAC	Freq. Hz	Current A	Power W	Speed RPM	Noise dB(A)	Air Flow CFM	Phase	Capacitor µF/VAC
200FZL5	Ball	100/125	50/60	0.68/0.65	67/77	2550/2850	65/68	605/642	1	4/250
200FZL6	Ball	200/240	50/60	0.35/0.28	60/80	2550/2850	65/68	605/642	1	2.2/500
200FZL7	Ball	380/420	50/60	0.45/0.4	62/70	2550/2850	65/68	605/642	3	—
200FZL8	Ball	380/420	50/60	0.16/0.19	62/74	2550/2850	65/68	605/642	1	1/500
