400FZD2 SERIES

Series 88 AC All-Metal Axial Fan, features a compact 485mm×485mm×196mm design, with a durable Metal frame, and Metal impeller, powered by a Capacitor-Run Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.

Size: 485mm×485mm×196mm
Airflow: 1550-1725CFM
Noise: 70-73dB(A)
Frame: Metal
Impeller Material: Metal
Motor: Capacitor-Run Induction Motor
Operating Temperature: -10℃ ~ +65℃
Terminals: 0.5mm

Chat Now Message Email

Product details

Parameters

Dimensions and construction

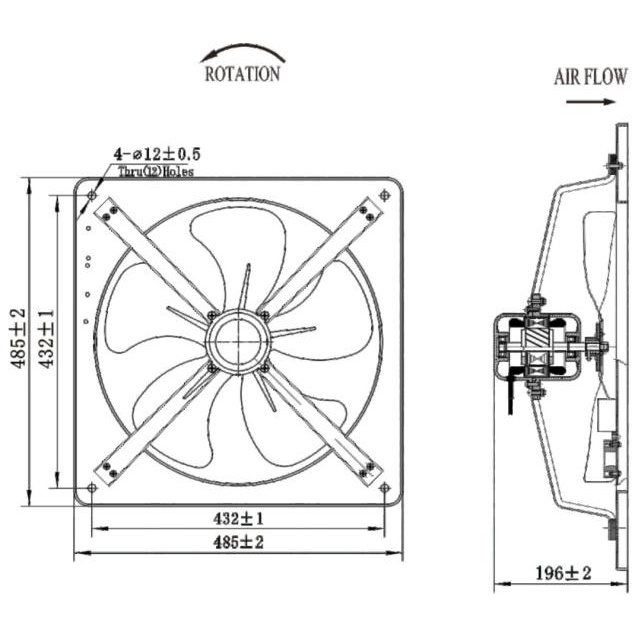

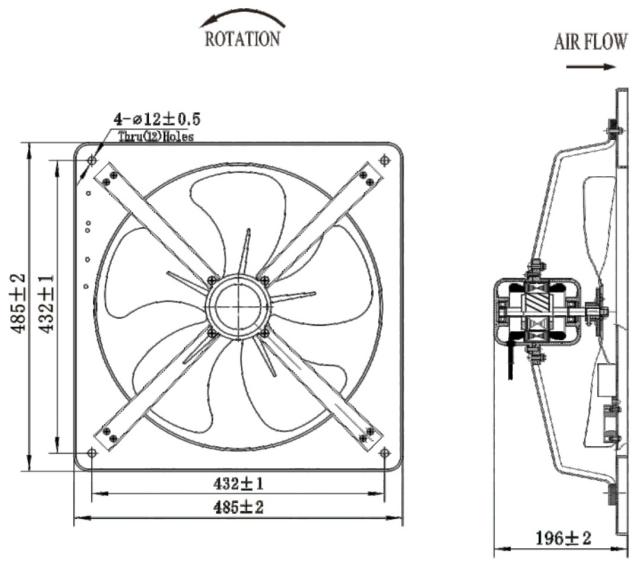

Source dimensional drawing for the Series 88 series.

Performance curve

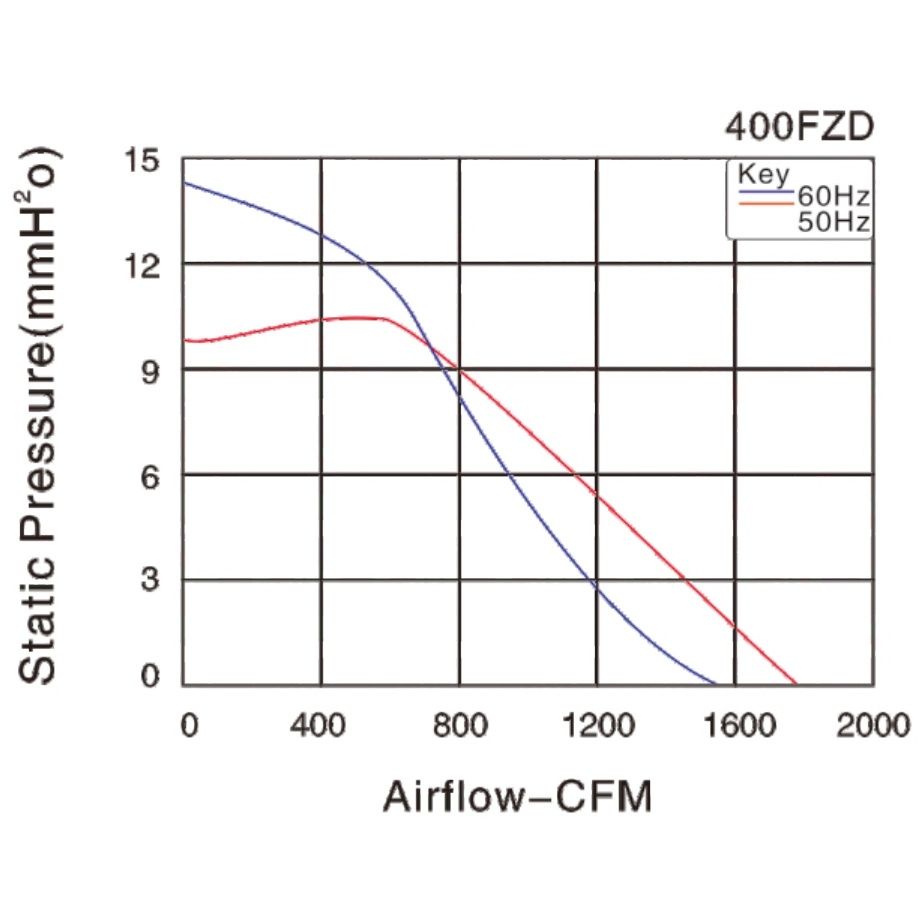

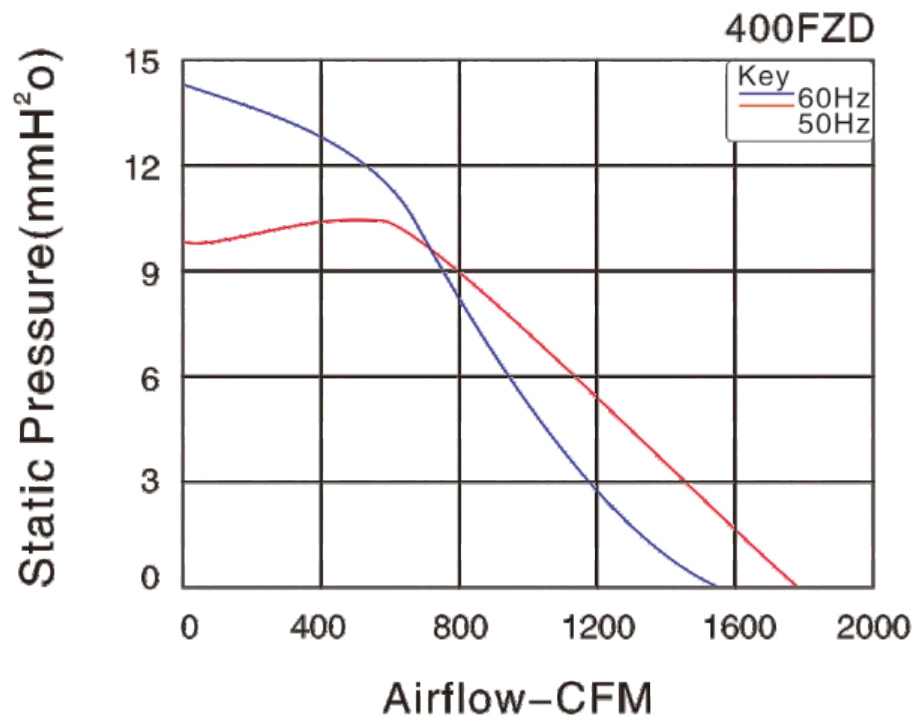

Source performance curve for the Series 88 series.

Series 88 technical parameters

Product description

Size	485mm×485mm×196mm
Airflow	1550-1725CFM
Noise	70-73dB(A)
Impeller Material	Metal
Frame	Metal
Terminals	0.5mm
Lead Wire	Teflon 22# UL1332 (Optional)
Motor	Capacitor-Run Induction Motor
Operating Temperature	-10℃ ~ +65℃

Model specifications

Model	Bearing System	Voltage VAC	Freq. Hz	Current A	Power W	Speed RPM	Noise dB(A)	Air Flow CFM	Phase	Capacitor µF/VAC
400FZD2	Ball	200/240	50/60	0.45/0.58	100/130	1400/1560	70/73	1550/1725	1	3.5/500
400FZD3	Ball	380/420	50/60	0.5	150	1400/1560	70/73	1550/1725	3	—
400FZD4	Ball	380/420	50/60	0.6/0.85	115/175	1400/1560	70/73	1550/1725	1	3/500
