300FZY6 SERIES

Series 94 AC All-Metal Axial Fan, with a durable Metal guard frame, and Metal impeller, powered by a Capacitor-Run and External Rotor Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.
  • Airflow: 1525-1622CFM
  • Noise: 76-78dB(A)
  • Frame: Metal guard
  • Impeller Material: Metal
  • Motor: Capacitor-Run and External Rotor Induction Motor
  • Operating Temperature: -10℃ ~ +65℃
  • Terminals: 0.5mm
  • Lead Wire: Teflon 22# UL1332 (Optional)
Chat Now Message Email
Product details
Parameters

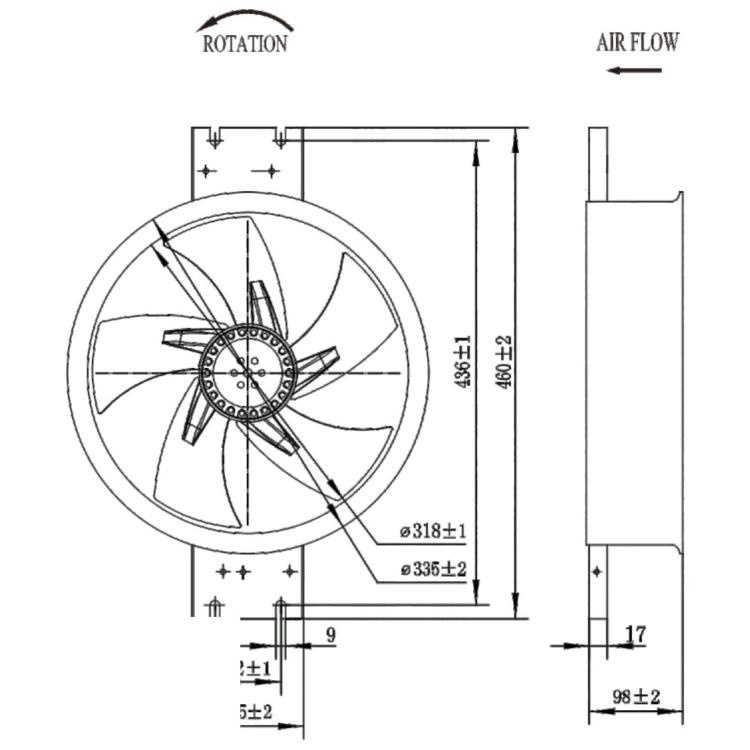

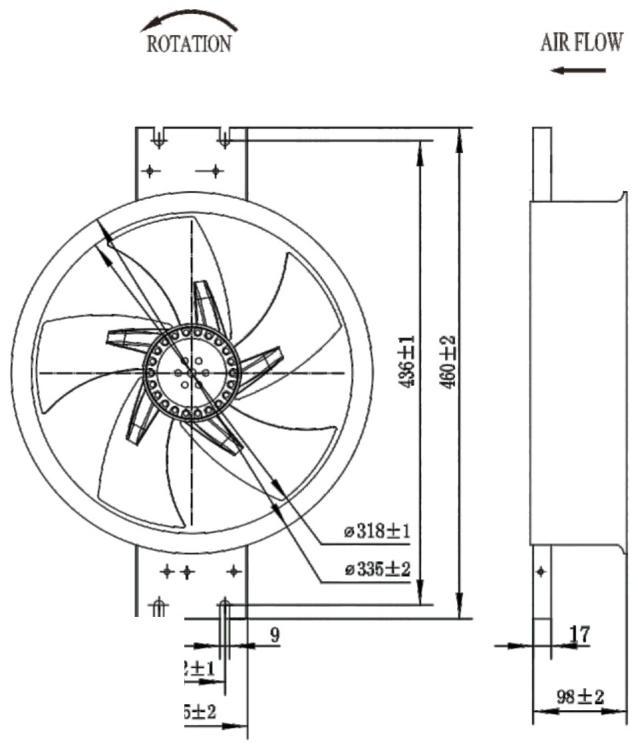

Dimensions and construction

Source dimensional drawing for the Series 94 series.

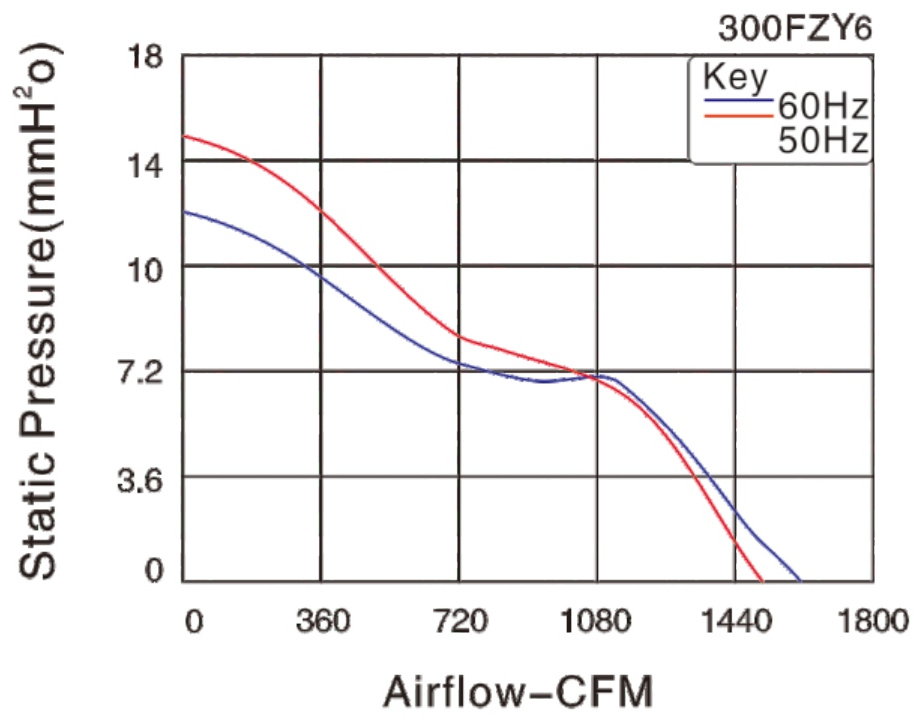

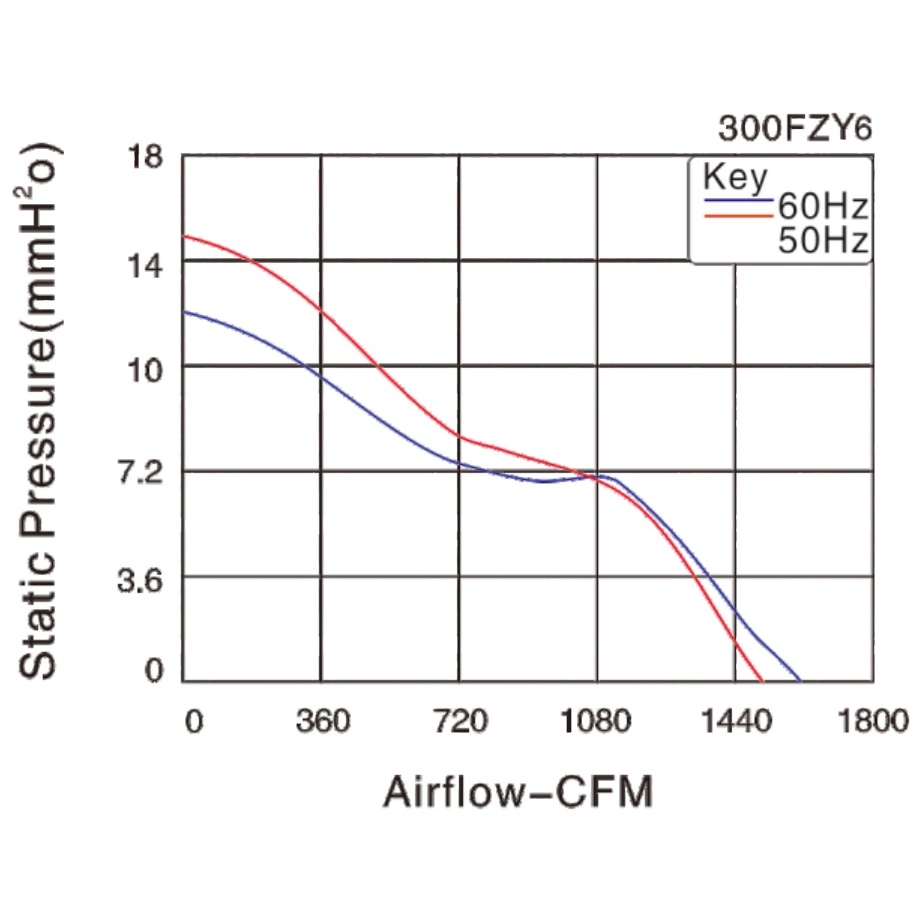

Performance curve

Source performance curve for the Series 94 series.

Series 94 technical parameters

Product description

Airflow 1525-1622CFM
Noise 76-78dB(A)
Impeller Material Metal
Frame Metal guard
Terminals 0.5mm
Lead Wire Teflon 22# UL1332 (Optional)
Motor Capacitor-Run and External Rotor Induction Motor
Operating Temperature -10℃ ~ +65℃

Model specifications

Model Bearing System Voltage VAC Freq. Hz Current A Power W Speed RPM Noise dB(A) Air Flow CFM Phase Capacitor µF/VAC
300FZY6 Ball 200/240 50/60 0.68/0.92 150/215 2500/2700 76/78 1525/1622 1 4/500
