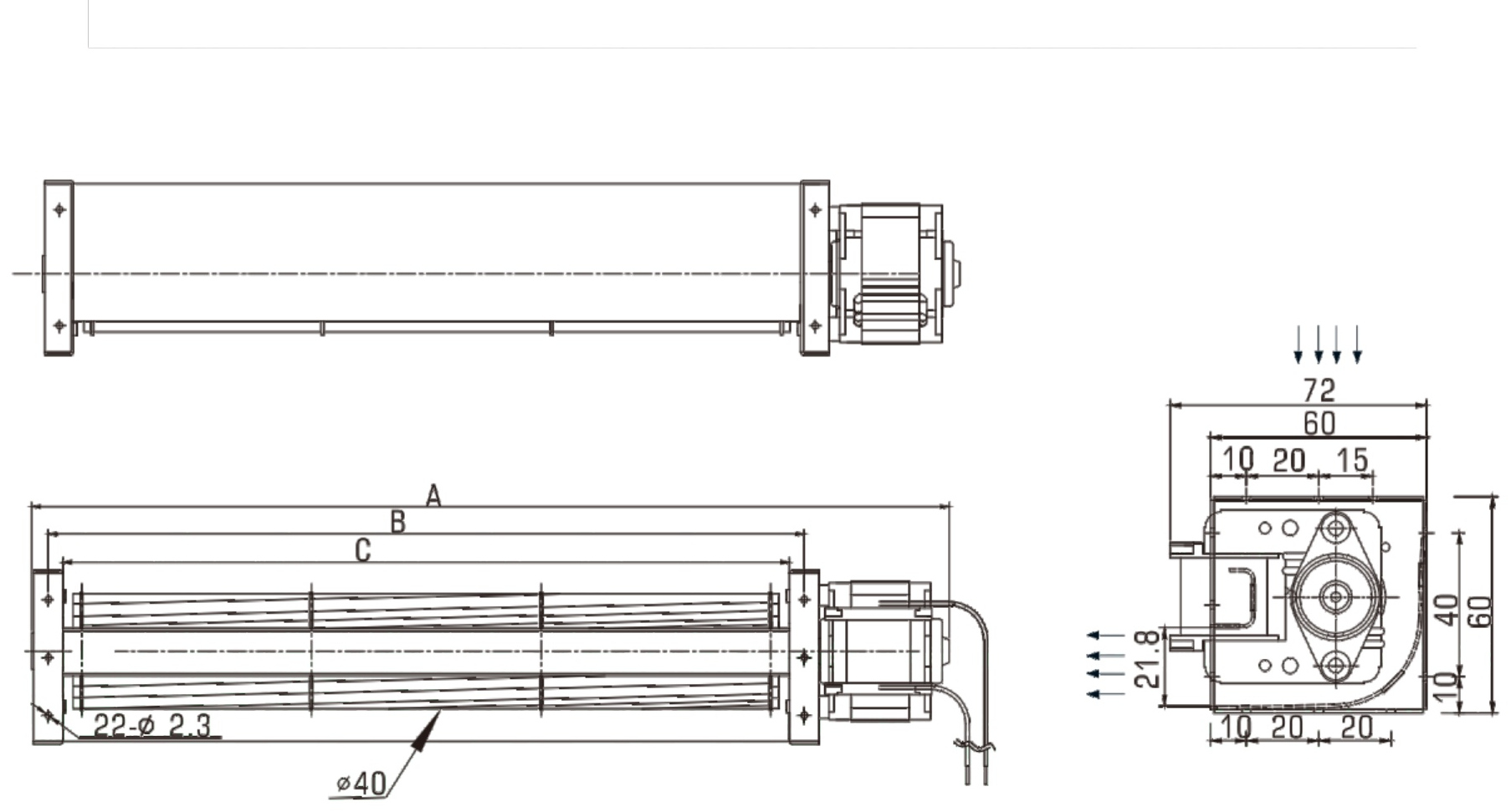

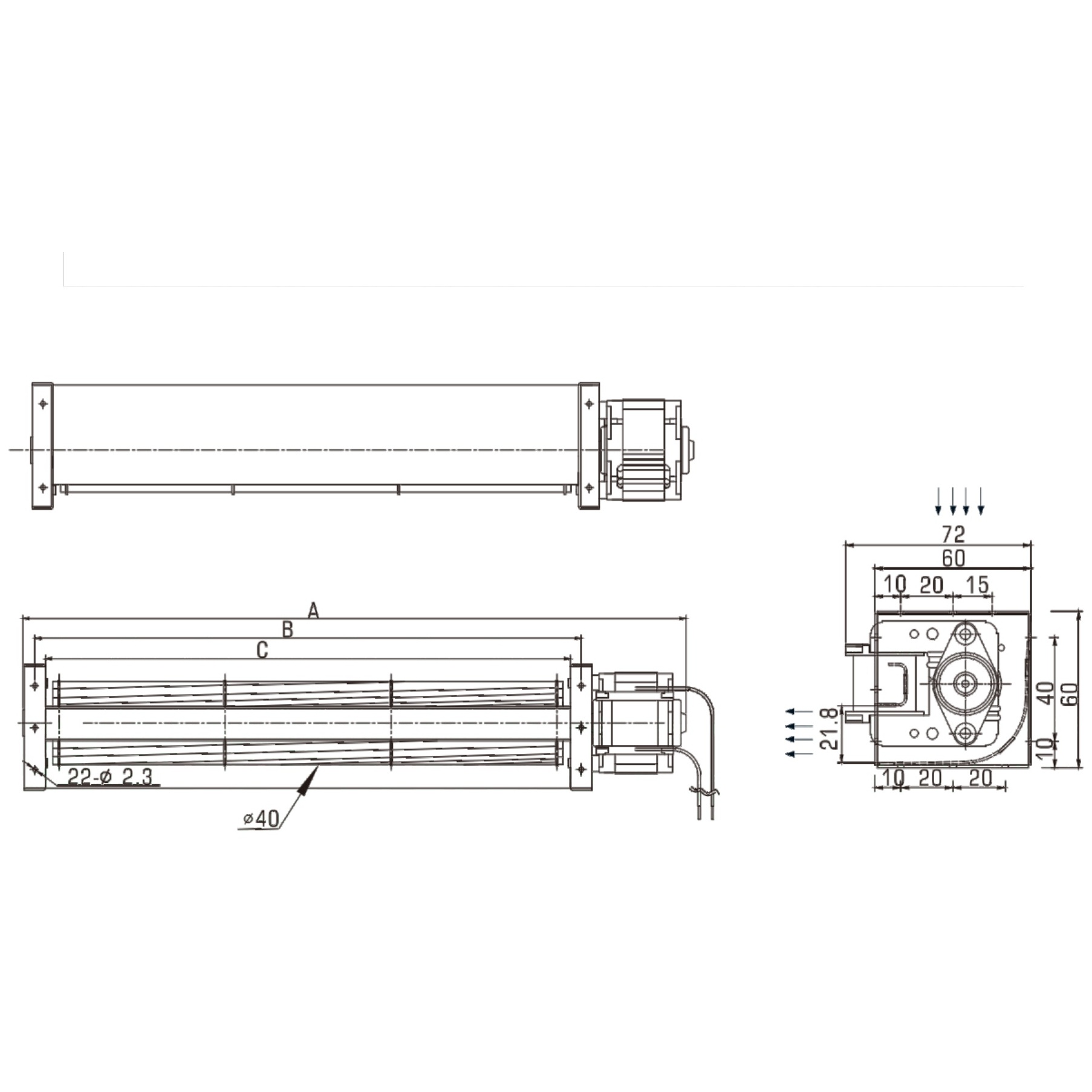

Source dimensional drawing for the Series 432 series.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|
| JLPB-40090AC | 150 | 10 | — | 120/60 | 1 | 5.2 | 3200 | 25 | 40 | 35 |
| JLI40090AC | — | 0 | — | 230/50 | 1 | 3.9 | 2700 | 20 | 36 | 35 |
| JLPB-40155AC | 00 | — | — | 0120/60 | 1 | 5.8 | 3000 | 24 | 62 | 36 |
| JLPB-40150AC | 2 | — | — | 0230/50 | 1 | 4.6 | 2500 | 19 | 57 | 36 |
| JLPB-40199AC | 5 | 0 | — | 0120/60 | 1 | 7.2 | 2900 | 24 | 77 | 38 |
| JLPD40190HU | 200 | — | — | 0230/50 | 1 | 4.5 | 2400 | 19 | 68 | 36 |
| JLPB-40250AC | 015 | — | — | 0120/60 | 2 | 1.9 | 3000 | 24 | 98 | 38 |
| JLPD-402S0A0 | — | 0 | — | 0230/50 | 1 | 3.5 | 2500 | 19 | 9 | 37 |
| JLPB-40290AC | 6 | 1 | — | 0120/60 | 2 | 2.6 | 2800 | 23 | 113 | 39 |
| JLD40290AC | 600 | 6 | — | 0230/50 | 1 | 3.1 | 2400 | 19 | 106 | 38 |
| JLPB-40350AC | 11 | 5 | — | 120/60 | 2 | 0.5 | 2900 | 24 | 152 | 39 |
| JLPB-40350AC | 41 | — | — | 6230/50 | 1 | 9.6 | 2500 | 19 | 132 | 37 |
| JLPB-40420AC | 100 | 0 | — | 0120/60 | 2 | 1.6 | 2700 | 22 | 170 | 38 |
| JLP40420AC | 5 | 40 | — | 0230/50 | — | 20 | 2500 | 19 | 163 | 37 |
