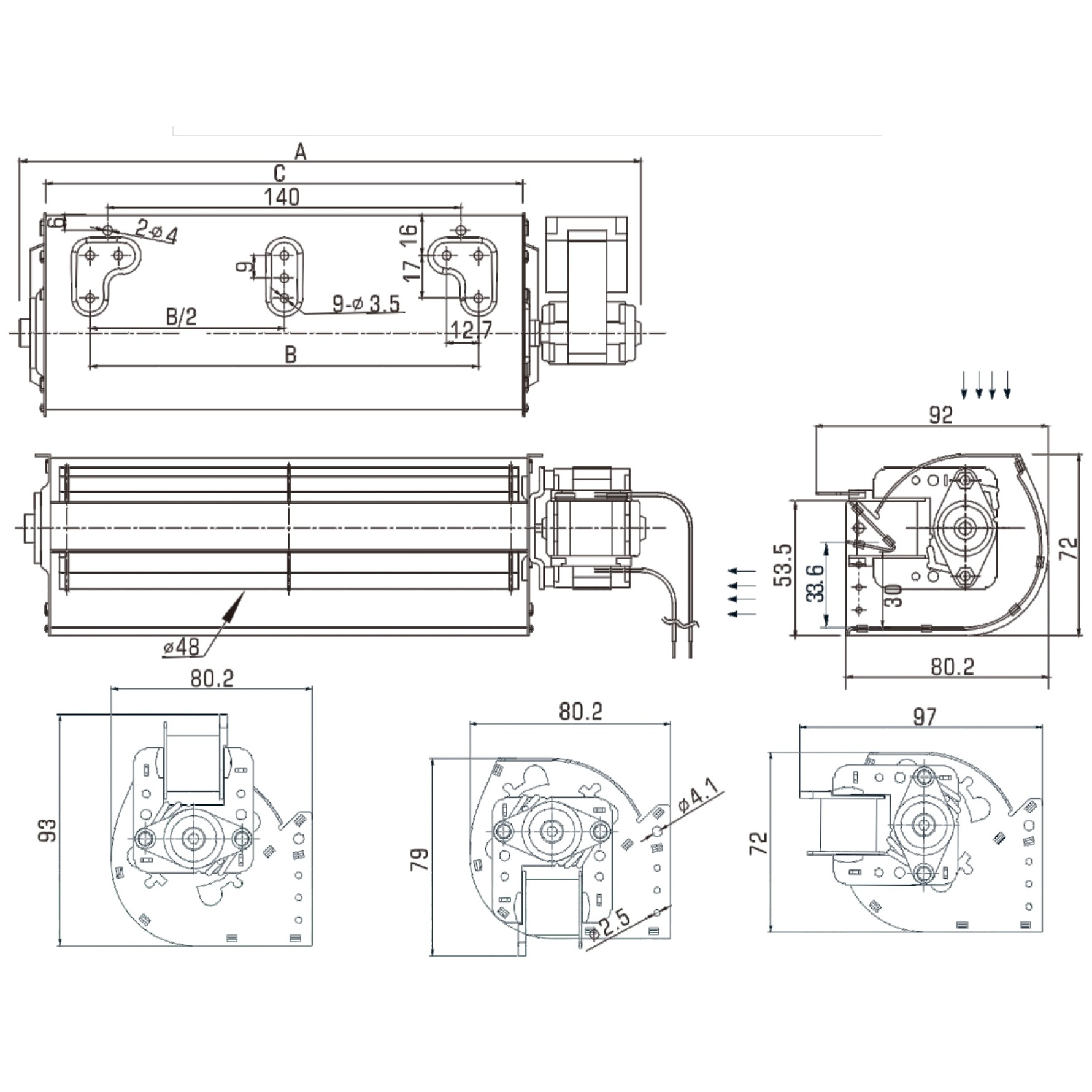

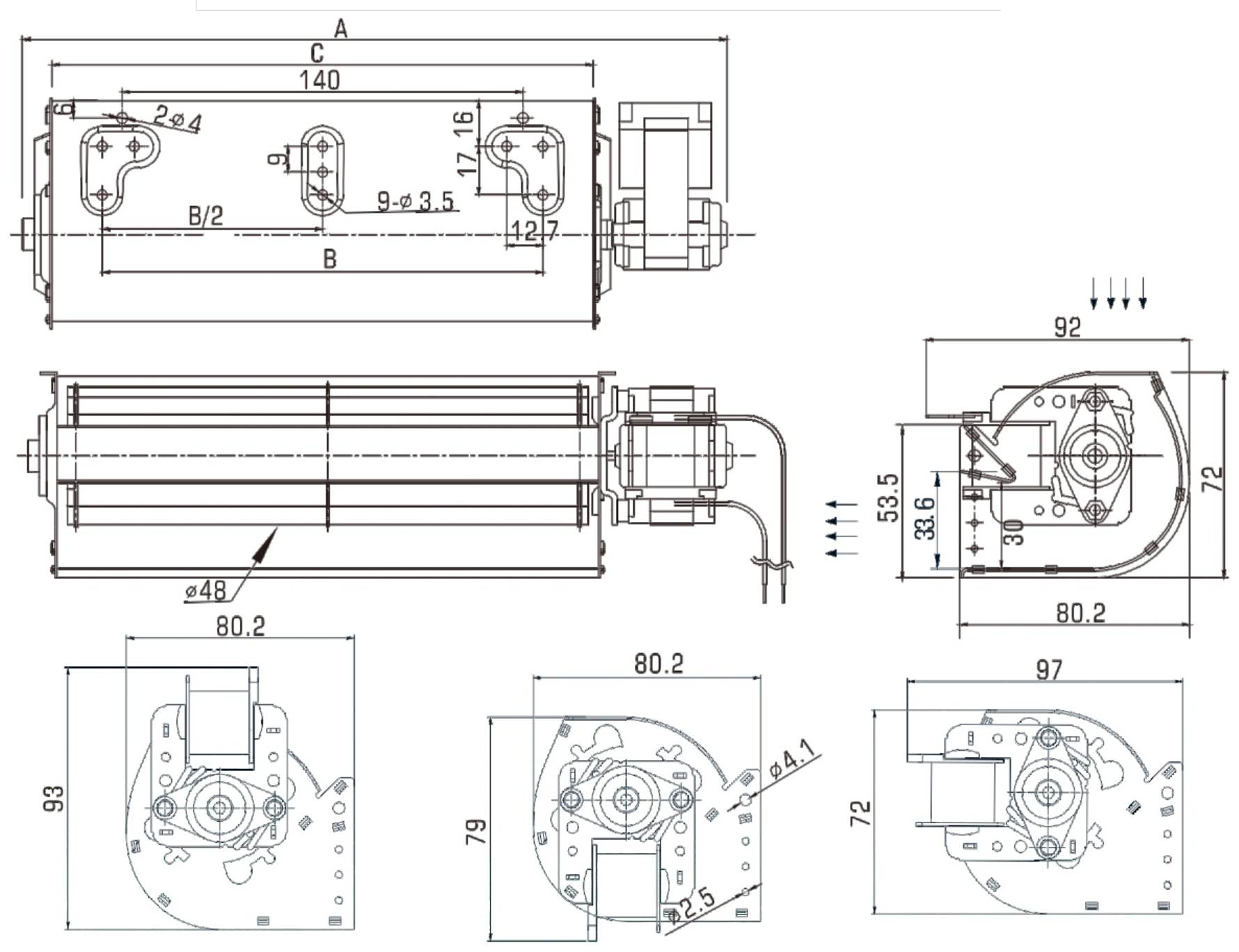

Source dimensional drawing for the Series 433 series.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|
| JLPB-48100AC | 150 | 66 | 99 | 230/50 | 0.06 | 7.5 | 1800 | 30 | 64 | 36 |
| JLPB-48150AC | 200 | 114 | 150 | 230/50 | 0.18 | 11 | 1600 | 28 | 81 | 33 |
| JLPB-48187AC | 246 | 154 | 189 | 230/50 | 0.16 | 18 | 1500 | 26 | 105 | 32 |
| JLPB-48240AC | 298 | 206 | 240 | 230/50 | 0.25 | 29 | 2400 | 40 | 168 | 46 |
| JLPB-48250AC | 310 | 216 | 252 | 230/50 | 0.26 | 29 | 2400 | 40 | 213 | 46 |
| JLPB-48300AC | 361 | 269 | 303 | 230/50 | 0.28 | 30 | 2000 | 35 | 264 | 40 |
| JLPB-48350AC | 413 | 314 | 348 | 230/50 | 0.29 | 35 | 2200 | 38 | 307 | 43 |
| JLPB-48420AC | 483 | 384 | 418 | 230/50 | 0.32 | 35 | 2000 | 35 | 343 | 44 |
