28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 434 series.

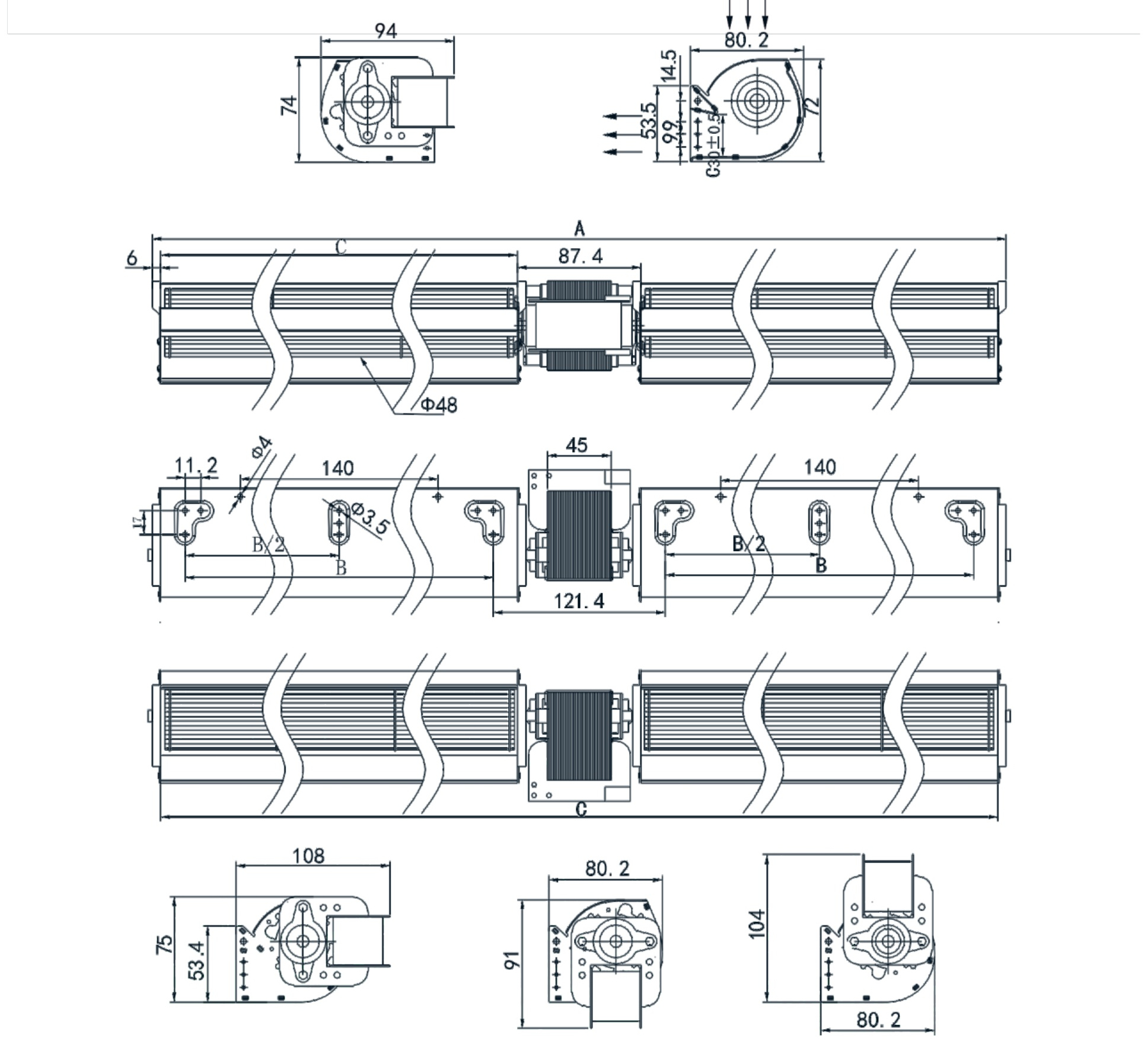

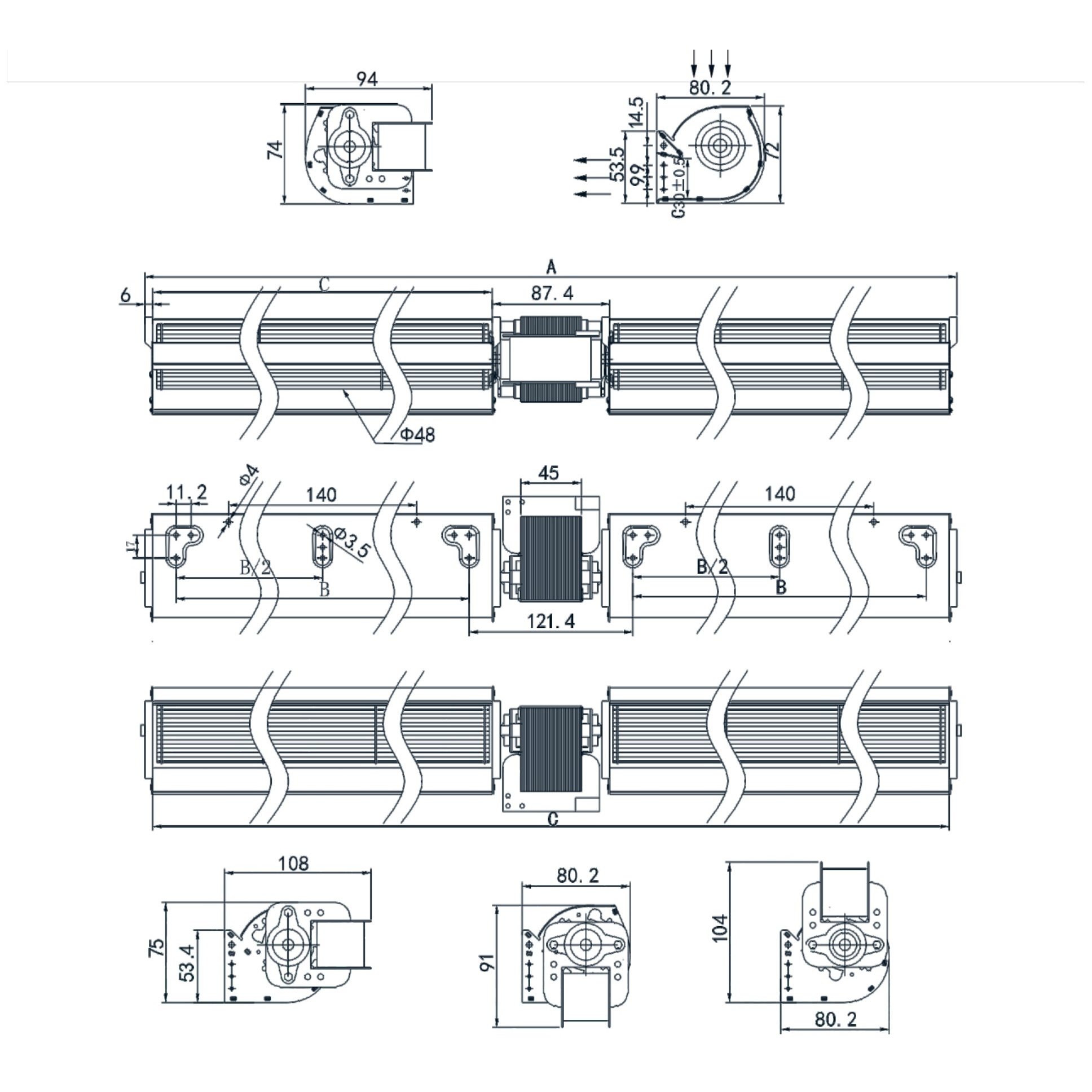

Engineering dimensional drawing for the Series 434 series, showing mounting dimensions and airflow direction.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|
| JLPBB-48240AC | 584 | 20 | 35 | 2 230/50 | — | 13 | 2300 | 34 | 370 | 42 |
| JLPBB-48300AC | 706 | 26 | 969 | 14230/50 | — | 46 | 2100 | 33 | 350 | 40 |
| JLPBB-48350AC | 796 | 31 | 478 | 34230/50 | — | 17 | 1500 | 28 | 280 | 38 |
| JLPBB-48420AC | 936 | 38 | 492 | 24230/50 | — | 17 | 1350 | 25 | 270 | 36 |
