28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 437 series.

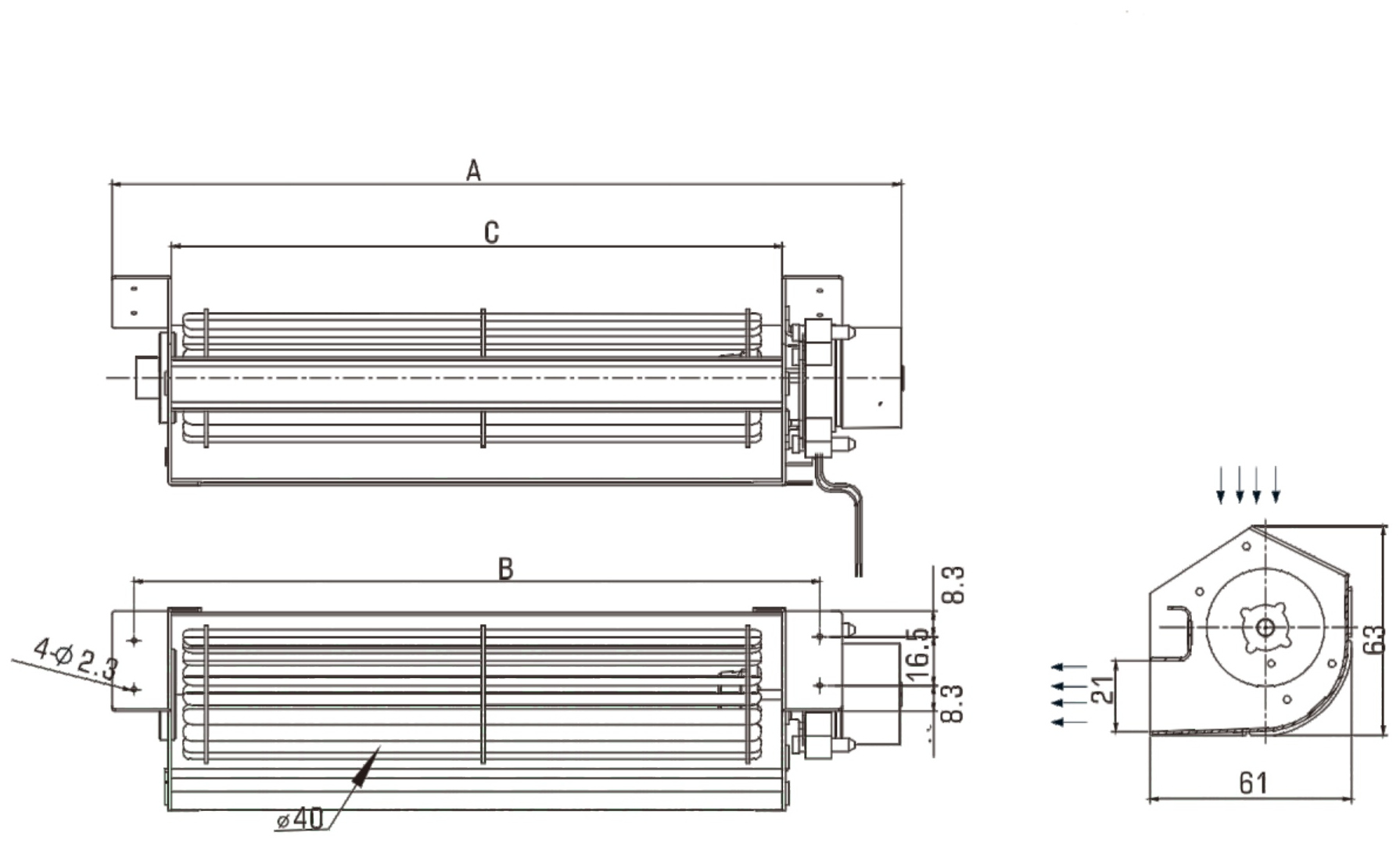

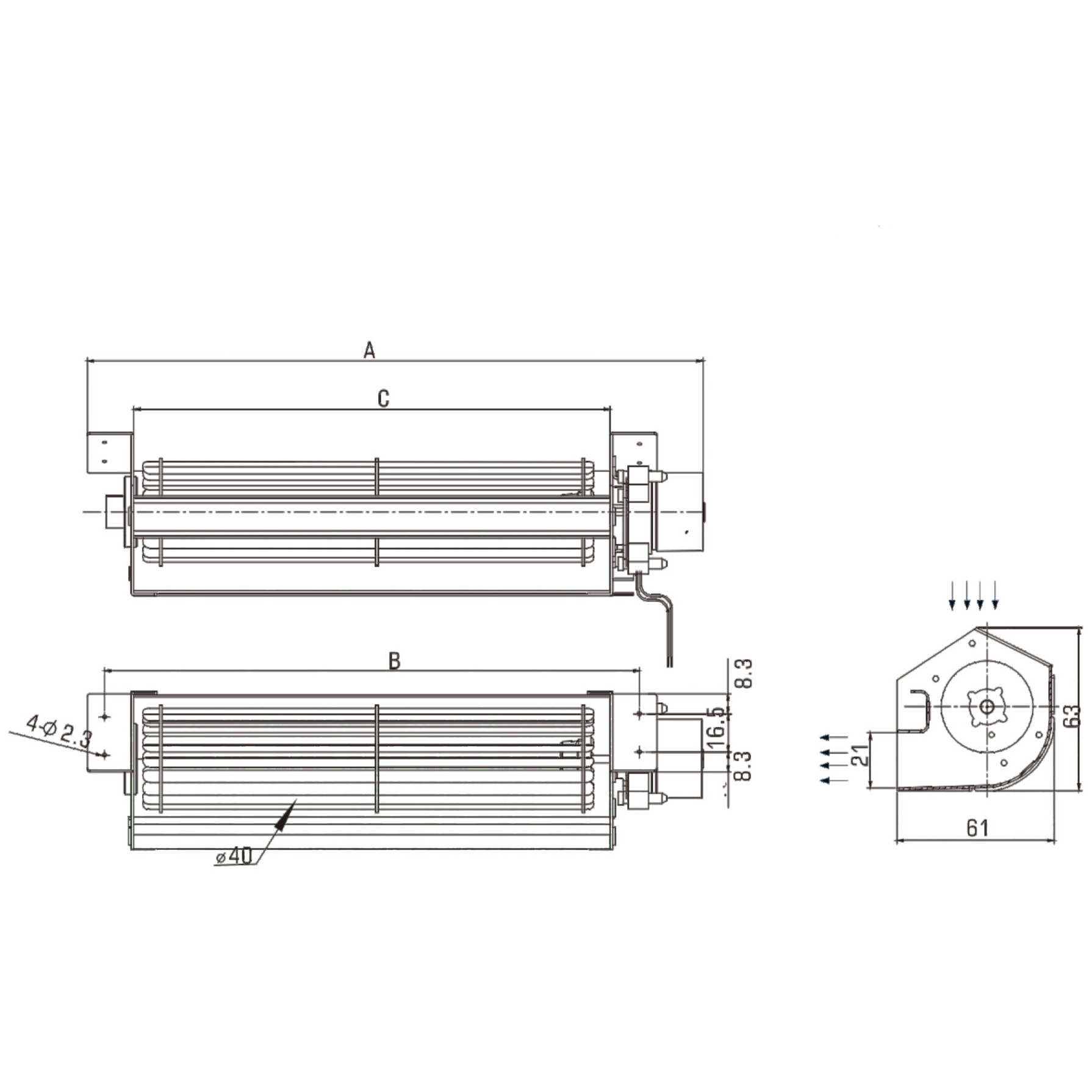

Engineering dimensional drawing for the Series 437 series, showing mounting dimensions and airflow direction.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|
| JLPC-40090DC | 11 | 0 | — | 12 | o | 12 | 2600 | 15 | 30 | 30 |
| JL40090DC | — | — | — | 24 | o | 08 | 2600 | 15 | 30 | 30 |
| JLPC-40150DC | 15 | 2 | — | 012 | o | 16 | 2600 | 20 | 65 | 33 |
| JL40150D0 | — | — | — | 024 | o | 10 | 2600 | 20 | 65 | 33 |
| JLPC-40190DC | 010 | — | — | 012 | o | 20 | 2600 | 25 | 92 | 34 |
| JLPC-40190DC | — | 0 | — | 624 | o | 17 | 2600 | 25 | 92 | 34 |
| JLPC-40250DC | 9 | 8 | — | 012 | o | 25 | 2600 | 27 | 116 | 35 |
| JLPC-40250DC | 0 | 20 | — | 024 | o | 21 | 2600 | 27 | 116 | 35 |
| JLPC-40290DC | — | 1 | — | 012 | o | 31 | 2600 | 29 | 138 | 36 |
| JLPC-40290DC | 032 | — | — | 024 | o | 25 | 2600 | 29 | 138 | 36 |
| JLPC-40350DC | 1 | 5 | — | 12 | o | 38 | 2600 | 32 | 162 | 37 |
| JLP40350DC | — | — | — | 624 | o | 26 | 2600 | 32 | 162 | 37 |
| JLPC-40420DC | 1 | 10 | — | 012 | o | 46 | 2600 | 34 | 195 | 38 |
| JLTC40420DC | 4 | — | — | 24 | o | 31 | 2600 | 34 | 195 | 38 |
