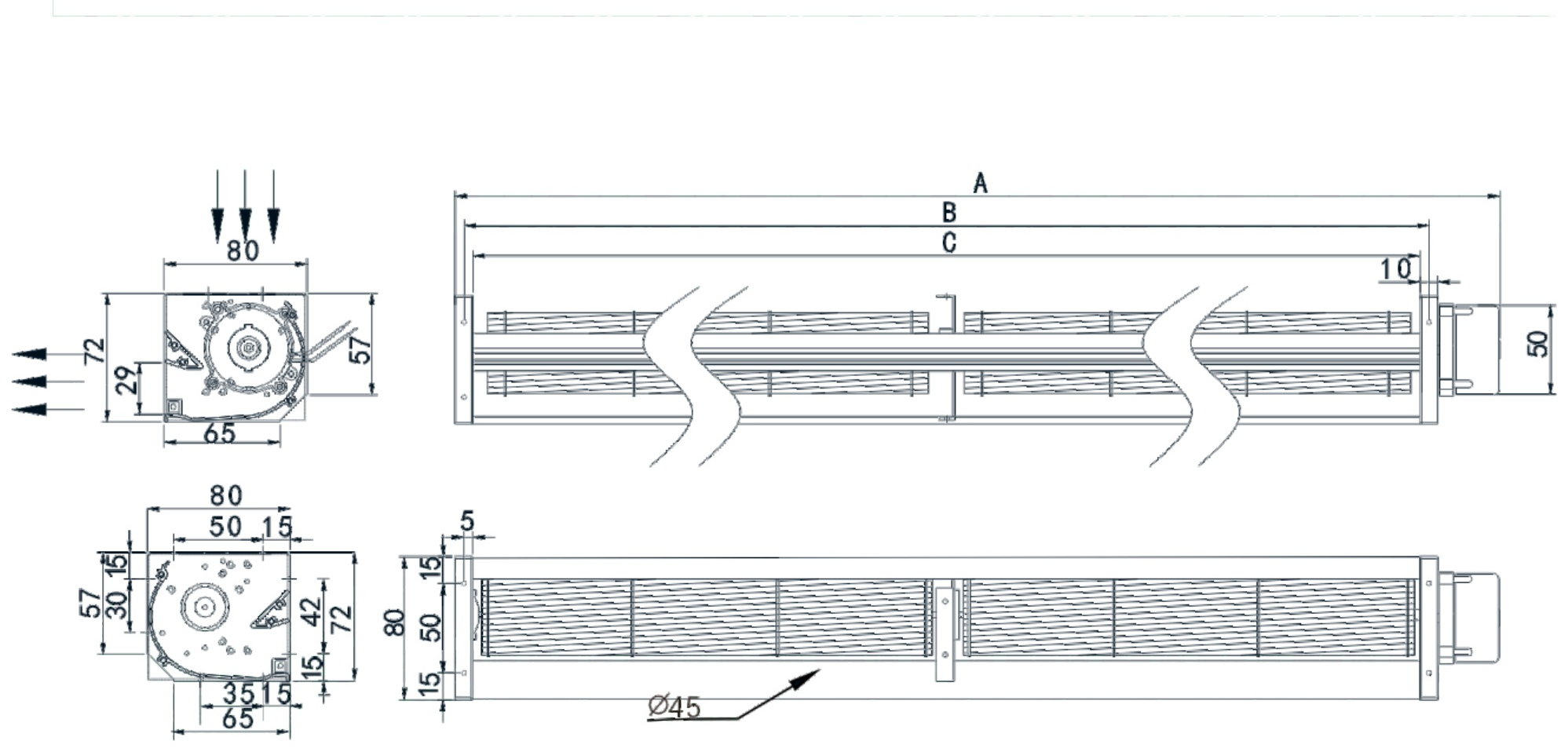

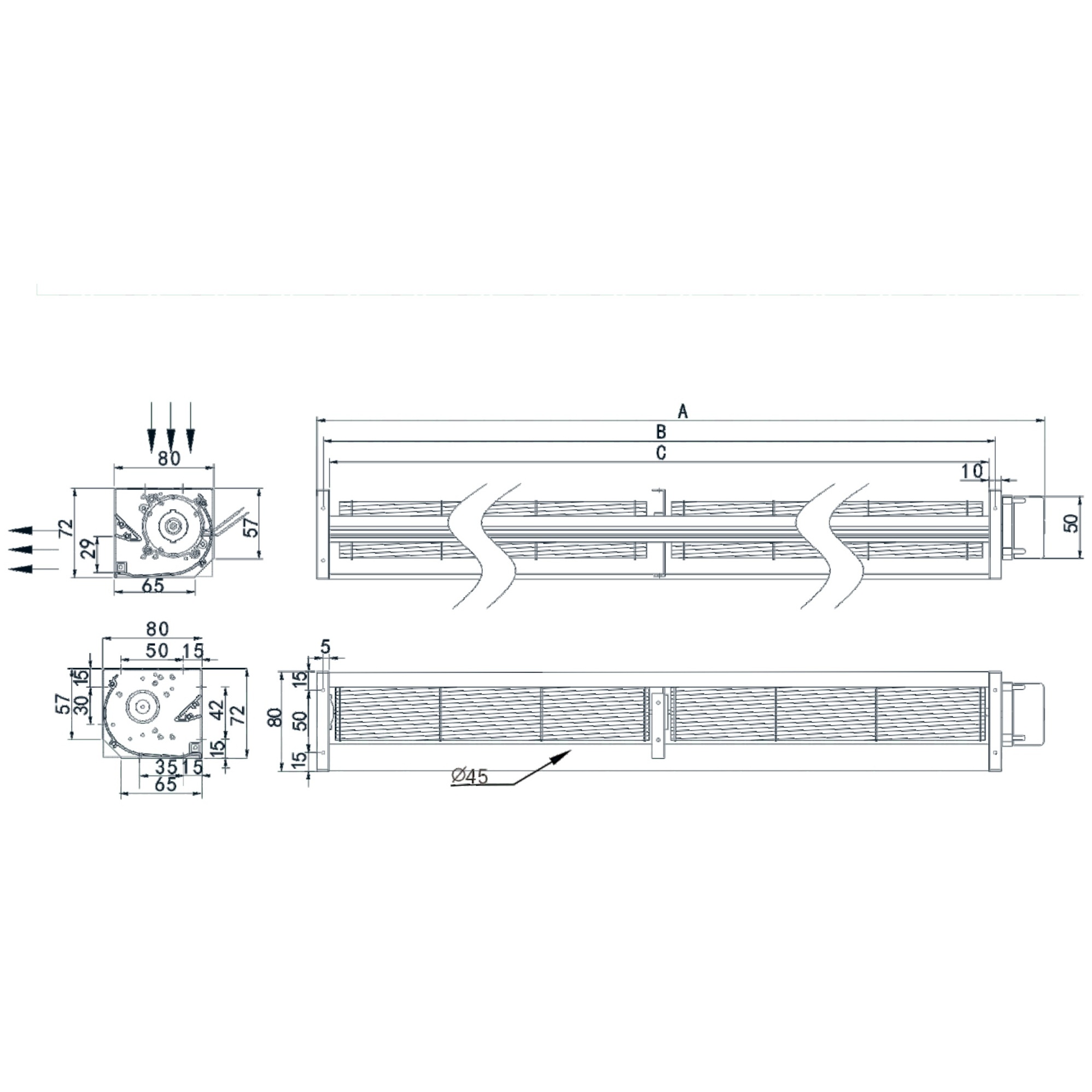

Source dimensional drawing for the Series 442 series.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) | Blower |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JLLB-45530DC | 58 | 554 | 105 | 3024 | — | 0.49 | 2000 | 28 | — | 366 | 48 |
| JLLB-45630DC | 68 | 564 | 106 | 3024 | — | 0.70 | 2000 | 28 | — | 384 | 49 |
| JLLB-45700DC | 75 | 57 | 7 | 0024 | — | 0.85 | 2000 | 28 | — | 430 | 50 |
| JLLB-45750DC | 80 | 57 | 67 | 5024 | — | 0.94 | 2000 | 28 | — | 495 | 50 |
| JLLB-45820DC | 87 | 583 | 308 | 2024 | — | 0.82 | 1800 | 25 | — | 487 | 48 |
| JLLB-45870DC | 92 | 588 | 308 | 7024 | — | 0.85 | 1800 | 25 | — | 516 | 48 |
