28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 446 series.

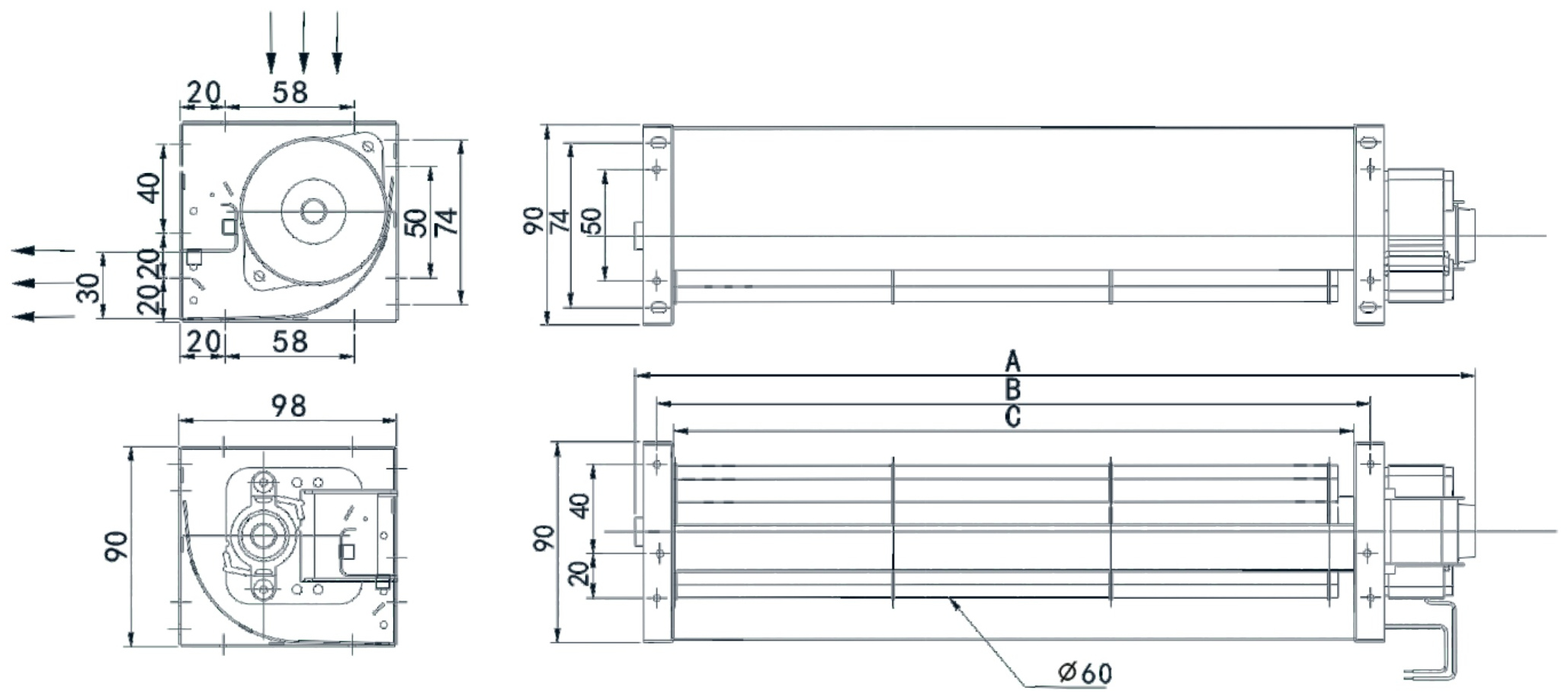

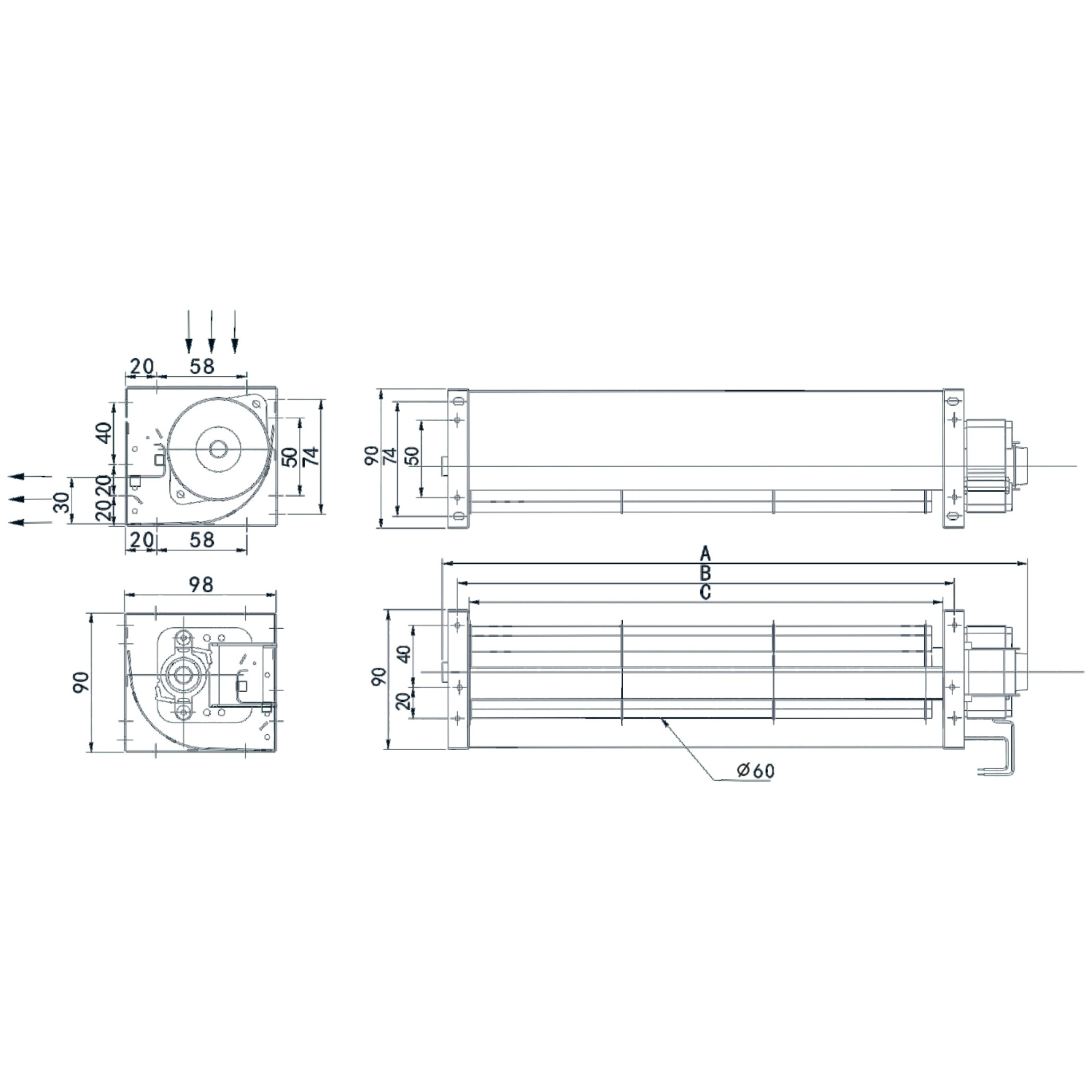

Engineering dimensional drawing for the Series 446 series, showing mounting dimensions and airflow direction.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|
| JLPF-60120AC | 100 | 10 | 100 | 120/60 | 0.47 | 30 | 3000 | 47 | 141 | 40 |
| JL1Z0A0 | 150 | 160 | 120 | 230/50 | 0.24 | 28.5 | 2700 | 40 | 125 | 40 |
| JLPF-60180AC | 051 | 100 | 164 | 120/60 | 0.54 | 34 | 2600 | 52 | 180 | 47 |
| JLPF-60100AC | 291 | 159 | 164 | 230/50 | 0.25 | 32.1 | 2500 | 50 | 166 | 47 |
| JLPF-60240AC | 91 | 06 | 045 | 120/60 | 0.57 | 35 | 2000 | 42 | 200 | 41 |
| JLPP60240A0 | 012 | 260 | 240 | 230/50 | 0.27 | 34 | 2300 | 45 | 230 | 44 |
| JLPF-60300AC | 07 | 001 | 206 | 120/60 | 0.99 | 62 | 2400 | 47 | 270 | 46 |
| JL6USUUAU | 010 | 021 | 500 | 230/50 | 0.47 | 36 | 2300 | 46 | 280 | 46 |
| JLPF-60360AC | 110 | 00 | 06 | 120/60 | 1.01 | 64 | 1900 | 41 | 280 | 43 |
| JLP6US6UAC | 440 | 602 | 500 | 230/50 | 0.49 | 37 | 1950 | 42 | 280 | 43 |
| JLPF-60420AC | 501 | 111 | 100 | 120/60 | 1.01 | 65 | 1600 | 26 | 290 | 43 |
| JLPF-60420AC | 501 | 444 | 429 | 230/50 | 0.41 | 39 | 1800 | 32 | 310 | 44 |
