28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.

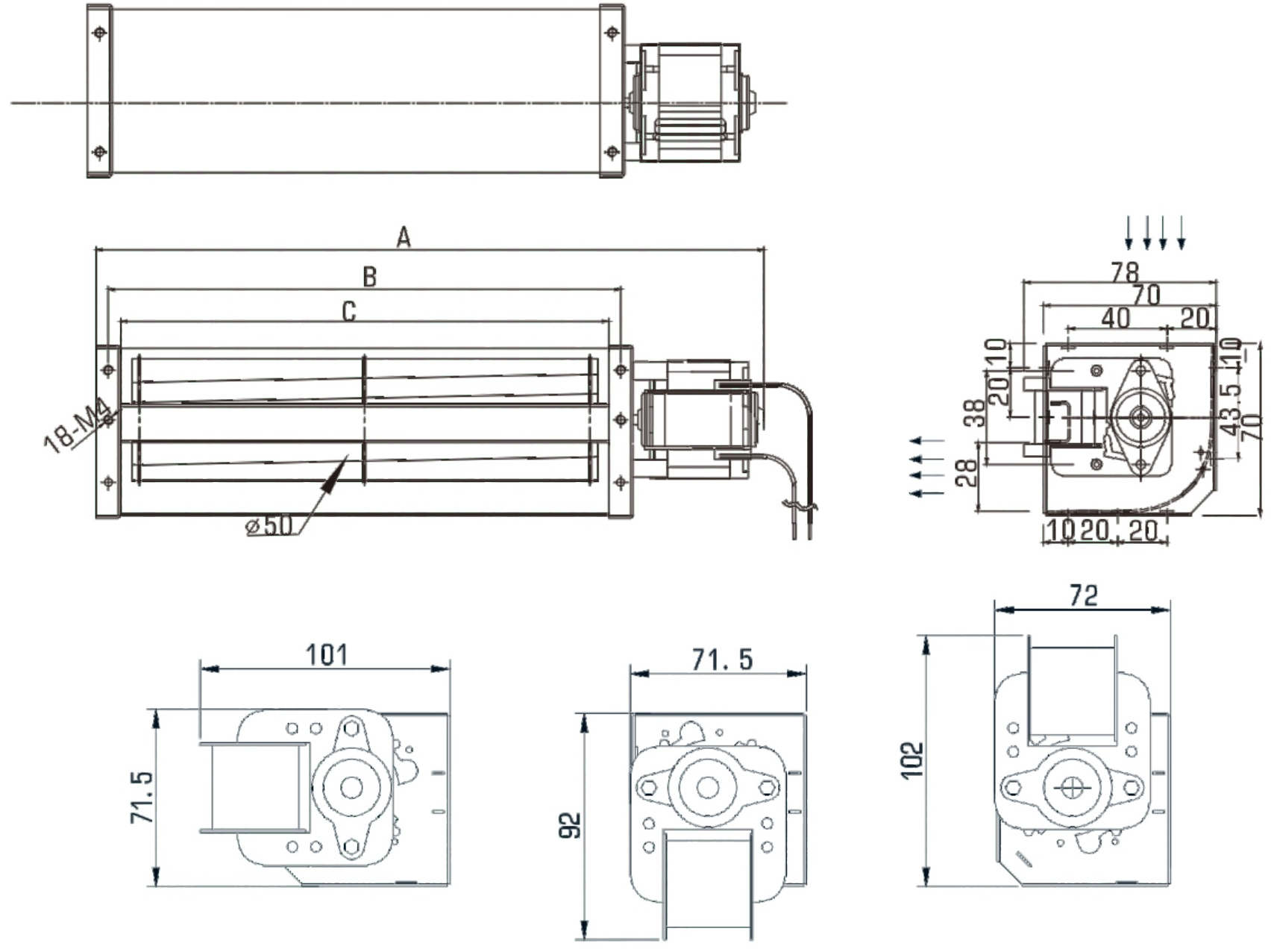

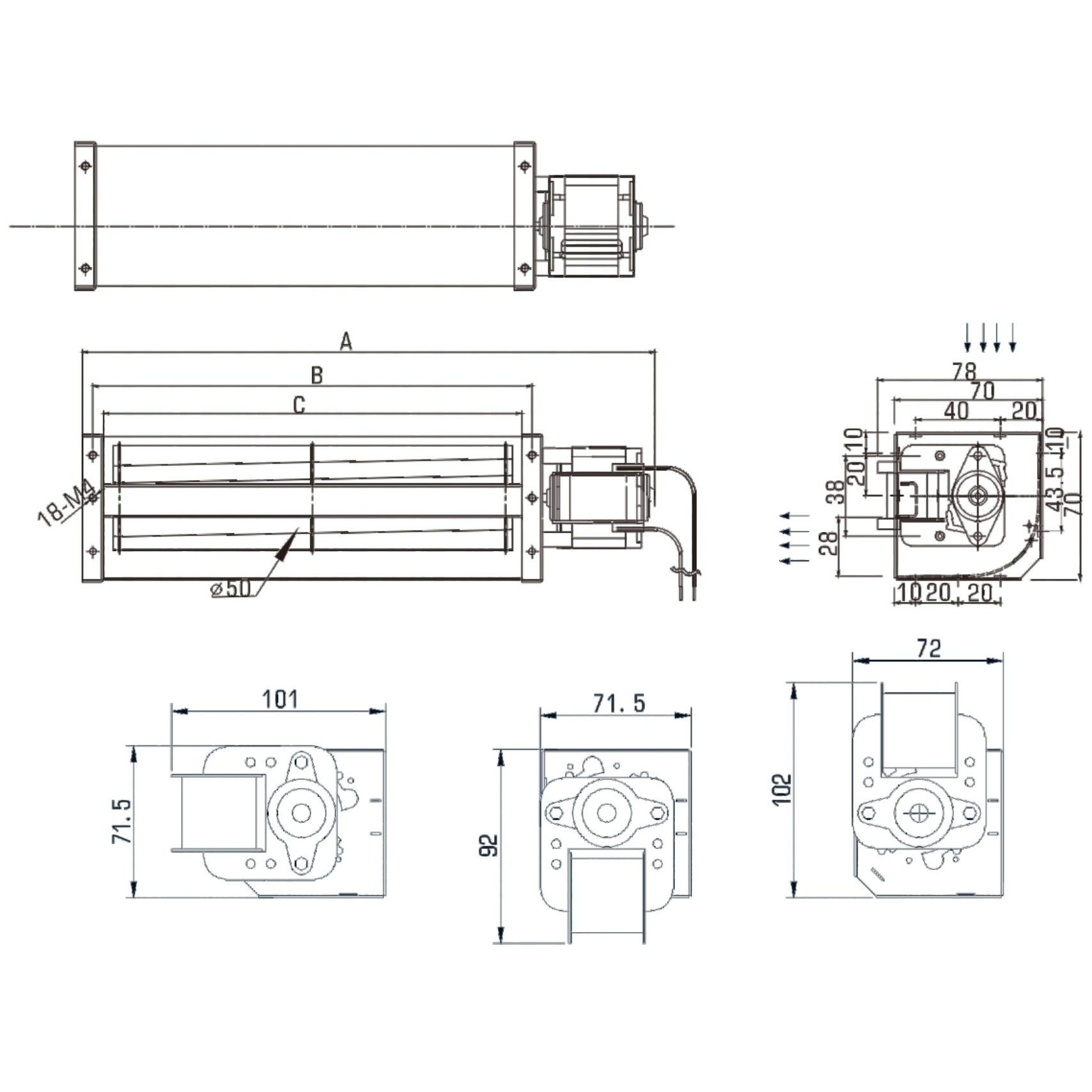

Source dimensional drawing for the Series 447 series.
Engineering dimensional drawing for the Series 447 series, showing mounting dimensions and airflow direction.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|
| JLP1B-15009AC | 170 | 100 | — | 120/60 | 0.45 | 27.2 | 3300 | 44 | 70 | 40 |
| JLIS0090AU | — | 160 | 50 | 230/50 | 0.23 | 25.2 | 2800 | 37 | 56 | 40 |
| JLP1B-15015AC | 001 | 160 | 15 | 120/60 | 0.47 | 30.1 | 3100 | 41 | 131 | 40 |
| JLTD501S0AC | 201 | 160 | 150 | 230/50 | 0.24 | 25.9 | 2700 | 37 | 115 | 40 |
| JLP1B-15019AC | 071 | — | 100 | 120/60 | 0.48 | 32.1 | 2900 | 40 | 174 | 42 |
| JLIID50190AC | 2 | 206 | 156 | 230/50 | 0.24 | 28.2 | 2600 | 38 | 158 | 42 |
| JLP1B-15025AC | 006 | 05 | 018 | 120/60 | 0.5 | 33.5 | 3000 | 42 | 205 | 44 |
| JL-50250HU | 020 | 230 | 240 | 230/50 | 0.25 | 30.6 | 2600 | 39 | 128 | 42 |
| JLP1B-15029AC | 076 | 000 | 0 | 120/60 | 0.52 | 34.5 | 2900 | 45 | 234 | 45 |
| ULFDS0290HC | 070 | 506 | 230 | 230/50 | 0.26 | 31.2 | 2600 | 40 | 208 | 43 |
| JLP1B-15035AC | 406 | 268 | 05 | 120/60 | 0.92 | 58 | 3100 | 49 | 292 | 46 |
| ULT5U350AG | 460 | 006 | 650 | 230/50 | 0.46 | 32 | 2200 | 44 | 271 | 44 |
| JLP1B-15042AC | 106 | 400 | 11 | 120/60 | 0.96 | 62.4 | 3000 | 45 | 337 | 46 |
| JL50420HC | 450 | 420 | 416 | 230/50 | 0.47 | 34 | 2300 | 49 | 308 | 44 |
