28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 448 series.

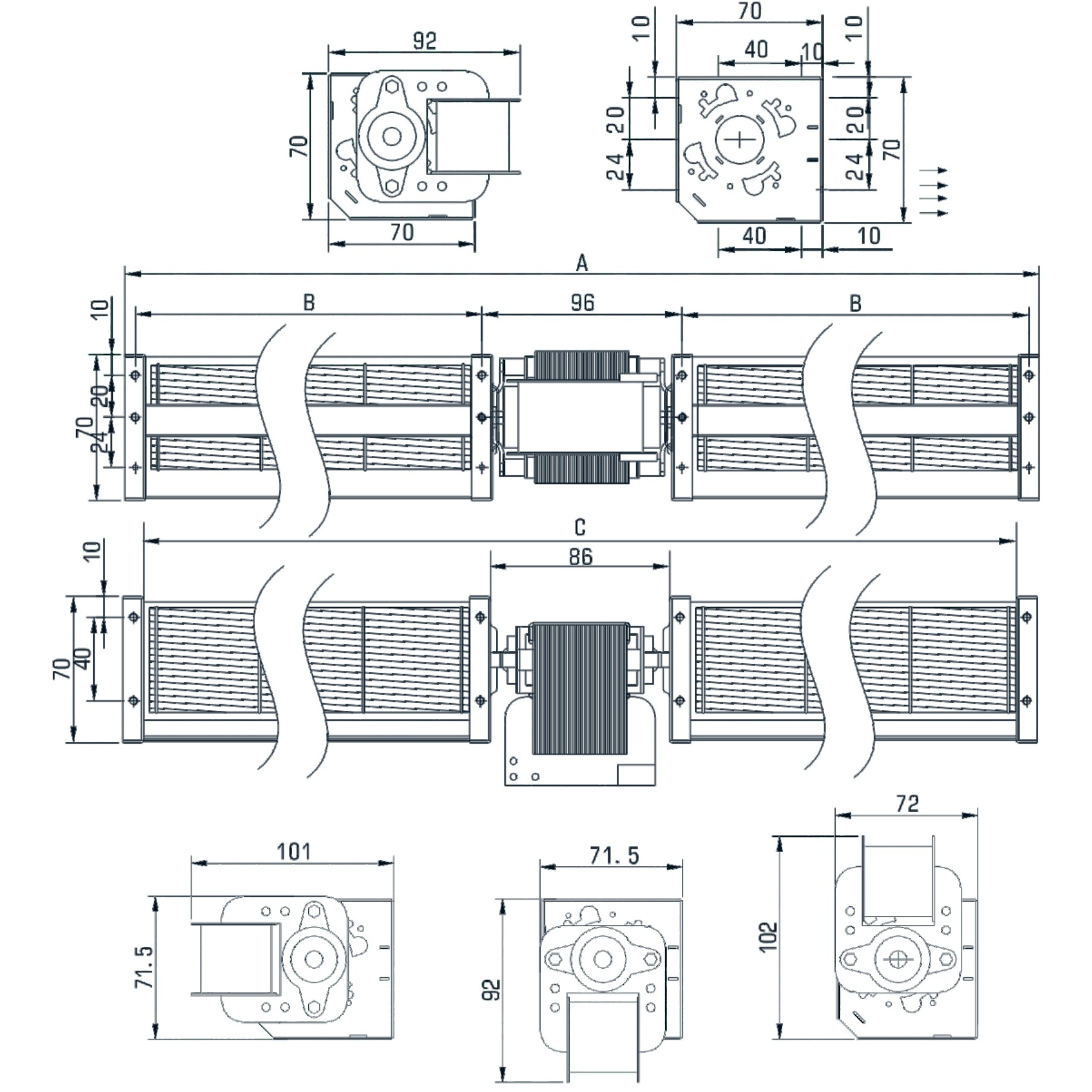

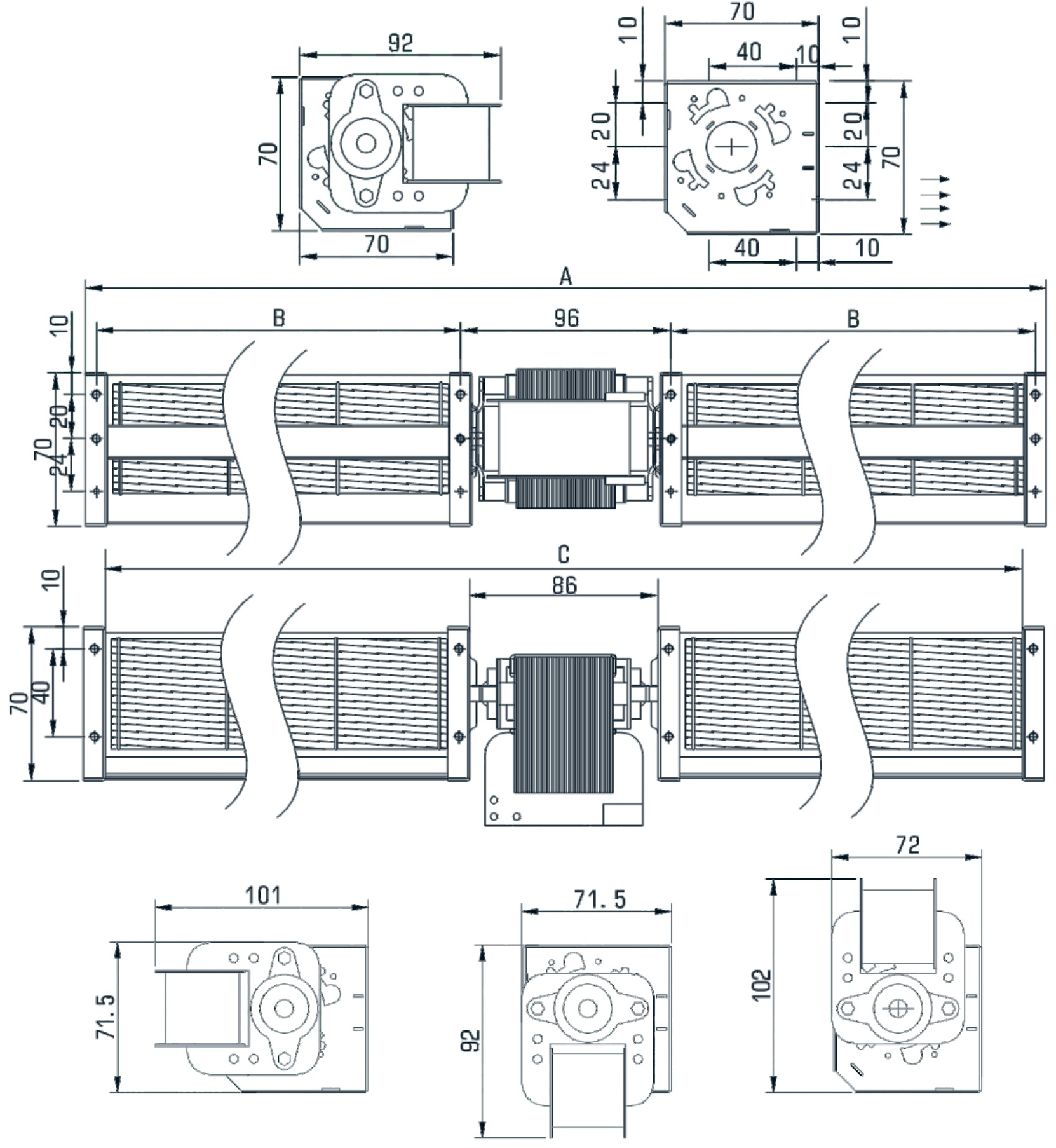

Engineering dimensional drawing for the Series 448 series, showing mounting dimensions and airflow direction.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|
| JLPBB-50250AC | 632 | 258 | 612 | 230/50 | 0.29 | 36 | 2400 | 36 | 300 | 42 |
| JLPBB-50290AC | 732 | 308 | 712 | 230/50 | 0.32 | 40 | 2100 | 32 | 335 | 41 |
| JLPBB-50350AC | 852 | 368 | 832 | 230/50 | 0.35 | 41 | 1800 | 30 | 340 | 38 |
| JLPBB-50420AC | 972 | 428 | 952 | 230/50 | 0.35 | 42 | 1300 | 28 | 260 | 36 |
