28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 449 series.

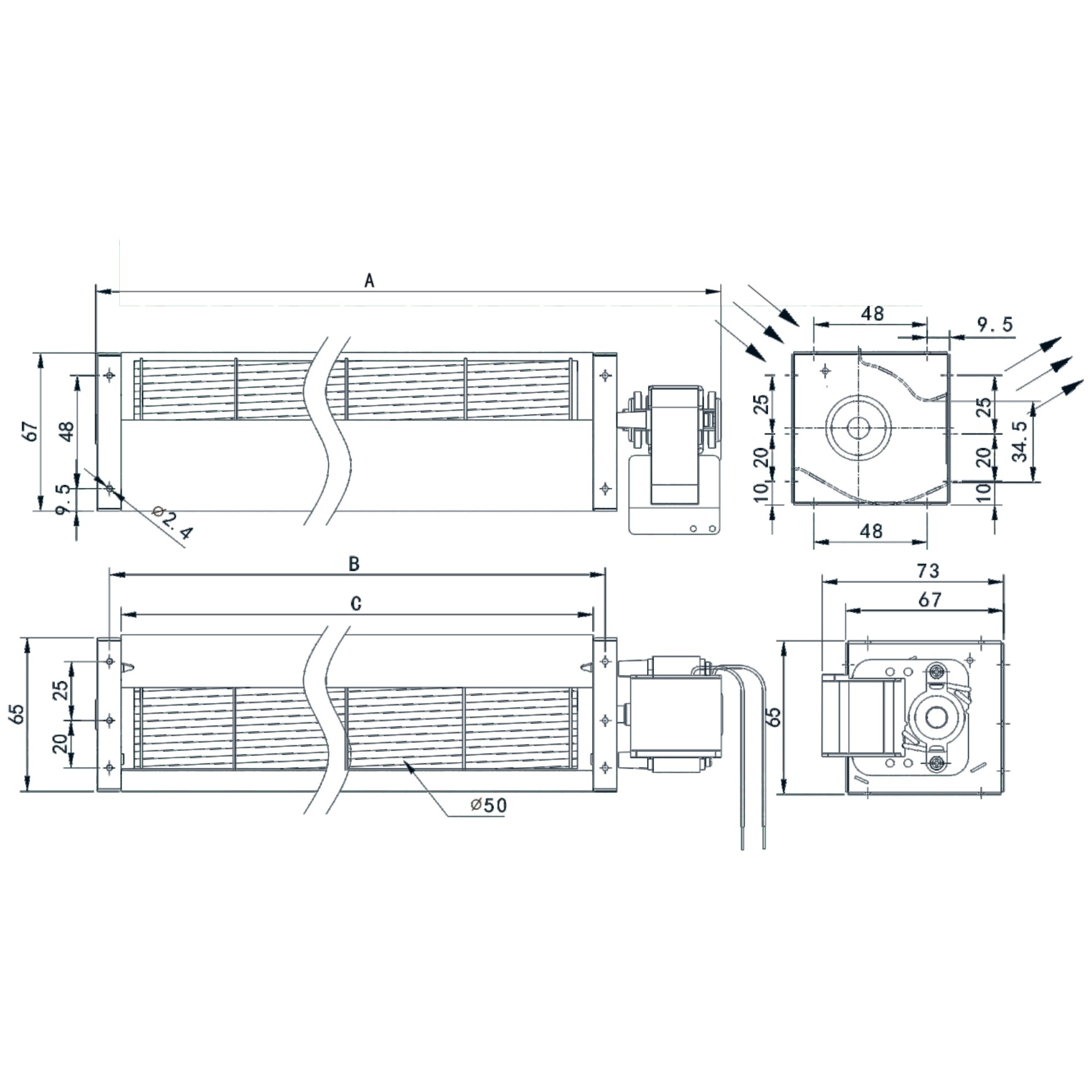

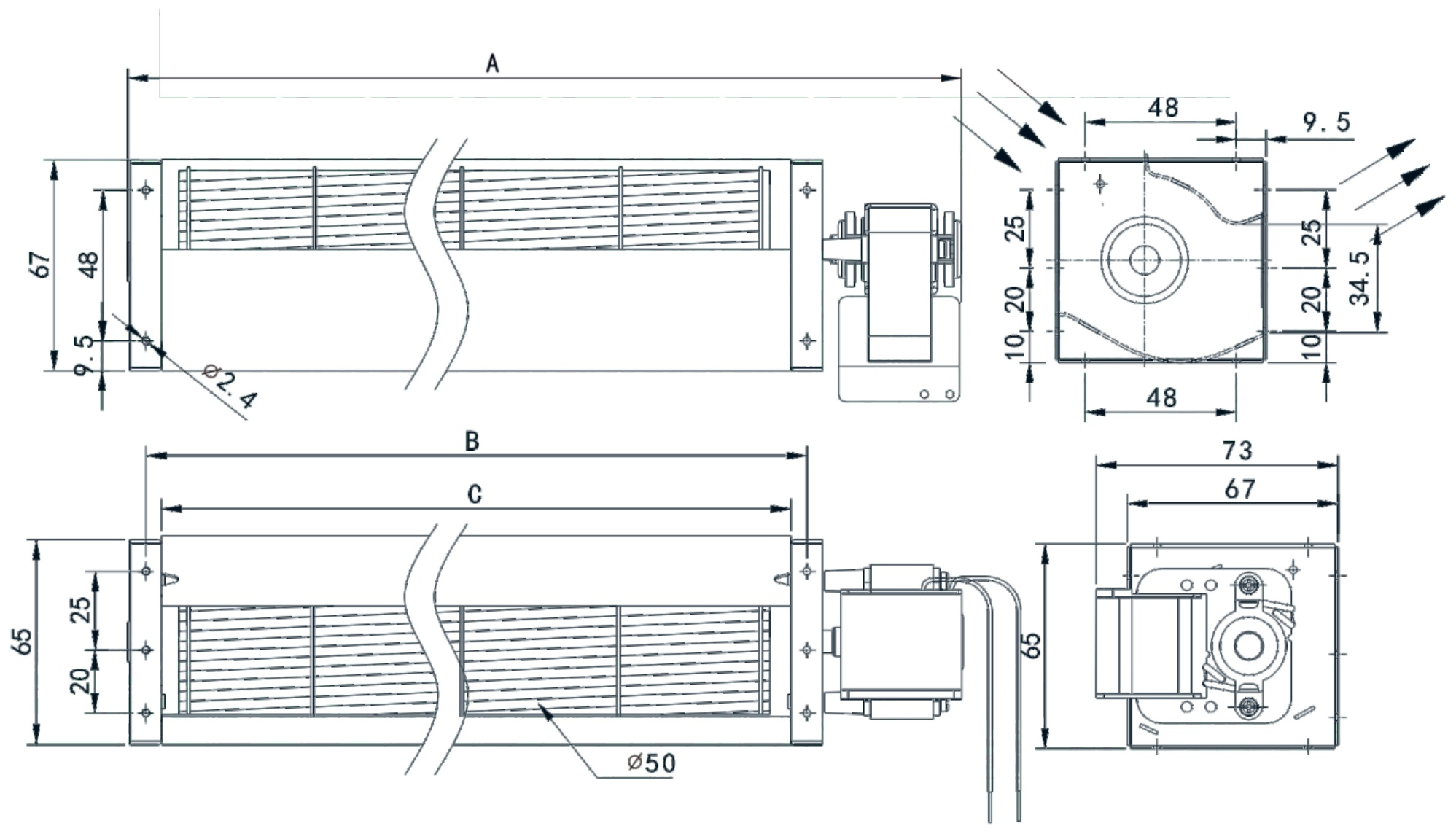

Engineering dimensional drawing for the Series 449 series, showing mounting dimensions and airflow direction.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|
| JLPA-50090AC | 10 | 11 | 10 | 120/60 | 0.37 | 20.7 | 3200 | 44 | 60 | 40 |
| JLPA-50090AC | 169 | 1 | 160 | 230/50 | 0.15 | 17 | 2700 | 37 | 50 | 40 |
| JLPA-50155AC | 000 | 170 | 160 | 120/60 | 0.38 | 21.6 | 3100 | 41 | 106 | 40 |
| ULS0TSUAC | 220 | 10 | 160 | 230/50 | 0.15 | 17.3 | 2500 | 37 | 90 | 40 |
| JLPA-50190AC | 060 | 01 | 000 | 120/60 | 0.38 | 23.3 | 3000 | 40 | 150 | 42 |
| JLS0190A0 | 260 | 210 | 260 | 230/50 | 0.16 | 17.6 | 2500 | 38 | 125 | 42 |
| JLPA-50250AC | 01 | 06 | 050 | 120/60 | 0.38 | 19.7 | 3000 | 42 | 190 | 44 |
| JLS0Z50AC | 010 | 260 | 250 | 230/50 | 0.18 | 19.8 | 2600 | 39 | 153 | 42 |
| JLPA-50290AC | 26 | 210 | 200 | 120/60 | 0.32 | 20 | 2800 | 45 | 199 | 45 |
| ULJ0290AC | 060 | 010 | 060 | 230/50 | 0.18 | 19.6 | 2500 | 40 | 187 | 43 |
| JLPA-50350AC | 42 | 370 | 260 | 120/60 | 0.33 | 20.9 | 2700 | 49 | 225 | 48 |
| JLPA-66600AC | 420 | 010 | 000 | 230/50 | 0.18 | 20 | 2500 | 44 | 216 | 48 |
| JLPA-50420AC | 488 | 430 | 430 | 120/60 | 0.35 | 22.1 | 2500 | 54 | 252 | 52 |
| SEPAC6420RG | 460 | 400 | 420 | 230/50 | 0.19 | 21.1 | 2300 | 49 | 206 | 49 |
