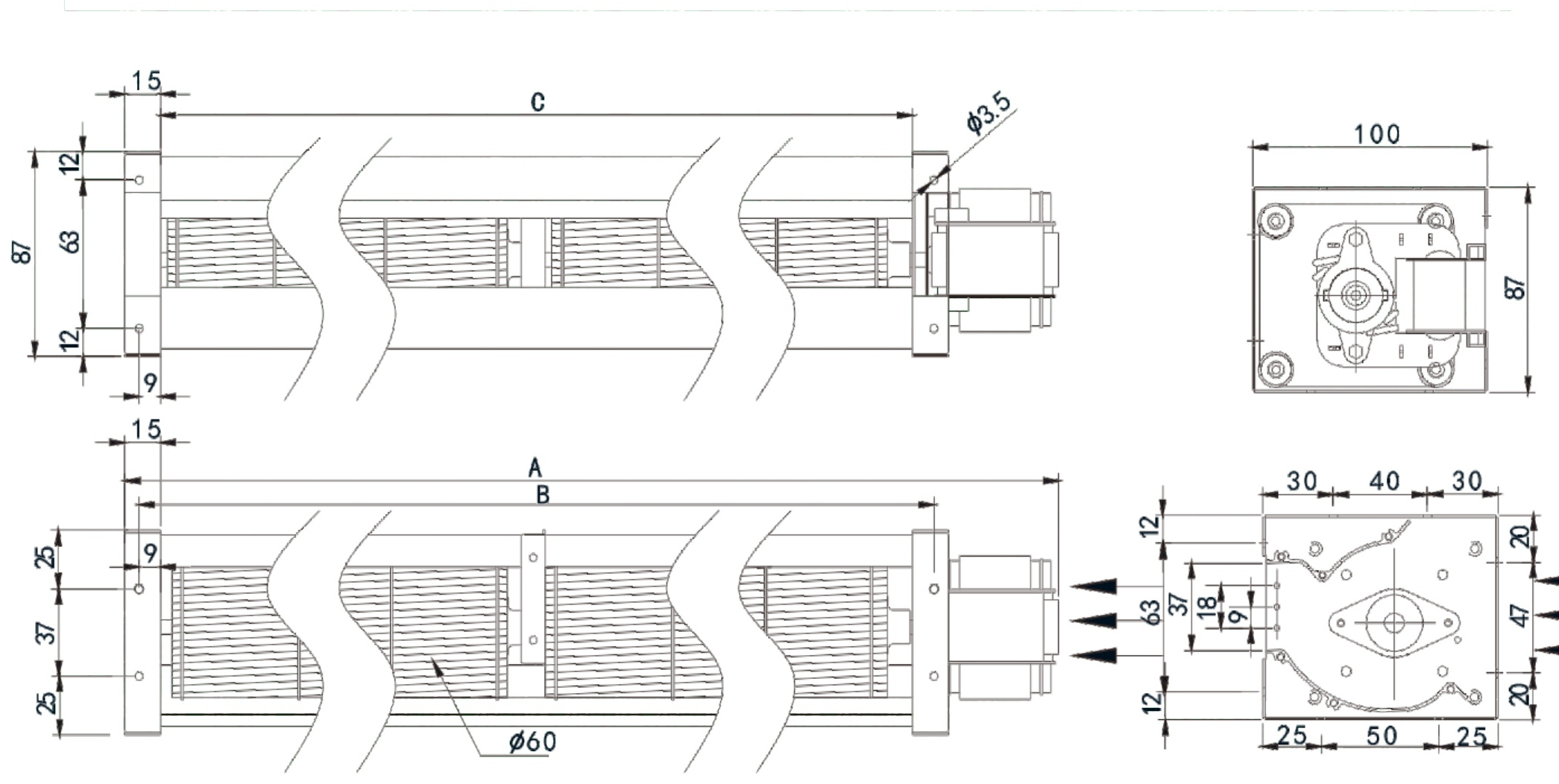

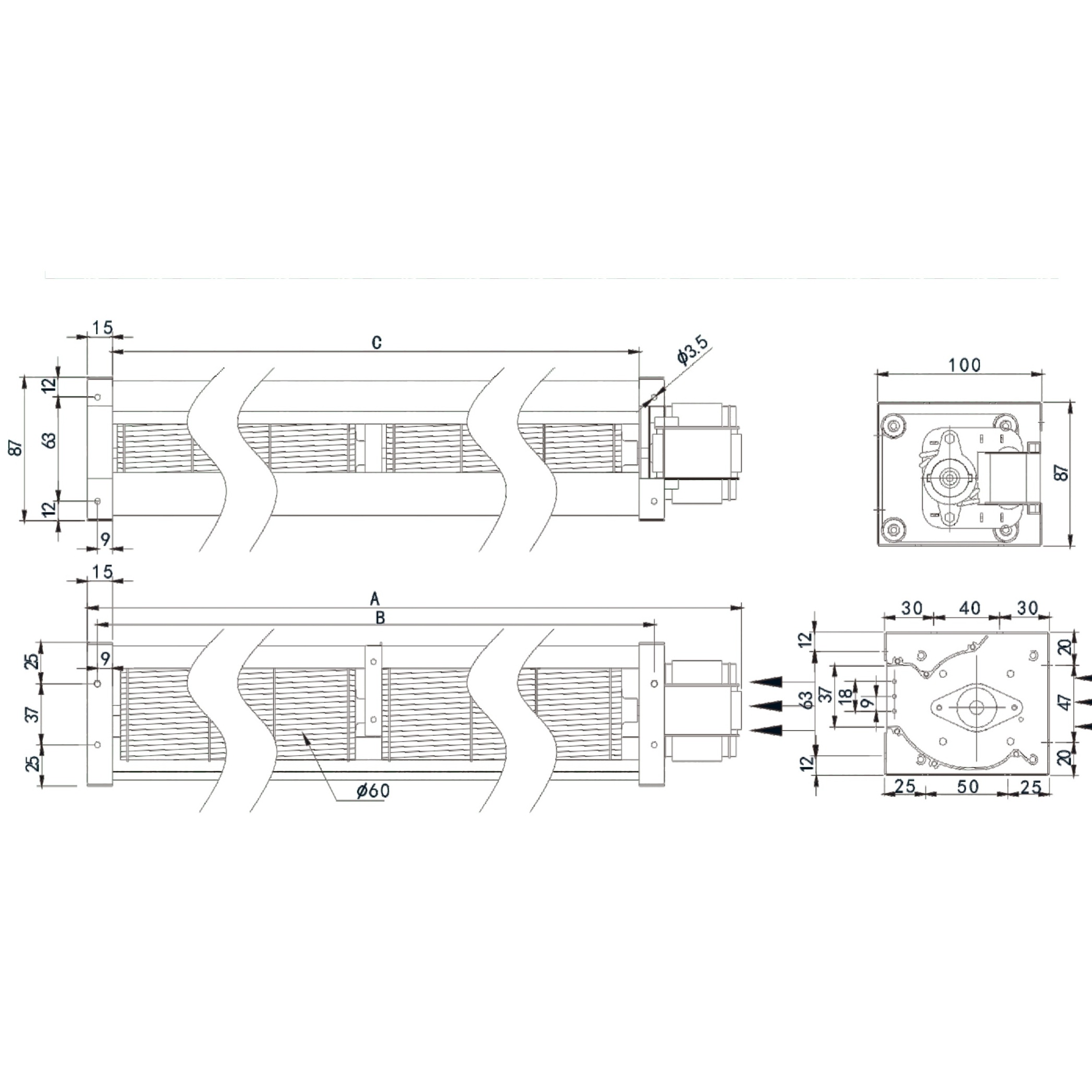

Source dimensional drawing for the Series 453 series.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|
| JLLZ-60240AC | 32 | 1 | 268 | 250230/5 | 6.0 | 24 | 2600 | 251 | 5945 | — |
| JLLZ-60300AC | 38 | 1 | 328 | 310230/5 | 6.3 | 25 | 2500 | 262 | 0845 | — |
| JLLZ-60360AC | 42 | 1 | 368 | 350230/5 | 5.8 | 26 | 2400 | 242 | 3445 | — |
| JLLZ-60420AC | 49 | 6 | 443 | 425230/5 | 5.5 | 27 | 2300 | 242 | 7644 | — |
| JLLZ-60520AC | 59 | 6 | 538 | 520230/5 | 5.8 | 31 | 2400 | 253 | 1544 | — |
| JLLZ-60610AC | 68 | 6 | 628 | 610230/5 | 5.5 | 32 | 2300 | 233 | 5543 | Dual blower |
| JLLZ-60750AC | 83 | 1 | 768 | 750230/5 | 5.5 | 34 | 2300 | 244 | 0543 | Dual blower |
| JLLZ-60870AC | 95 | 1 | 888 | 870230/5 | 5.0 | 35 | 2100 | 204 | 7542 | Dual blower |
