28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 454 series.

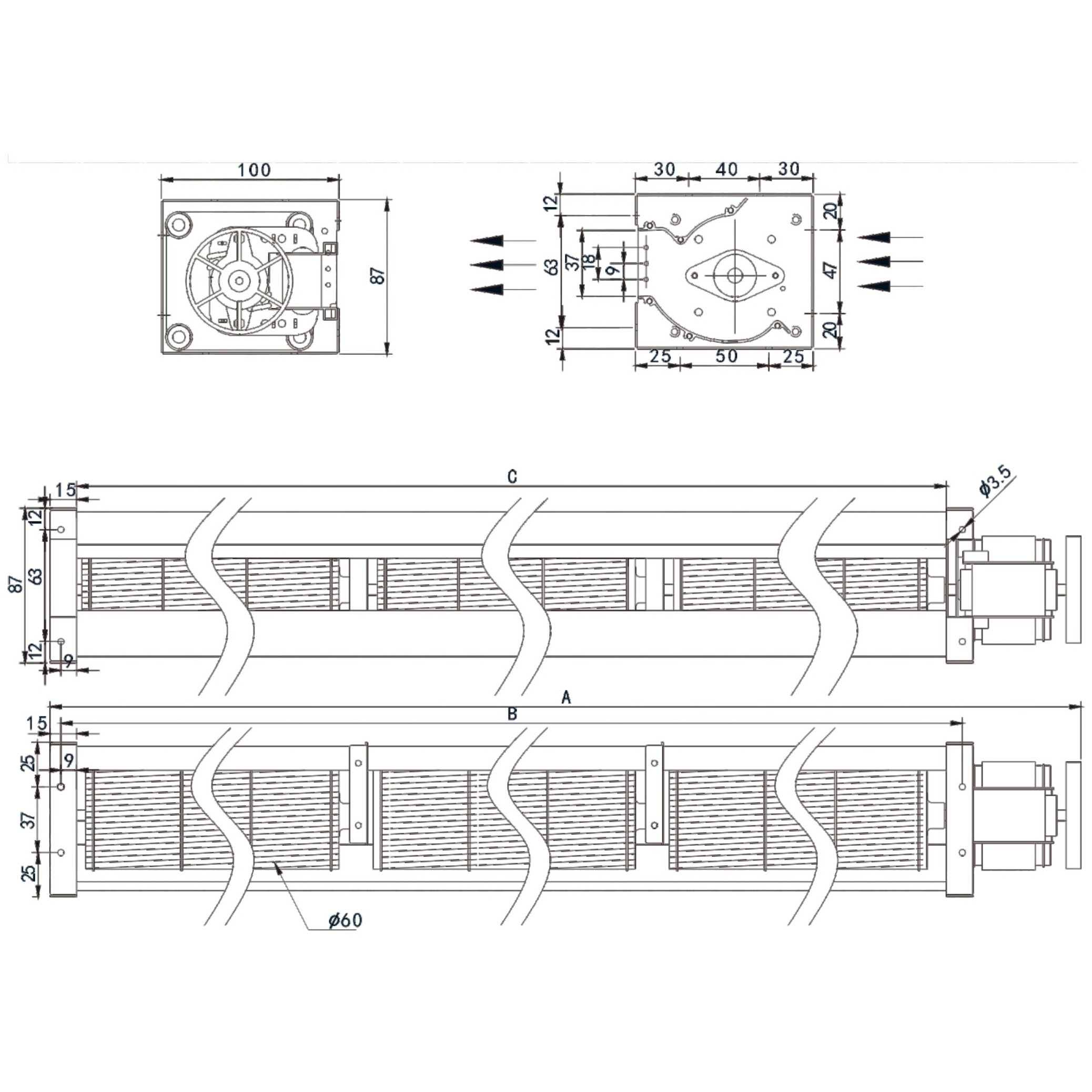

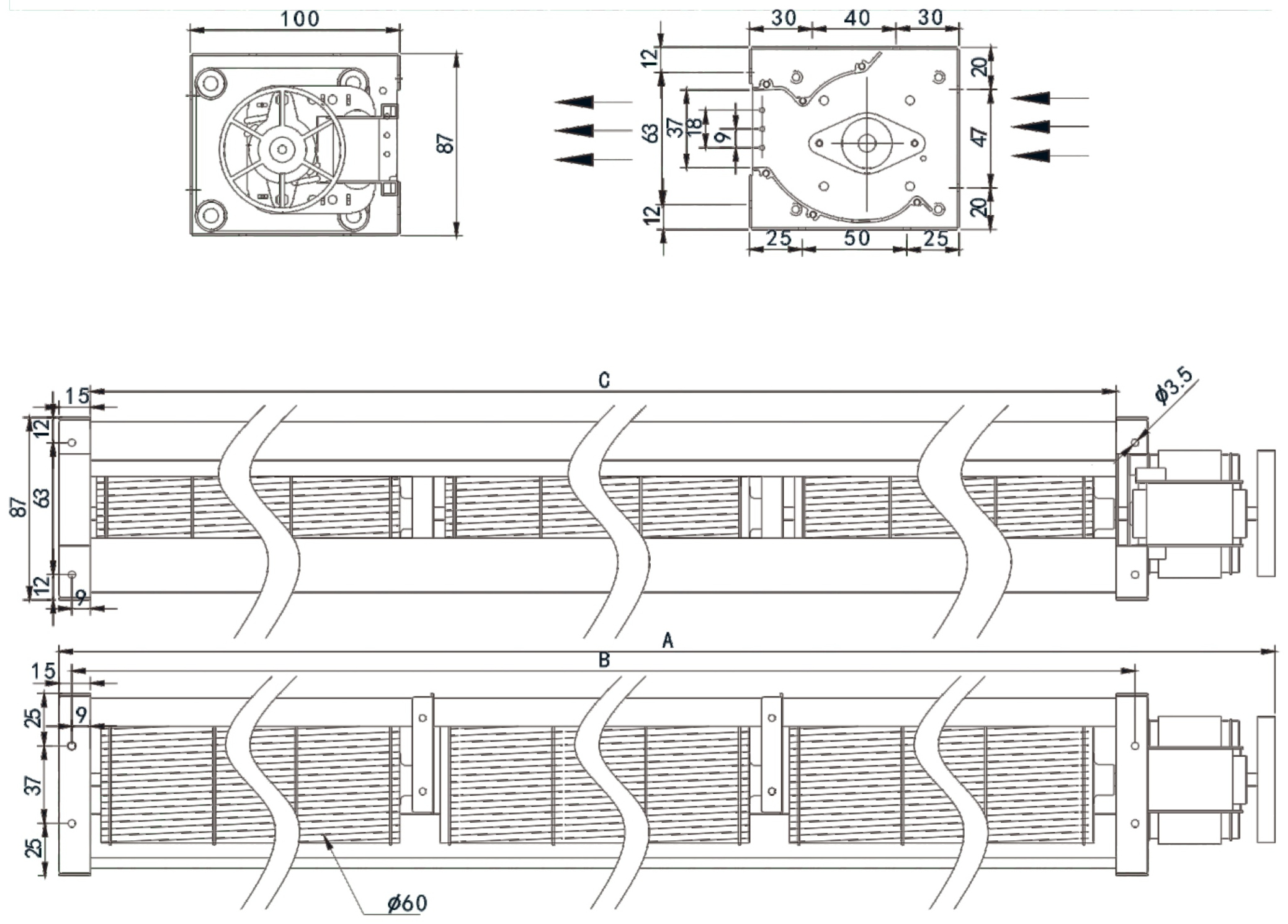

Engineering dimensional drawing for the Series 454 series, showing mounting dimensions and airflow direction.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|
| JLLZ-60920AC | 100 | 3 | 938 | 920230/5 | 6.2 | 46 | 2500 | 235 | 5744 | Triple blower |
| JLLZ-601080AC | 116 | 3 | 098 | 1080230/5 | 5.6 | 50 | 2300 | 246 | 5044 | Triple blower |
| JLLZ-601300AC | 138 | 3 | 318 | 1300230/5 | 5.2 | 52 | 2200 | 247 | 2045 | Triple blower |
