28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 459 series.

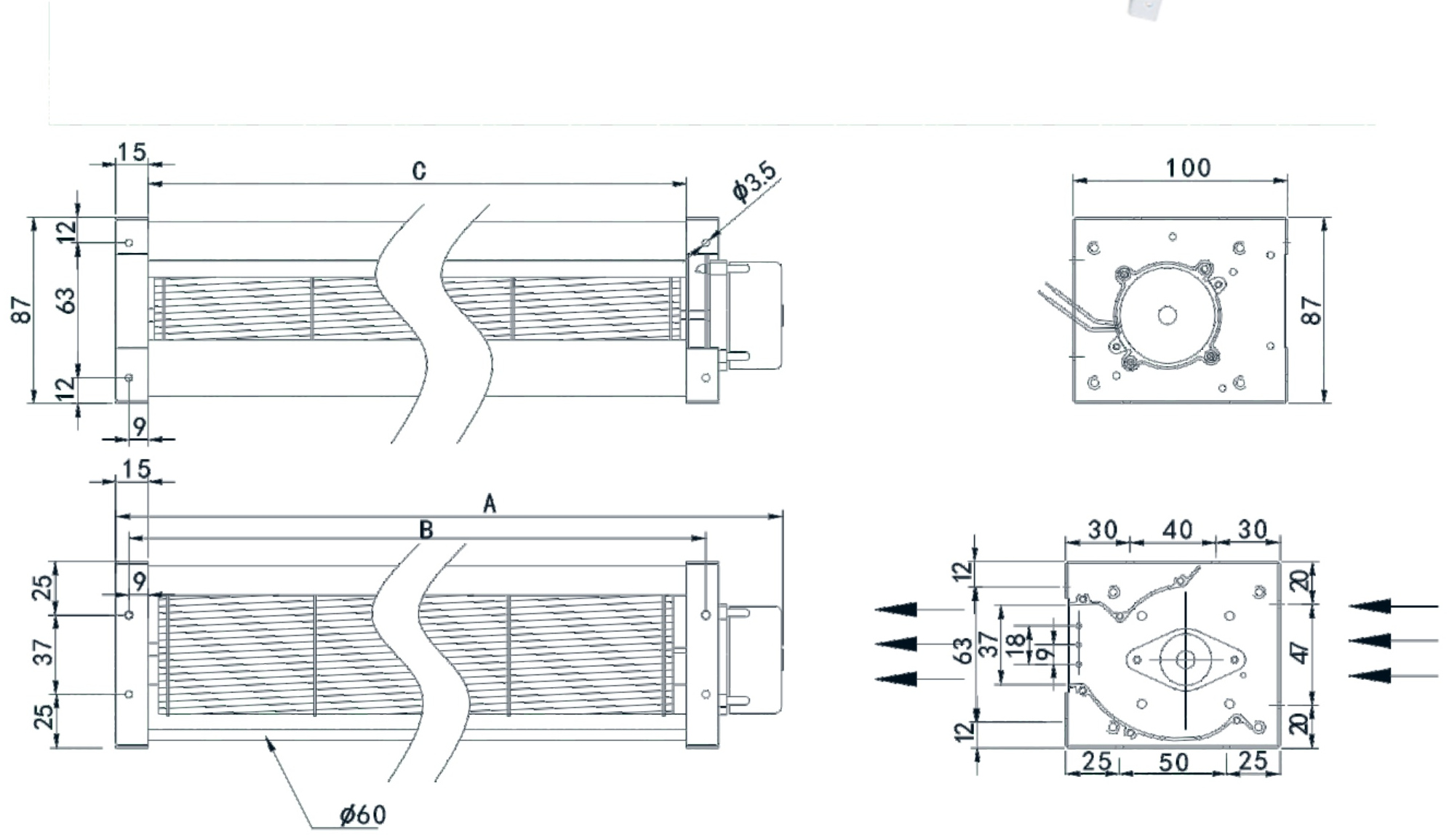

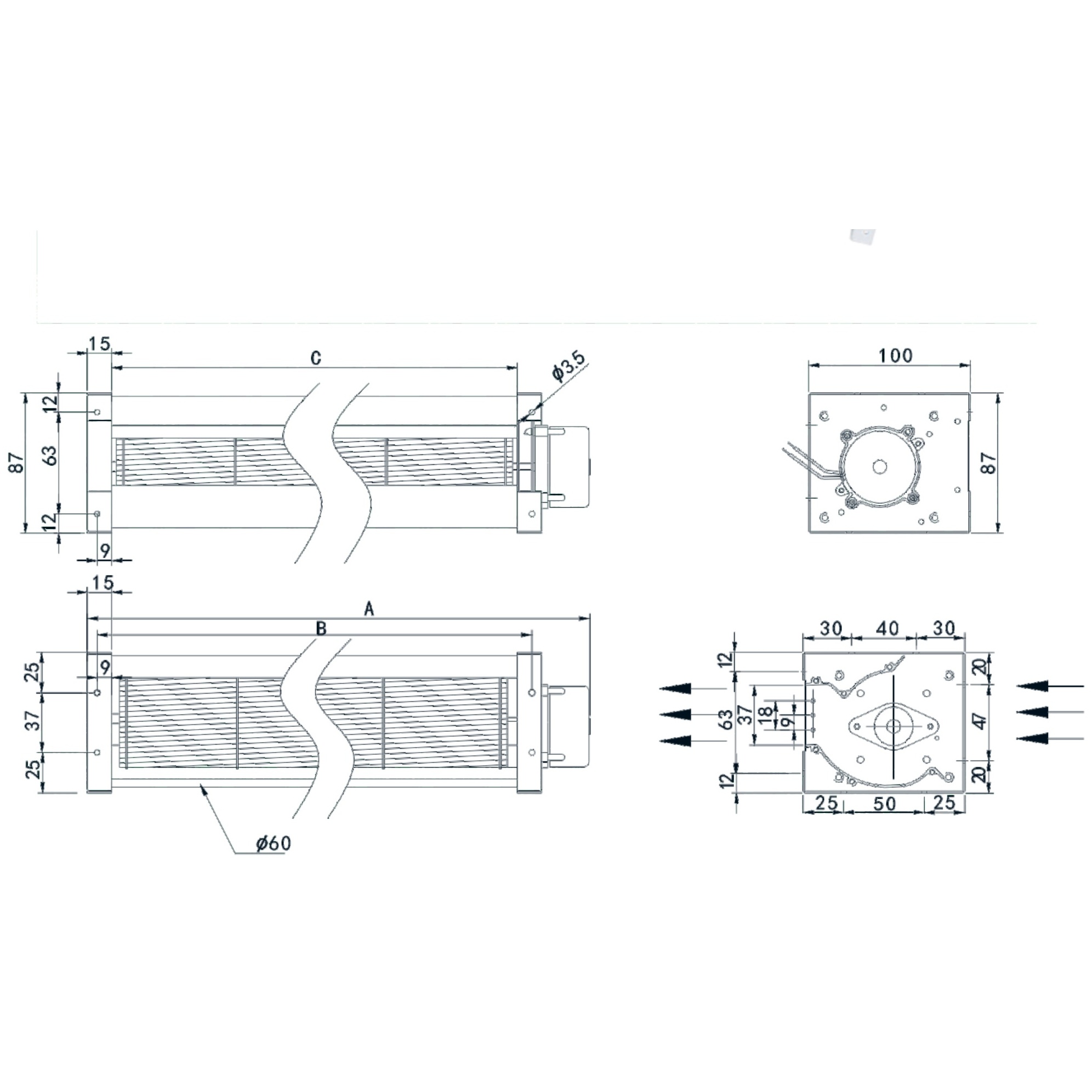

Engineering dimensional drawing for the Series 459 series, showing mounting dimensions and airflow direction.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|
| JLLZ-60240DC | 3 | — | 268 | 250 | 24 | 0.20 | 2400 | 22 | 152 | 4 |
| JLLZ-60300DC | 3 | — | 328 | 310 | 24 | 0.25 | 2400 | 24 | 186 | 40 |
| JLLZ-60360DC | 4 | — | 368 | 350 | 24 | 0.30 | 2400 | 24 | 212 | 41 |
| JLLZ-60420DC | 48 | 35 | 443 | 425 | 24 | 0.40 | 2400 | 24 | 277 | 42 |
| JLLZ-60520DC | 58 | — | 538 | 520 | 24 | 0.45 | 2400 | 24 | 315 | 43 |
