28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 460 series.

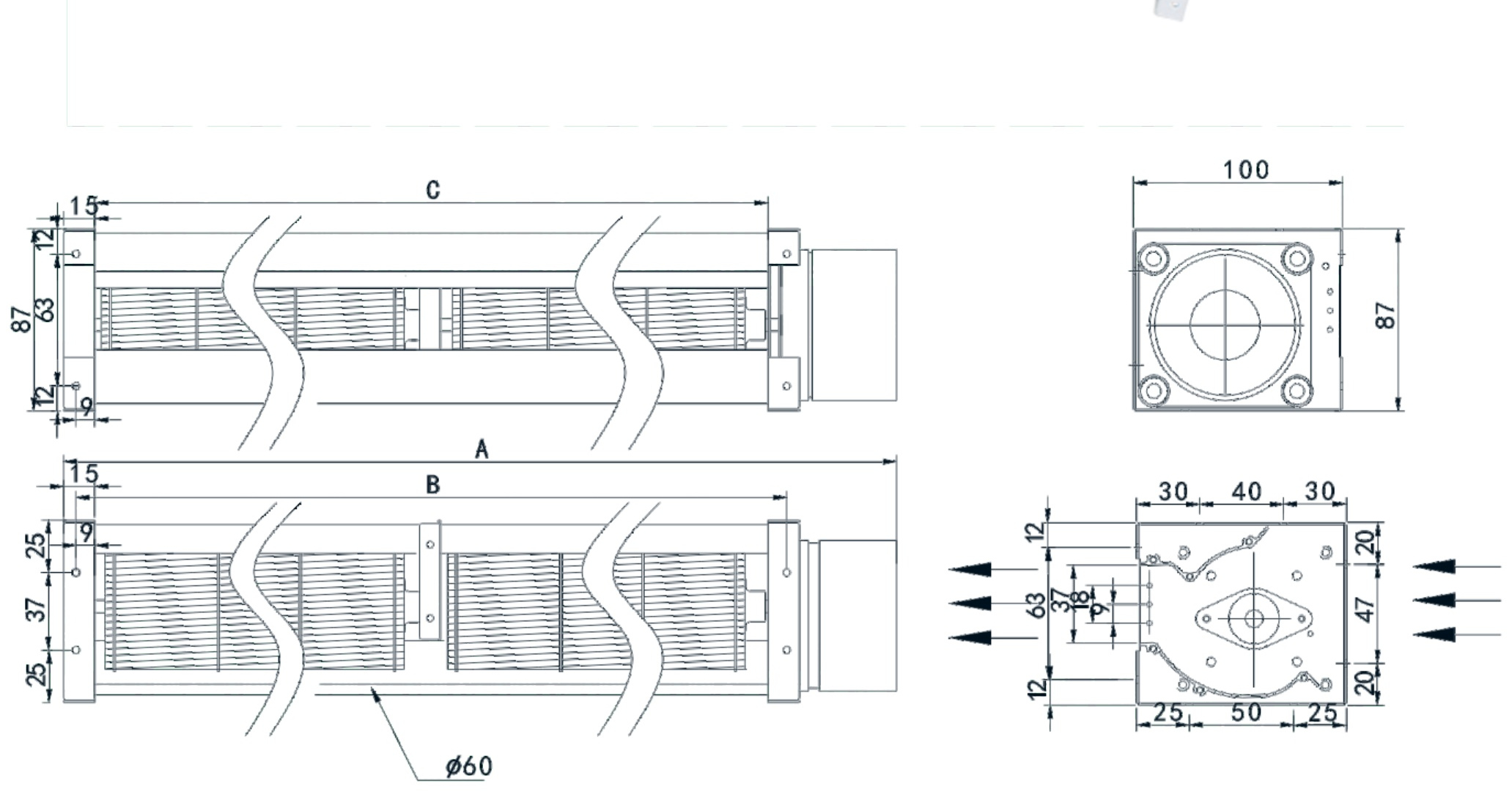

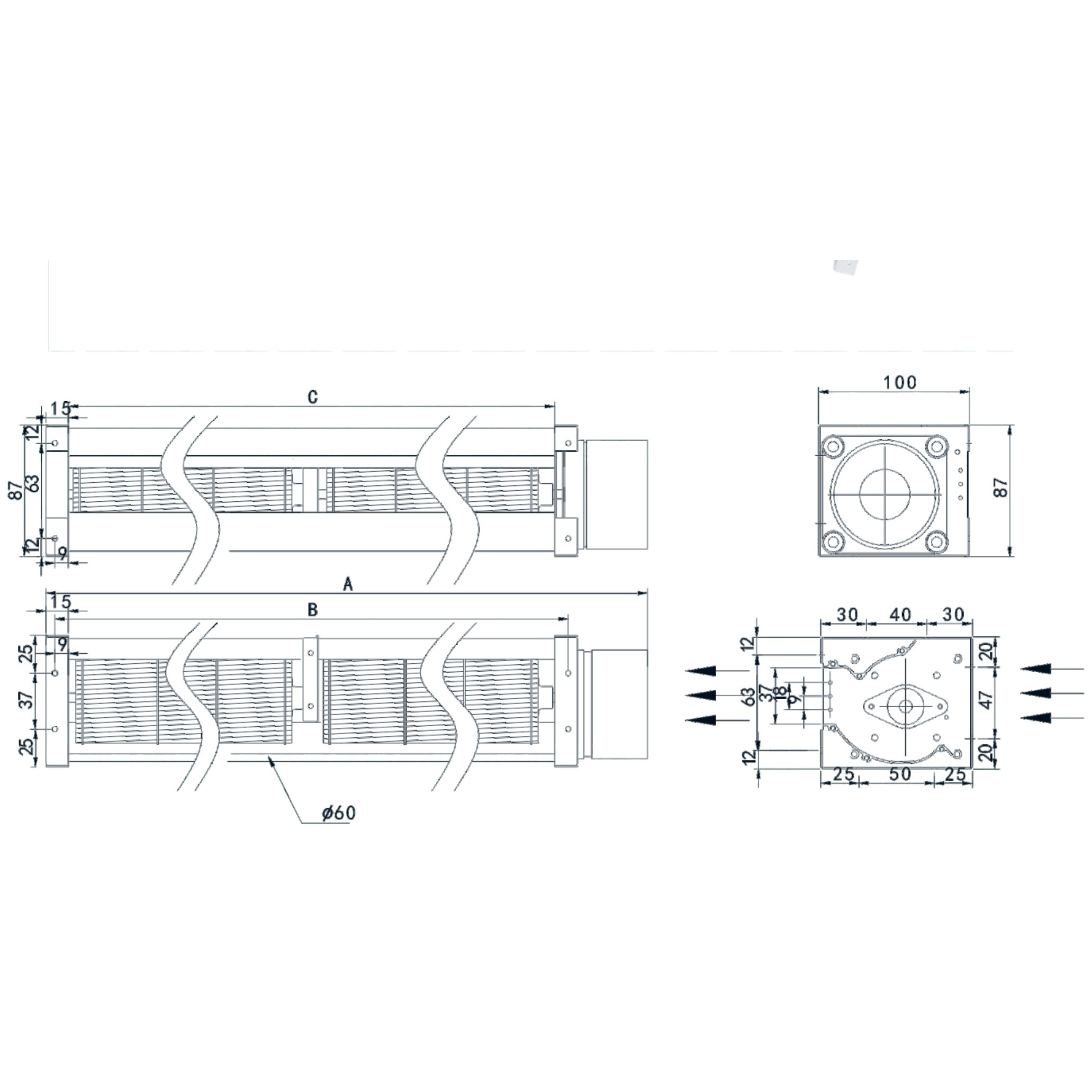

Engineering dimensional drawing for the Series 460 series, showing mounting dimensions and airflow direction.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|
| JLLZ-60610DC | 693 | 628 | 61 | 024 | 0.60 | 2400 | 24 | 380 | 44 | Dual blower |
| JLLZ-60750DC | 833 | 768 | 75 | 024 | 0.65 | 2400 | 24 | 440 | 44 | Dual blower |
| JLLZ-60870DC | 953 | 888 | 87 | 024 | 0.80 | 2400 | 24 | 510 | 46 | Dual blower |
| JLLZ-60920DC | 1003 | 938 | 92 | 24 | 0.85 | 2400 | 24 | 540 | 46 | Triple blower |
| JLLZ-601080DC | 1163 | 109 | 3108 | 6024 | 1.00 | 2400 | 24 | 630 | 47 | Triple blower |
| JLLZ-601300DC | 1383 | 131 | 130 | 024 | 1.20 | 2400 | 24 | 760 | 47 | Triple blower |
