28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 463 series.

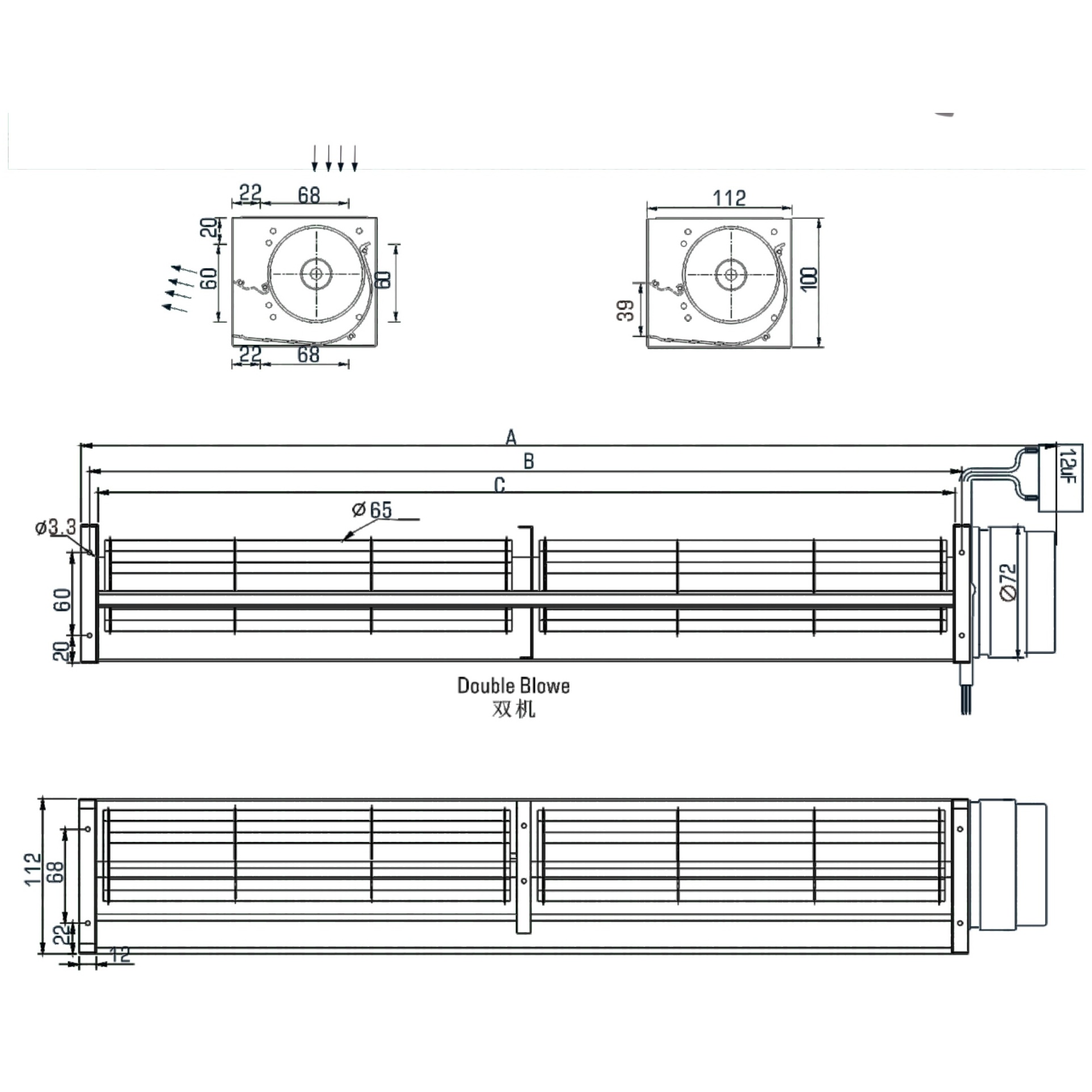

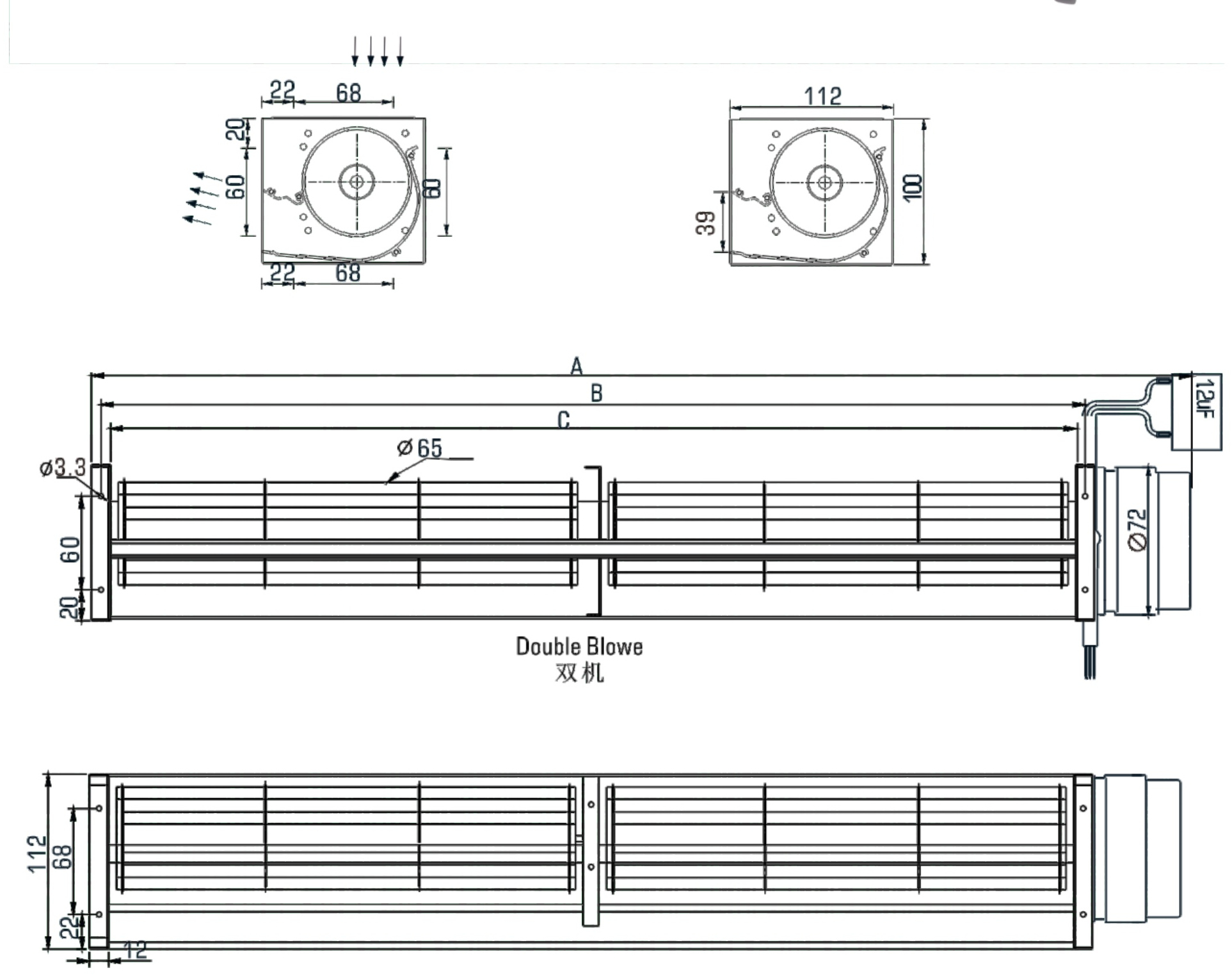

Engineering dimensional drawing for the Series 463 series, showing mounting dimensions and airflow direction.
| Model | Size A (mm) | Size B (mm) | Size C (mm) | Voltage / Frequency (V/Hz) | Current (A) | Power (W) | Speed (RPM) | Pressure (Pa) | Air Flow (CFM) | Noise (dB(A)) |
|---|---|---|---|---|---|---|---|---|---|---|
| JLLF-65520AC | 605 | 532 | 52 | 0230/504 | 50. | 2120 | 42 | 470 | 35 | — |
| JLLF-65620AC | 705 | 632 | 62 | 0230/504 | 70. | 2100 | 40 | 485 | 33 | — |
