28080 Explosion-Proof Axial Fan
28080 Explosion-Proof Axial Fan — compact 280 × 280 × 80mm industrial cooling fan.
Source dimensional drawing for the Series 8 series.
Source performance curve for the Series 8 series.

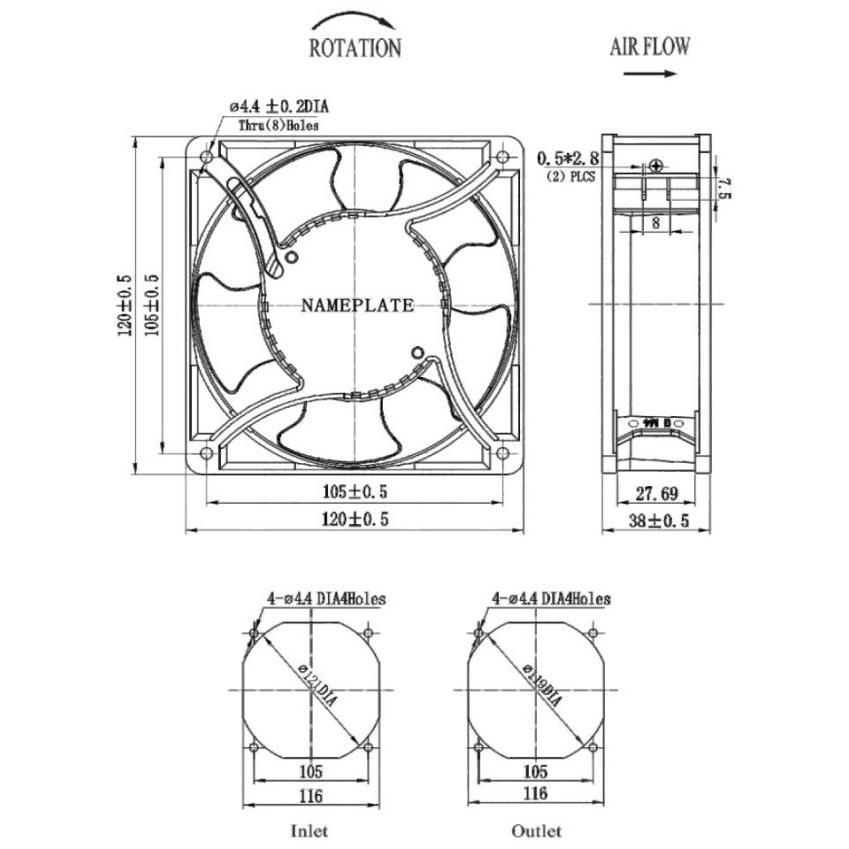

Engineering dimensional drawing for the Series 8 series, showing mounting dimensions and airflow direction.

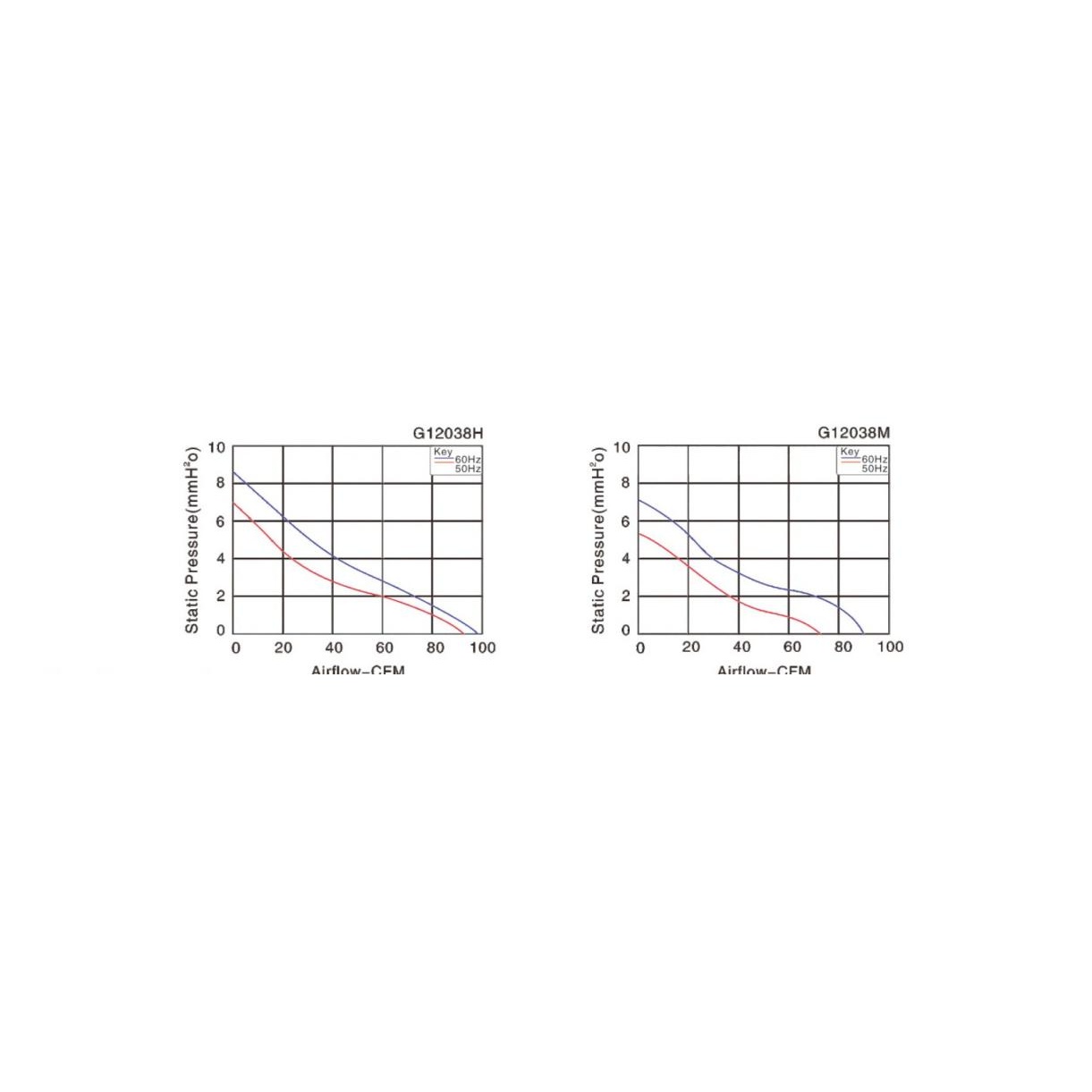

Static pressure vs. airflow performance curve for the Series 8 series under standard operating conditions.

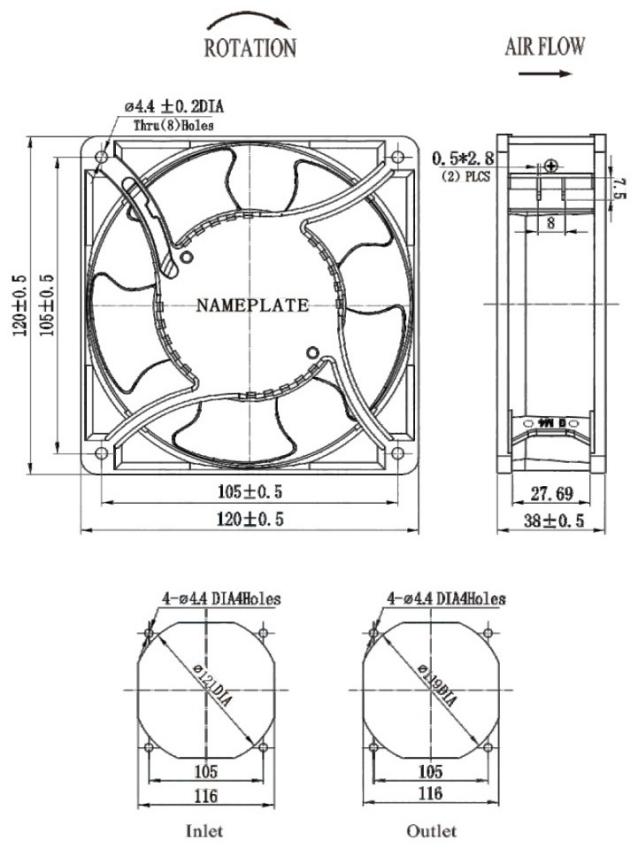

Engineering dimensional drawing for the Series 8 series, showing mounting dimensions and airflow direction.

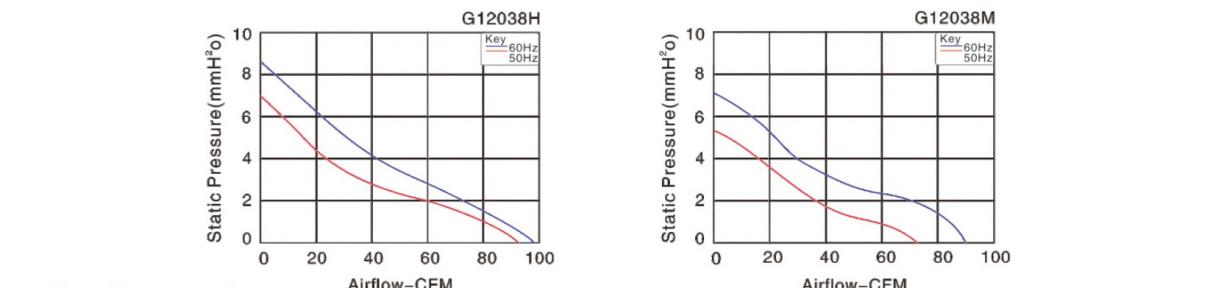

Static pressure vs. airflow performance curve for the Series 8 series under standard operating conditions.
Engineering dimensional drawing for the Series 8 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 8 series under standard operating conditions.
Engineering dimensional drawing for the Series 8 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 8 series under standard operating conditions.
Engineering dimensional drawing for the Series 8 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 8 series under standard operating conditions.
Engineering dimensional drawing for the Series 8 series, showing mounting dimensions and airflow direction.
Static pressure vs. airflow performance curve for the Series 8 series under standard operating conditions.
| Size | 120mm×120mm×38mm |
|---|---|
| Airflow | 76-98CFM |
| Noise | 39-48dB(A) |
| Impeller Material | PBT UL94-V0 Reinforced Plastic |
| Frame | Aluminum Alloy |
| Terminals | 0.5mm |
| Lead Wire | AWG#22 UL1569(Optional) |
| Motor | Shaded Pole Induction Motor |
| Operating Temperature | -10℃~+65℃ |
| Model | Bearing | Voltage VAC | Freq. Hz | Current A | Power W | Speed RPM | Noise dB(A) | Air Flow CFM | Phase | Capacitor µF/VAC |
|---|---|---|---|---|---|---|---|---|---|---|
| G12038HA₁S | Sleeve | 100/125 | 50/60 | 0.32/0.25 | 22/18 | 2600/3000 | 43/48 | 93/98 | 1 | — |
| G12038HA₂S | Sleeve | 200/240 | 50/60 | 0.15/0.12 | 21/18 | 2600/3000 | 43/48 | 93/98 | 1 | — |
| G12038HA₃S | Sleeve | 380/420 | 50/60 | 0.10/0.07 | 24/19 | 2600/3000 | 43/48 | 93/98 | 1 | — |
| G12038HA₁B | Ball | 100/125 | 50/60 | 0.32/0.25 | 22/18 | 2600/3000 | 43/48 | 93/98 | 1 | — |
| G12038HA₂B | Ball | 200/240 | 50/60 | 0.15/0.12 | 21/18 | 2600/3000 | 43/48 | 93/98 | 1 | — |
| G12038HA₃B | Ball | 380/420 | 50/60 | 0.1/0.07 | 24/19 | 2600/3000 | 43/48 | 93/98 | 1 | — |
| G12038MA₁S | Sleeve | 100/125 | 50/60 | 0.24 | 18 | 2200/2600 | 39/44 | 76/94 | 1 | — |
| G12038MA₂S | Sleeve | 200/240 | 50/60 | 0.11 | 19 | 2200/2600 | 39/44 | 76/94 | 1 | — |
| G12038MA₁B | Sleeve | 100/125 | 50/60 | 0.22 | 19 | 2200/2600 | 39/44 | 76/94 | 1 | — |
