G12038H SERIES

Series 9 AC Axial Fan, features a compact 120mm×120mm×38mm design, with a durable Aluminum Alloy frame, and PBT UL94-V0 Reinforced Plastic impeller, powered by a Shaded Pole Induction Motor. Engineered for reliable airflow performance, it is ideal for OEM and industrial applications requiring consistent cooling.

Size: 120mm×120mm×38mm
Airflow: 78-112CFM
Noise: 35-44dB(A)
Frame: Aluminum Alloy
Impeller Material: PBT UL94-V0 Reinforced Plastic
Motor: Shaded Pole Induction Motor
Operating Temperature: -10℃~+65℃
Terminals: 0.5mm

Chat Now Message Email

Product details

Parameters

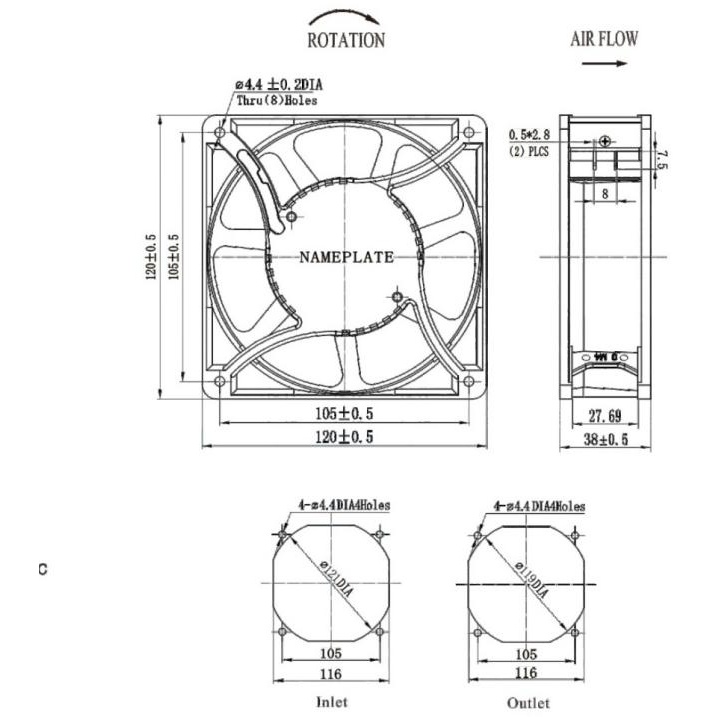

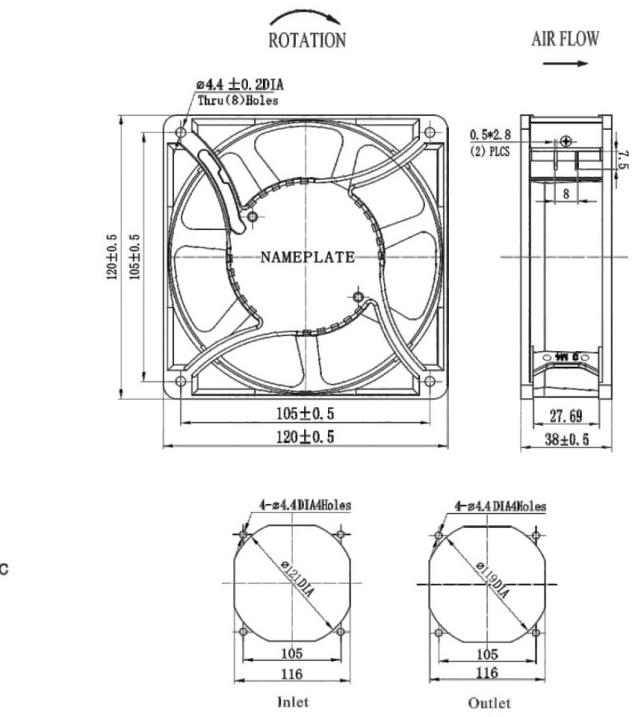

Dimensions and construction

Source dimensional drawing for the Series 9 series.

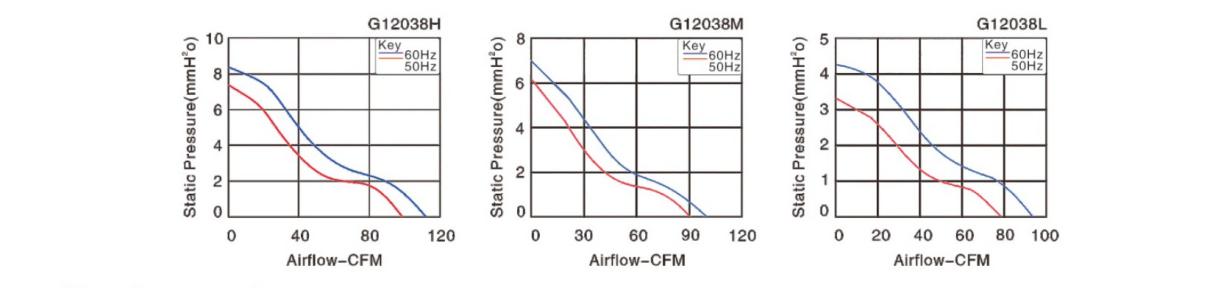

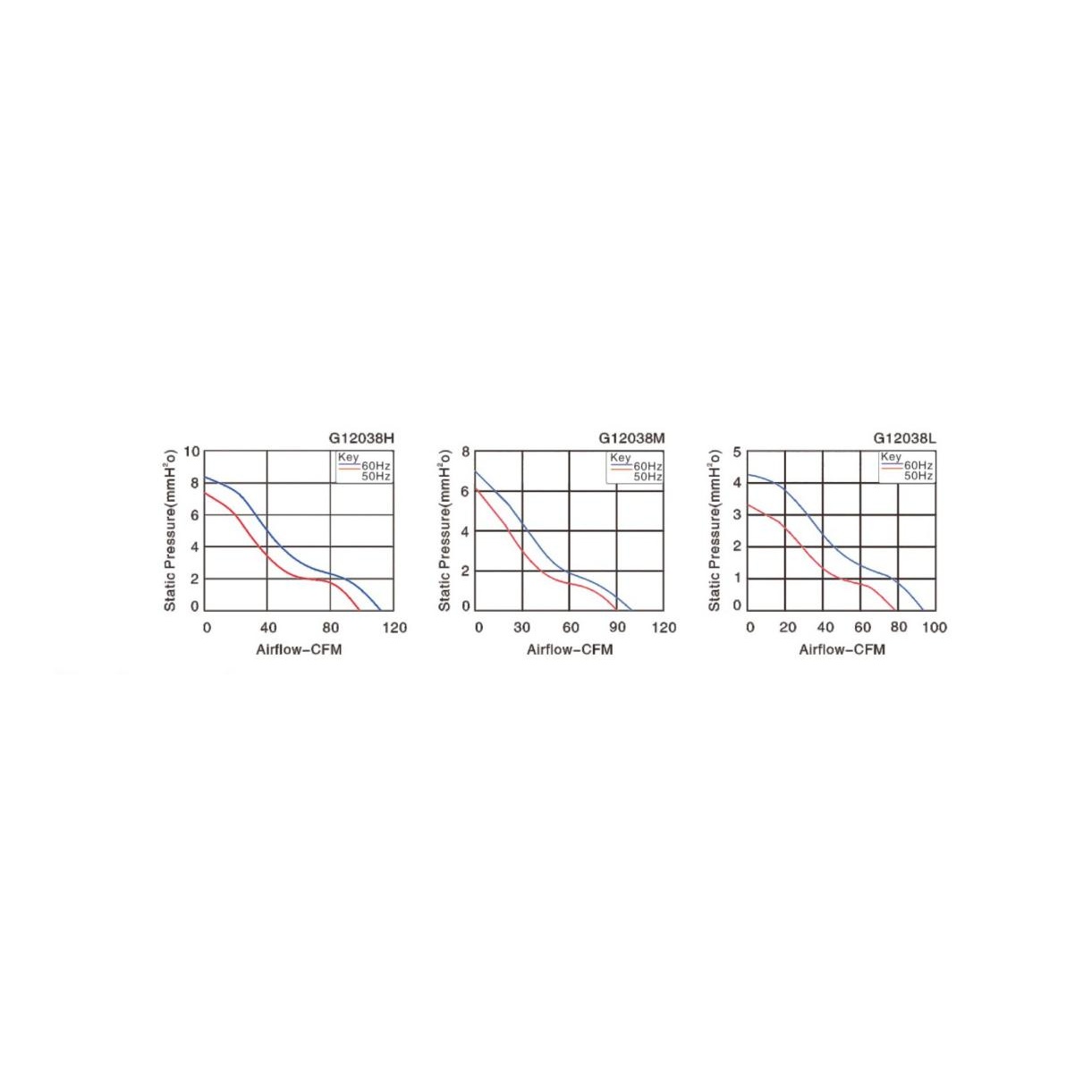

Performance curve

Source performance curve for the Series 9 series.

Series 9 technical parameters

Product description

Size	120mm×120mm×38mm
Airflow	78-112CFM
Noise	35-44dB(A)
Impeller Material	PBT UL94-V0 Reinforced Plastic
Frame	Aluminum Alloy
Terminals	0.5mm
Lead Wire	AWG#22 UL1569(Optional)
Motor	Shaded Pole Induction Motor
Operating Temperature	-10℃~+65℃

Model specifications

Model	Bearing	Voltage VAC	Freq. Hz	Current A	Power W	Speed RPM	Noise dB(A)	Air Flow CFM	Phase	Capacitor µF/VAC
G12038HA₁S-7P	Sleeve	100/125	50/60	0.35/0.25	25/18	2600/3000	39/44	99/112	1	—
G12038HA₂S-7P	Sleeve	200/240	50/60	0.18/0.15	25/26	2600/3000	39/44	99/112	1	—
G12038HA₁B-7P	Ball	100/125	50/60	0.35/0.25	25/18	2600/3000	39/44	99/112	1	—
G12038HA₂B-7P	Ball	200/240	50/60	0.18/0.15	25/26	2600/3000	39/44	99/112	1	—
G12038MA₁S-7P	Sleeve	100/125	50/60	0.25	19/17	2450/2700	38/42	91/100	1	—
G12038MA₂S-7P	Sleeve	200/240	50/60	0.16	16/15	2450/2700	38/42	91/100	1	—
G12038MA₁B-7P	Ball	100/125	50/60	0.25	19/17	2450/2700	39/42	91/100	1	—
G12038MA₂B-7P	Ball	200/240	50/60	0.16	16/15	2450/2700	39/42	91/100	1	—
G12038LA₁S-7P	Sleeve	100/125	50/60	0.20	14/13	2100/2400	35/40	78/91	1	—
G12038LA₂S-7P	Sleeve	200/240	50/60	0.10	12/11	2100/2450	35/40	78/91	1	—
G12038LA₁B-7P	Sleeve	100/125	50/60	0.20	14/13	2100/2450	35/38	78/91	1	—
